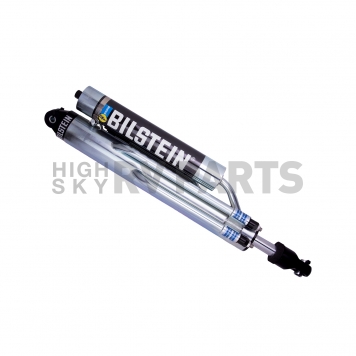

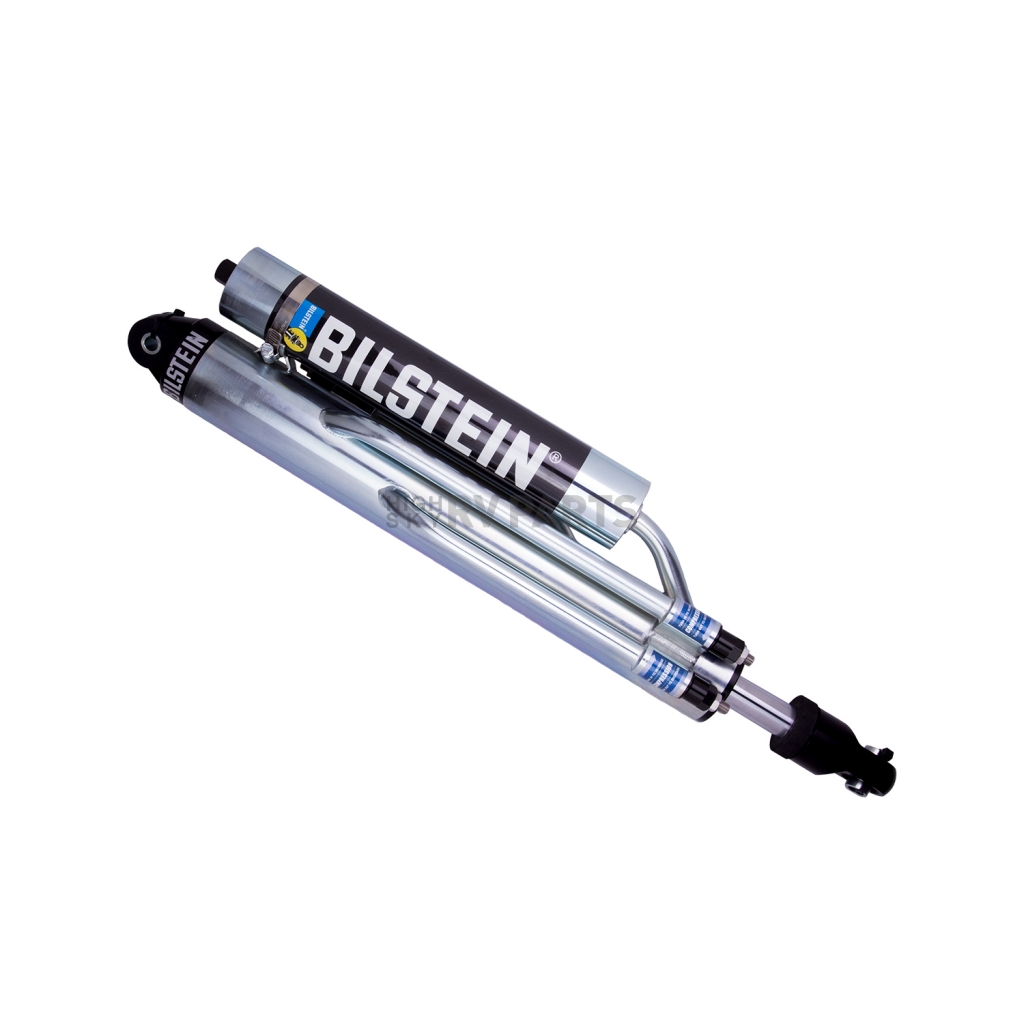

Bilstein M 9200 Bypass Series Shock Absorber - 33-250656

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: 33-250656
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 25
Retail: $1,771.34
Price: $1,686.99
You Save: $84.35
Body Color
 Silver
Compressed Length (IN)
 24-1/2 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 38-1/2 Inch
Includes Boot
 No
Includes Dust Shield
 No
Includes Hardware
 No
Internal Design
 Monotube
Lower Mounting Style
 Eyelet
Quantity
 Single
Type
 Nitrogen Gas Charged
Share this page

Shock Absorber; M 9200 (Bypass); Nitrogen Gas Charged; With Reservoir; 70 Millimeter Diamiter; Limited 90 Day Warranty; 38.5 Inch Extended Height/ 24.5 Inch Collapsed Height; Without Shock Boots; Zinc Plated; Single

MPN: 33-250656

The BILSTEIN M 9200 (Bypass) shock absorbers are position sensitive and adjustable, offering multiple zones of damping control. Utilizing an externally adjustable bypass shock is the easiest and most effective way to tune your off-road suspension for the

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Extended Length (IN): 38-1/2 Inch
Compressed Length (IN): 24-1/2 Inch
Upper Mounting Style: Eyelet
Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Single
Valving Type: OEM
With Reservoir: Yes
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: No
Estimated Install Time (Hours): 0.5

Features

  • 70 Millimeter Monotube Design
  • 4 Tube And 3 Tube, Position Sensitive With Adjustable Rebound And Compression
  • 1-1/8 Inch Case Hardened, Centerless Ground Piston Rod
  • All Machined Billet Aluminum Components
  • 3 Stage High-Temperature Seal
  • Red Synthetic High-Temperature Racing Oil
  • Owner Rebuildabe
  • Limited 90 Day Warranty
Specifications of Bilstein M 9200 Bypass Series Shock Absorber - 33-250656
Body Color  Silver
Compressed Length (IN)  24-1/2 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  38-1/2 Inch
Includes Boot  No
Includes Dust Shield  No
Includes Hardware  No
Internal Design  Monotube
Lower Mounting Style  Eyelet
Quantity  Single
Type  Nitrogen Gas Charged
Upper Mounting Style  Eyelet
Valving Type  OEM
With Coil Spring  No
With Reservoir  Yes
