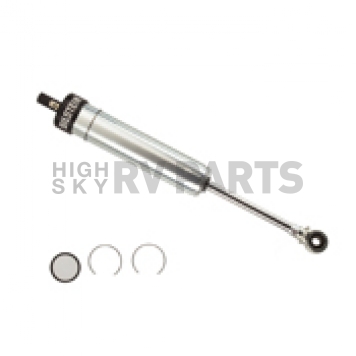

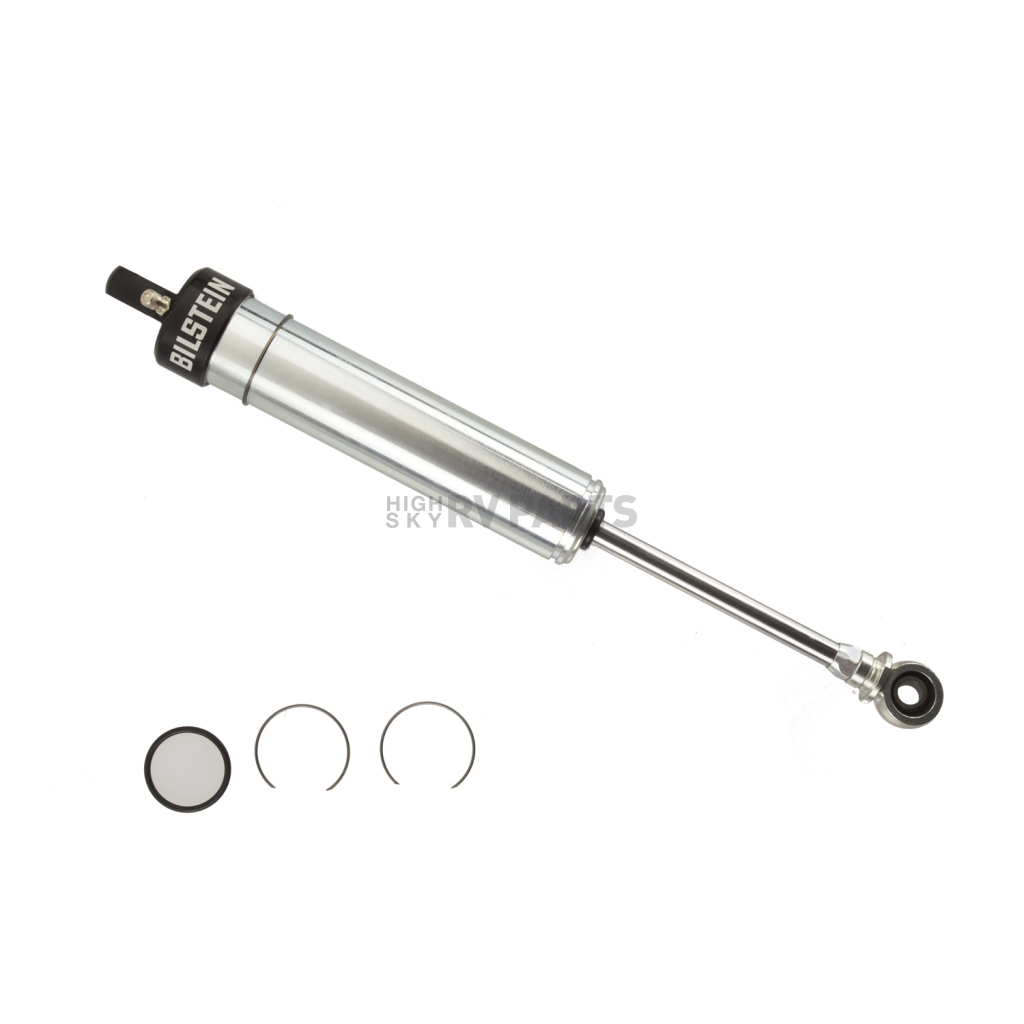

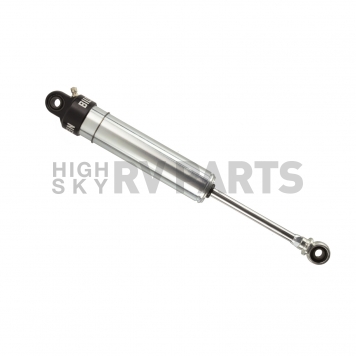

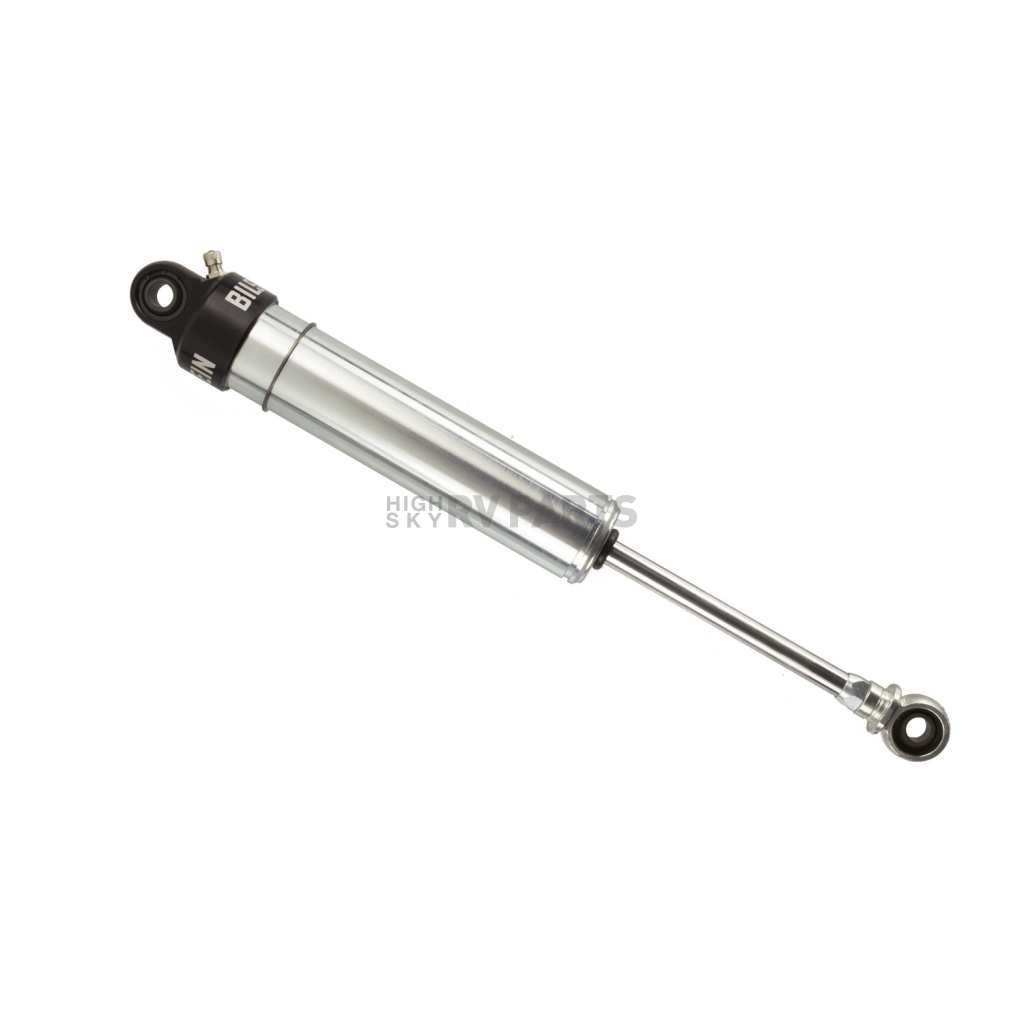

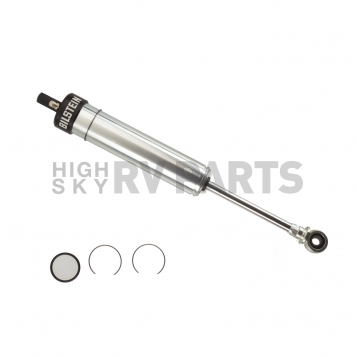

Bilstein SN2 Series Shock Absorber - 33-247762

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: 33-247762
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $225.74
Price: $214.99
You Save: $10.75
Adjustable Valving
 Yes
Body Color
 Silver
Body Material
 Steel
Compressed Length (IN)
 12 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 17.81 Inch
Includes Boot
 No
Includes Dust Shield
 No
Includes Hardware
 No
Internal Design
 Monotube
Lower Mounting Style
 Eyelet
Share this page

Shock Absorber; SN2 Series; Race Use; Nitrogen Gas Charged; Limited Lifetime Warranty; Non Adjustable Valving; Extended height 15.82 Inches/ Compressed Height 11.0 Inches; Without Shock Boots; Zinc Plated; Single

MPN: 33-247762

Designed for applications requiring steel body shocks, the all new BILSTEIN SN2 Series features optimized shock lengths and a new lightweight Aluminum body cap. The SN2 modular design enables the flexibility to revalve and rebuild as needed while still meeting various sanctioning body requirements.

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: Yes
Extended Length (IN): 17.81 Inch
Compressed Length (IN): 12 Inch
Upper Mounting Style: Eyelet
Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 1/2 Inch
Valving Type: Non Adjustable Valving
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: No
Estimated Install Time (Hours): 0.5

Features

  • 46 Millimeter Extruded Modular Steel Body Maintains Tighter Tolerances For Superior Performance
  • Body Design Allows For Standard Or Coilover Applications
  • 14 Millimeter Hard Chromed Shaft Reduces Seal Drag And Breakaway Stiction
  • Single And Double Adjustable Shaft Options Available
  • Linear Or Digressive Pistons Available For Valving Versatility
  • Monotube Design Provides Maximum Heat Dissipation
  • Limited Lifetime Warranty
Specifications of Bilstein SN2 Series Shock Absorber - 33-247762
Adjustable Valving  Yes
Body Color  Silver
Body Material  Steel
Compressed Length (IN)  12 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  17.81 Inch
Includes Boot  No
Includes Dust Shield  No
Includes Hardware  No
Internal Design  Monotube
Lower Mounting Style  Eyelet
Quantity  Single
Rod Diameter (IN)  1/2 Inch
Rod Material  Steel
Type  Nitrogen Gas Charged
Upper Mounting Style  Eyelet
Valving Type  Non Adjustable Valving
With Coil Spring  No
With Reservoir  No
