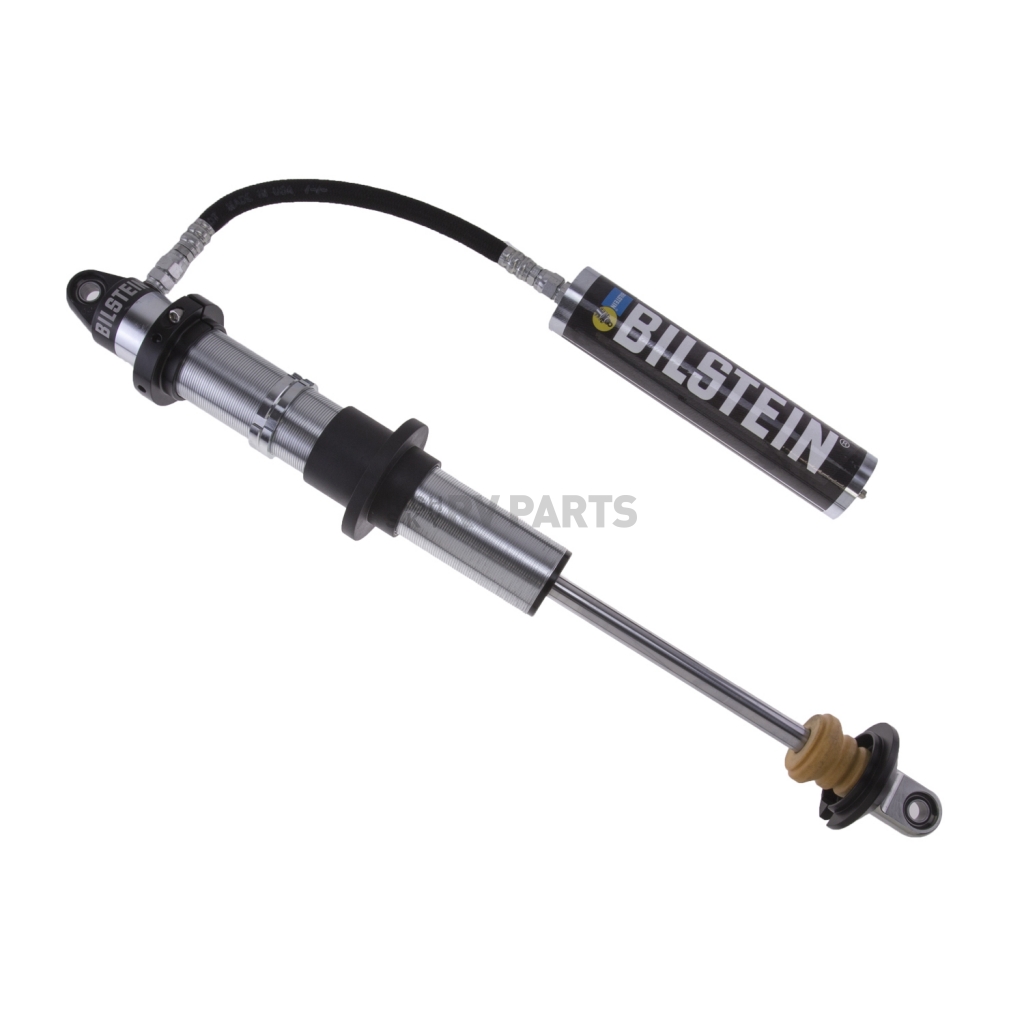

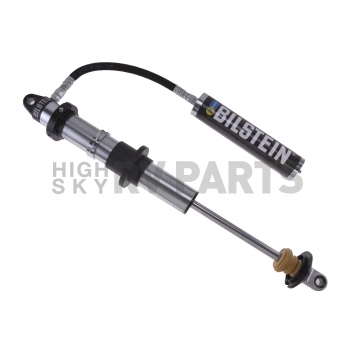

Bilstein 8125 Series Shock Absorber - 33-225531

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: 33-225531
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 20
Retail: $794.84
Price: $756.99
You Save: $37.85
Adjustable Valving
 Yes
Body Color
 Silver
Body Material
 Steel
Compressed Length (IN)
 20-1/2 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 32-1/2 Inch
Includes Boot
 No
Includes Dust Shield
 No
Includes Hardware
 Yes
Internal Design
 Monotube
Lower Mounting Style
 Eyelet
Share this page

Shock Absorber; 8125 Series; Non Adjustable Valving; Ride Height Adjustable; 32-1/2 Inch Extended/ 20-1/2 Inch Compressed Height; 5/8 Inch Upper And Lower Mounts; Accepts 3 Inch Inside Diameter Coil Spring; Without Coil Spring; Zinc Plated Shock Body; With Remote Reservoir; Single

MPN: 33-225531

Designed for the serious off-road enthusiast. Available in multiple lengths for a wide range of custom applications, the 8125 Series features the highest quality machined components for long lasting durability.

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: Yes
Extended Length (IN): 32-1/2 Inch
Compressed Length (IN): 20-1/2 Inch
Upper Mounting Style: Eyelet
Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 0.86 Inch
Valving Type: Non Adjustable Valving
Rod Material: Steel
Body Material: Steel
With Reservoir: Yes
Includes Dust Shield: No
Includes Hardware: Yes
Includes Boot: No
Estimated Install Time (Hours): 0.5

Features

  • Threaded Body With Dual Rate Coil Over Hardware
  • Monotube Design For Fade-Free Performance
  • Remote Reservoir For Greater Resistance To Heat
  • High Temperature Seal Extends Life Of Shock
  • 22 Millimeter Case Hardened Piston Rod Provides Brute Tensile Strength While Resisting Sand Blasting And Rock Chipping
  • Zinc Plated For Resistance To Off-Road Elements
  • Owner Rebuildable
  • Industry Standard 5/8 Inch Bearing
  • All Components Are Billet Machined
  • Limited 90 Day Warranty
Specifications of Bilstein 8125 Series Shock Absorber - 33-225531
Adjustable Valving  Yes
Body Color  Silver
Body Material  Steel
Compressed Length (IN)  20-1/2 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  32-1/2 Inch
Includes Boot  No
Includes Dust Shield  No
Includes Hardware  Yes
Internal Design  Monotube
Lower Mounting Style  Eyelet
Quantity  Single
Rod Diameter (IN)  0.86 Inch
Rod Material  Steel
Type  Nitrogen Gas Charged
Upper Mounting Style  Eyelet
Valving Type  Non Adjustable Valving
With Coil Spring  No
With Reservoir  Yes
