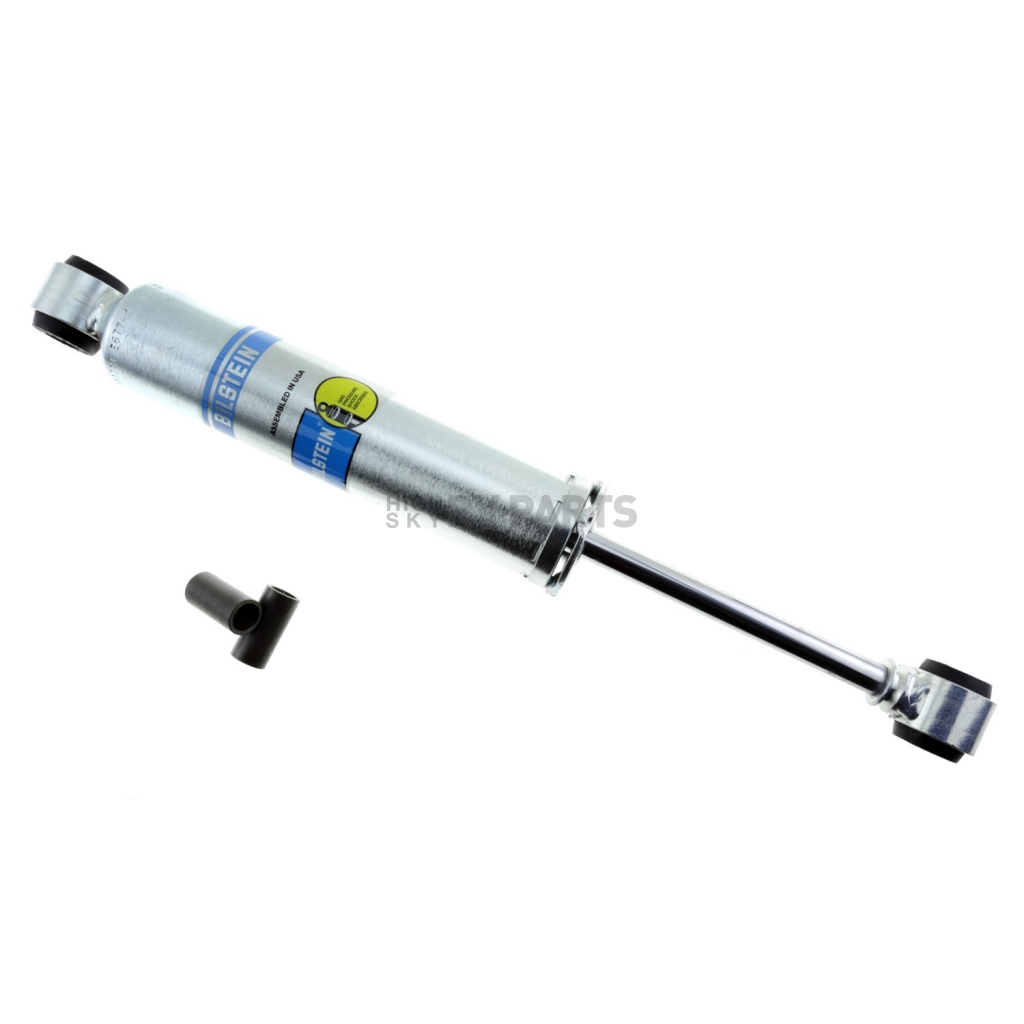

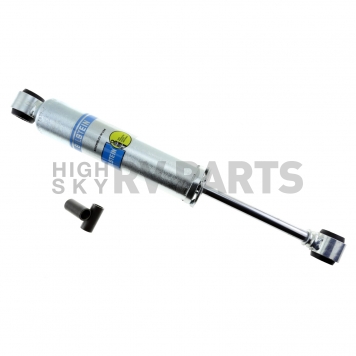

Bilstein 5125 Series Shock Absorber - 33-187112

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: 33-187112
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $136.49
Price: $129.99
You Save: $6.50
Adjustable Valving
 No
Body Color
 Silver
Body Material
 Steel
Compressed Length (IN)
 11.1 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 16-1/2 Inch
Includes Boot
 No
Includes Dust Shield
 No
Includes Hardware
 Yes
Internal Design
 Monotube
Lower Mounting Style
 Eyelet
Share this page

Shock Absorber; 5125 Series; Nitrogen Gas Charged; Limited 90 Day Warranty; Not Adjustable; Without Shock Boots; Single

MPN: 33-187112

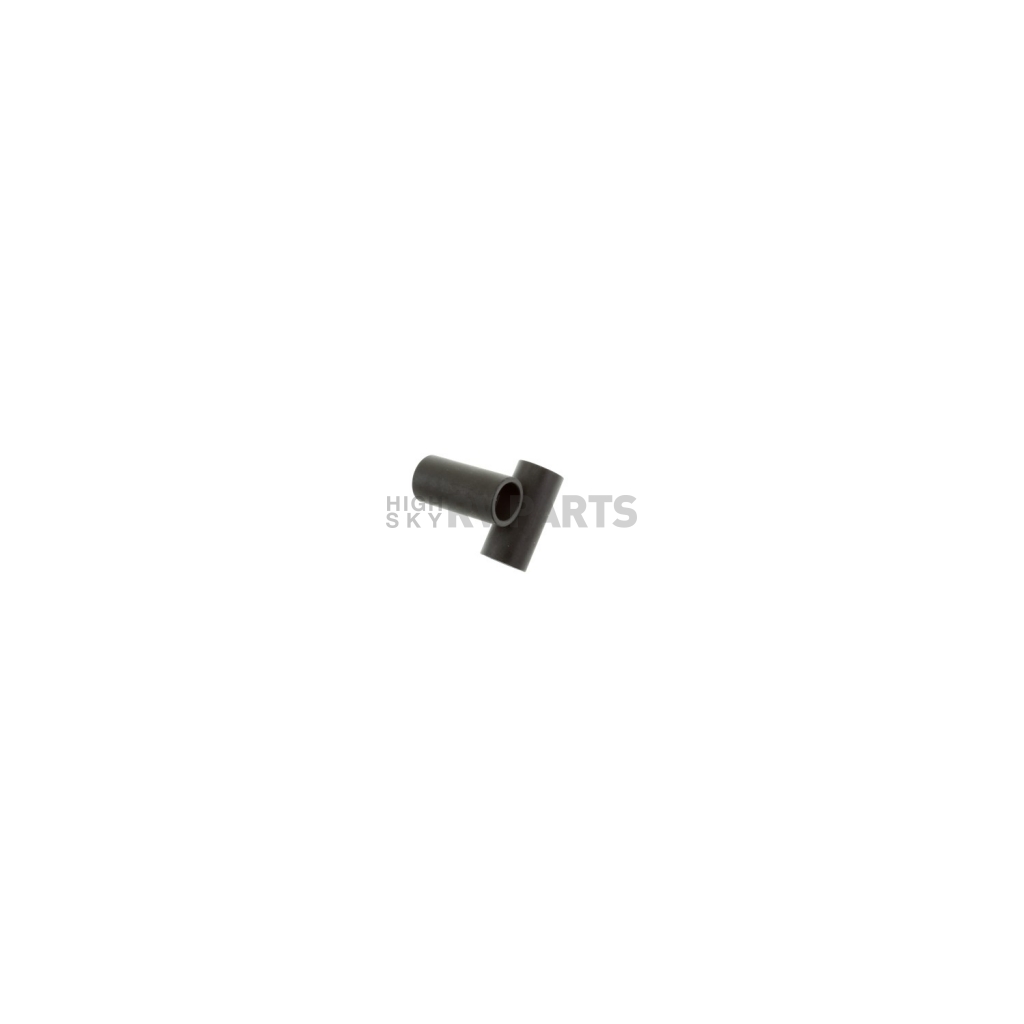

Bilstein 5125 Series Shock Absorbers are designed to be used on custom vehicles in order to achieve the desired ride. The high gas pressure monotube shocks are sold by lengths and damping rates rather than by application. These shock absorbers all come with 5/8 Inch eyelets with hour glass bushing on both ends. The shocks feature a 46 Millimeter digressive piston with self-adjusting deflective disc valving.

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: No
Extended Length (IN): 16-1/2 Inch
Compressed Length (IN): 11.1 Inch
Upper Mounting Style: Eyelet
Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 1.81 Inch
Valving Type: Self-Adjusting Deflective Disc Valving
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: Yes
Includes Boot: No
Estimated Install Time (Hours): 0.5

Features

  • Monotube Gas Pressure Construction
  • Self Adjusting Deflective Disc Valving System
  • High-Flow Piston Reduces Harshness
  • Independent Rebound And Compression Tuning
  • Larger Working Piston Area For Exact Damping
  • Superior Control For Large Diameter Tires. Available By Travel Lengths For Custom Applications
  • Limited 90 Day Warranty
Specifications of Bilstein 5125 Series Shock Absorber - 33-187112
Adjustable Valving  No
Body Color  Silver
Body Material  Steel
Compressed Length (IN)  11.1 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  16-1/2 Inch
Includes Boot  No
Includes Dust Shield  No
Includes Hardware  Yes
Internal Design  Monotube
Lower Mounting Style  Eyelet
Quantity  Single
Rod Diameter (IN)  1.81 Inch
Rod Material  Steel
Type  Nitrogen Gas Charged
Upper Mounting Style  Eyelet
Valving Type  Self-Adjusting Deflective Disc Valving
With Coil Spring  No
With Reservoir  No
