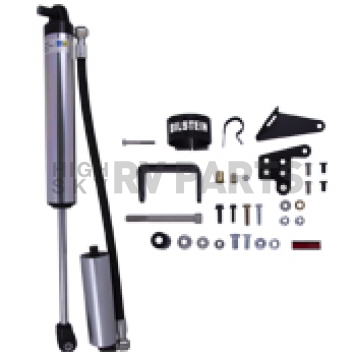

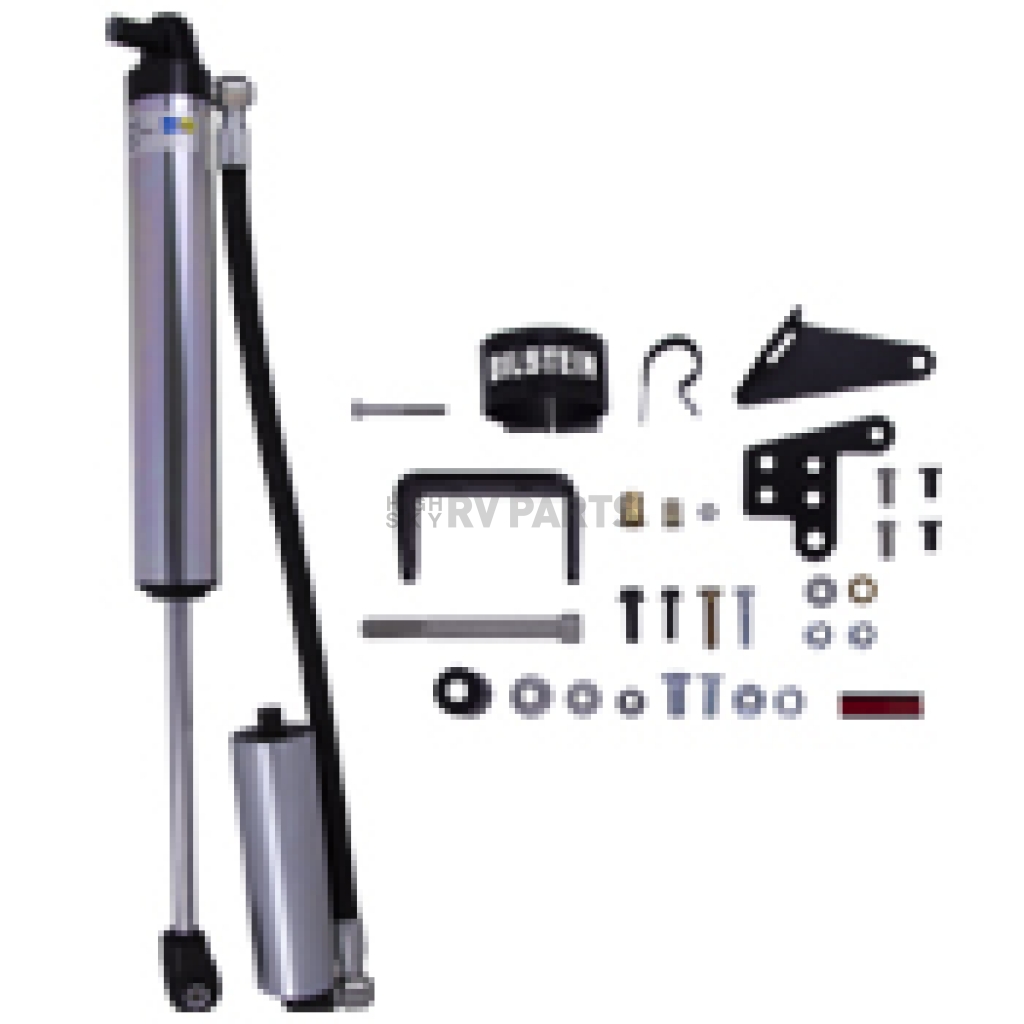

Bilstein B8 8100 Series Shock Absorber - 25-305340

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: 25-305340
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 25
Retail: $695.09
Price: $661.99
You Save: $33.10
Body Color
 Silver
Compressed Length (IN)
 18.22 Inch
Estimated Install Time (Hours)
 1
Extended Length (IN)
 28.89 Inch
Includes Boot
 No
Includes Dust Shield
 No
Includes Hardware
 No
Internal Design
 Monotube
Lower Mounting Style
 Eyelet
Quantity
 Set Of 2
Type
 Nitrogen Gas Charged
Share this page

Shock Absorber; B8 8100 Series; Nitrogen Gas Charged; With External Reservoir; Limited 2 Year Warranty; Extended Height 28.89 Inches/ Collapsed Height 18.22 Inches; Zinc Plated; Set Of 2

MPN: 25-305340

The Bilstein B8 8100 (Bypass) is a direct fit, position-sensitive damper specifically designed for light trucks and SUVs. Bypass shock absorbers offer the most compliant ride in all conditions and provide maximum bottom out control when the road gets rough. Utilizing an adjustable external bypass shock is the easiest and most effective way to tune your suspension for ultimate performance.

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Extended Length (IN): 28.89 Inch
Compressed Length (IN): 18.22 Inch
Upper Mounting Style: Eyelet
Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Set Of 2
With Reservoir: Yes
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: No
Estimated Install Time (Hours): 1

Features

  • The Bump Zone, Located Above The Compression Bypass Tube, Increases Bottoming Control And Eliminates The Need For A Hydraulic Bump Stop
  • Dual Tube External Bypass Offers Position Sensitive Damping With Independent Adjustment For Rebound And Compression
  • Incremental Flow Adjuster Offers Finite And Incremental Changes In Damping Force For Precise Adjustments
  • 60 Millimeter Remote Reservoir With Machined Aluminum Chassis Mounts And Vehicle Specific Tuning With The Ability To Make A Wide Range Of Adjustments
  • 60 Millimeter Large Bore Hard Anodized Aluminum Piston Offers A Greater Range Of Damping Control And Delivers Exceptional Long-Term Durability
  • Bottom Port Reservoir Hose Provides Increased Bottom Out Control During The Compression Cycle
  • 18 Millimeter Piston Rod Provides Brute Tensile Strength And Reduces Internal Gas Force Ramp-Up Providing A Smoother Ride
  • Billet Rod End With Vulcanized Mounts For An Exact OE Fit And Long-Term Durability
  • Owner Rebuildable And Direct Fit For Easy Installation
  • Limited 2 Year Warranty
Specifications of Bilstein B8 8100 Series Shock Absorber - 25-305340
Body Color  Silver
Compressed Length (IN)  18.22 Inch
Estimated Install Time (Hours)  1
Extended Length (IN)  28.89 Inch
Includes Boot  No
Includes Dust Shield  No
Includes Hardware  No
Internal Design  Monotube
Lower Mounting Style  Eyelet
Quantity  Set Of 2
Type  Nitrogen Gas Charged
Upper Mounting Style  Eyelet
With Coil Spring  No
With Reservoir  Yes

2020 Jeep Gladiator JT
2021 Jeep Gladiator JT
2022 Jeep Gladiator JT
