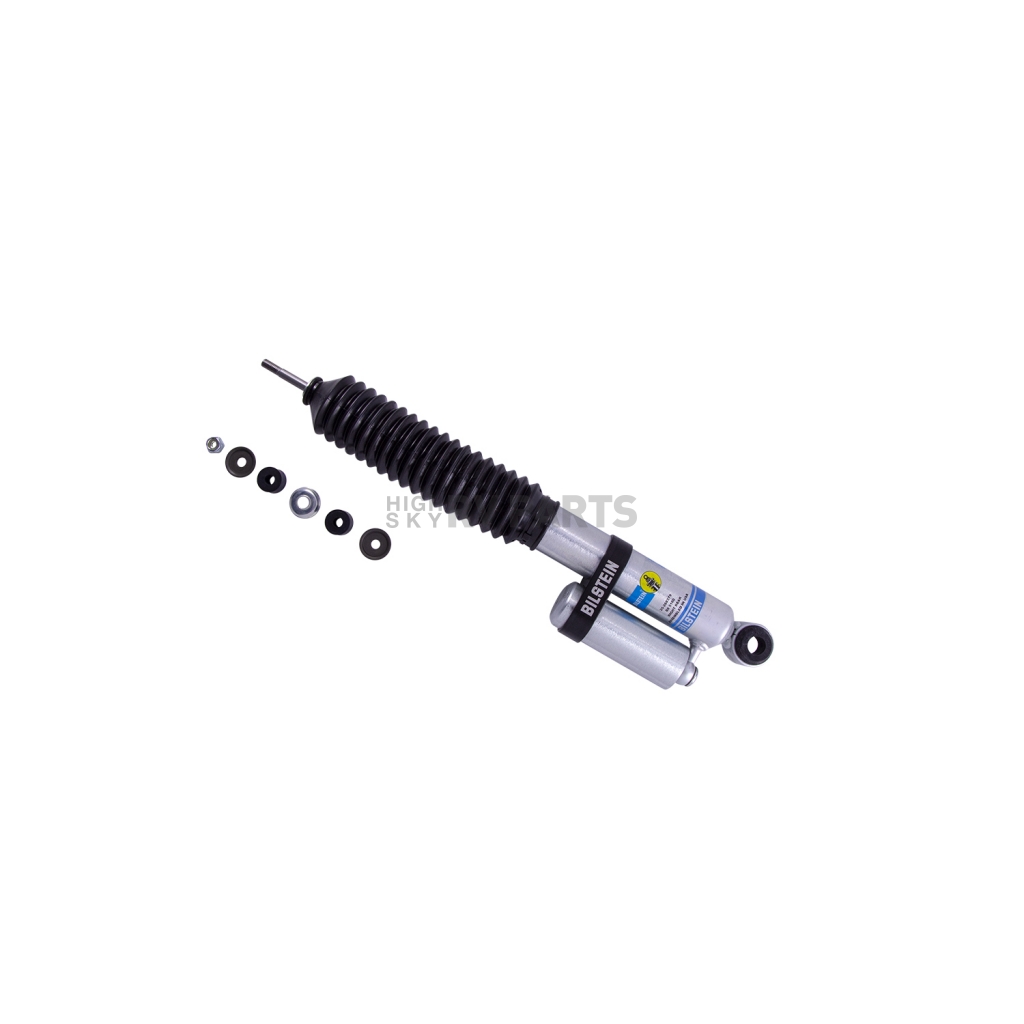

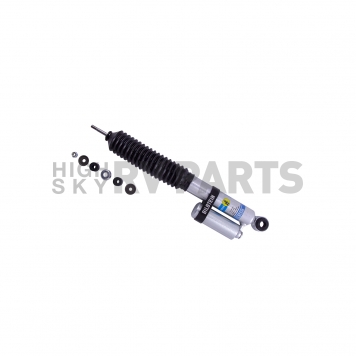

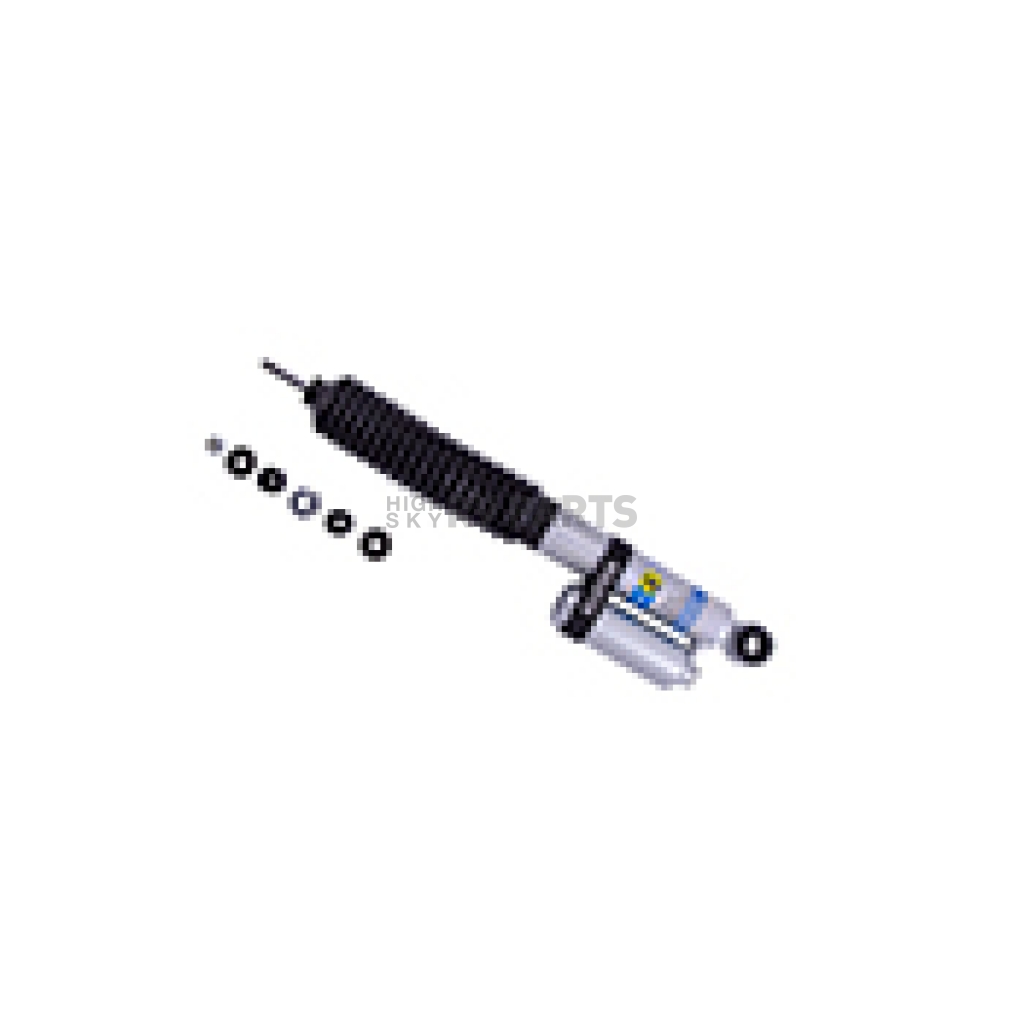

Bilstein B8 5100 Series Shock Absorber - 25-268379

Name: Bilstein B8 5100 Series Shock Absorber - 25-268379
Brand: Bilstein
SKU: 25-268379
Price: 315.99 USD
Availability: InStock

Authorized Dealer

Brand:

Bilstein

0 reviews

Have a product question? Ask us
Part Number: 25-268379
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 24

Retail: $331.79

Price: $315.99

You Save: $15.80

Adjustable Valving

Body Color

Silver

Body Material

Steel

Compressed Length (IN)

12.91 Inch

Estimated Install Time (Hours)

0.5

Extended Length (IN)

20.66 Inch

Includes Boot

Yes

Includes Dust Shield

Yes

Includes Hardware

Internal Design

Monotube

Lower Mounting Style

Eyelet

Share this page

Shock Absorber; B8 5100 Series; Nitrogen Gas Charged; With Reservoir; Limited 90 Day Warranty; Non Adjustable Valving; 20.66 Inch Extended Height/ 12.91 Inch Compressed Height; With Shock Boot; Zinc Plated; Single

MPN: 25-268379

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort. Due to their larger tires and heightened stance, lifted vehicles place extra demands on a shock absorber‘s damping ability. BILSTEIN B8 5100 shock absorbers monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, BILSTEIN B8 5100 shock absorbers instantly react to changing road inputs to maintain a stable, controlled, and comfortable ride.

Type: Nitrogen Gas Charged

With Coil Spring: No

Internal Design: Monotube

Adjustable Valving: No

Extended Length (IN): 20.66 Inch

Compressed Length (IN): 12.91 Inch

Upper Mounting Style: Stud

Lower Mounting Style: Eyelet

Body Color: Silver

Quantity: Single

Rod Diameter (IN): 1/2 Inch

Valving Type: Non Adjustable Valving

Rod Material: Steel

Body Material: Steel

With Reservoir: Yes

Includes Dust Shield: Yes

Includes Hardware: No

Includes Boot: Yes

Estimated Install Time (Hours): 0.5

Features

46 Millimeter Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
Self-Adjusting Deflective Disc Valving Reacts Immediately To Surface Changes Enabling Maximum Vehicle Control
Remote Reservoir Increases Shock Oil Capacity For Greater Heat Dissipation
Vehicle Specific Tuning
Unique Swivel Banjo Fitting On Reservoir Allows For 360 Degree Rotation
Increases Wheel Travel
Designed To Easily Install In Vehicle’s Stock Mounting Locations
Limited 90 Day Warranty

Specifications of Bilstein B8 5100 Series Shock Absorber - 25-268379
Adjustable Valving	No
Body Color	Silver
Body Material	Steel
Compressed Length (IN)	12.91 Inch
Estimated Install Time (Hours)	0.5
Extended Length (IN)	20.66 Inch
Includes Boot	Yes
Includes Dust Shield	Yes
Includes Hardware	No
Internal Design	Monotube
Lower Mounting Style	Eyelet
Quantity	Single
Rod Diameter (IN)	1/2 Inch
Rod Material	Steel
Type	Nitrogen Gas Charged
Upper Mounting Style	Stud
Valving Type	Non Adjustable Valving
With Coil Spring	No
With Reservoir	Yes
