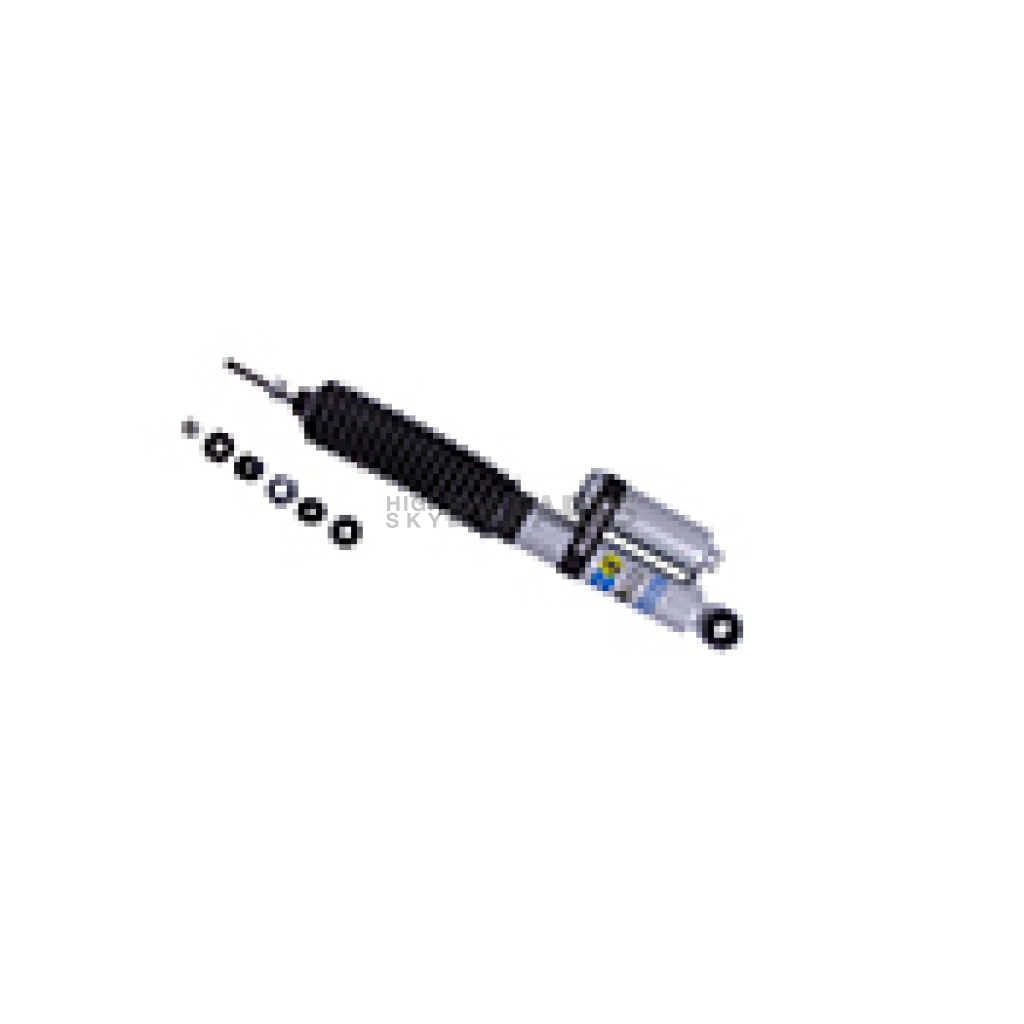

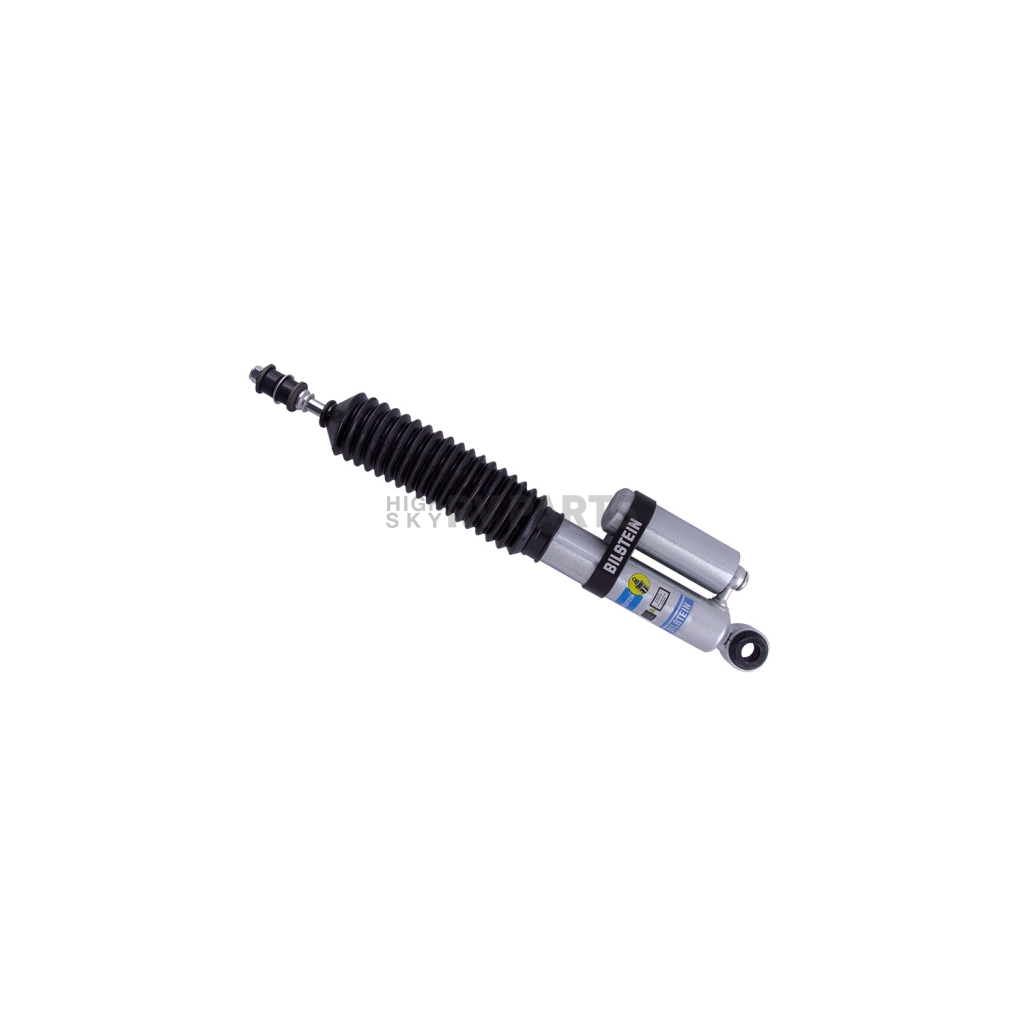

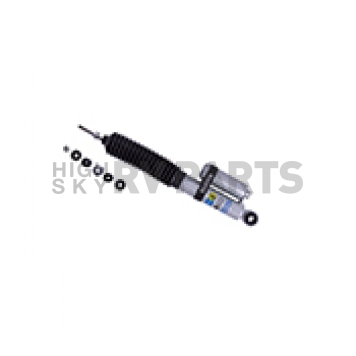

Bilstein B8 5100 Series Shock Absorber - 25-268362

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: 25-268362
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 24
Retail: $331.79
Price: $315.99
You Save: $15.80
Adjustable Valving
 No
Body Color
 Silver
Body Material
 Steel
Compressed Length (IN)
 12.91 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 20.66 Inch
Includes Boot
 Yes
Includes Dust Shield
 Yes
Includes Hardware
 No
Internal Design
 Monotube
Lower Mounting Style
 Eyelet
Share this page

Shock Absorber; B8 5100 Series; Nitrogen Gas Charged; With Reservoir; Limited 90 Day Warranty; Non Adjustable Valving; 20.66 Inch Extended Height/ 12.91 Inch Compressed Height; With Shock Boot; Zinc Plated; Single

MPN: 25-268362

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort. Due to their larger tires and heightened stance, lifted vehicles place extra demands on a shock absorber‘s damping ability. BILSTEIN B8 5100 shock absorbers monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, BILSTEIN B8 5100 shock absorbers instantly react to changing road inputs to maintain a stable, controlled, and comfortable ride.

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: No
Extended Length (IN): 20.66 Inch
Compressed Length (IN): 12.91 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 1/2 Inch
Valving Type: Non Adjustable Valving
Rod Material: Steel
Body Material: Steel
With Reservoir: Yes
Includes Dust Shield: Yes
Includes Hardware: No
Includes Boot: Yes
Estimated Install Time (Hours): 0.5

Features

  • 46 Millimeter Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
  • Self-Adjusting Deflective Disc Valving Reacts Immediately To Surface Changes Enabling Maximum Vehicle Control
  • Remote Reservoir Increases Shock Oil Capacity For Greater Heat Dissipation
  • Vehicle Specific Tuning
  • Unique Swivel Banjo Fitting On Reservoir Allows For 360 Degree Rotation
  • Increases Wheel Travel
  • Designed To Easily Install In Vehicle’s Stock Mounting Locations
  • Limited 90 Day Warranty
Specifications of Bilstein B8 5100 Series Shock Absorber - 25-268362
Adjustable Valving  No
Body Color  Silver
Body Material  Steel
Compressed Length (IN)  12.91 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  20.66 Inch
Includes Boot  Yes
Includes Dust Shield  Yes
Includes Hardware  No
Internal Design  Monotube
Lower Mounting Style  Eyelet
Quantity  Single
Rod Diameter (IN)  1/2 Inch
Rod Material  Steel
Type  Nitrogen Gas Charged
Upper Mounting Style  Stud
Valving Type  Non Adjustable Valving
With Coil Spring  No
With Reservoir  Yes

1996 Toyota 4Runner
1997 Toyota 4Runner
1998 Toyota 4Runner
1999 Toyota 4Runner
2000 Toyota 4Runner
2001 Toyota 4Runner
2002 Toyota 4Runner
