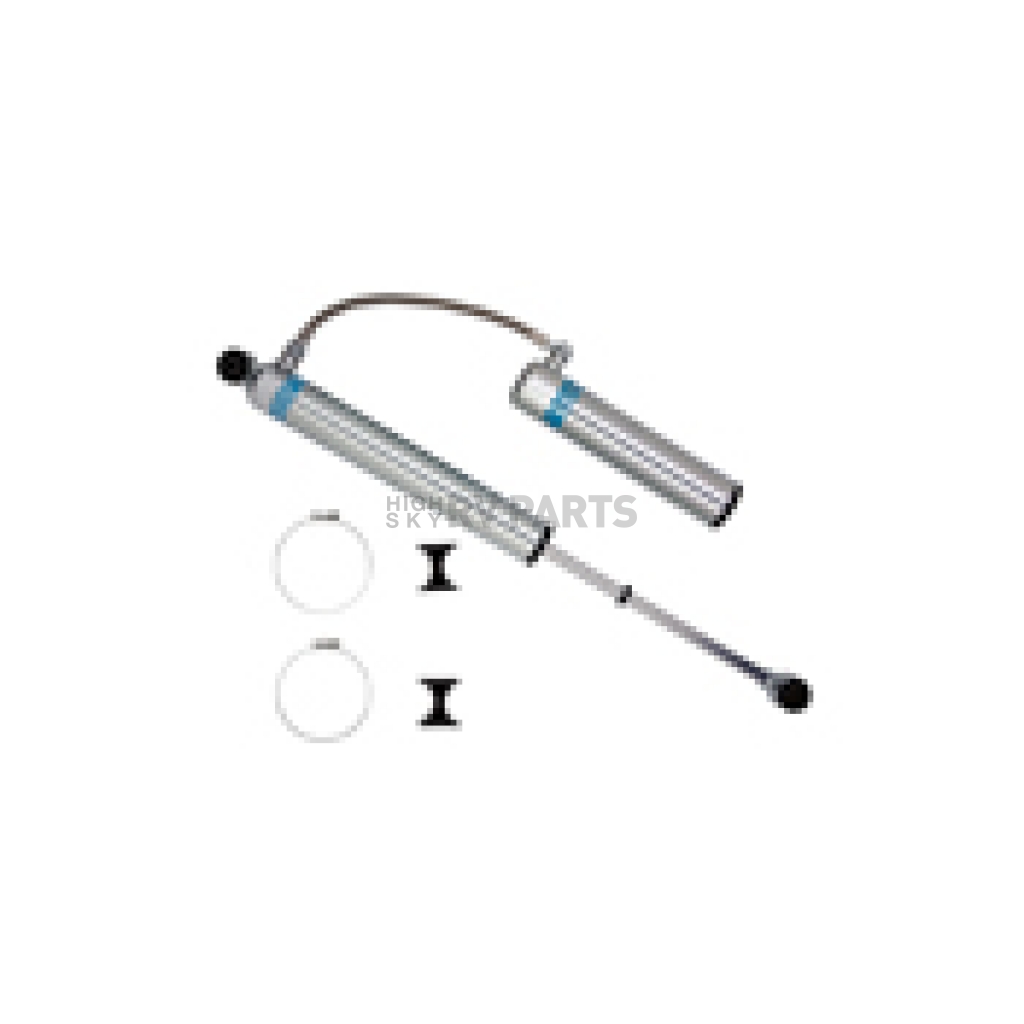

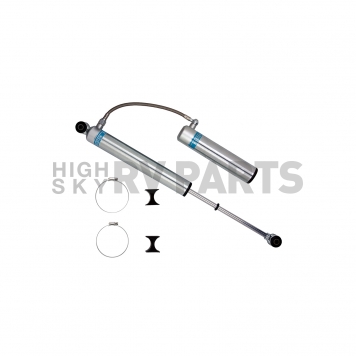

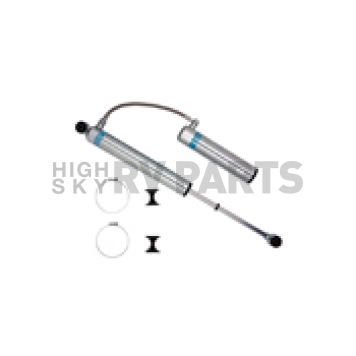

Bilstein B8 5160 Series Absorber 25-261400
Shock Absorber; B8 5160 Series; Nitrogen Gas Charged; With External Reservoir; Limited Lifetime Warranty; Non Adjustable Valving; Extended Height 29.44 Inches/ Collapsed Height 17.52 Inches; Without Shock Boots; Zinc Plated; Single
MPN: 25-261400
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.Features
- 46 Millimeter Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
- Zinc Finish With Multi-Layer Unique Coating For Extreme Protection
- Remote Reservoir Dramatically Increases Shock Oil Capacity For Even Greater Heat Dissipation And Damping Sensitivity
- Special Swivel Banjo Fittings Allow For 360 Degree Of Rotation
- Increases Wheel Travel On Most Applications
- Self-Adjusting Deflective Disc Valving Reacts Immediately To Surface Changes Enabling Maximum Vehicle Control
- Limited Lifetime Warranty
Specifications of Bilstein B8 5160 Series Absorber 25-261400 | |
Adjustable Valving | No |
Body Color | Yellow |
Body Material | Steel |
Compressed Length (IN) | 17.52 Inch |
Estimated Install Time (Hours) | 0.5 |
Extended Length (IN) | 29.44 Inch |
Includes Boot | No |
Includes Dust Shield | No |
Includes Hardware | No |
Internal Design | Monotube |
Lower Mounting Style | Eyelet |
Position On Vehicle | Rear |
Quantity | Single |
Rod Diameter (IN) | 1/2 Inch |
Rod Material | Steel |
Type | Nitrogen Gas Charged |
Upper Mounting Style | Eyelet |
Valving Type | Non Adjustable Valving |
With Coil Spring | No |
With Reservoir | Yes |
2016 Ford F-150
2017 Ford F-150
2018 Ford F-150
2019 Ford F-150
2020 Ford F-150
2021 Ford F-150
2022 Ford F-150
