Bilstein Shock Absorber 25-187663

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: 25-187663
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $328.64
Price: $312.99
You Save: $15.65
Adjustable
No
Body Color
Silver
Body Material
Steel
Compressed Length (IN)
14.95 Inch
Extended Length (IN)
25 Inch
Includes Boot
No
Includes Dust Shield
No
Includes Hardware
No
Internal Design
Monotube
Lower Mounting Style
Eyelet
Quantity
Single
Share this page

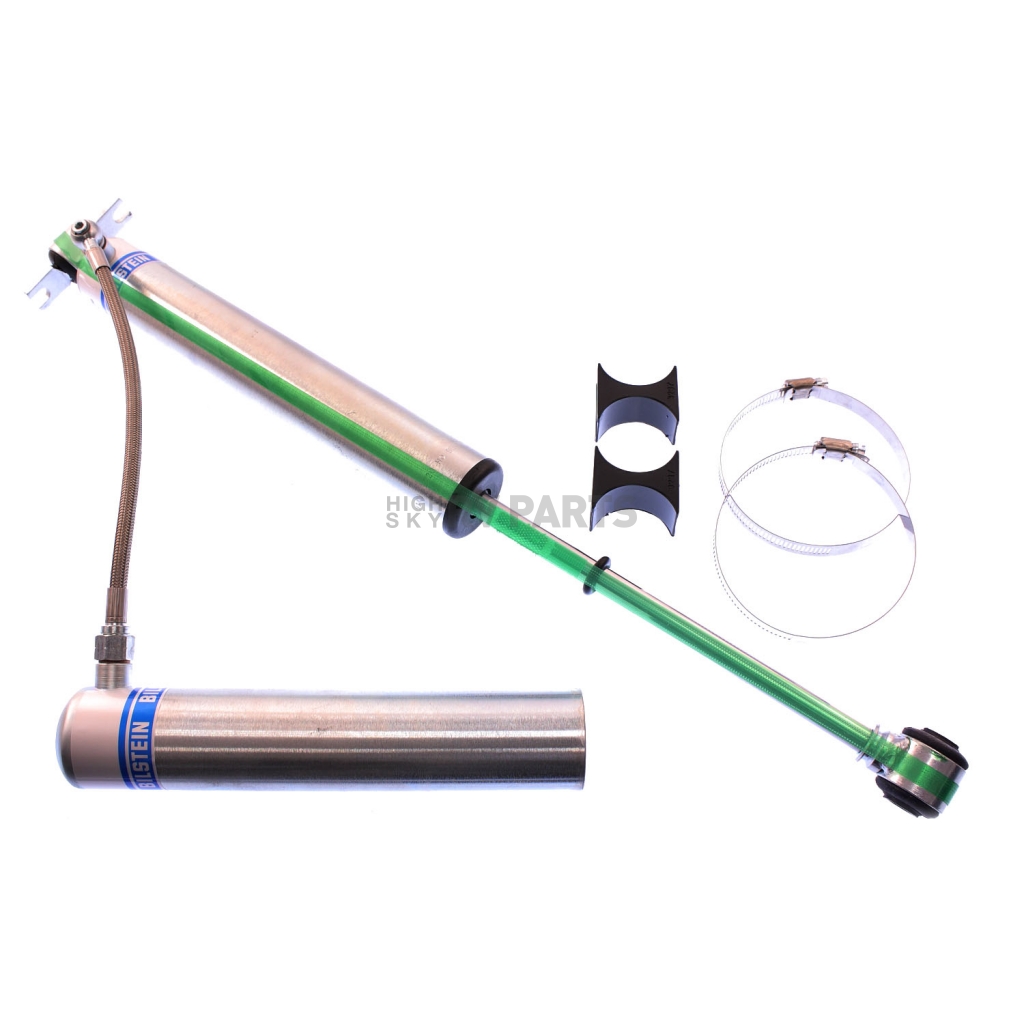

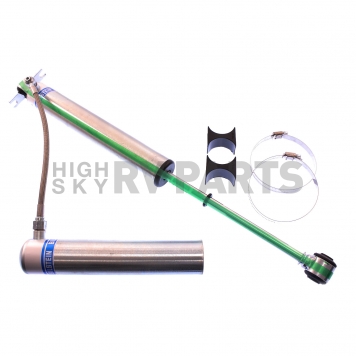

Bilstein Shock Absorber

Shock Absorber; 5160 Series; Nitrogen Gas Charged; With External Reservoir; Limited 90 Day Warranty; Not Adjustable; Without Shock Boots; Single

MPN: 25-187663

Bilstein 5160 Series Stock Mount Remote Reservoir Shocks are direct-fit to each specific vehicle application, avoiding the fabrication generally associated with being able to run a high performance reservoir shock. The monotube shocks feature a 46 Millimeter digressive piston with self-adjusting deflective disc valving. Benefits of the reservoir include increased cooling capacity and increased shock travel.
Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable: No
Extended Length (IN): 25 Inch
Compressed Length (IN): 14.95 Inch
Upper Mounting Style: Bar Pin
Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 1.81 Inch
Valving Type: Self-Adjusting Deflective Disc Valving
Rod Finish: Polished
Rod Material: Steel
Body Material: Steel
With Reservoir: Yes
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: No

Features

  • Industry Leading Monotube Design
  • Unique Digressive Valving System Instantly Produces Full Damping Capability. Reservoir Mounting Configuration Designed Specifically For Each Vehicle Application
  • Remote Reservoir Dramatically Increases Shock Oil Capacity For Even Greater Heat Dissipation And Damping Sensitivity
  • Special Swivel Banjo Fittings On The Reservoir Hose Allow For 360 Degree Of Rotation
  • For Increased Wheel Travel And More Shaft Movement, The “Floating” Dividing Piston Is Located In The Reservoir
  • Exclusive Triple-C Technology® Finish Provides Easy Care And Lasting Great Looks
  • Limited 90 Day Warranty
Specifications of Bilstein Shock Absorber 25-187663
Adjustable No
Body Color Silver
Body Material Steel
Compressed Length (IN) 14.95 Inch
Extended Length (IN) 25 Inch
Includes Boot No
Includes Dust Shield No
Includes Hardware No
Internal Design Monotube
Lower Mounting Style Eyelet
Quantity Single
Rod Diameter (IN) 1.81 Inch
Rod Finish Polished
Rod Material Steel
Type Nitrogen Gas Charged
Upper Mounting Style Bar Pin
Valving Type Self-Adjusting Deflective Disc Valving
With Coil Spring No
With Reservoir Yes
