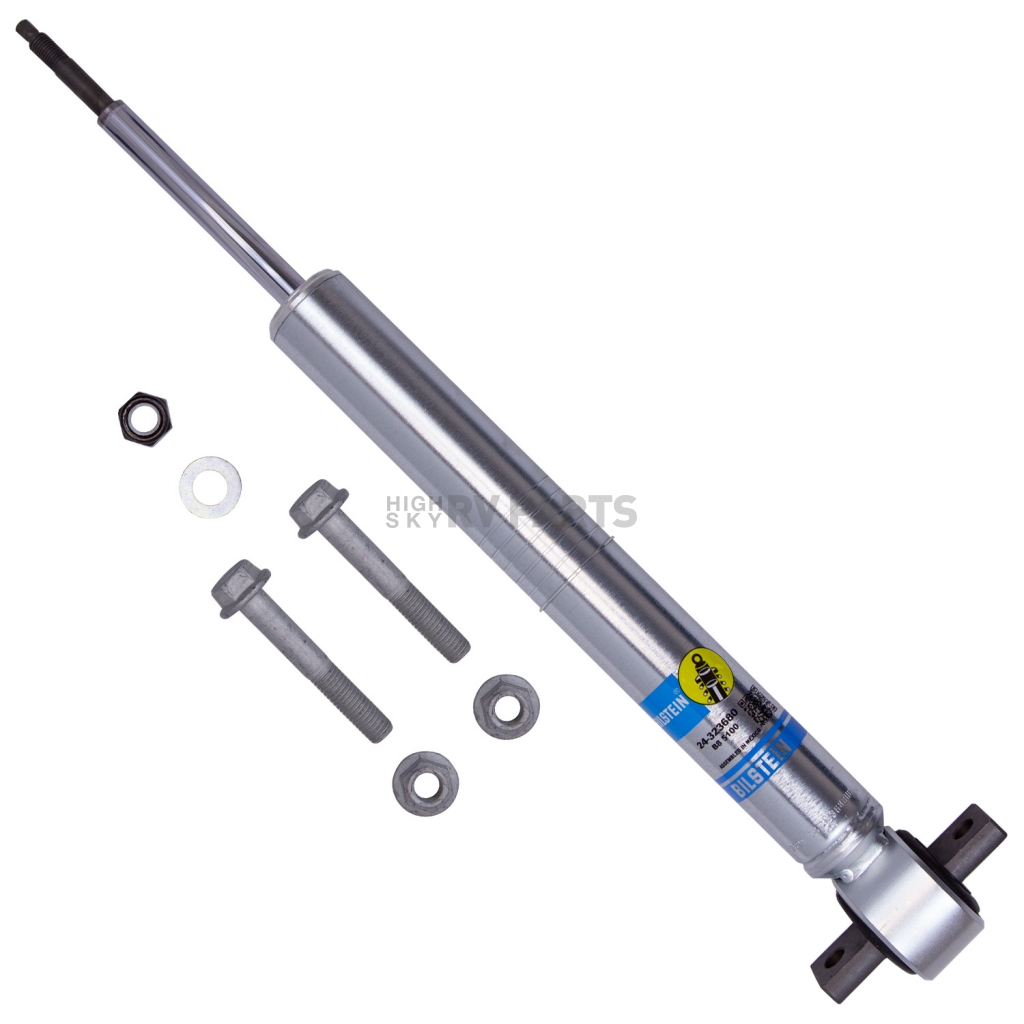

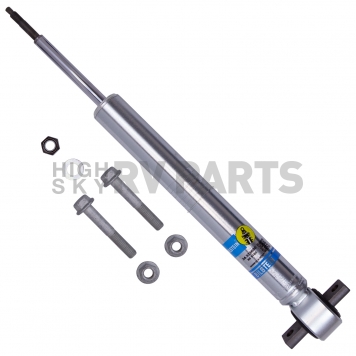

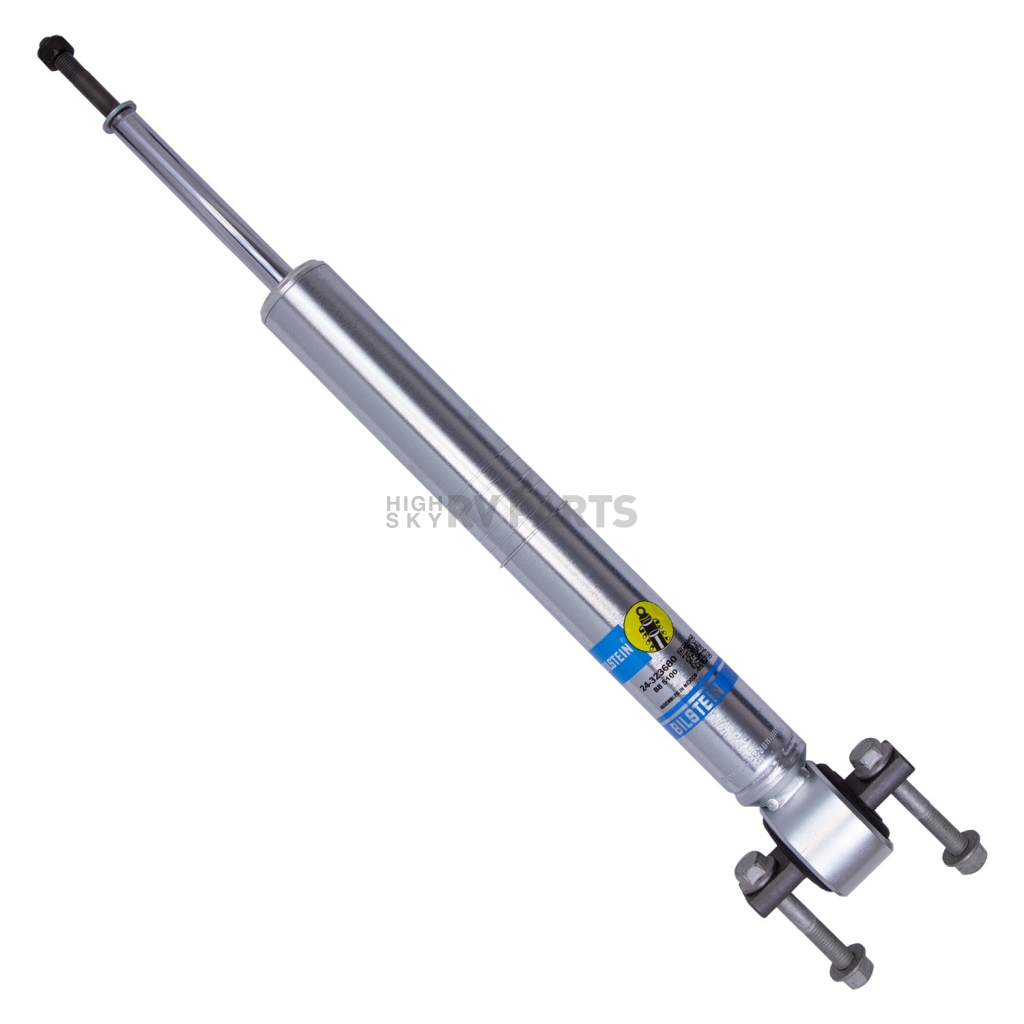

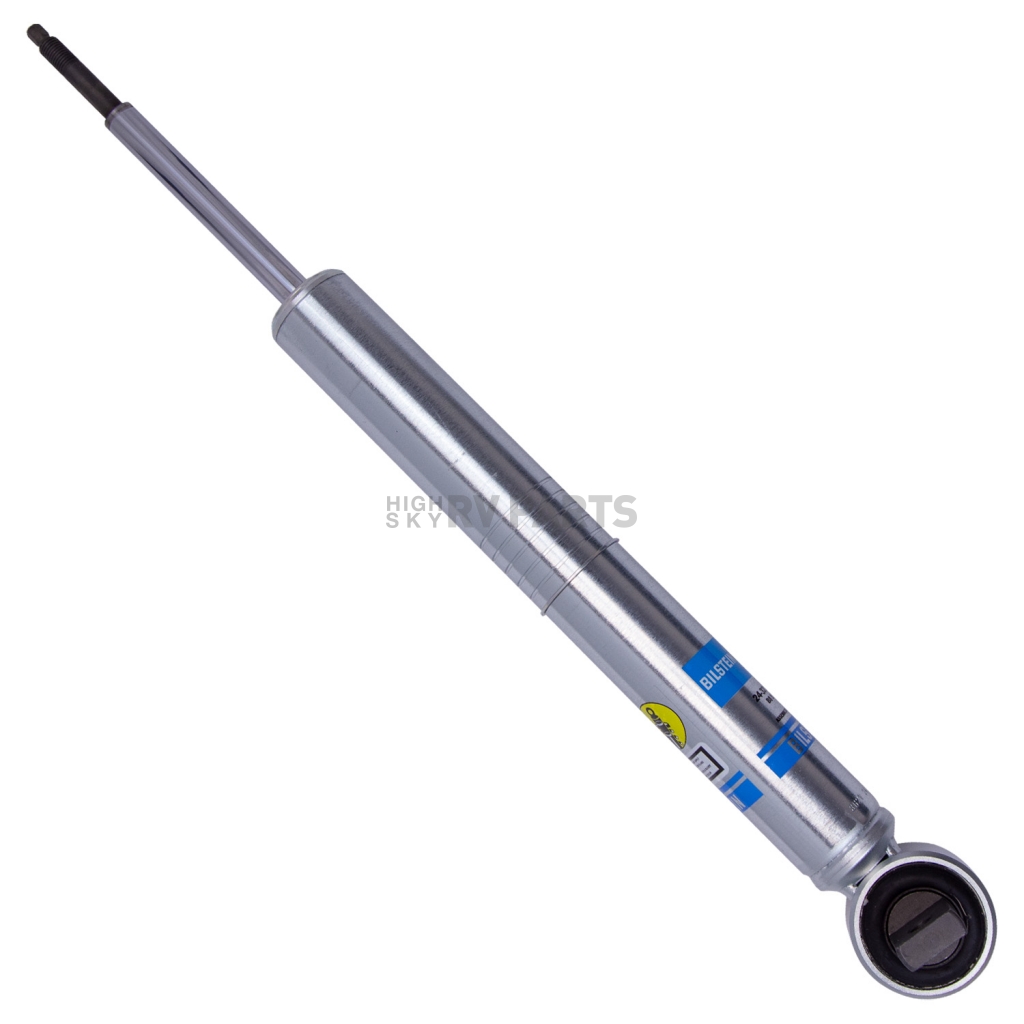

Bilstein B8 5100 Series Shock Absorber - 24-323680
Adjustable Valving
No
Body Color
Silver
Body Material
Steel
Compressed Length (IN)
16.85 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
22.22 Inch
Includes Boot
No
Includes Dust Shield
No
Includes Hardware
Yes
Internal Design
Monotube
Lower Mounting Style
Stud
Share this page
Shock Absorber; B8 5100 Series; Nitrogen Gas Charged; Limited Lifetime Warranty; Non Adjustable Valving; Single
MPN: 24-323680
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with an OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0 to 3 Inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46 Millimeter digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.Position On Vehicle: Front; With 0 To 2.5 Inch Lift
Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: No
Extended Length (IN): 22.22 Inch
Compressed Length (IN): 16.85 Inch
Upper Mounting Style: Cross Pin
Lower Mounting Style: Stud
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 1.81 Inch
Valving Type: Non Adjustable Valving
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: Yes
Includes Boot: No
Estimated Install Time (Hours): 0.5
Features
- 46 Millimeter Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
- Practical Alternative To Coil Spring Spacers, With The Benefit Of BILSTEIN Monotube Technology
- Adjustable Spring Perch For Vehicle Lift Up To 2.75 Inch
- Increases Suspension Travel
- Utilizes Vehicle’s Stock Front Coil Springs And OEM Upper Mount
- Vehicle Specific Tuning
- Made In The USA
- Limited Lifetime Warranty
Specifications of Bilstein B8 5100 Series Shock Absorber - 24-323680 | |
Adjustable Valving | No |
Body Color | Silver |
Body Material | Steel |
Compressed Length (IN) | 16.85 Inch |
Estimated Install Time (Hours) | 0.5 |
Extended Length (IN) | 22.22 Inch |
Includes Boot | No |
Includes Dust Shield | No |
Includes Hardware | Yes |
Internal Design | Monotube |
Lower Mounting Style | Stud |
Position On Vehicle | Front |
Quantity | Single |
Rod Diameter (IN) | 1.81 Inch |
Rod Material | Steel |
Type | Nitrogen Gas Charged |
Upper Mounting Style | Cross Pin |
Valving Type | Non Adjustable Valving |
With Coil Spring | No |
With Reservoir | No |
2021 Ford F-150
2022 Ford F-150
2022 Ford F-150
