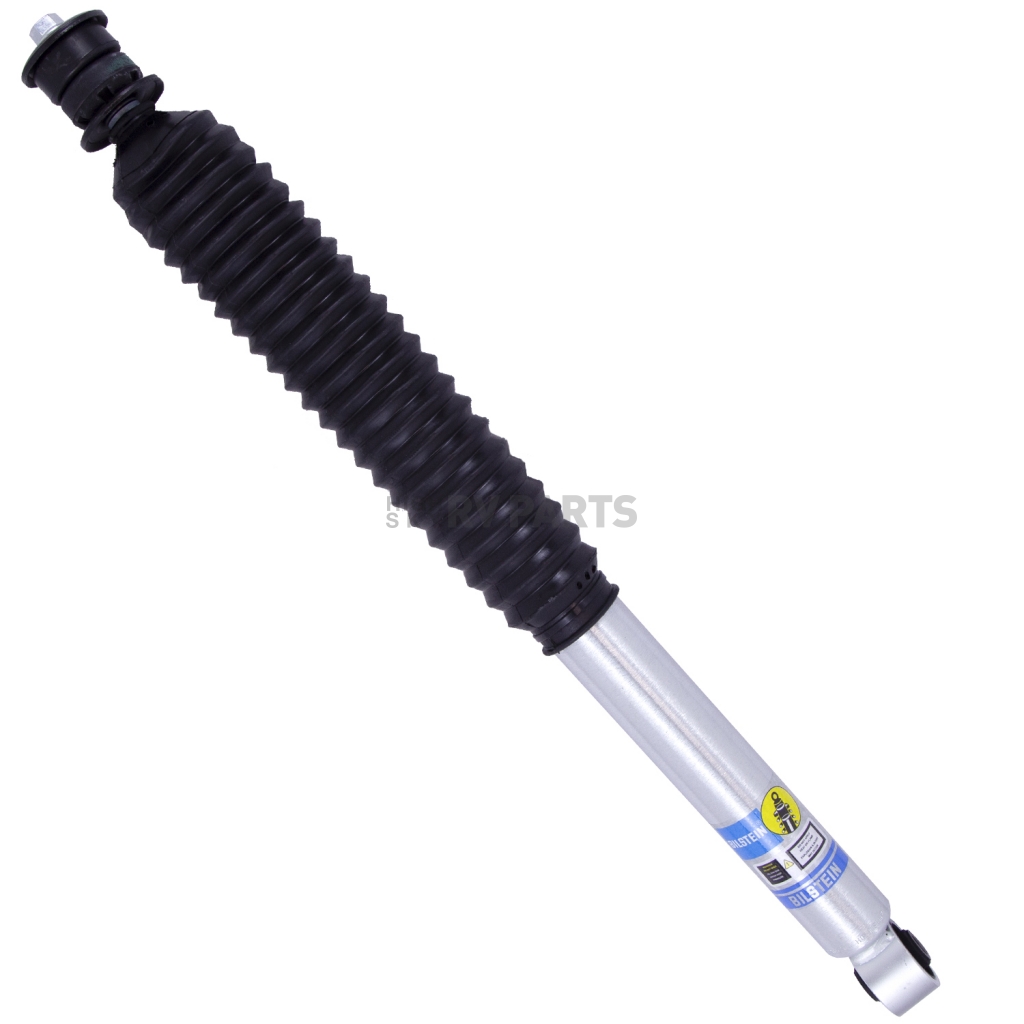

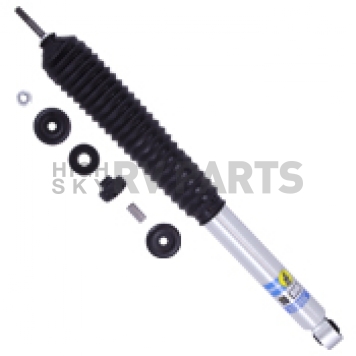

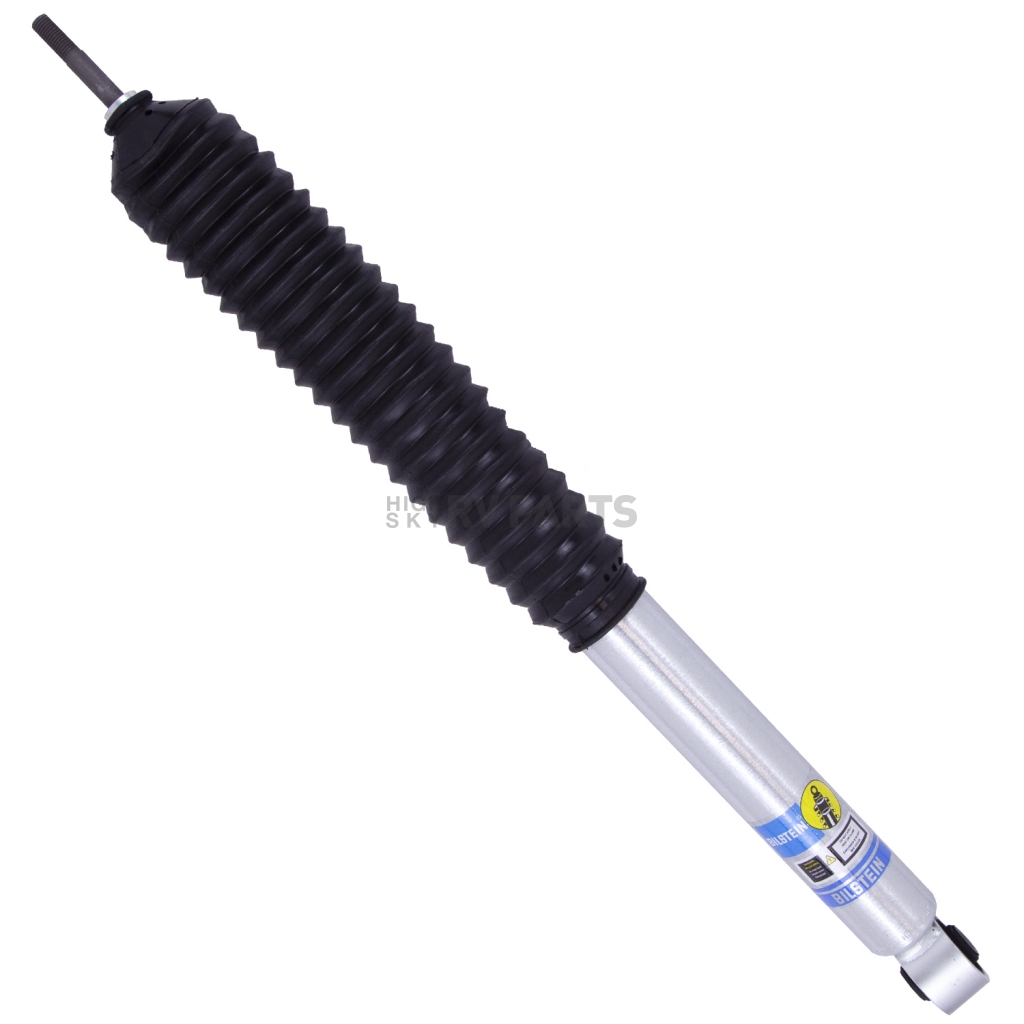

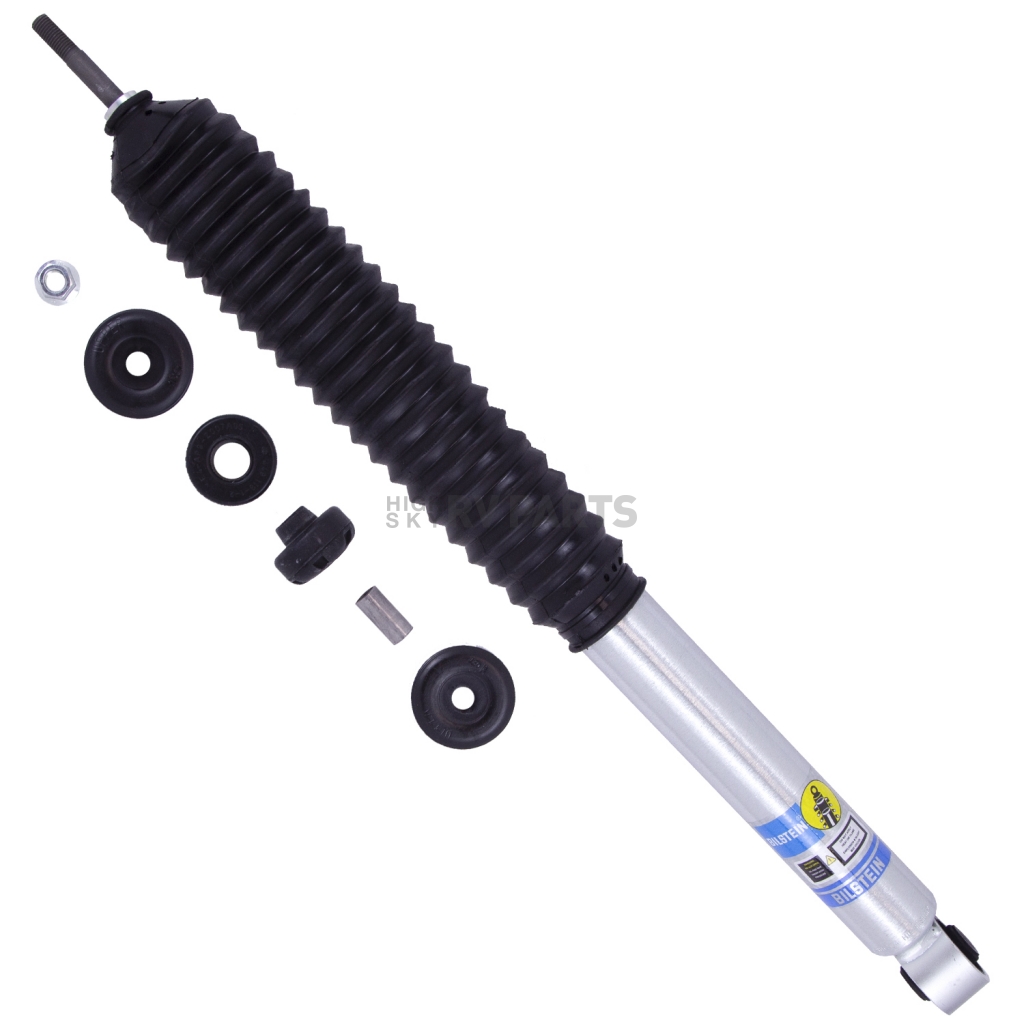

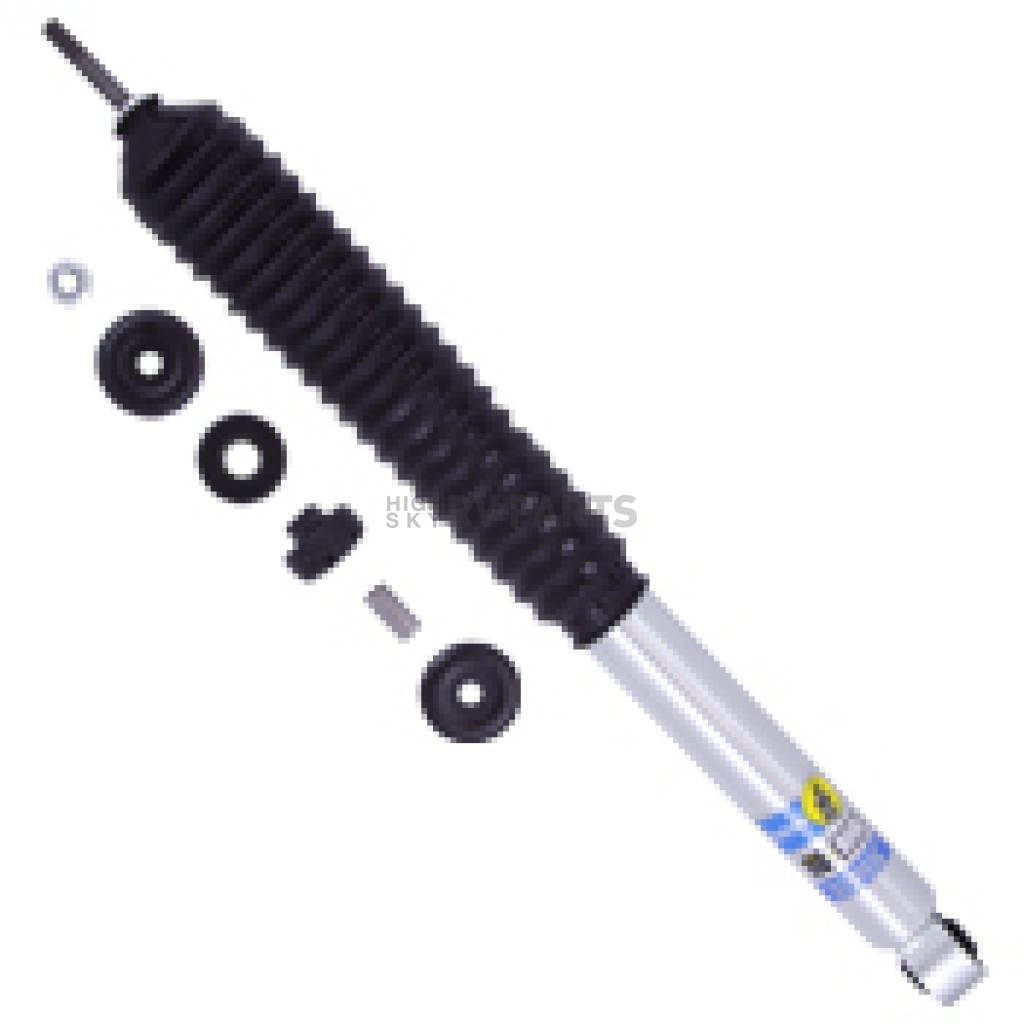

Bilstein B8 5100 Series Shock Absorber - 24-285704

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: 24-285704
  • Part Location: U.S.
  • Availability: 15 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 14
Retail: $127.04
Price: $120.99
You Save: $6.05
Adjustable Valving
 No
Body Color
 Silver
Compressed Length (IN)
 17.08 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 26-3/4 Inch
Includes Boot
 No
Includes Dust Shield
 No
Includes Hardware
 No
Internal Design
 Monotube
Lower Mounting Style
 Eyelet
Quantity
 Single
Share this page

Shock Absorber; B8 5100 Series; Nitrogen Gas Charged; Limited Lifetime Warranty; 17.08 Inch Collapsed Length/ 26.75 Inch Extended Length; Zinc Plated; Single; Non-Coilover

MPN: 24-285704

The B8 5100‘s monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, the Bilstein B8 5100 shock absorber instantly reacts to changing road inputs to maintain a stable, controlled, and comfortable ride.

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: No
Extended Length (IN): 26-3/4 Inch
Compressed Length (IN): 17.08 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Single
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: No
Estimated Install Time (Hours): 0.5

Features

  • Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
  • Zinc Plated For Resistance Against Harsh Elements
  • Patented Digressive Valving Instantly Reacts To Changing Surface Conditions
  • Durable Vulcanized Neoprene Rubber Bushings

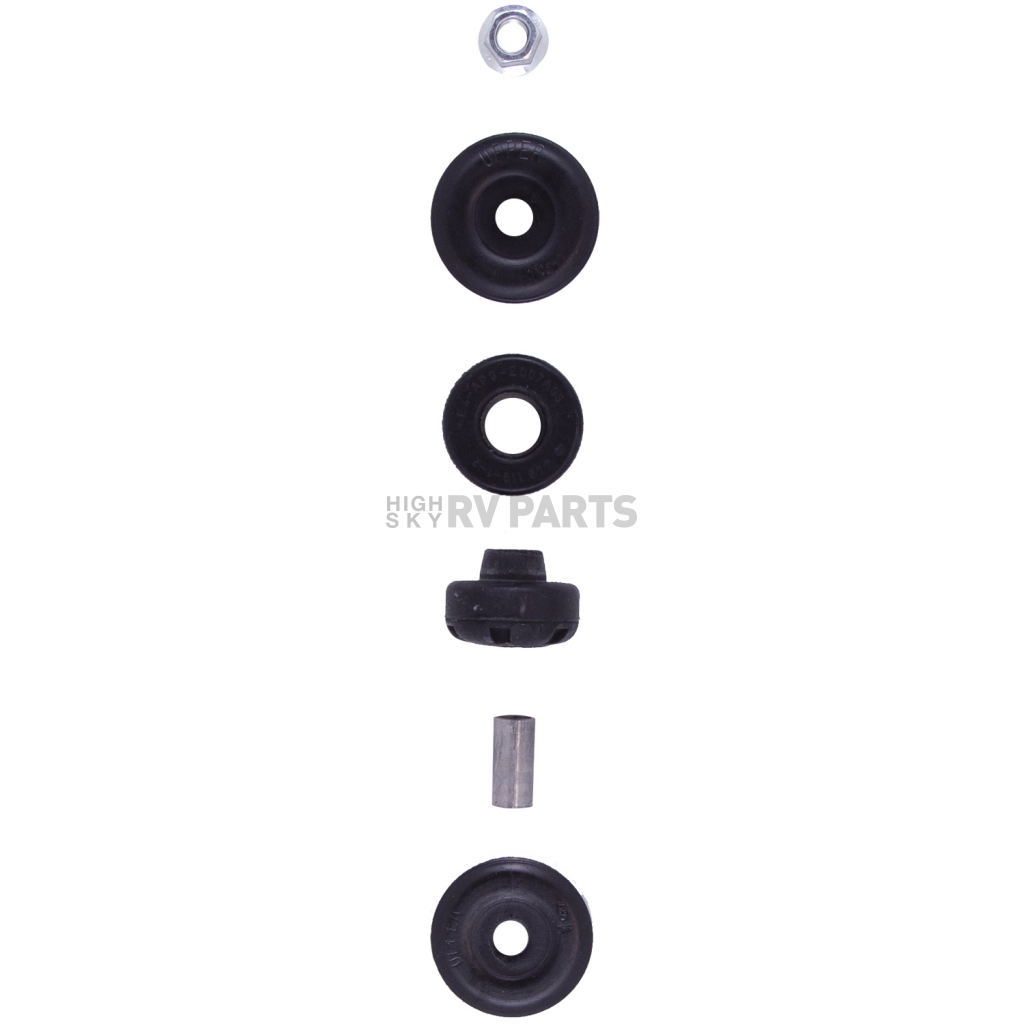

  • OEM Certified Mounting Hardware Allows For Easy Installation
  • Limited Lifetime Warranty
Specifications of Bilstein B8 5100 Series Shock Absorber - 24-285704
Adjustable Valving  No
Body Color  Silver
Compressed Length (IN)  17.08 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  26-3/4 Inch
Includes Boot  No
Includes Dust Shield  No
Includes Hardware  No
Internal Design  Monotube
Lower Mounting Style  Eyelet
Quantity  Single
Type  Nitrogen Gas Charged
Upper Mounting Style  Stud
With Coil Spring  No
With Reservoir  No

2014 Ram 2500
2015 Ram 2500
2016 Ram 2500
2017 Ram 2500
2018 Ram 2500
2019 Ram 2500
2020 Ram 2500
2021 Ram 2500

2013 Ram 3500
2014 Ram 3500
2015 Ram 3500
2016 Ram 3500
2017 Ram 3500
2018 Ram 3500
