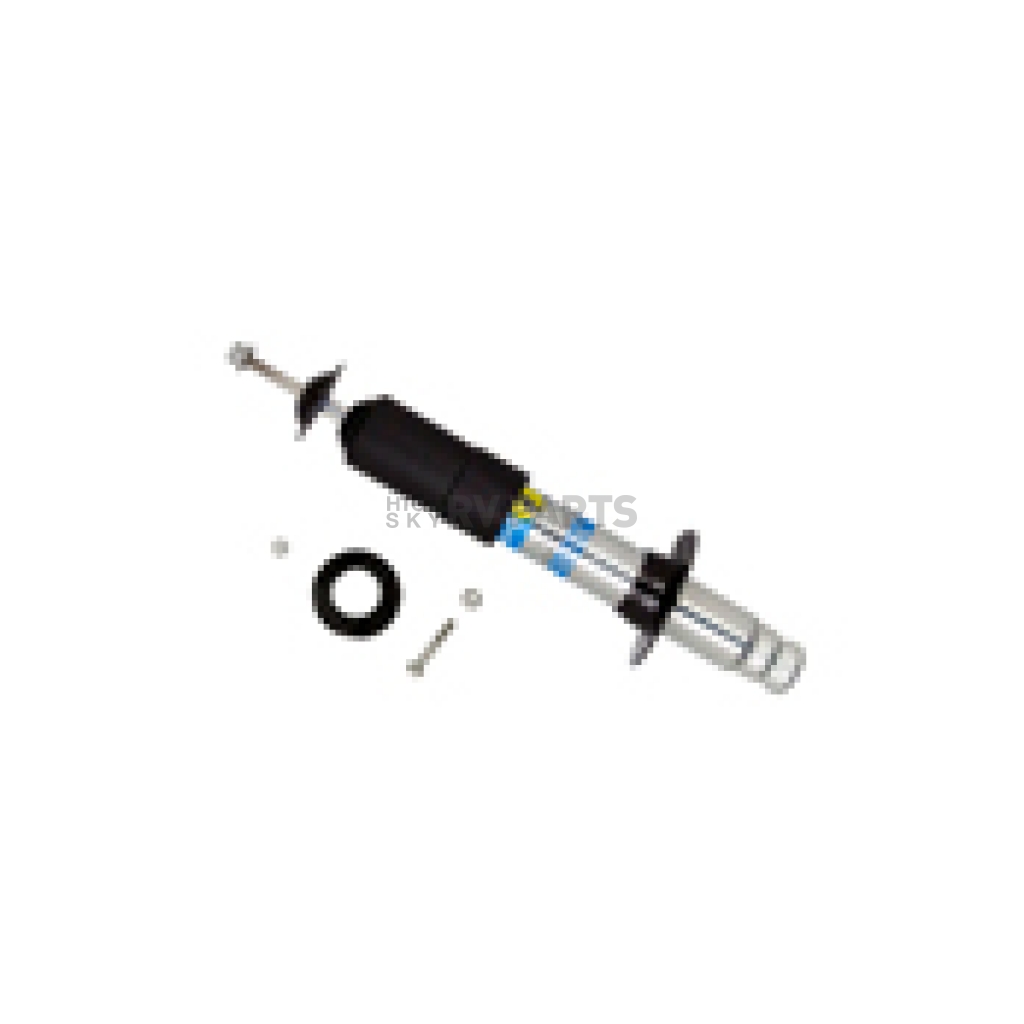

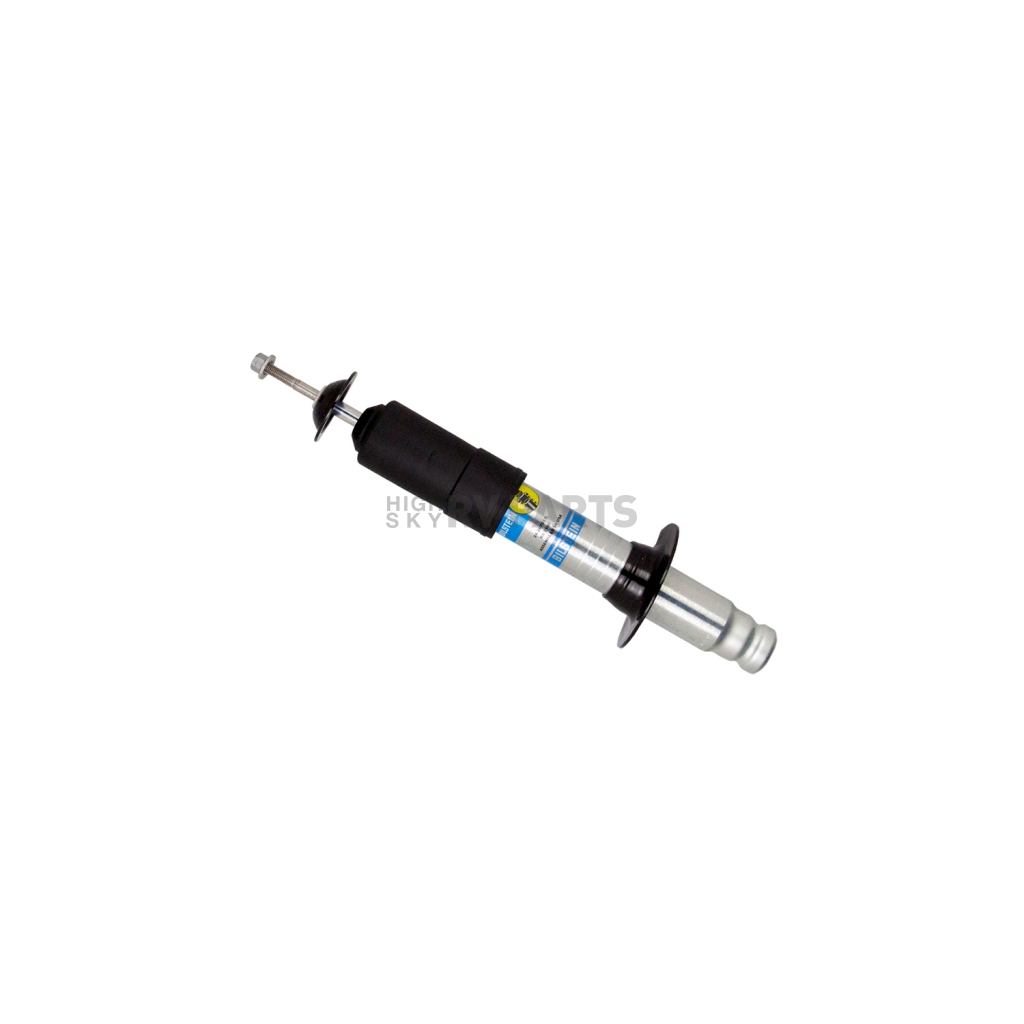

Bilstein B8 5100 Series Shock Absorber - 24-267014

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: 24-267014
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $194.24
Price: $184.99
You Save: $9.25
Adjustable Valving
 Yes
Body Color
 Silver
Body Material
 Steel
Compressed Length (IN)
 11.26 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 16.41 Inch
Includes Boot
 Yes
Includes Dust Shield
 No
Includes Hardware
 Yes
Internal Design
 Monotube
Lower Mounting Style
 Base Cup
Share this page

Shock Absorber; B85100 Adj; Nitrogen Gas Charged; Limited Lifetime Warranty; Ride Height Adjustable; With Shock Boot; Zinc Plated; Single

MPN: 24-267014

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0 to 2.75 Inches of front lift (depending on application). The monotube shock absorbers feature a 46 Millimeter digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: Yes
Extended Length (IN): 16.41 Inch
Compressed Length (IN): 11.26 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Base Cup
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 1/2 Inch
Valving Type: Self-Adjusting Deflective Disc Valving
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: Yes
Includes Boot: Yes
Estimated Install Time (Hours): 0.5

Features

  • 46 Millimeter Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
  • Practical Alternative To Coil Spring Spacers, With The Benefit Of BILSTEIN Monotube Technology
  • Adjustable Spring Perch For Vehicle Lift Up To 2.75 Inch
  • Increases Suspension Travel
  • Utilizes Vehicle’s Stock Front Coil Springs And OEM Mounting Hardware
  • Vehicle Specific Tuning
  • Limited Lifetime Warranty
Specifications of Bilstein B8 5100 Series Shock Absorber - 24-267014
Adjustable Valving  Yes
Body Color  Silver
Body Material  Steel
Compressed Length (IN)  11.26 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  16.41 Inch
Includes Boot  Yes
Includes Dust Shield  No
Includes Hardware  Yes
Internal Design  Monotube
Lower Mounting Style  Base Cup
Quantity  Single
Rod Diameter (IN)  1/2 Inch
Rod Material  Steel
Type  Nitrogen Gas Charged
Upper Mounting Style  Stud
Valving Type  Self-Adjusting Deflective Disc Valving
With Coil Spring  No
With Reservoir  No

2004 Buick Rainier
2005 Buick Rainier
2006 Buick Rainier
2007 Buick Rainier

2002 Chevrolet Trailblazer
2003 Chevrolet Trailblazer
2004 Chevrolet Trailblazer
2005 Chevrolet Trailblazer
2006 Chevrolet Trailblazer
2007 Chevrolet Trailblazer
2008 Chevrolet Trailblazer
2009 Chevrolet Trailblazer

2002 GMC Envoy
2003 GMC Envoy
2004 GMC Envoy
2005 GMC Envoy
2006 GMC Envoy
2007 GMC Envoy
2008 GMC Envoy
2009 GMC Envoy

2003 Isuzu Ascender
2004 Isuzu Ascender
2005 Isuzu Ascender
2006 Isuzu Ascender
2007 Isuzu Ascender
2008 Isuzu Ascender

2002 Oldsmobile Bravada
2003 Oldsmobile Bravada
2004 Oldsmobile Bravada

2005 Saab 9-7x
2006 Saab 9-7x
2007 Saab 9-7x
2008 Saab 9-7x
2009 Saab 9-7x
