Bilstein Shock Absorber 24-261425

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: 24-261425
  • Part Location: U.S.
  • Availability: 58 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 11
Retail: $180.59
Price: $171.99
You Save: $8.60
Adjustable
Yes
Body Material
Steel
Compressed Length (IN)
13.23 Inch
Extended Length (IN)
18.35 Inch
Includes Boot
Yes
Includes Dust Shield
No
Includes Hardware
Yes
Internal Design
Monotube
Lower Mounting Style
Eyelet
Quantity
Single
Rod Diameter (IN)
0.55 Inch
Share this page

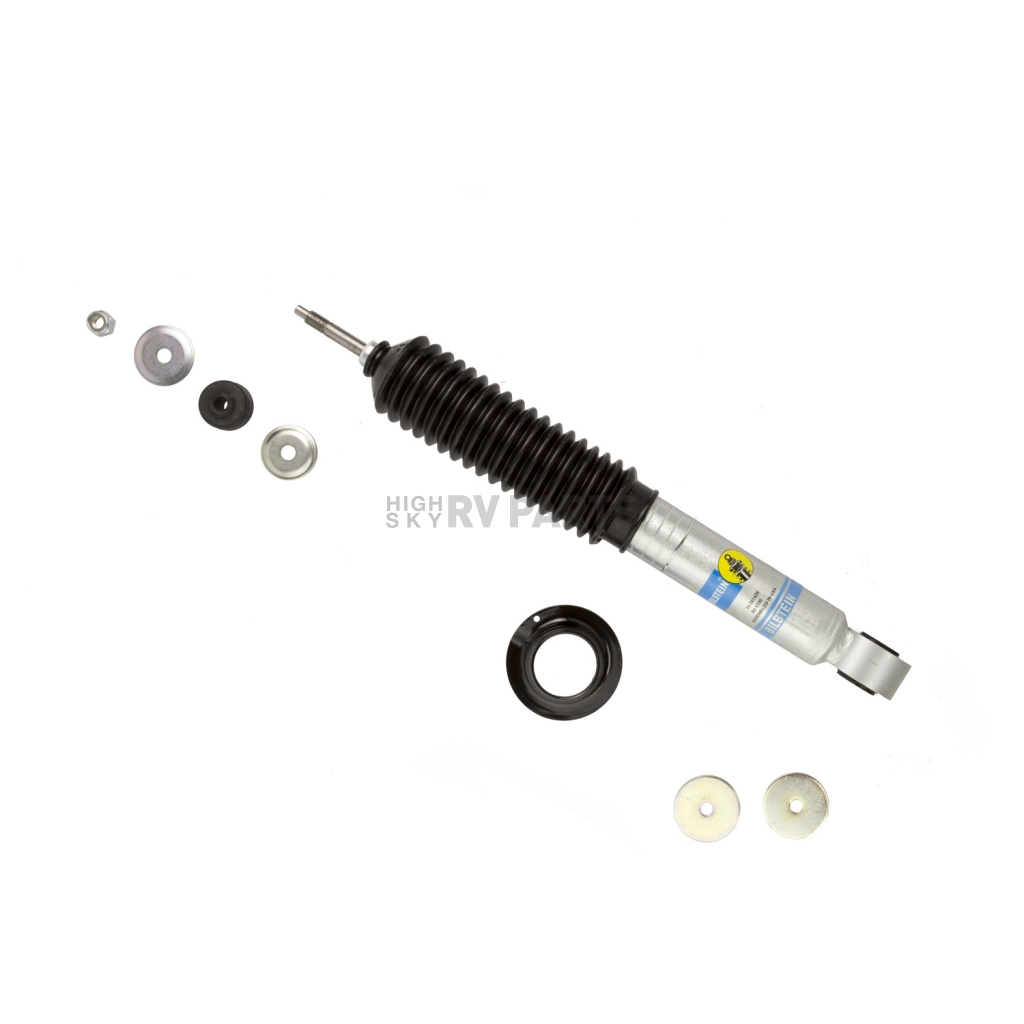

Bilstein Shock Absorber

Shock Absorber; B85100 Adj; Gas Charged; Limited Lifetime Warranty; Adjustable; Extended Height 18.35 Inches/ Compressed Height 13.23 Inches; With Shock Boots; Zinc Plated; Single; See Also Old Part Number 24-188265

MPN: 24-261425

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coil over style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0 To 2.75 Inches of front lift (depending on application). The monotube shock absorbers feature a 46 Millimeter digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Type: Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable: Yes
Extended Length (IN): 18.35 Inch
Compressed Length (IN): 13.23 Inch
Upper Mounting Style: Stem
Lower Mounting Style: Eyelet
Quantity: Single
Rod Diameter (IN): 0.55 Inch
Valving Type: Deflective Disc Valving
Rod Finish: Chrome Plated
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: Yes
Includes Boot: Yes

Features

  • Designed For Trucks And SUV's With A Front OE Coil Over Style Suspension
  • Multiple Snap-Ring Grooves In The Body Allow For Different Spring Seat Positions, Providing 0 To 2.75 Inches Of Front Lift
  • Monotube Shock Absorbers Feature A 46 Millimeter Digressive Piston A With Self-Adjusting Deflective Disc Valve Setting
  • Shock Absorbers Provide Increased Wheel Travel And Improved Handling
  • Shock Absorber Is The Easiest Way To Level Out Your Vehicle
  • Limited Lifetime Warranty
Specifications of Bilstein Shock Absorber 24-261425
Adjustable Yes
Body Material Steel
Compressed Length (IN) 13.23 Inch
Extended Length (IN) 18.35 Inch
Includes Boot Yes
Includes Dust Shield No
Includes Hardware Yes
Internal Design Monotube
Lower Mounting Style Eyelet
Quantity Single
Rod Diameter (IN) 0.55 Inch
Rod Finish Chrome Plated
Rod Material Steel
Type Gas Charged
Upper Mounting Style Stem
Valving Type Deflective Disc Valving
With Coil Spring No
With Reservoir No

2001 Toyota Sequoia
2002 Toyota Sequoia
2003 Toyota Sequoia
2004 Toyota Sequoia
2005 Toyota Sequoia
2006 Toyota Sequoia
2007 Toyota Sequoia

2000 Toyota Tundra
2000 Toyota Tundra
2001 Toyota Tundra
2001 Toyota Tundra
2002 Toyota Tundra
2002 Toyota Tundra
2003 Toyota Tundra
2003 Toyota Tundra
2004 Toyota Tundra
2004 Toyota Tundra
2004 Toyota Tundra
2004 Toyota Tundra
2004 Toyota Tundra
2004 Toyota Tundra
2005 Toyota Tundra
2005 Toyota Tundra
2005 Toyota Tundra
2005 Toyota Tundra
2005 Toyota Tundra
2005 Toyota Tundra
2006 Toyota Tundra
2006 Toyota Tundra
2006 Toyota Tundra
2006 Toyota Tundra
2006 Toyota Tundra
2006 Toyota Tundra
