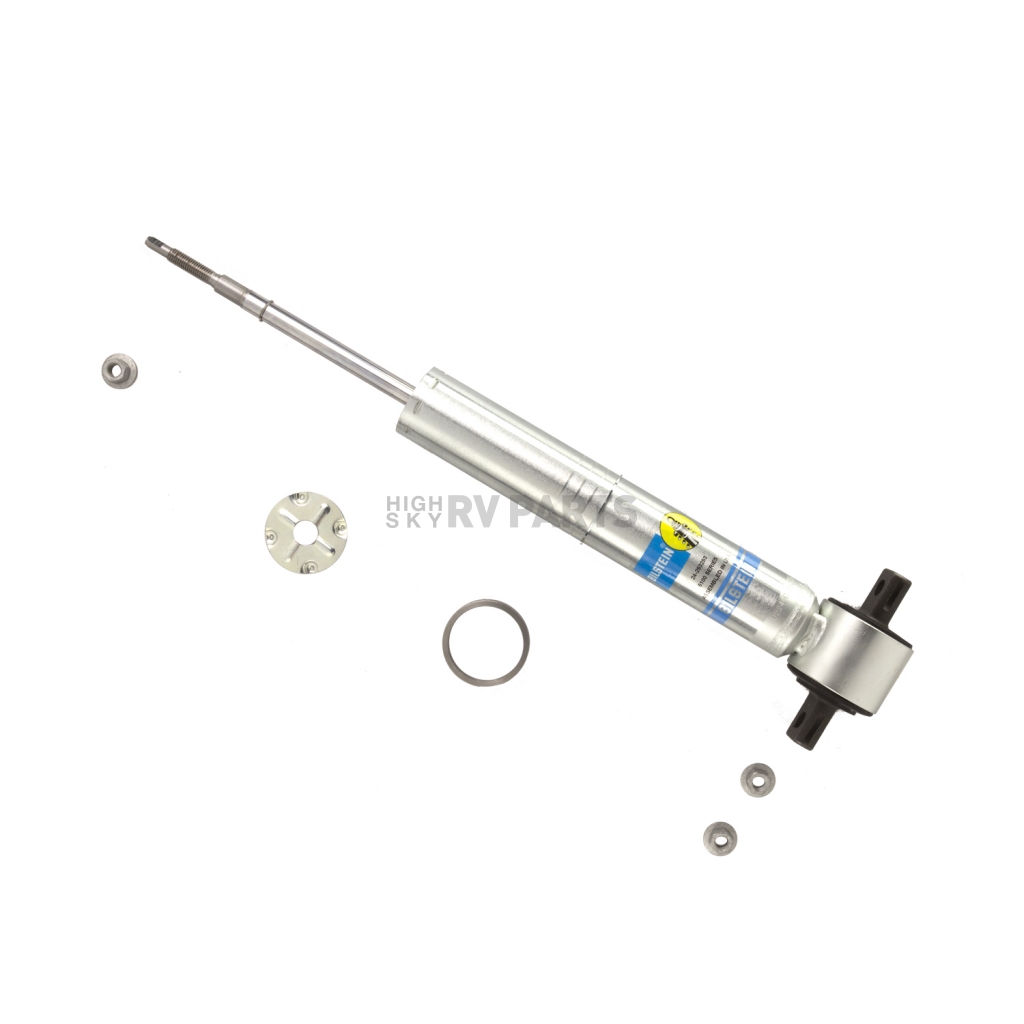

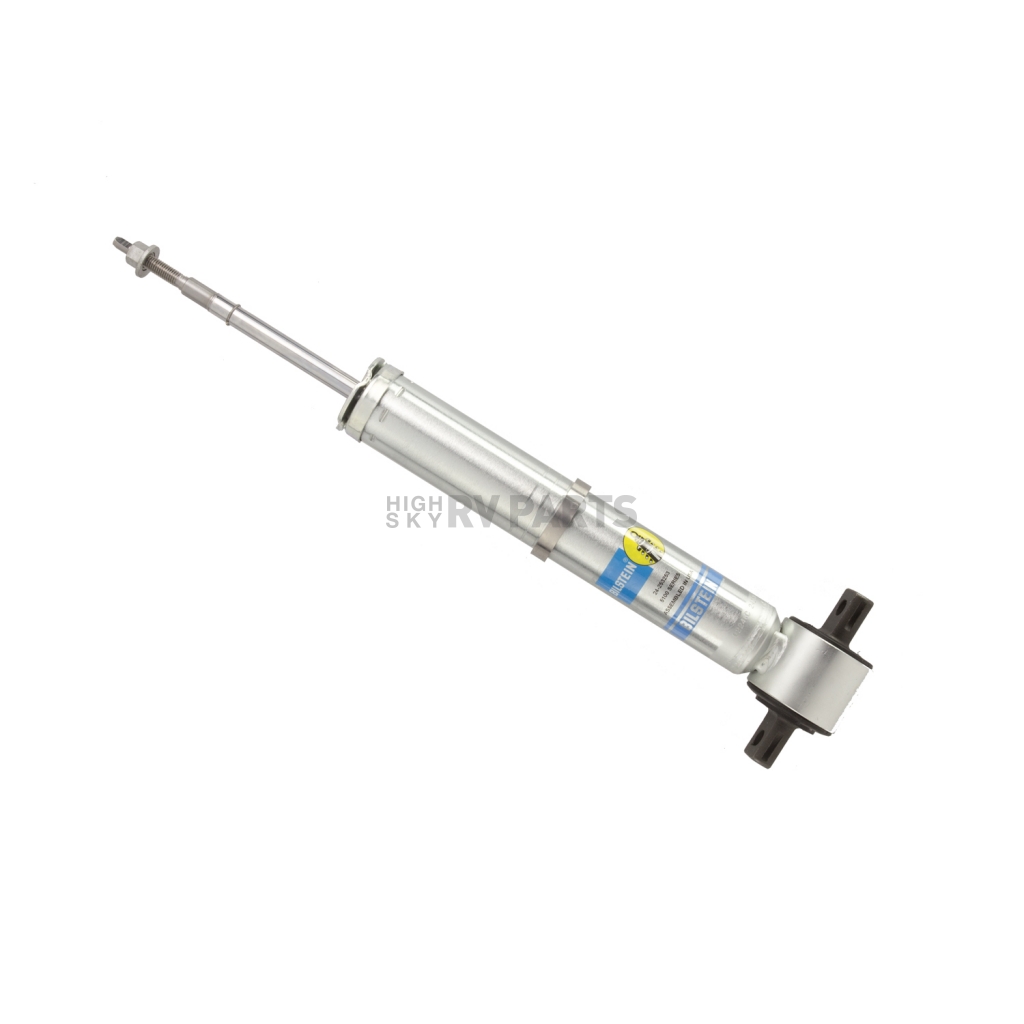

Bilstein B8 5100 Series Shock Absorber - 24-253253

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: 24-253253
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $194.24
Price: $184.99
You Save: $9.25
Adjustable Valving
 Yes
Body Color
 Silver
Body Material
 Steel
Compressed Length (IN)
 14.88 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 18.87 Inch
Includes Boot
 Yes
Includes Dust Shield
 No
Includes Hardware
 No
Internal Design
 Monotube
Lower Mounting Style
 Cross Pin
Share this page

Shock Absorber; B85100 Adj; Nitrogen Gas Charged; Limited Lifetime Warranty; Ride Height Adjustable; Extended Height 18.87 Inches/ Collapsed height 14.88 Inches; With Shock Boot; Zinc Plated; Single

MPN: 24-253253

BILSTEIN B8 5100 (Ride Height Adjustable) shock absorbers are designed for front coilover style pickup and SUV suspensions. With the use of multiple snap ring grooves to position the spring seat at different heights, the vehicle's ride height can be changed anywhere between 0 to 2.75 Inch depending on application.

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: Yes
Extended Length (IN): 18.87 Inch
Compressed Length (IN): 14.88 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Cross Pin
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 1/2 Inch
Valving Type: Self-Adjusting Deflective Disc Valving
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: Yes
Estimated Install Time (Hours): 0.5

Features

  • An Extremely Affordable And Practical Alternative To Coil Spring Spacers
  • Superior Monotube Design
  • Utilizes The Vehicle's Stock Front Coil Springs
  • Zinc Finish With Multi-Layer Unique Coating For Extreme Protection
  • Self-Adjusting Deflective Disc Valving With Independent Rebound And Compression Tuning
  • Limited Lifetime Warranty
Specifications of Bilstein B8 5100 Series Shock Absorber - 24-253253
Adjustable Valving  Yes
Body Color  Silver
Body Material  Steel
Compressed Length (IN)  14.88 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  18.87 Inch
Includes Boot  Yes
Includes Dust Shield  No
Includes Hardware  No
Internal Design  Monotube
Lower Mounting Style  Cross Pin
Quantity  Single
Rod Diameter (IN)  1/2 Inch
Rod Material  Steel
Type  Nitrogen Gas Charged
Upper Mounting Style  Stud
Valving Type  Self-Adjusting Deflective Disc Valving
With Coil Spring  No
With Reservoir  No

2015 Chevrolet Suburban
2016 Chevrolet Suburban
2017 Chevrolet Suburban
2018 Chevrolet Suburban
2019 Chevrolet Suburban

2015 GMC Yukon XL
2016 GMC Yukon XL
2017 GMC Yukon XL
2018 GMC Yukon XL
2019 GMC Yukon XL
