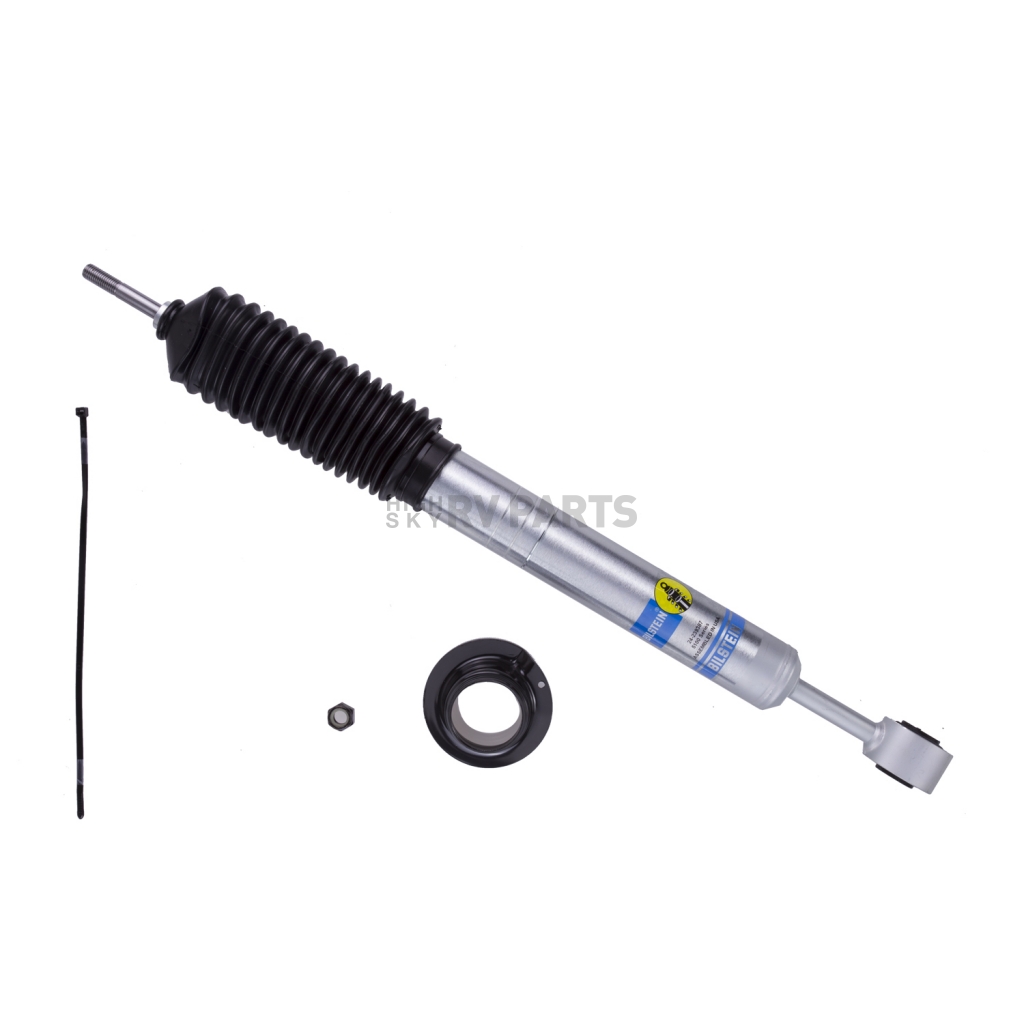

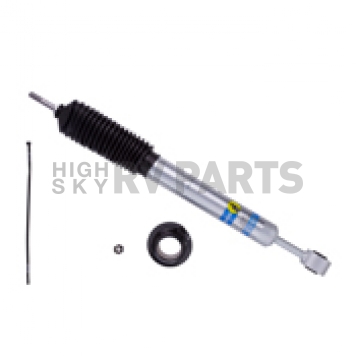

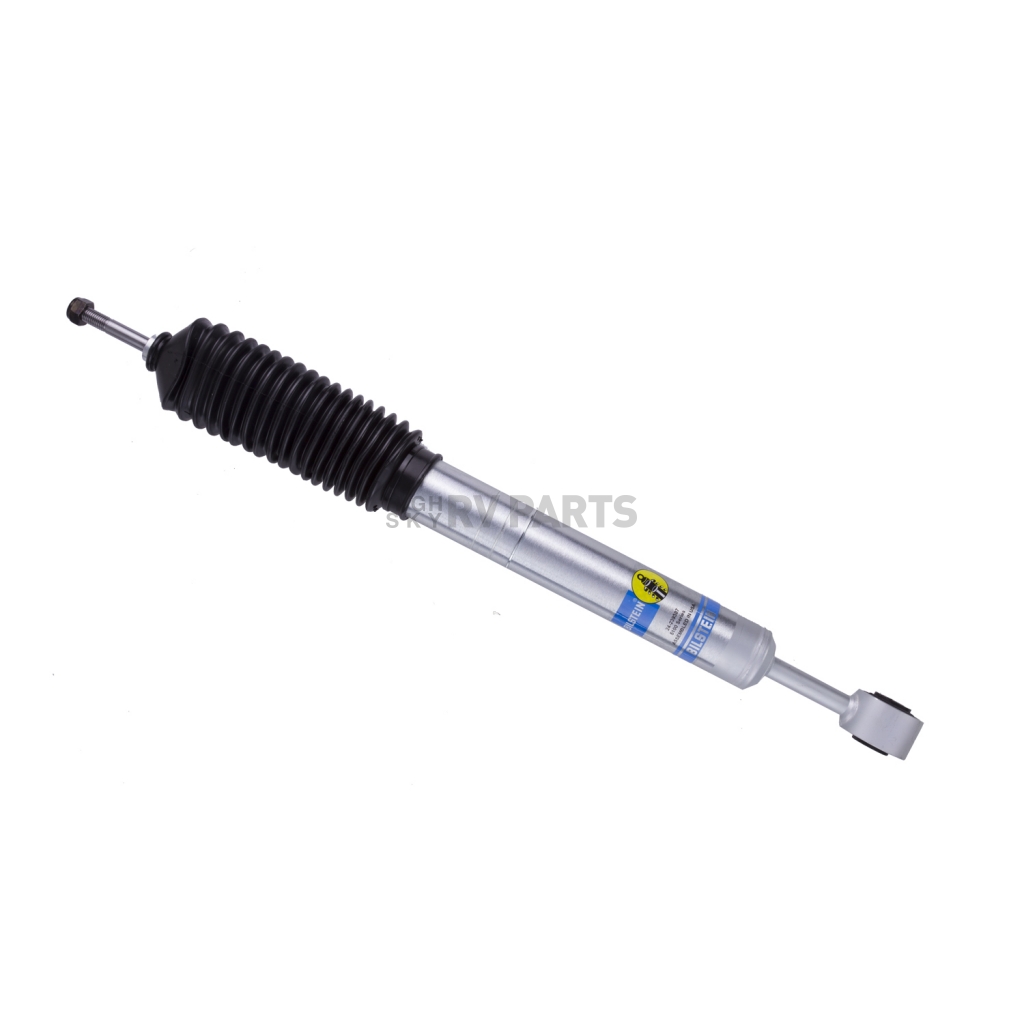

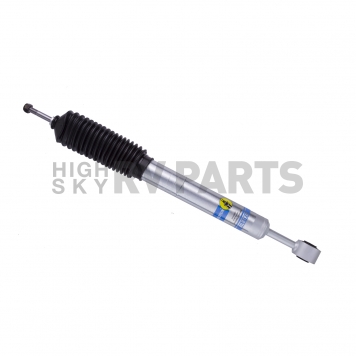

Bilstein 5100 Series Shock Absorber - 24-239387

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: 24-239387
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $194.24
Price: $184.99
You Save: $9.25
Adjustable Valving
 Yes
Body Color
 Silver
Body Material
 Steel
Compressed Length (IN)
 17.77 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 24.21 Inch
Includes Boot
 Yes
Includes Dust Shield
 No
Includes Hardware
 Yes
Internal Design
 Monotube
Lower Mounting Style
 Eyelet
Share this page

Shock Absorber; 5100 Ride Height Adjustable; 46 Millimeter; Nitrogen Gas Charged Mono Tube; Limited Lifetime Warranty; Ride Height Adjustable; 17.77 Inch Collapsed Length/ 24.21 Inch Extended Length; With Shock Boots; Single

MPN: 24-239387

BILSTEIN 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup and SUV suspensions. With the use of multiple snap ring grooves to position the spring seat at different heights the vehicles ride height can be changed anywhere between 0 to 2.5 Inch depending on application.

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: Yes
Extended Length (IN): 24.21 Inch
Compressed Length (IN): 17.77 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 1.81 Inch
Valving Type: Self-Adjusting Deflective Disc Valving
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: Yes
Includes Boot: Yes
Estimated Install Time (Hours): 0.5

Features

  • Superior Monotube Design
  • Utilizes The Vehicle's Stock Front Coil Springs
  • Zinc Finish With Multi-Layer Unique BILSTEIN Coating For Extreme Protection
  • Self-Adjusting Deflective Disc Valving With Independent Rebound And Compression Tuning
  • Limited Lifetime Warranty
Specifications of Bilstein 5100 Series Shock Absorber - 24-239387
Adjustable Valving  Yes
Body Color  Silver
Body Material  Steel
Compressed Length (IN)  17.77 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  24.21 Inch
Includes Boot  Yes
Includes Dust Shield  No
Includes Hardware  Yes
Internal Design  Monotube
Lower Mounting Style  Eyelet
Quantity  Single
Rod Diameter (IN)  1.81 Inch
Rod Material  Steel
Type  Nitrogen Gas Charged
Upper Mounting Style  Stud
Valving Type  Self-Adjusting Deflective Disc Valving
With Coil Spring  No
With Reservoir  No

2008 Toyota Sequoia
2009 Toyota Sequoia
2010 Toyota Sequoia
2011 Toyota Sequoia
2012 Toyota Sequoia
2013 Toyota Sequoia
2014 Toyota Sequoia
2015 Toyota Sequoia
2016 Toyota Sequoia
2017 Toyota Sequoia
2018 Toyota Sequoia
