Bilstein Shock Absorber 24-225434

Name: Bilstein Shock Absorber 24-225434
Brand: Bilstein
SKU: 24-225434
Price: 164.99 USD
Availability: InStock

Authorized Dealer

Brand:

Bilstein

0 reviews

Have a product question? Ask us
Part Number: 24-225434
Part Location: U.S.
Availability: 29 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by June 24

Retail: $173.24

Price: $164.99

You Save: $8.25

Adjustable

Yes

Body Color

Silver

Body Material

Steel

Compressed Length (IN)

26.28 Inch

Extended Length (IN)

32.09 Inch

Includes Boot

Includes Dust Shield

Includes Hardware

Internal Design

Monotube

Lower Mounting Style

Clevis

Quantity

Single

Share this page

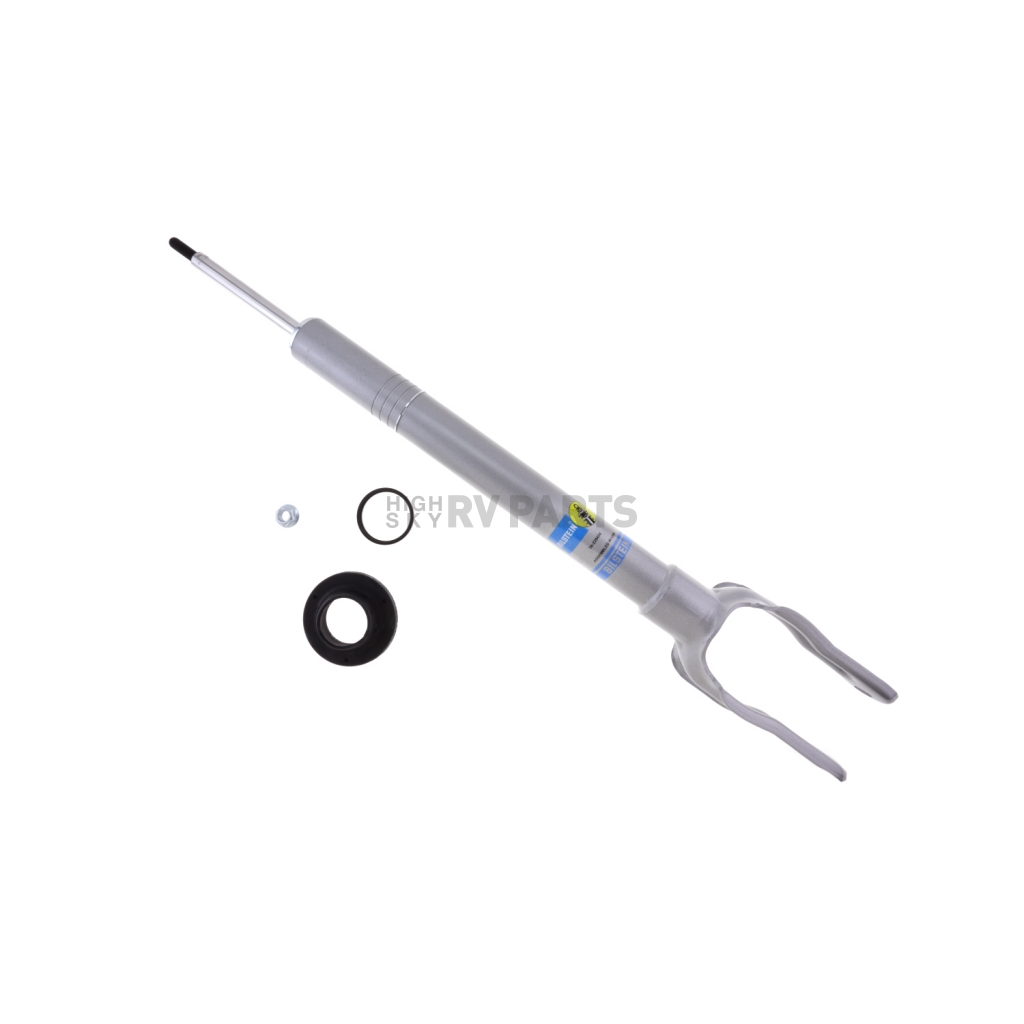

Bilstein Shock Absorber

Shock Absorber; 5100 Ride Height Adjustable; 0.4 Inch To 1.75 Inch Lift Height; Coil Over Shock; Single Strut Snapring And Spring Seat; 46 Millimeter Monotube; Gas Charged; Limited Lifetime Warranty; Compression And Rebound Valving; 32.09 Inch Extended Height/ 26.28 Inch Compressed Height; Stem Upper Mount/ Clevis Lower Mount; Without Shock Boots; Silver Painted; Single

MPN: 24-225434

BILSTEIN 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup and SUV suspensions. With the use of multiple snap ring grooves to position the spring seat at different heights the vehicles ride height can be changed anywhere between 0 To 2.5 Inch depending on application.

Type: Gas Charged

With Coil Spring: No

Internal Design: Monotube

Adjustable: Yes

Extended Length (IN): 32.09 Inch

Compressed Length (IN): 26.28 Inch

Upper Mounting Style: Stem

Lower Mounting Style: Clevis

Body Color: Silver

Quantity: Single

Rod Diameter (IN): 0.55 Inch

Valving Type: Compression And Rebound Valving

Rod Finish: Chrome Plated

Rod Material: Steel

Body Material: Steel

With Reservoir: No

Includes Dust Shield: No

Includes Hardware: No

Includes Boot: No

Features

An Extremely Affordable And Practical Alternative To Coil Spring Spacers
Superior Monotube Design
Zinc Finish With Multi-Layer Unique BILSTEIN Coating For Extreme Protection
Self-Adjusting Deflective Disc Valving With Independent Rebound And Compression Tuning
Limited Lifetime Warranty

Specifications of Bilstein Shock Absorber 24-225434
Adjustable	Yes
Body Color	Silver
Body Material	Steel
Compressed Length (IN)	26.28 Inch
Extended Length (IN)	32.09 Inch
Includes Boot	No
Includes Dust Shield	No
Includes Hardware	No
Internal Design	Monotube
Lower Mounting Style	Clevis
Quantity	Single
Rod Diameter (IN)	0.55 Inch
Rod Finish	Chrome Plated
Rod Material	Steel
Type	Gas Charged
Upper Mounting Style	Stem
Valving Type	Compression And Rebound Valving
With Coil Spring	No
With Reservoir	No
