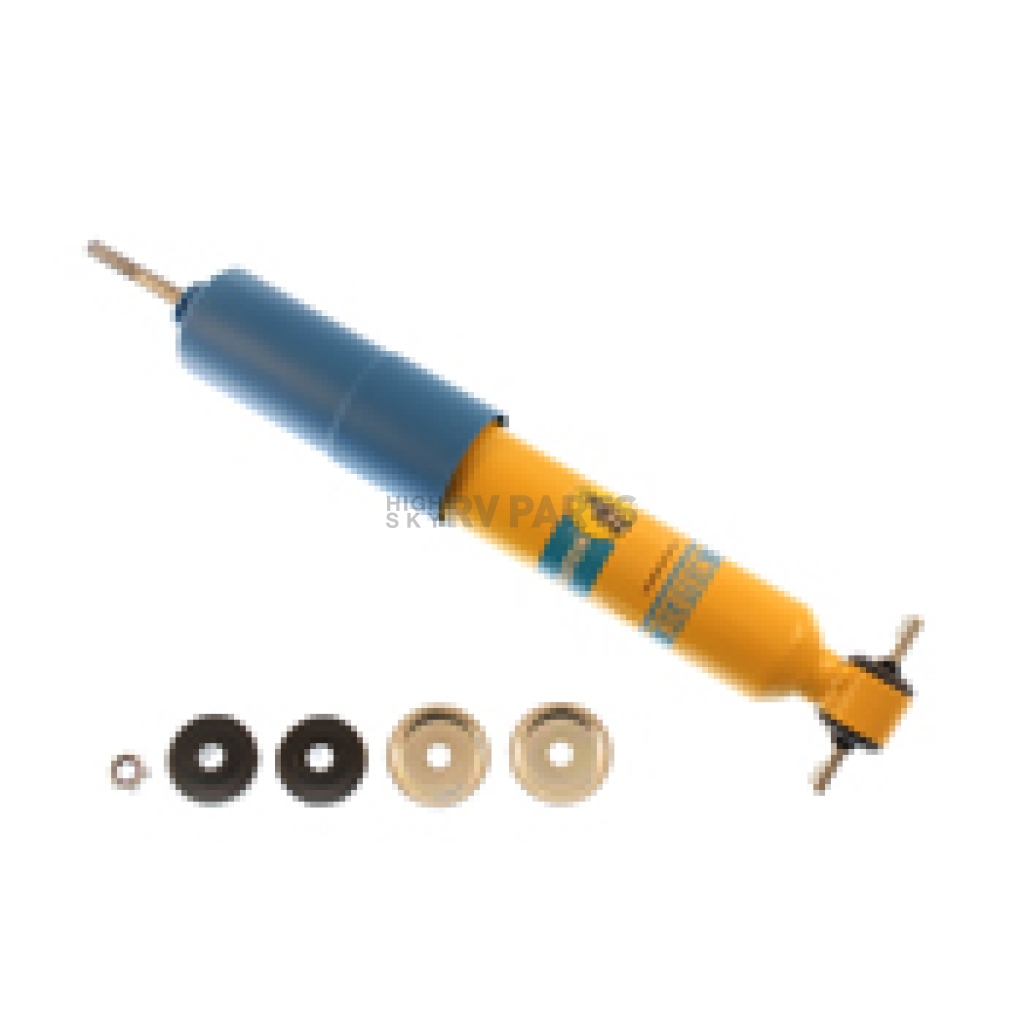

Bilstein 4600 Series Shock Absorber - 24-196260
Adjustable Valving
No
Body Color
Yellow
Body Material
Steel
Compressed Length (IN)
9.8 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
14.02 Inch
Includes Boot
Yes
Includes Dust Shield
Yes
Includes Hardware
Yes
Internal Design
Monotube
Lower Mounting Style
Cross Pin
Share this page
Shock Absorber; 4600 Series Shock; Nitrogen Gas Charged; Limited Lifetime Warranty; Not Adjustable Valving; Without Shock Boots; Single
MPN: 24-196260
Bilstein 4600 Series Shock Absorbers and Struts are designed specifically to help your Truck, Van or SUV reach its pinnacle in ride performance and handling, while still providing the comfortable ride that has come to be expected from the name BILSTEIN. A 4600 Series equipped vehicle offers superior control compared to conventional alternatives, allowing you to keep cargo secure-from your kids to work equipment, mile after mile. Utilizing our patented design, the dampers allow the vehicle to glide over every type of road surface you may encounter while maintaining complete command at all times. These dampers are the least expensive and most effective upgrade to extend the service life of any vehicle out on the road today.Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: No
Extended Length (IN): 14.02 Inch
Compressed Length (IN): 9.8 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Cross Pin
Body Color: Yellow
Quantity: Single
Rod Diameter (IN): 1/2 Inch
Valving Type: Self-Adjusting Deflective Disc Valving
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: Yes

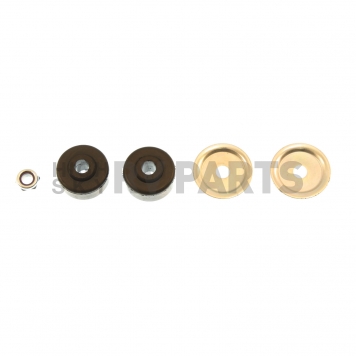

Includes Hardware: Yes
Includes Boot: Yes
Estimated Install Time (Hours): 0.5
Features
- Increased Power Reserves And Service Life, Even When Pulling Transporters And Trailers Or During Frequent Journeys With Loads
- Optimum Addition And Enhanced Lane Change Stability In Both Day To Day And Extreme Solutions
- Marked Improvement In Safety And Performance Without Additional Spring Changes
- Bilstein Gas Pressure Technology
- Bilstein Monotube/Upside Down Technology
- Road And Track Tested By Bilstein For Fine Tuning
- Limited Lifetime Warranty
Specifications of Bilstein 4600 Series Shock Absorber - 24-196260 | |
Adjustable Valving | No |
Body Color | Yellow |
Body Material | Steel |
Compressed Length (IN) | 9.8 Inch |
Estimated Install Time (Hours) | 0.5 |
Extended Length (IN) | 14.02 Inch |
Includes Boot | Yes |
Includes Dust Shield | Yes |
Includes Hardware | Yes |
Internal Design | Monotube |
Lower Mounting Style | Cross Pin |
Quantity | Single |
Rod Diameter (IN) | 1/2 Inch |
Rod Material | Steel |
Type | Nitrogen Gas Charged |
Upper Mounting Style | Stud |
Valving Type | Self-Adjusting Deflective Disc Valving |
With Coil Spring | No |
With Reservoir | No |
1998 Ford Ranger
1999 Ford Ranger
2000 Ford Ranger
2001 Ford Ranger
2002 Ford Ranger
2003 Ford Ranger
2004 Ford Ranger
2005 Ford Ranger
2006 Ford Ranger
2007 Ford Ranger
2008 Ford Ranger
2009 Ford Ranger
2010 Ford Ranger
2011 Ford Ranger
1999 Ford Ranger
2000 Ford Ranger
2001 Ford Ranger
2002 Ford Ranger
2003 Ford Ranger
2004 Ford Ranger
2005 Ford Ranger
2006 Ford Ranger
2007 Ford Ranger
2008 Ford Ranger
2009 Ford Ranger
2010 Ford Ranger
2011 Ford Ranger
2001 Mazda B2300
2002 Mazda B2300
2003 Mazda B2300
2004 Mazda B2300
2005 Mazda B2300
2006 Mazda B2300
2007 Mazda B2300
2008 Mazda B2300
2009 Mazda B2300
2002 Mazda B2300
2003 Mazda B2300
2004 Mazda B2300
2005 Mazda B2300
2006 Mazda B2300
2007 Mazda B2300
2008 Mazda B2300
2009 Mazda B2300
1998 Mazda B2500
1999 Mazda B2500
2000 Mazda B2500
2001 Mazda B2500
1999 Mazda B2500
2000 Mazda B2500
2001 Mazda B2500
1998 Mazda B3000
1999 Mazda B3000
2000 Mazda B3000
1999 Mazda B3000
2000 Mazda B3000
1998 Mazda B4000
1999 Mazda B4000
2000 Mazda B4000
1999 Mazda B4000
2000 Mazda B4000
