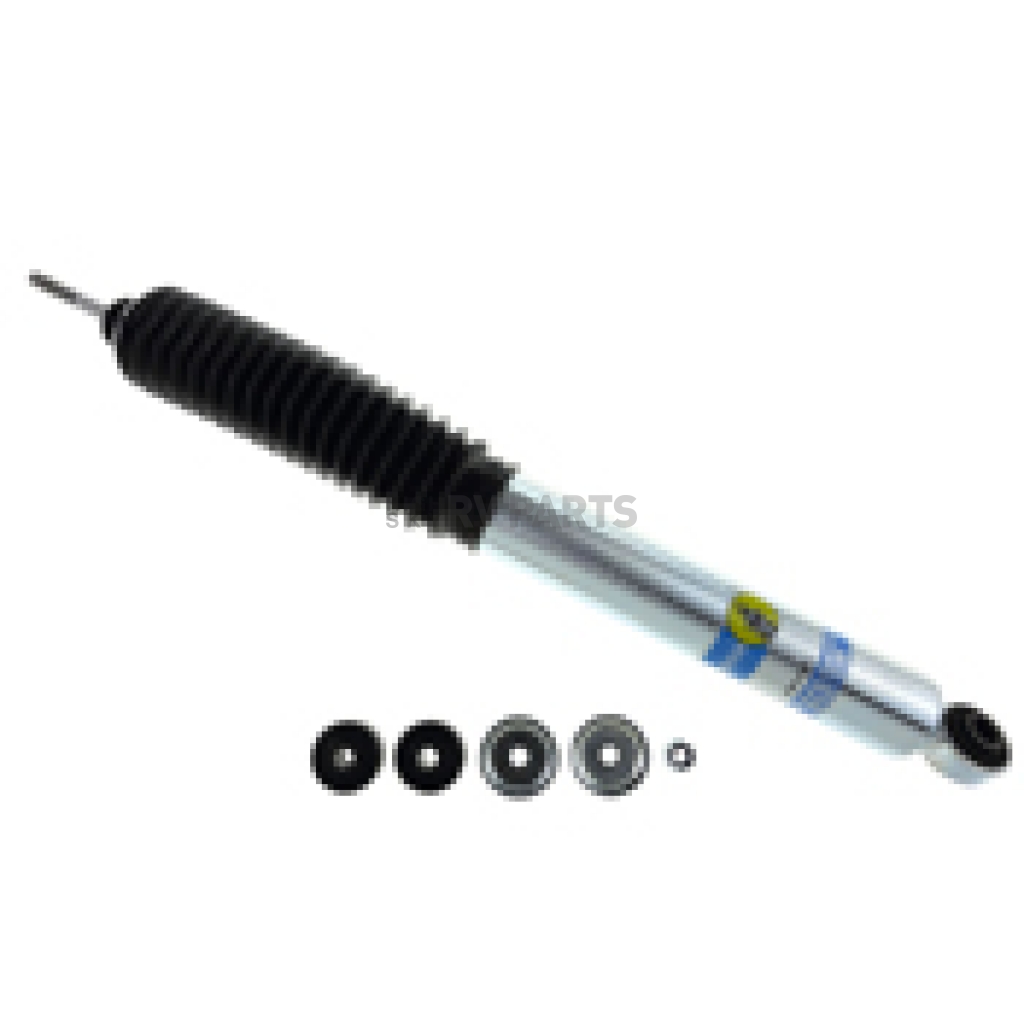

Bilstein B8 5100 Series Shock Absorber - 24-187206

Authorized Dealer
Brand: Bilstein Bilstein
0 reviews
  • Have a product question? Ask us
  • Part Number: 24-187206
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $136.49
Price: $129.99
You Save: $6.50
Adjustable Valving
 No
Body Color
 Silver
Body Material
 Steel
Compressed Length (IN)
 13.52 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 21.46 Inch
Includes Boot
 Yes
Includes Dust Shield
 No
Includes Hardware
 Yes
Internal Design
 Monotube
Lower Mounting Style
 Eyelet
Share this page

Shock Absorber; B8 5100 Series; Nitrogen Gas Charged; Limited Lifetime Warranty; Not Adjustable Valving; With Shock Boots; Single

MPN: 24-187206

The B8 5100‘s monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, the Bilstein B8 5100 shock absorber instantly reacts to changing road inputs to maintain a stable, controlled, and comfortable ride.

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: No
Extended Length (IN): 21.46 Inch
Compressed Length (IN): 13.52 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Single
Rod Diameter (IN): 1.81 Inch
Valving Type: Self-Adjusting Deflective Disc Valving
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No

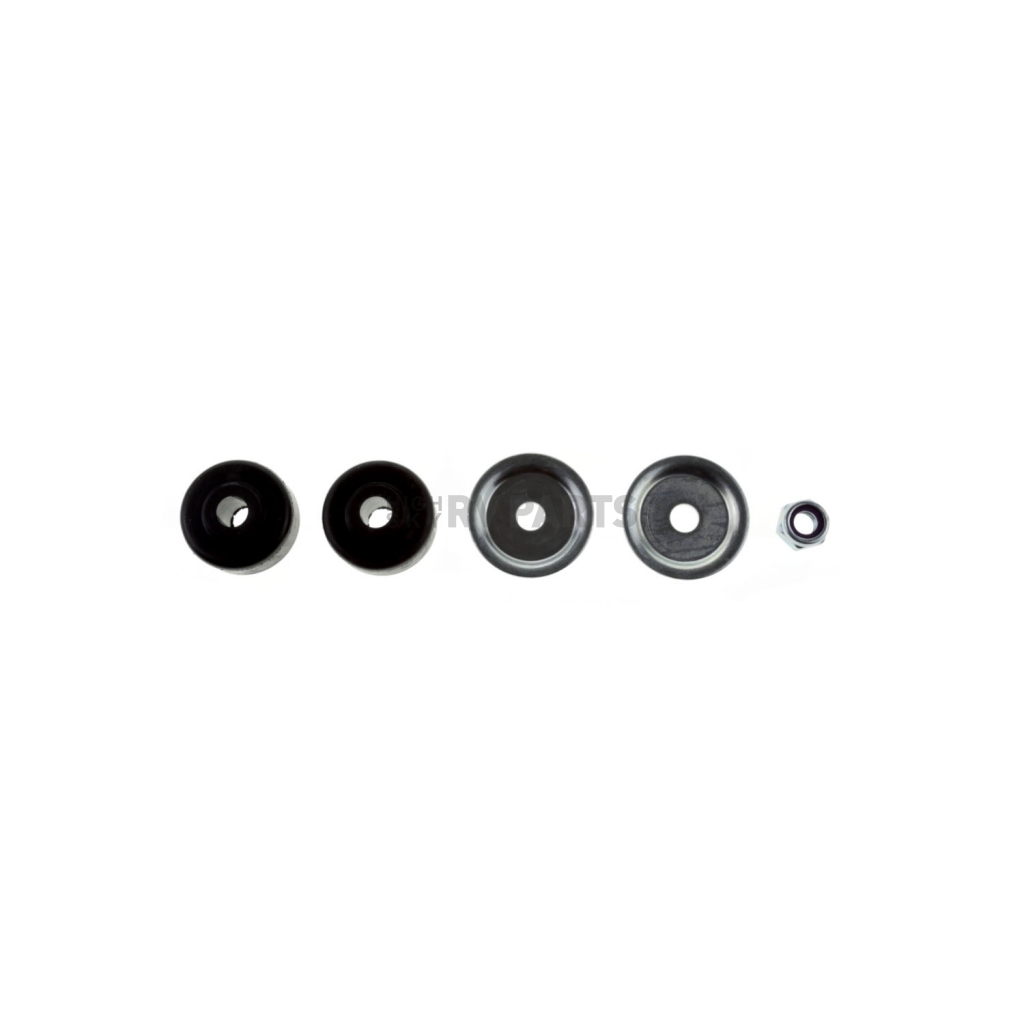

Includes Hardware: Yes
Includes Boot: Yes
Estimated Install Time (Hours): 0.5

Features

  • Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
  • Zinc Plated For Resistance Against Harsh Elements
  • Patented Digressive Valving Instantly Reacts To Changing Surface Conditions
  • Durable Vulcanized Neoprene Rubber Bushings
  • OEM Certified Mounting Hardware Allows For Easy Installation
  • Limited Lifetime Warranty
Specifications of Bilstein B8 5100 Series Shock Absorber - 24-187206
Adjustable Valving  No
Body Color  Silver
Body Material  Steel
Compressed Length (IN)  13.52 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  21.46 Inch
Includes Boot  Yes
Includes Dust Shield  No
Includes Hardware  Yes
Internal Design  Monotube
Lower Mounting Style  Eyelet
Quantity  Single
Rod Diameter (IN)  1.81 Inch
Rod Material  Steel
Type  Nitrogen Gas Charged
Upper Mounting Style  Stud
Valving Type  Self-Adjusting Deflective Disc Valving
With Coil Spring  No
With Reservoir  No

2003 Hummer H2
2004 Hummer H2
2005 Hummer H2
2006 Hummer H2
2007 Hummer H2
2008 Hummer H2
2009 Hummer H2
