Be Cool Radiator And Cooling Fan Assembly 82231
Core Depth (IN)
2 Inch
Core Height (IN)
18-1/2 Inch
Core Length (IN)
27-1/2 Inch
Flow Direction
Crossflow
Inlet Hose Location
Passenger Side
Inlet Size (IN)
1-3/8 Inch
Number Of Rows
2
Outlet Hose Location
Passenger Side
Outlet Size (IN)
1-1/2 Inch
Overall Depth (IN)
3 Inch
Overall Height (IN)
19 Inch
Share this page

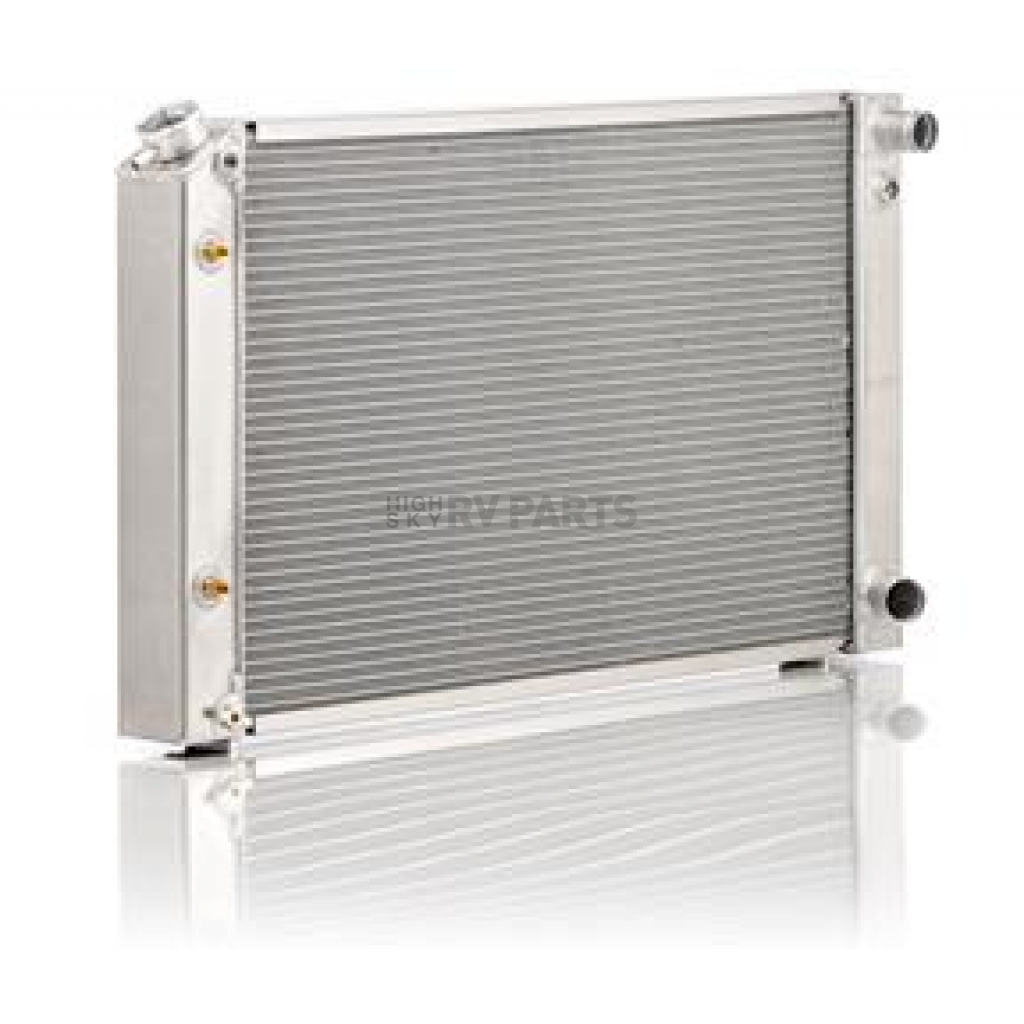

Be Cool Radiator And Cooling Fan Assembly
Radiator And Cooling Fan Assembly; For Use With 1970-1981 Chevy Camaro LS2/ LS3/ LS7 Engines; 31 Inch Length x 19 Inch Height x 3 Inch Depth Overall Dimension; Two Core 27-1/2 Inch Length x 18-1/2 Inch Height x 2 Inch Depth Core Dimension; Crossflow; Natural Aluminum Radiator; 1-3/8 Inch Passenger Side Inlet x 1-1/2 Inch Passenger Side Outlet; With Transmission Cooler; Dual Electric Fan Up To 3560 Cubic Feet Per Minute; With Radiator Cap/ Wiring Harness With Temperature Control Sending Unit/ Mounting Hardware
MPN: 82231
OEM radiators are just that, OEM They are designed to cool stock applications and overheating can take the fun out of using your specialty vehicle quickly. Now, Be Cool has your answer in one of five different radiator series: Direct-Fit, Aluminator, Qualifier, Universal, and Conversion. Cross flow radiators are constructed with their tanks on the sides, while a Down flow radiator has its tanks on the top and bottom of the core. A commonly asked question is: Which is better, a Cross flow or Down flow radiator? The answer: Both will cool the same as long as the core surface of the radiator is the same in square inches. Cooling monster motors, especially when faced with common problems like tight spaces and small grille openings can be a challenge. Be Cool’s cooling technology produces radiators that are 40 Percent lighter than conventional OEM units, yet have greater cooling power. Their epoxy free construction provides better heat dissipation, too, while allowing complete reparability. A mirror polished finish is an option on all Be Cool radiators. High-quality Be Cool radiators are 100 Percent made in the North America. Most are made for specific applications, fit without the need for major modifications, and are compatible with all coolants. They are Guaranteed to lower your cool ant temperature a minimum of 20 Degrees, or your money back! In fact most customers report even greater coolant temperature drops. If you have a stock vehicle think OEM, but if you have a performance vehicle you should consider Be Cool!
Flow Direction: Crossflow
Overall Length (IN): 31 Inch
Overall Height (IN): 19 Inch
Overall Depth (IN): 3 Inch
Number Of Rows: 2
Core Length (IN): 27-1/2 Inch
Core Height (IN): 18-1/2 Inch
Core Depth (IN): 2 Inch
Inlet Hose Location: Passenger Side
Inlet Size (IN): 1-3/8 Inch
Outlet Hose Location: Passenger Side
Outlet Size (IN): 1-1/2 Inch
Radiator Finish: Natural
Radiator Color: Silver
Radiator Material: Aluminum
With Transmission Cooler: Yes
With Engine Oil Cooler: No
Features
- Performance Grade Dual One Inch Core Natural Finish Radiator
- Epoxy Free Construction
- Billet Filler Neck With High Capacity Overflow
- Hand Fabricated Tanks With Full Trim Plates
- Down Flow And Cross Flow Designs
- Heavy Duty Internal Automatic Transmission Cooler
- Limited 1 Year Warranty
Specifications of Be Cool Radiator And Cooling Fan Assembly 82231 | |
Core Depth (IN) | 2 Inch |
Core Height (IN) | 18-1/2 Inch |
Core Length (IN) | 27-1/2 Inch |
Flow Direction | Crossflow |
Inlet Hose Location | Passenger Side |
Inlet Size (IN) | 1-3/8 Inch |
Number Of Rows | 2 |
Outlet Hose Location | Passenger Side |
Outlet Size (IN) | 1-1/2 Inch |
Overall Depth (IN) | 3 Inch |
Overall Height (IN) | 19 Inch |
Overall Length (IN) | 31 Inch |
Radiator Color | Silver |
Radiator Finish | Natural |
Radiator Material | Aluminum |
With Engine Oil Cooler | No |
With Transmission Cooler | Yes |
1970 Chevrolet Camaro
1971 Chevrolet Camaro
1972 Chevrolet Camaro
1973 Chevrolet Camaro
1974 Chevrolet Camaro
1975 Chevrolet Camaro
1976 Chevrolet Camaro
1977 Chevrolet Camaro
1978 Chevrolet Camaro
1979 Chevrolet Camaro
1980 Chevrolet Camaro
1981 Chevrolet Camaro
1971 Chevrolet Camaro
1972 Chevrolet Camaro
1973 Chevrolet Camaro
1974 Chevrolet Camaro
1975 Chevrolet Camaro
1976 Chevrolet Camaro
1977 Chevrolet Camaro
1978 Chevrolet Camaro
1979 Chevrolet Camaro
1980 Chevrolet Camaro
1981 Chevrolet Camaro
1970 Pontiac Firebird
1971 Pontiac Firebird
1972 Pontiac Firebird
1973 Pontiac Firebird
1974 Pontiac Firebird
1975 Pontiac Firebird
1976 Pontiac Firebird
1977 Pontiac Firebird
1978 Pontiac Firebird
1979 Pontiac Firebird
1980 Pontiac Firebird
1981 Pontiac Firebird
1971 Pontiac Firebird
1972 Pontiac Firebird
1973 Pontiac Firebird
1974 Pontiac Firebird
1975 Pontiac Firebird
1976 Pontiac Firebird
1977 Pontiac Firebird
1978 Pontiac Firebird
1979 Pontiac Firebird
1980 Pontiac Firebird
1981 Pontiac Firebird
