BD Diesel Fluid Cooler 1030606D12

Brand: BD Diesel

0 reviews

Have a product question? Ask us
Part Number: 1030606-DS-12
Part Location: U.S.
Availability: Out Of Stock

Retail: $1,061.54

Price: $1,010.99

You Save: $50.55

Color

Silver

Condition

Construction

Double Stacked

Fan CFM Rating

800 CFM

Fan Control

Thermostatic Switch

Fan Diameter

10 Inch

Finish

Natural

Inlet Attachment

Hose Barb

Inlet Size

1/2 Inch (-8 AN)

Material

Aluminum

Number Of Cooling Rows

Share this page

BD Diesel Fluid Cooler

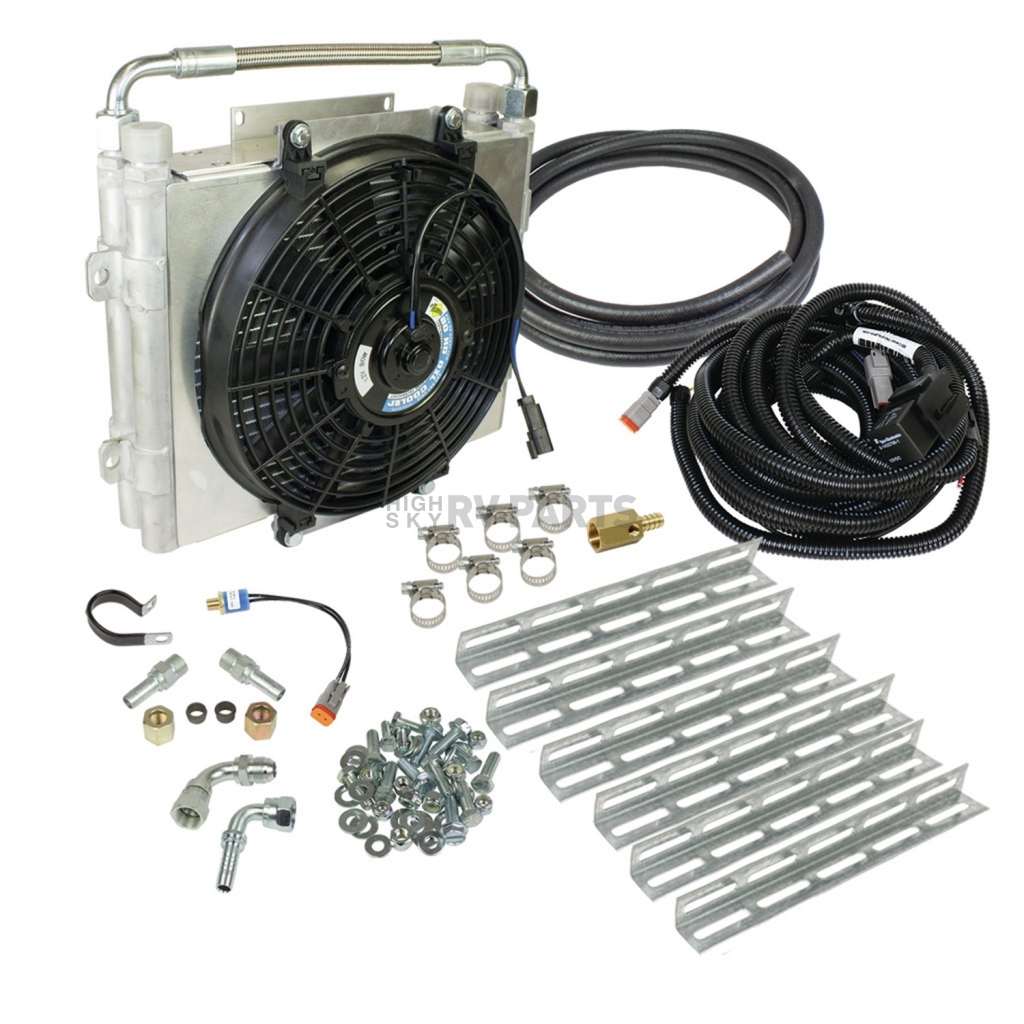

Fluid Cooler; Xtrude; For Transmission Fluid; 15 Inch Width x 12 Inch Height x 5 Inch Depth; 30,000 Pounds Gross Vehicle Weight (GVW); Double Stacked; Hose Barb; 1/2 Inch Inlet; 1/2 Inch Outlet; With Electric Fan/ Electric Thermostat; Fittings/ Hoses/ Mounting Bracket/ Mounting Hardware/ Wiring Harness

MPN: 1030606D12

Quick firm shifting Automatic transmissions can’t be beat at the race track. But, the Hot transmission oil has to be Cooled to stay on track. Hot oil temperatures must be kept under control! Heating of transmission oil is caused from: torque multiplying stators redirecting and shearing the oil, heat transfer when cooling down of the clutches as they are on the edge of slipping on the steels. End thrusting loads on the bushings transfer heat into the case.

Condition: New

Recommended Use: Transmission Fluid

Construction: Double Stacked

Overall Height (IN): 12 Inch

Overall Width (IN): 15 Inch

Overall Depth (IN): 5 Inch

Number Of Cooling Rows: 2

Inlet Attachment: Hose Barb

Inlet Size: 1/2 Inch (-8 AN)

Outlet Attachment: Hose Barb

Outlet Size: 1/2 Inch (-8 AN)

Finish: Natural

Color: Silver

Material: Aluminum

With Fan: Yes

Fan Control: Thermostatic Switch

Fan CFM Rating: 800 CFM

Fan Diameter: 10 Inch

With Mounting Hardware: Yes

Features

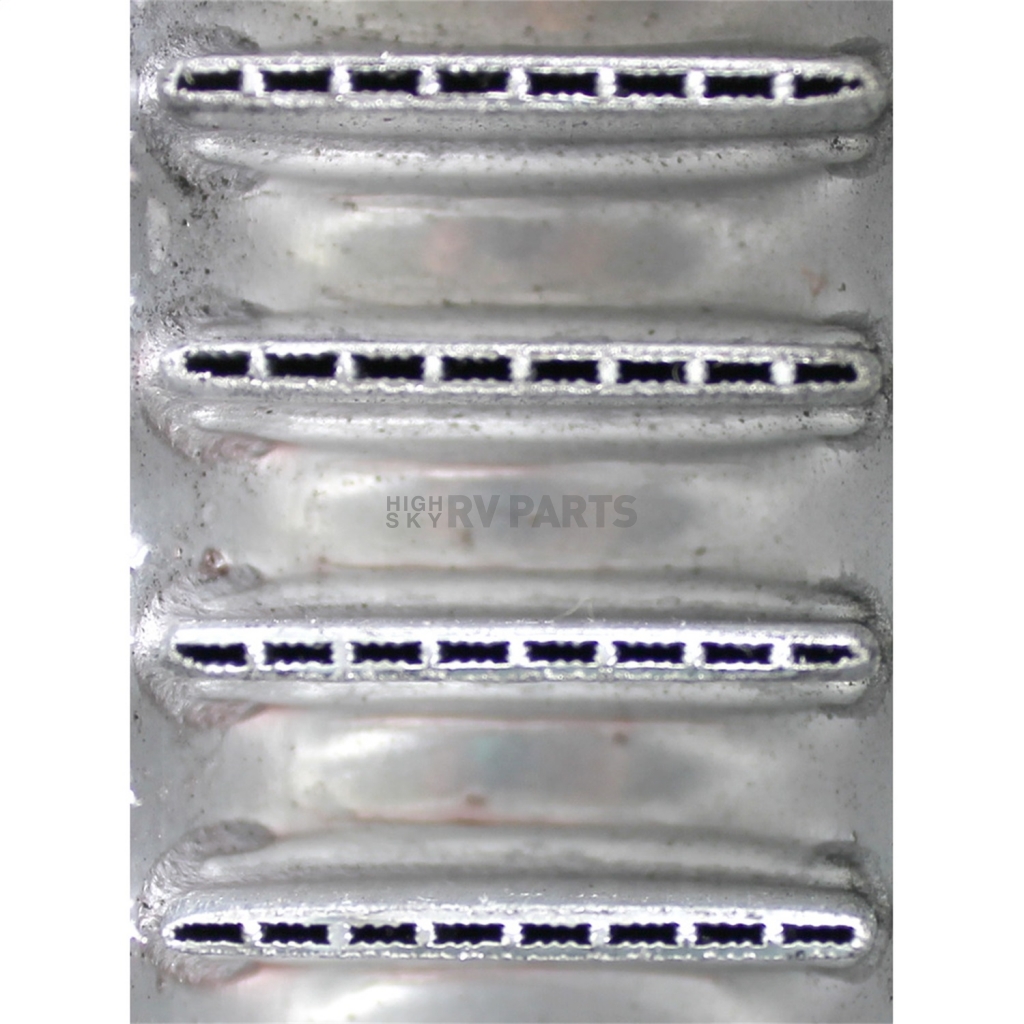

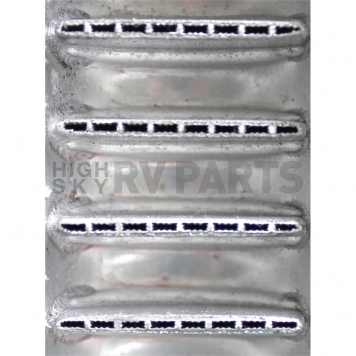

The 200 Micro Extruded Passages In Each Cooler Provide A Large Surface Area To Transfer Heat For External Air Flow Cooling While Turbulent Oil Flow Design Promotes A More Complete Cooling
The Thermostatically Controlled 80 Watt, 800 Cubic Foot Per Minute Electric Fan Offers Ultimate Automatic Oil Temperature Control
Xtruded Trans Oil Cores To Deliver Over 40,000 British Thermal Unit Per Hour Of Cooling And Over 350 Percent Temperature Drop Versus The Factory System
136 Percent Better Temperature Drop Than Standard Single Core Kit
Come Complete With All Fittings, Clamps, Hoses, Hardware And A Build-It-Yourself Galvanized Bracket Kit For Quicker And Cleaner Installation
Limited 1 Year Warranty

Specifications of BD Diesel Fluid Cooler 1030606D12
Color	Silver
Condition	New
Construction	Double Stacked
Fan CFM Rating	800 CFM
Fan Control	Thermostatic Switch
Fan Diameter	10 Inch
Finish	Natural
Inlet Attachment	Hose Barb
Inlet Size	1/2 Inch (-8 AN)
Material	Aluminum
Number Of Cooling Rows	2
Outlet Attachment	Hose Barb
Outlet Size	1/2 Inch (-8 AN)
Overall Depth (IN)	5 Inch
Overall Height (IN)	12 Inch
Overall Width (IN)	15 Inch
Recommended Use	Transmission Fluid
With Fan	Yes
With Mounting Hardware	Yes

1994-2010 Dodge Ram 2500

1994 Dodge Ram 2500
1995 Dodge Ram 2500
1996 Dodge Ram 2500
1997 Dodge Ram 2500
1998 Dodge Ram 2500
1999 Dodge Ram 2500
2000 Dodge Ram 2500
2001 Dodge Ram 2500
2002 Dodge Ram 2500
2003 Dodge Ram 2500
2004 Dodge Ram 2500
2005 Dodge Ram 2500
2006 Dodge Ram 2500
2007 Dodge Ram 2500
2008 Dodge Ram 2500
2009 Dodge Ram 2500
2010 Dodge Ram 2500

1994-2009 Dodge Ram 3500

1994 Dodge Ram 3500
1995 Dodge Ram 3500
1996 Dodge Ram 3500
1997 Dodge Ram 3500
1998 Dodge Ram 3500
1999 Dodge Ram 3500
2000 Dodge Ram 3500
2001 Dodge Ram 3500
2002 Dodge Ram 3500
2003 Dodge Ram 3500
2004 Dodge Ram 3500
2005 Dodge Ram 3500
2006 Dodge Ram 3500
2007 Dodge Ram 3500
2008 Dodge Ram 3500
2009 Dodge Ram 3500

2007-2007 Ford E-150

2007 Ford E-150
