BD Diesel Auto Trans Pressure Controller - 1030363
Includes Wiring Harness
No
Operation Type
Electronic
Transmission Model
68RFE
Share this page
BD Diesel Auto Trans Pressure Controller

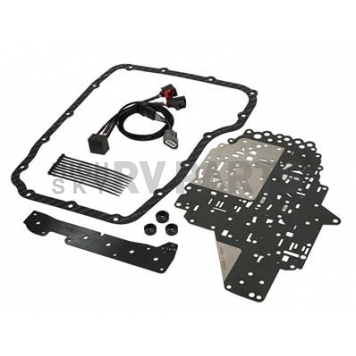

Auto Trans Pressure Controller; Protect68; For Use With 68RFE Transmission; Electronic; With Pan Gaskets/ Seals/ Check Ball/ Doughnut Seals
MPN: 1030363
ProTect68 Trans Pressure Control kit delivers 150 percent of the torque holding force to stock transmissions like no others can. Industry leading custom bonded gasket valve body separator plate and gaskets substantially reduces cross leaks compared to stock and other aftermarket kits, even with much higher line pressures. Heavy duty accumulator plate to prevent accumulator blow-out. Electronic Pressure Control module that delivers up to 250 PSI clutch apply pressure providing 150 percent of the holding force prevents clutch slippage. All of this without modifying the transmission pump or removing the transmission. Controller dynamically adjusts the hydraulic apply pressures based on turbo boost/engine load. No tuning required. Installation takes 2-to-3 hours to complete without having to do a full transmission relearn since no internal tolerances have changed. A "fresh" stock transmission will have the ability to handle up to 450hp. For higher power or demands, a complete BD 68RFE transmission with additional clutches and new designed components is recommended.
Transmission Model: 68RFE
Operation Type: Electronic
Includes Wiring Harness: No
Features
- Heavy Duty Accumulator Plate To Valve Body Leaks
- Custom Bonded Gasket Valve Body Separator Plate Increases Line Pressure While Stopping Internal Cross Leaks
- 56 Percent More Theoretical Holding Power
- Pressure Control Module Delivers Up To 250 PSI Clutch Apply Pressure At Full Throttle
- Dynamically Adjusts Hydraulic Apply Pressures Based On Turbo Boost/ Engine Load
- Dynamic Control Ramps Up The Much Larger Sweep
- Prevent Clutch Slippage
- No Full Transmission Relearn Required - Quick Relearn Suggested
- A Fresh Stock Transmission Will Have The Ability To Handle Up To 400hp-450hp
- Limited 1 Year Or 24,000 Mile Warranty
Specifications of BD Diesel Auto Trans Pressure Controller - 1030363 | |
Includes Wiring Harness | No |
Operation Type | Electronic |
Transmission Model | 68RFE |
2019 Ram 2500
2020 Ram 2500
2021 Ram 2500
2020 Ram 2500
2021 Ram 2500
2019 Ram 3500
2020 Ram 3500
2020 Ram 3500
