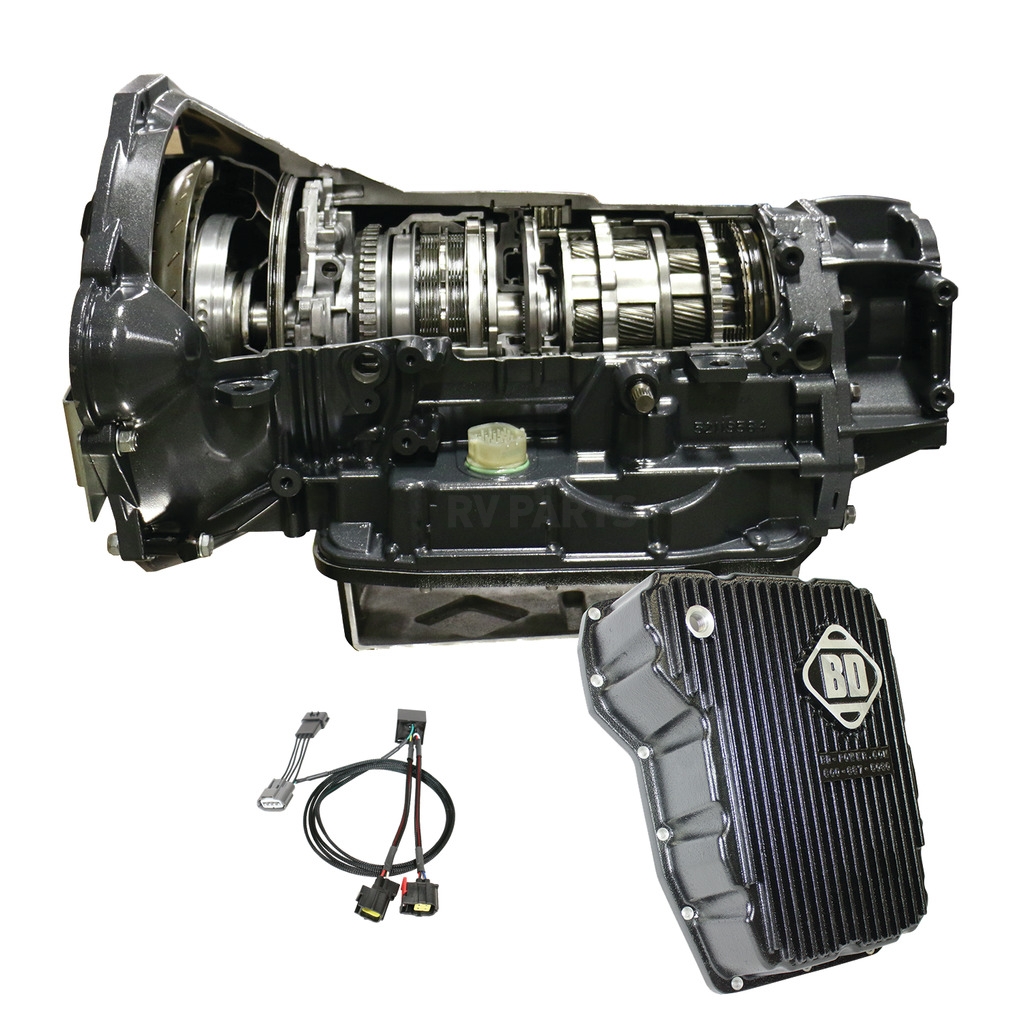

BD Diesel Auto Trans Assembly - 1064264

Auto Trans Assembly; 68RFE; Without Torque Converter; With Heavy Duty Cam And Roller Style Low Reverse One-Way Clutch; Rigid Aluminum Heavy Duty Transmission Pan; With ProTech68 Pressure Control Module

MPN: 1064264

BD Transmissions Are Built Specifically To Handle The High Torque Loads Of Diesel Engines At Our State Of The Art Transmission Facility. We Re-Program The Valve Body For Higher Line Pressure, And Add Heavy-Duty Clutches With Up To 25 Percent More Material Than Stock.

Features

• Hard anodized valve body and new solenoid pack installed in every unit
• Custom Valve Body Separator Plate With Gaskets Increases Line Pressure While Stopping Internal Cross Leaks
• Heavy Duty Cam And Roller Design Low Reverse One Way Clutch; New 4C Billet Spring Retainer
• Steel Girdle Added To 2C Piston To Allow For More Clutches And Broader Apply Area
• BD Durable QT100 Pressure Plates Allow For Increased Clutch Counts And Reduce Deflection And Distortion Within The Clutch Drum
• Clutch Count Increased To Hold High Torque Level - Over Drive 17 Percent Increase, Under Drive 20 Percent, 2C 33 Percent Increase
• BD Reinforced Accumulator Plate; TCC Limit Valve Machined And Sleeved To Address High Wear Area With In Pump
• BD Deep Sump Oil Pan Adds Extra Fluid And Cooling Capacity While Reducing Case Flex
• BD ProTech68 Pressure Control Module Ramps Up Line Pressure To 250 PSI Using MAP Sensor To Input Load And Adjust Pressure Required
• Limited 36 Month Or 150,000 Mile Parts Warranty And Limited 12 Month Or 24,000 Mile Labor Warranty
