B&M Automatic Transmission Fluid Cooler - 70255
Color
Black
Condition
New
Construction
Stacked Plate
Core Depth (IN)
3/4 Inch
Core Height (IN)
3-3/4 Inch
Core Width (IN)
11 Inch
Fan Amp Draw
No Fan
Fan CFM Rating
No Fan
Fan Control
No Fan
Fan Diameter
No Fan
Finish
Painted
Share this page
B&M Fluid Cooler
Fluid Cooler; Super Cooler; For Automatic Transmission Fluid; 11 Inch Width x 5-3/4 Inch Height x 3/4 Inch Depth; 3/8 Inch Extended Hose Nipple Fitting; With Supercooler
MPN: 70255
B&M Super Coolers are 100 Percent aluminum construction and use stamped plates sandwiched together to create one of the most efficient oil cooling devices available. Not only does this unique design provide for maximized cooling through more efficient heat dissipation but it also provides a much sturdier cooler which is practically impervious to flying rocks or other debris. The Super-Coolers intended for automatic transmission fluid also offer an additional feature known as “low pressure drop”. The coolers assembled with hose barb ends include a unique bypass feature allowing a controlled amount of ATF to bypass the stacked plate core when the fluid is cold. This is beneficial in cold climate areas to guard against lube system failure. Controlled by viscosity, fluid is returned directly to the lube circuit through bypass openings in the stacked plate core. As the temperature increases, more ATF is directed through the core. This highly efficient design combines improved protection against lube system failure with the required levels of optimal heat transfer.
Condition: New
Recommended Use: Automatic Transmission
Construction: Stacked Plate
Overall Height (IN): 5-3/4 Inch
Overall Width (IN): 11 Inch
Overall Depth (IN): 3/4 Inch
Number Of Cooling Rows: 25
Core Height (IN): 3-3/4 Inch
Core Width (IN): 11 Inch
Core Depth (IN): 3/4 Inch
Inlet Attachment: Hose Barb
Inlet Size: 3/8 Inch (-6 AN)
Outlet Attachment: Hose Barb
Outlet Size: 3/8 Inch (-6 AN)
Finish: Painted
Color: Black
Material: Aluminum
With Fan: No
Fan Control: No Fan
Fan CFM Rating: No Fan
Fan Diameter: No Fan
Fan Amp Draw: No Fan
With Mounting Hardware: Yes
Features
- Stacked Plate Design Provides Better Cooling Than Ordinary Fin And Tube Coolers
- ‘Low Pressure Drop’ Feature
- All Aluminum Construction
- Oven Brazed Construction
- 3/4 Inch Thin Line Coolers Are Ideal For Tight Fit Locations
- 3/8 Inch Extended Nipple Fittings Providing Improved Hose And Clamp Contact

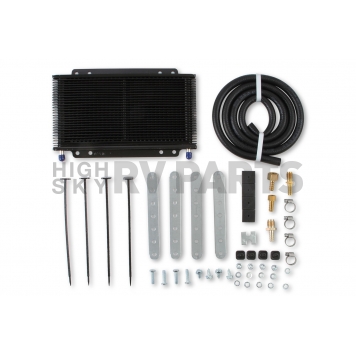

- Small And Efficient Design, Includes Installation Kit
- Limited 1 Year Warranty
| Specifications of B&M Automatic Transmission Fluid Cooler - 70255 | |
| Color | Black |
| Condition | New |
| Construction | Stacked Plate |
| Core Depth (IN) | 3/4 Inch |
| Core Height (IN) | 3-3/4 Inch |
| Core Width (IN) | 11 Inch |
| Fan Amp Draw | No Fan |
| Fan CFM Rating | No Fan |
| Fan Control | No Fan |
| Fan Diameter | No Fan |
| Finish | Painted |
| Inlet Attachment | Hose Barb |
| Inlet Size | 3/8 Inch (-6 AN) |
| Material | Aluminum |
| Number Of Cooling Rows | 25 |
| Outlet Attachment | Hose Barb |
| Outlet Size | 3/8 Inch (-6 AN) |
| Overall Depth (IN) | 3/4 Inch |
| Overall Height (IN) | 5-3/4 Inch |
| Overall Width (IN) | 11 Inch |
| Recommended Use | Automatic Transmission |
| With Fan | No |
| With Mounting Hardware | Yes |
