B&M Differential Cover - 71502

Authorized Dealer
Brand: B&M B&M
0 reviews
  • Have a product question? Ask us
  • Part Number: 71502
  • Part Location: U.S.
  • Availability: Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 22
Retail: $388.49
Price: $369.99
You Save: $18.50
Axle Model
GM 8.2 Inch/ 8.5 Inch/ 8.6 Inch
Carrier Main Cap Support/Girdle
Yes
Color
Black
Cover Bolts
10
Finish
Anodized
Includes Bolts/Studs
Yes
Includes Drain Plug
Yes
Includes Filler Plug
Yes
Includes Gaskets
No
Material
Aluminum
Type
Ribbed
Share this page

B&M Differential Cover

Differential Cover; For Use With GM 8.2/ 8.5/ 8.6 Inch Rear; 10 Bolt; With Girdle; With Fill Plug And Drain Plug; Black; Aluminum

MPN: 71502

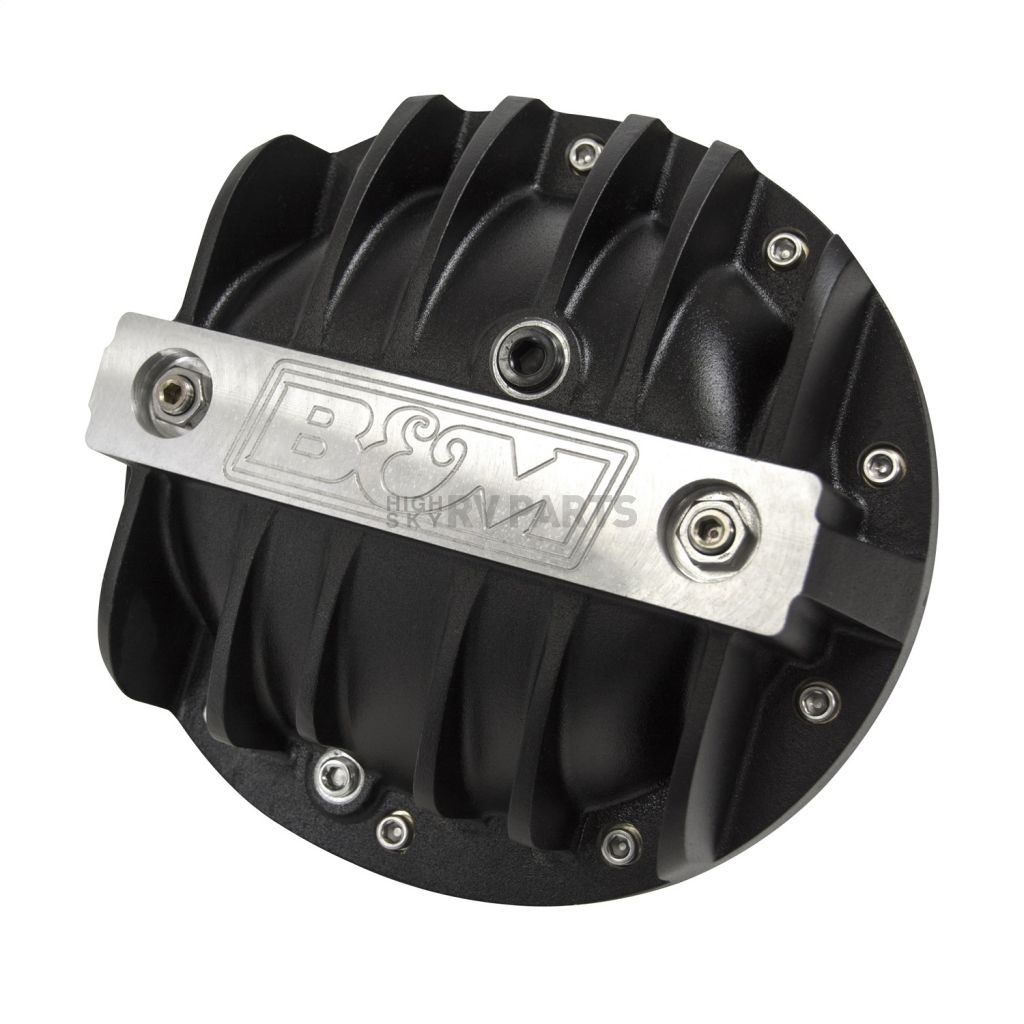

The B&M Cast Aluminum Differential Cover was designed to strengthen the rear end by preventing case distortion, ring gear and cap bearing deflection. Constructed of military grade (MIL-A-8625) black anodized A356.0-T6 aluminum, this rugged unit also dissipates heat much faster than the stock factory or other aftermarket powder-coated units to prolong the life of your ring and pinion gears. Additional features include an engraved B&M logo, added fluid capacity for better cooling, magnetic drain plug for catching ferrous metal particles, complete hardware, installation instructions and a one year warranty.
Axle Model: GM 8.2 Inch/ 8.5 Inch/ 8.6 Inch
Cover Bolts: 10
Finish: Anodized
Color: Black
Material: Aluminum
Type: Ribbed
Carrier Main Cap Support/Girdle: Yes
Includes Drain Plug: Yes
Includes Filler Plug: Yes
Includes Gaskets: No
Includes Bolts/Studs: Yes

Features

  • A356.0-T6 Aluminum Construction
  • B&M® Logo Engraved
  • Load Bolts Provide Additional Support To Bearing Caps
  • 0.4 Quart Extra Fluid Capacity And Cooling/Strengthen Ribs Keeps Temperature Cooler
  • Fill Plug And Magnetic Drain Plug Make It Easier For Servicing

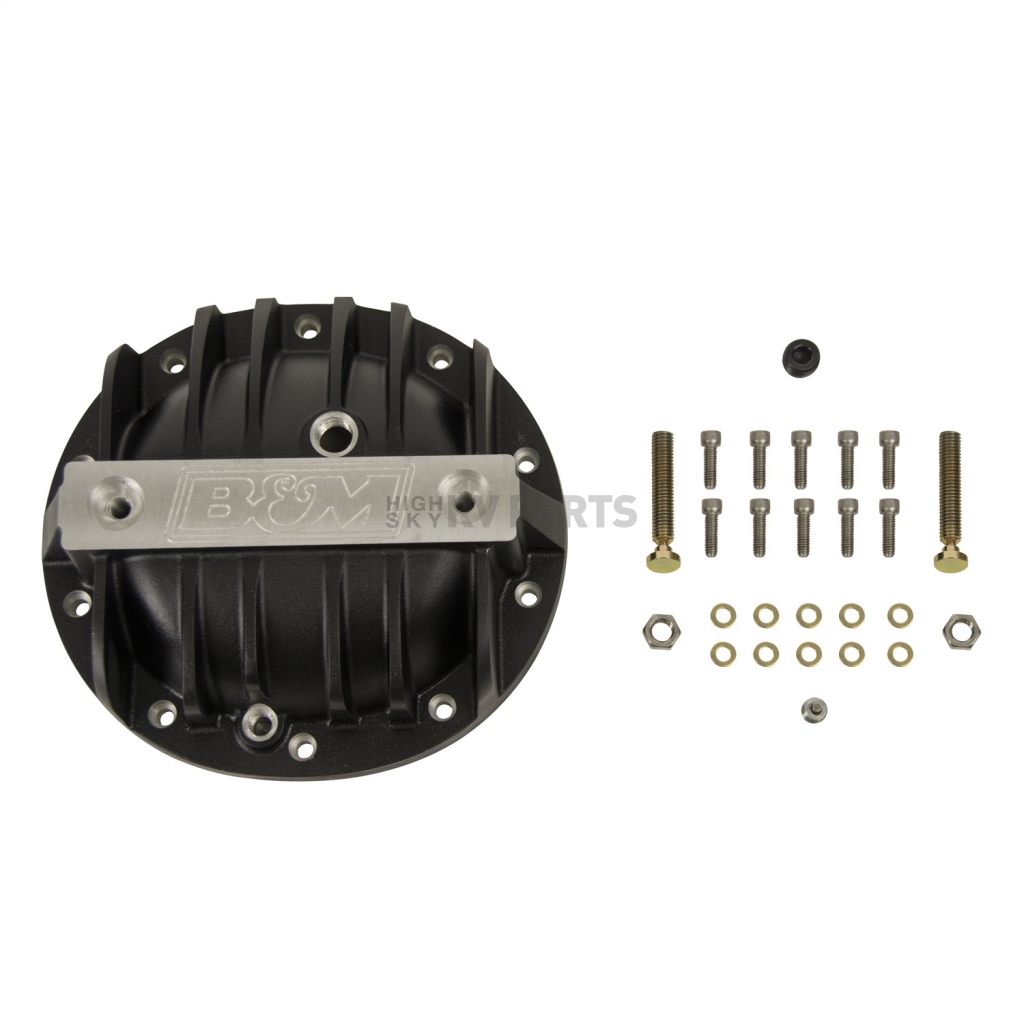

  • Include All Necessary Hardware And Easy To Follow Detailed Instructions For A Quick And Simple Installation
  • Limited Lifetime Warranty
Specifications of B&M Differential Cover - 71502
Axle Model GM 8.2 Inch/ 8.5 Inch/ 8.6 Inch
Carrier Main Cap Support/Girdle Yes
Color Black
Cover Bolts 10
Finish Anodized
Includes Bolts/Studs Yes
Includes Drain Plug Yes
Includes Filler Plug Yes
Includes Gaskets No
Material Aluminum
Type Ribbed
