B&M Differential Cover - 71501

Authorized Dealer
Brand: B&M B&M
0 reviews
  • Have a product question? Ask us
  • Part Number: 71501
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 06
Retail: $436.79
Price: $415.99
You Save: $20.80
Axle Model
 GM 10.5 Inch
Carrier Main Cap Support/Girdle
 Yes
Color
 Black
Cover Bolts
 14
Finish
 Anodized
Includes Bolts/Studs
 Yes
Includes Drain Plug
 Yes
Includes Filler Plug
 Yes
Includes Gaskets
 No
Material
 Aluminum
Type
 Ribbed
Share this page

Differential Cover; For Use With GM 10.5 Inch Rear; 14 Bolt; With Girdle; With Fill Plug And Drain Plug; Black; Aluminum

MPN: 71501

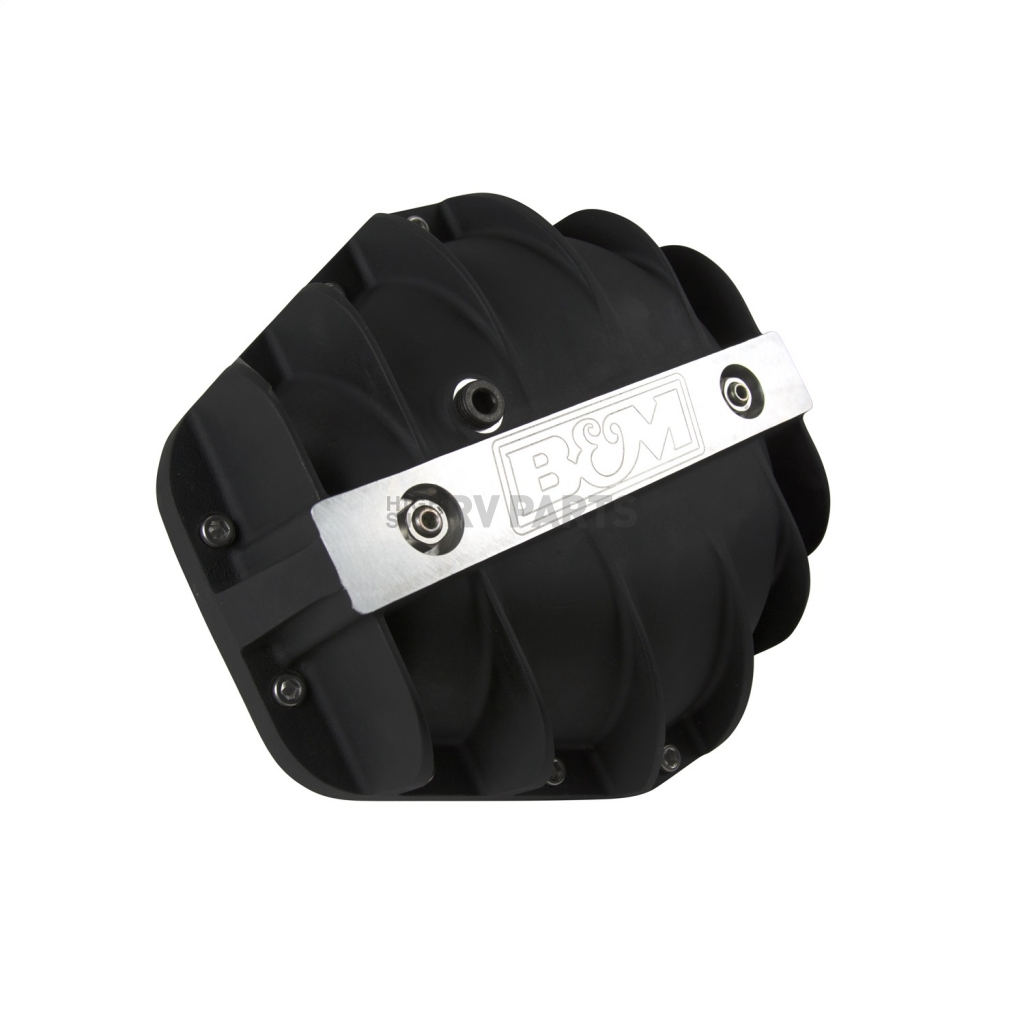

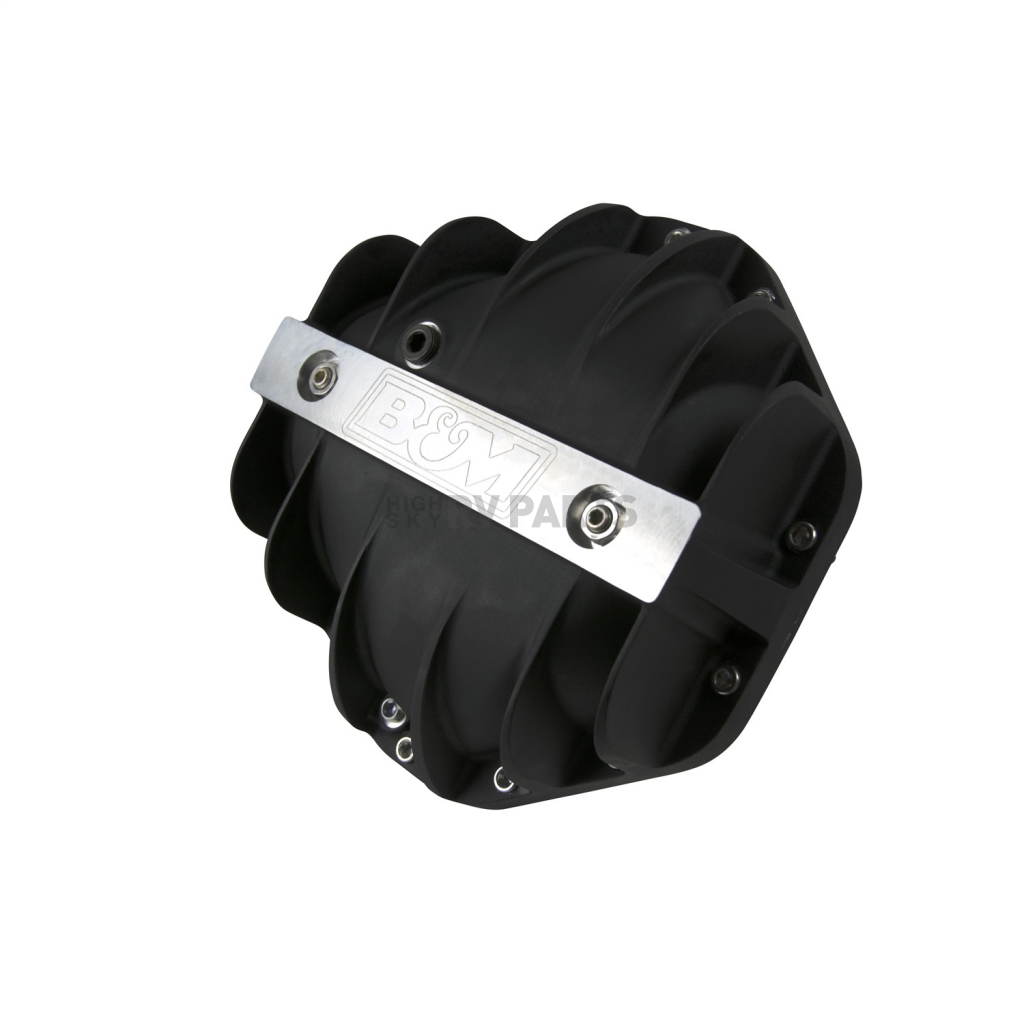

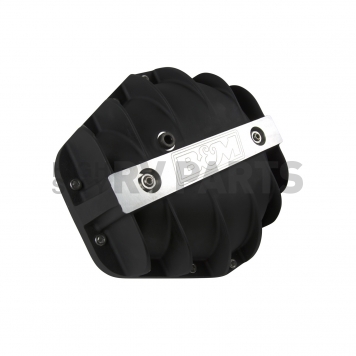

The B&M Cast Aluminum Rear End Cover was designed to strengthen the rear end by preventing case distortion, ring gear and cap bearing deflection. Constructed of A356.0-T6 aluminum, this rugged unit also dissipates heat much faster than the stock factory unit to prolong the life of your ring and pinion gears. Additional features include an engraved B&M logo, added fluid capacity for better cooling, magnetic drain plug for catching ferrous metal particles, complete hardware, installation instructions and a one year warranty.

Axle Model: GM 10.5 Inch
Cover Bolts: 14
Finish: Anodized
Color: Black
Material: Aluminum
Type: Ribbed
Carrier Main Cap Support/Girdle: Yes
Includes Drain Plug: Yes
Includes Filler Plug: Yes
Includes Gaskets: No
Includes Bolts/Studs: Yes

Features

  • U.S. Military Grade Specification (MIL-A-8625) Black Anodized A356.0-T6 Aluminum Construction
  • B&M® Logo Engraved
  • Load Bolts Provide Additional Support To Bearing Caps
  • 0.75 Quart Extra Fluid Capacity And Cooling/Strengthen Ribs Keeps Temperature Cooler
  • Fill Plug And Magnetic Drain Plug Make It Easier For Servicing
  • Limited 1 Year Warranty
Specifications of B&M Differential Cover - 71501
Axle Model  GM 10.5 Inch
Carrier Main Cap Support/Girdle  Yes
Color  Black
Cover Bolts  14
Finish  Anodized
Includes Bolts/Studs  Yes
Includes Drain Plug  Yes
Includes Filler Plug  Yes
Includes Gaskets  No
Material  Aluminum
Type  Ribbed
