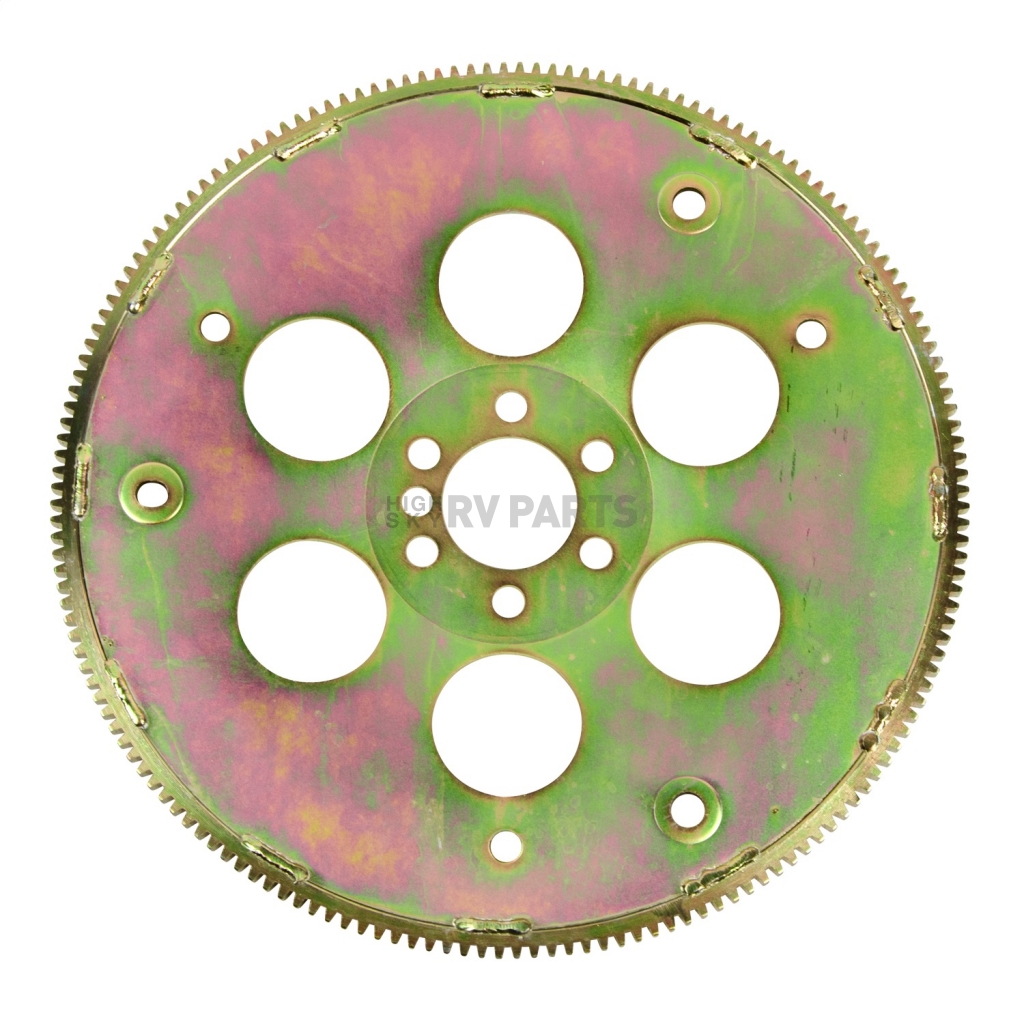

B&M Automatic Transmission Flexplate - 20340
Color
Gold
Crank Shaft Bolt Circle
6 Bolt
Engine Balance
Internal
Material
Chromoly Steel
Number Of Teeth
168 Teeth
SFI Approved
SFI 29.1
Torque Converter Bolt Circle
10-3/4 Inch And 11.06 Inch
Share this page
Auto Trans Flexplate; Chromoly Steel; Internally Balanced; SFI Approved; Gold
MPN: 20340
B&M's new Radial Tension Technology puts a new spin on flexplate technology. As engine performance levels increase, stronger flexplates become necessary. Until this point, stronger flexplates meant thicker flexplates. This works, but it adds unwanted weight and prohibited the flexplates from working as it was designed. Flexplates are designed to provide a protection against converter/transmission run-out or OEM misalignment, which will cause transmission and/or converter failure. A rigid flexplate gives no protection. The ultimate design for a flexplate is extreme strength, flexibility and minimal weight. B&M's new RTT performance flexplate accomplishes this goal. B&M's design allows for the removal of unnecessary material from non-critical stress areas. Less material means less weight - giving you the benefits of a lightweight, flexible design with thicker material for maximum strength! All B&M RTT flexplates are SFI 29.1 Certified to insure the ultimate in safety and performance.Color: Gold
Material: Chromoly Steel
Number Of Teeth: 168 Teeth
SFI Approved: SFI 29.1
Crank Shaft Bolt Circle: 6 Bolt
Engine Balance: Internal
Torque Converter Bolt Circle: 10-3/4 Inch And 11.06 Inch
Features
- SFI 29.1 Approved, NHRA/IHRA Legal For All Classes
- SFI Certification Sticker Included (Recertification Required Every 3 Years)
- Ideal For Street Applications To Extreme Duty Racing And High RPM (Above 6,000) Use
- 168 Tooth Ring Gear
- The Assembly Is Then Zinc Plated And Treated With A Chromate Conversion Coating For Added Corrosion Resistance And Durability
- Include High Tensile Strength Steel Construction To Resist Elongation And Cracking
- Limited 1 Year Warranty
Specifications of B&M Automatic Transmission Flexplate - 20340 | |
Color | Gold |
Crank Shaft Bolt Circle | 6 Bolt |
Engine Balance | Internal |
Material | Chromoly Steel |
Number Of Teeth | 168 Teeth |
SFI Approved | SFI 29.1 |
Torque Converter Bolt Circle | 10-3/4 Inch And 11.06 Inch |
2008 Buick LaCrosse
2009 Buick LaCrosse
2009 Buick LaCrosse
2006 Cadillac CTS
2007 Cadillac CTS
2007 Cadillac CTS
2009 Cadillac CTS
2010 Cadillac CTS
2011 Cadillac CTS
2012 Cadillac CTS
2013 Cadillac CTS
2014 Cadillac CTS
2015 Cadillac CTS
2010 Cadillac CTS
2011 Cadillac CTS
2012 Cadillac CTS
2013 Cadillac CTS
2014 Cadillac CTS
2015 Cadillac CTS
1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
2010 Chevrolet Camaro
2011 Chevrolet Camaro
2012 Chevrolet Camaro
2013 Chevrolet Camaro
2014 Chevrolet Camaro
2011 Chevrolet Camaro
2012 Chevrolet Camaro
2013 Chevrolet Camaro
2014 Chevrolet Camaro
1997 Chevrolet Corvette
1998 Chevrolet Corvette
1999 Chevrolet Corvette
2000 Chevrolet Corvette
2001 Chevrolet Corvette
2002 Chevrolet Corvette
2003 Chevrolet Corvette
2004 Chevrolet Corvette
2005 Chevrolet Corvette
2006 Chevrolet Corvette
2007 Chevrolet Corvette
2008 Chevrolet Corvette
2009 Chevrolet Corvette
2010 Chevrolet Corvette
2011 Chevrolet Corvette
2012 Chevrolet Corvette
2013 Chevrolet Corvette
1998 Chevrolet Corvette
1999 Chevrolet Corvette
2000 Chevrolet Corvette
2001 Chevrolet Corvette
2002 Chevrolet Corvette
2003 Chevrolet Corvette
2004 Chevrolet Corvette
2005 Chevrolet Corvette
2006 Chevrolet Corvette
2007 Chevrolet Corvette
2008 Chevrolet Corvette
2009 Chevrolet Corvette
2010 Chevrolet Corvette
2011 Chevrolet Corvette
2012 Chevrolet Corvette
2013 Chevrolet Corvette
2006 Chevrolet Impala
2007 Chevrolet Impala
2008 Chevrolet Impala
2009 Chevrolet Impala
2007 Chevrolet Impala
2008 Chevrolet Impala
2009 Chevrolet Impala
2006-2007 Chevrolet Monte Carlo
2006 Chevrolet Monte Carlo
2007 Chevrolet Monte Carlo
2007 Chevrolet Monte Carlo
2005 Chevrolet SSR
2006 Chevrolet SSR
2006 Chevrolet SSR
2006-2009 Chevrolet Trailblazer
2006 Chevrolet Trailblazer
2007 Chevrolet Trailblazer
2008 Chevrolet Trailblazer
2009 Chevrolet Trailblazer
2007 Chevrolet Trailblazer
2008 Chevrolet Trailblazer
2009 Chevrolet Trailblazer
1998 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird
2009 Pontiac G8
2005 Pontiac Grand Prix
2006 Pontiac Grand Prix
2007 Pontiac Grand Prix
2008 Pontiac Grand Prix
2006 Pontiac Grand Prix
2007 Pontiac Grand Prix
2008 Pontiac Grand Prix
2004 Pontiac GTO
2005 Pontiac GTO
2006 Pontiac GTO
2005 Pontiac GTO
2006 Pontiac GTO
2008 Saab 9-7x
2009 Saab 9-7x
2009 Saab 9-7x
