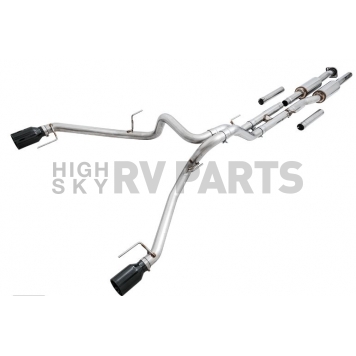

AWE Tuning Exhaust 0FG Cat-Back System - 3015-33106

Brand: AWE Tuning

Have a product question? Ask us
Part Number: 3015-33106
Part Location: U.S.
Availability: 6 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by May 27

Retail: $2,411.84

Price: $2,296.99

You Save: $114.85

Diameter (IN)

3 Inch

Estimated Install Time (Hours)

Exhaust Tip Style

5 Inch Round Double Wall Straight-Cut

Exhaust Type

Exit Position

Rear Exit

Includes Exhaust Pipe Muffler Delete

Includes Exhaust Tip

Includes Hardware

Includes Muffler

Material

Stainless Steel

Muffler Brand

No Muffler

Share this page

AWE Tuning Exhaust System Kit

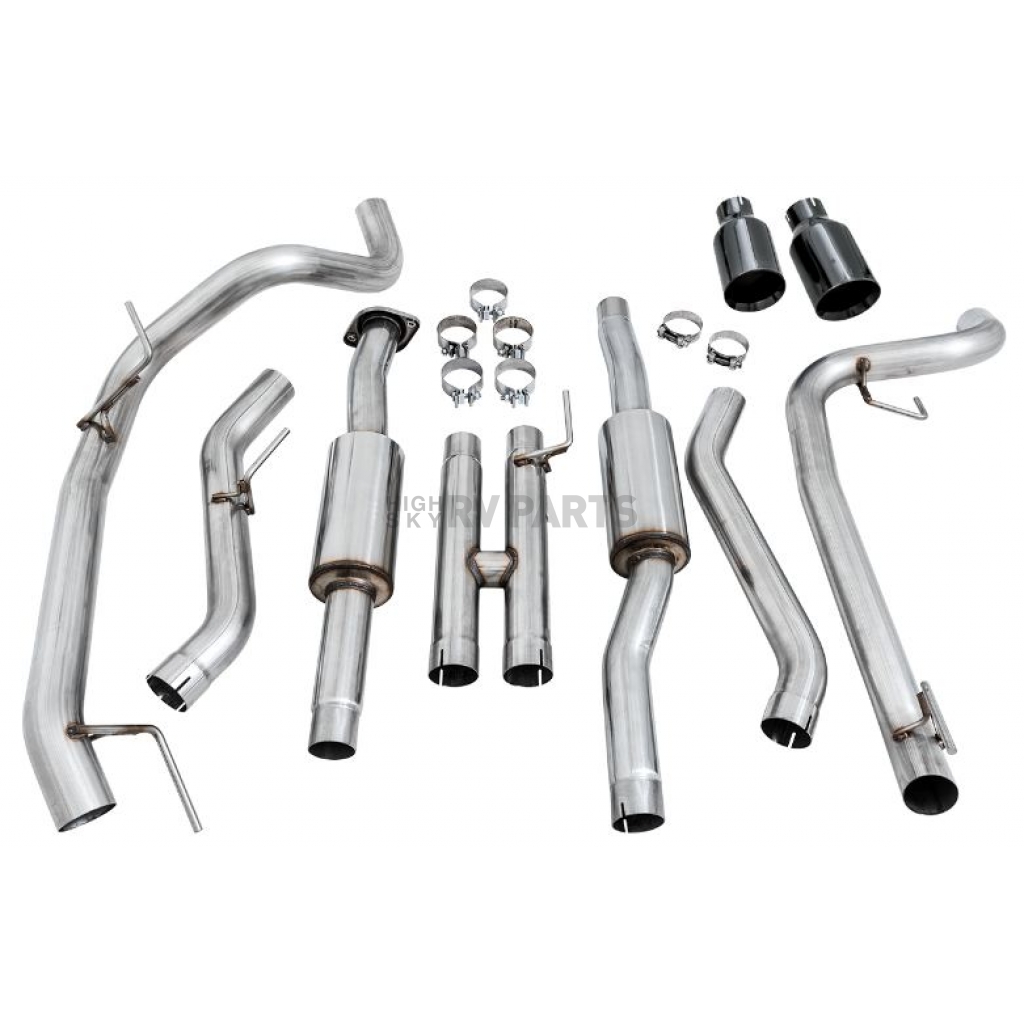

Exhaust System Kit; 0FG Cat-Back System; Stainless Steel; Without Muffler; Dual Exhaust With Dual Exits; Rear Exit; 5 Inch Straight Cut Diamond Black Tips

MPN: 301533106

The 0FG Exhaust is a rugged 3 Inch T304L stainless steel Inch mid pipe-back Inch configuration with a 100 percent straight-through design for optimal flow. Featuring AWE’s proprietary, patented drone-canceling solution, 180 Technology ®, the 0FG Exhaust delivers a unique dose of refined aggression out of your F-150, without any drone at cruising speeds. Regardless of low or high gear, the 0FG Exhaust will be on the top of your playlist. As exhaust gases exit the F150’s engine and flow into an AWE 180 Technology ® equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves rejoin the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies. Call it science, call it magic, or call it 180 Technology ® by AWE. More in the tab above.

Type: Cat-Back

Exhaust Type: Dual

Outlet Type: Dual

Exit Position: Rear Exit

Material: Stainless Steel

Diameter (IN): 3 Inch

Includes Exhaust Tip: Yes

Exhaust Tip Style: 5 Inch Round Double Wall Straight-Cut

Includes Muffler: No

Muffler Quantity: No Muffler

Includes Exhaust Pipe Muffler Delete: No

Muffler Configuration: No Muffler

Muffler Brand: No Muffler

Includes Hardware: Yes

Required Welding: No

Estimated Install Time (Hours): 2

Features

Proudly Engineered, Designed, And Manufactured In-House, In The USA
Features AWE’s Proprietary, Patented Drone-Canceling Solution, 180 Technology®
Single Side Exit Or Dual Exit Options Available: Choose To Come Out On One Side, Both Sides, Or Out Of The Back
Dual Exit Options Include Modular Tip Outlets To Transform Between Rear Exit Or Side Exit
Handcrafted From 3 Inch U.S.-Sourced CNC Mandrel-Bent 000.065 Inch Wall T304L Stainless Steel
Direct Bolt-On Catback System For Factory-Like Simplicity
Hone Your Sound: Performance Mid Pipes Available As Resonated Or Non-Resonated
Less Is More: Clean, Straight-Through Design Maximizes Performance
Perfect Fitment Guaranteed
Limited Lifetime Warranty

Specifications of AWE Tuning Exhaust 0FG Cat-Back System - 3015-33106
Diameter (IN)	3 Inch
Estimated Install Time (Hours)	2
Exhaust Tip Style	5 Inch Round Double Wall Straight-Cut
Exhaust Type	Dual
Exit Position	Rear Exit
Includes Exhaust Pipe Muffler Delete	No
Includes Exhaust Tip	Yes
Includes Hardware	Yes
Includes Muffler	No
Material	Stainless Steel
Muffler Brand	No Muffler
Muffler Configuration	No Muffler
Muffler Quantity	No Muffler
Outlet Type	Dual
Required Welding	No
Type	Cat-Back
