AWE Tuning Exhaust Tread Edition Cat-Back System - 3015-23103

Name: AWE Tuning Exhaust Tread Edition Cat-Back System - 3015-23103
Brand: AWE Tuning
SKU: 3015-23103
Price: 896.99 USD
Availability: InStock

3 More

Brand: AWE Tuning

0 reviews

Have a product question? Ask us
Part Number: 3015-23103
Part Location: U.S.
Availability: 2 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by June 10

Retail: $941.84

Price: $896.99

You Save: $44.85

Diameter (IN)

3 Inch

Estimated Install Time (Hours)

Exhaust Tip Style

5 Inch Round Straight-Cut

Exhaust Type

Single

Exit Position

Side Exit

Includes Exhaust Pipe Muffler Delete

Includes Exhaust Tip

Yes

Includes Hardware

Includes Muffler

Yes

Material

Stainless Steel

Muffler Configuration

Single Inlet, Single Outlet

Share this page

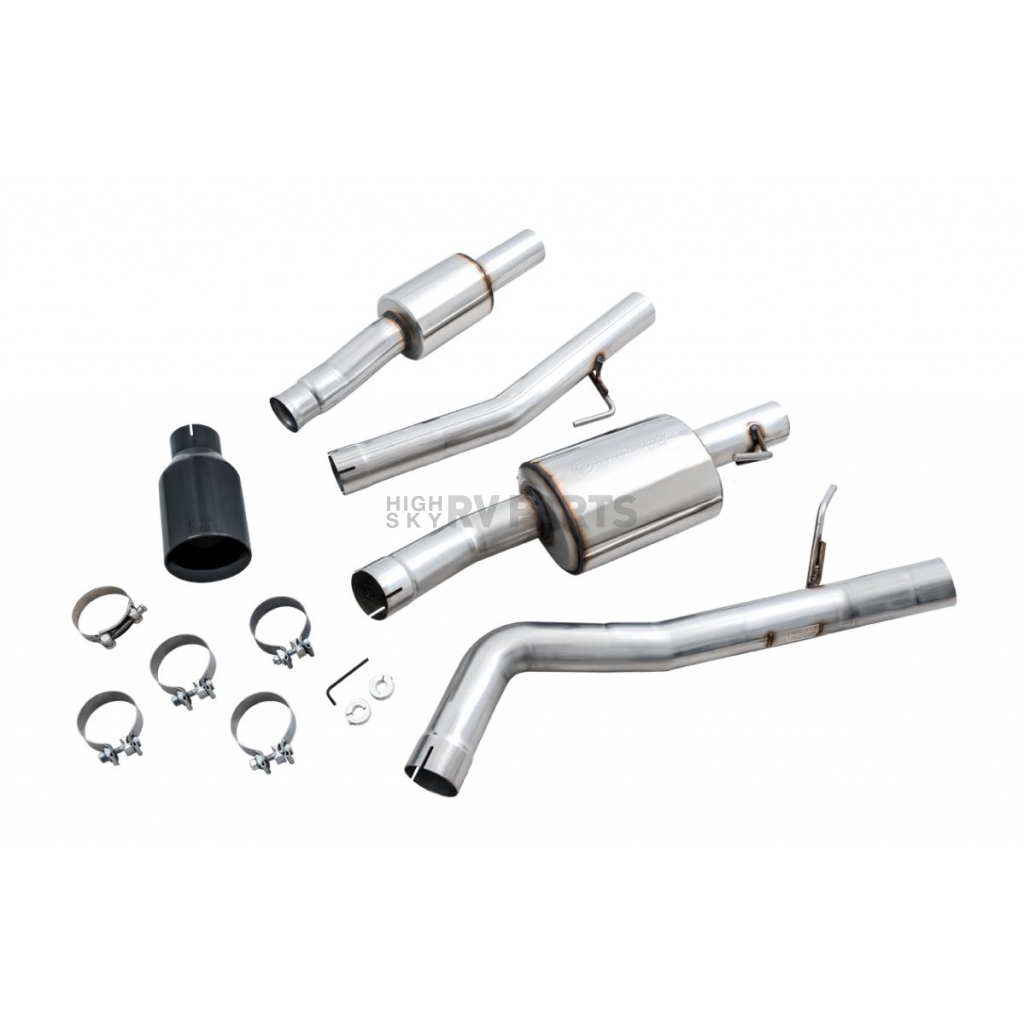

AWE Tuning Exhaust System Kit

Exhaust System Kit; Tread Edition Cat-Back System; Stainless Steel; Without Muffler; 3 Inch Pipe Diameter; Single Exhaust With Dual Exit; Side Exit; Diamond Black Tips

MPN: 301523103

The Tread Edition features a bespoke resonator in the mid pipe, followed by AWE’s patented, drone-canceling 180 Technology ®, right before the rear axle (i.e. where the cabin ends). This combination provides the Gladiator’s 3.6L with a sophisticated, full-bodied soundtrack completely controllable via the throttle. With increased throttle, the Gladiator roars with aggression, but at highway speeds, the cabin is free of any drone, and volume is similar to stock. As exhaust gases exit the 3.6L engine and flow into an AWE 180 Technology ® equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves rejoin the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies.

Type: Cat-Back

Exhaust Type: Single

Outlet Type: Dual

Exit Position: Side Exit

Material: Stainless Steel

Diameter (IN): 3 Inch

Includes Exhaust Tip: Yes

Exhaust Tip Style: 5 Inch Round Straight-Cut

Includes Muffler: Yes

Muffler Quantity: 1

Includes Exhaust Pipe Muffler Delete: No

Muffler Configuration: Single Inlet, Single Outlet

Includes Hardware: No

Required Welding: No

Estimated Install Time (Hours): 2

Features

Proudly Engineered, Designed, And Manufactured In-House, In The USA
Loop Replacement Pipes, Catbacks, And Crawler Configurations Modular Options For All
Available As Crawler-Engineered Trail Edition And Road Trip-Friendly Tread Edition
Features AWE’s Proprietary, Patented Drone-Canceling Solution, 180 Technology®
Tread Edition Offered As Single Or Dual Outlet With Despoke 5” Straight-Cut, Double-Walled Tips In Diamond Black
Trail Edition Provides Best-In-Class Clearance On Even The Most Aggressive Departure Angles
Easily Convert Between Tread And Trail Edition
Direct Bolt-On For Factory-Like Simplicity, No Cutting Required
Dyno-Engineered, Trail-Proven And Perfect Fitment, Guaranteed
Limited Lifetime Warranty

Specifications of AWE Tuning Exhaust Tread Edition Cat-Back System - 3015-23103
Diameter (IN)	3 Inch
Estimated Install Time (Hours)	2
Exhaust Tip Style	5 Inch Round Straight-Cut
Exhaust Type	Single
Exit Position	Side Exit
Includes Exhaust Pipe Muffler Delete	No
Includes Exhaust Tip	Yes
Includes Hardware	No
Includes Muffler	Yes
Material	Stainless Steel
Muffler Configuration	Single Inlet, Single Outlet
Muffler Quantity	1
Outlet Type	Dual
Required Welding	No
Type	Cat-Back
