AutoMeter Direct Fit 5 Gauge Kit - 1703

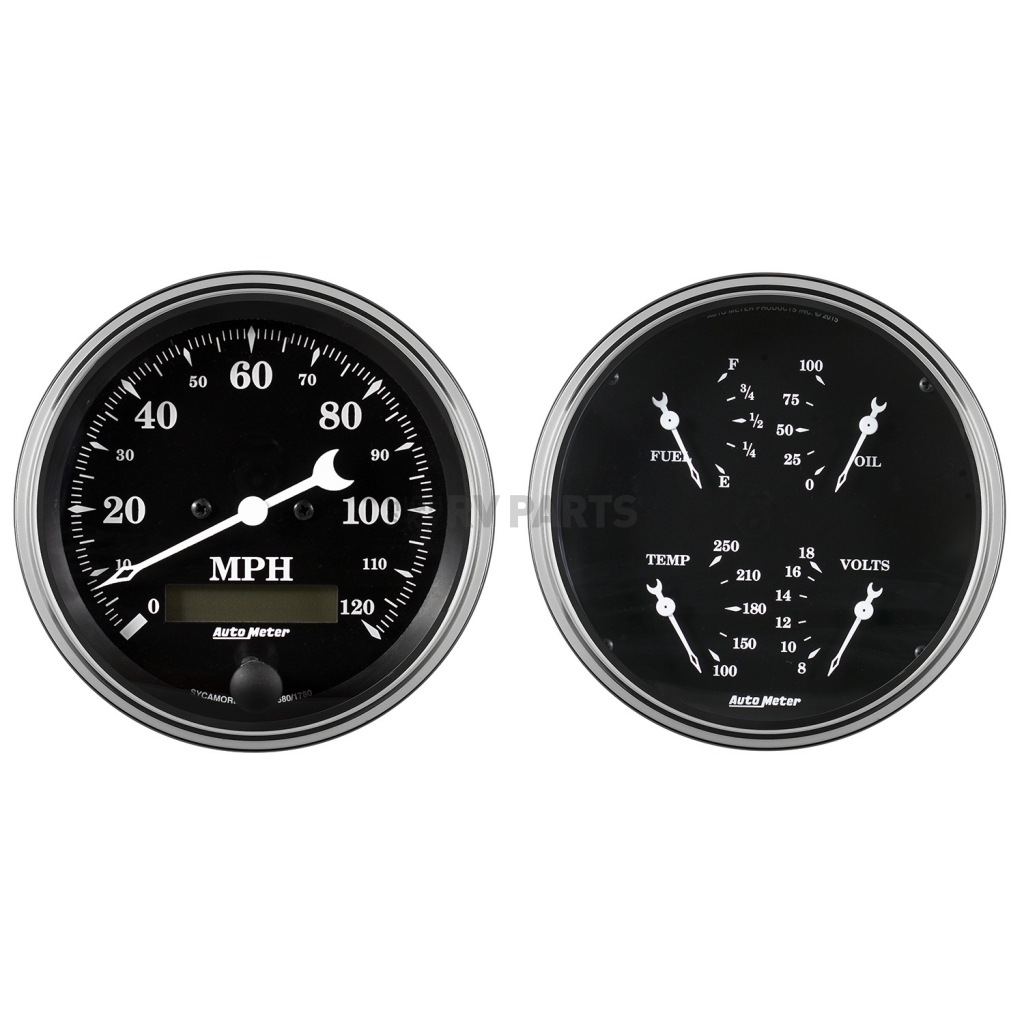

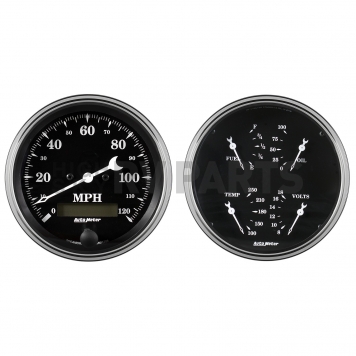

Gauge Fuel Level/ Oil Pressure/ Speedometer/ Voltmeter/ Water Temperature; Old Tyme Black ™; Includes Two 5 Inch Analog Gauges: 1 Quad Gauge With Electric Fuel Level (Full to Empty)/ Electric Oil Pressure (0-100 PSI)/ Electric Voltmeter (8-18 Volts) and Electric Water Temperature (100-250 Degrees)/ 5 Inch Mechanical Speedometer (Full Sweep; 0-120 MPH) With Digital Odometer; Black Face/ Chrome Bezel/ White Needle; Incandescent Around The Dial; Includes All Gauges Senders/ May Also Need Sender Part Number 5291 or 5292 for Speedometer
MPN: 1703
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full.Features
- Traditional Incandescent Lighting Illuminates Around The Perimeter Of The Dial
- Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
- Speedometer Has A Simple Push Button, 2 Mile Drive Calibration
- No Dip Switches And Can Be Reprogramed At Any Time To Accommodate Changes In Gear Ratio Or Wheel And Tire Combination
- Speedometer Features Lit LCD Odometer - Capable Of Registering One-Million Miles With Two Resettable Trip Odometers
- 4 In 1 Gauge Design Saves Valuable Real Estate On Your Dash While Allowing You To Monitor Critical Parameters
- 12 And 16 Volt Compatible, Compatible With Nearly Every Street Car Or Race Car Electrical System
- Limited 12 Month Warranty
Specifications of AutoMeter Direct Fit 5 Gauge Kit - 1703 | |
Bezel Color | Silver |
Display | Analog |
Face Color | Black |
Fuel Level Gauge Range (OHM) | 240 Ohms Empty To 33 Ohms Full |
Includes Fittings | No |
Includes Mounting Bracket | Yes |
Includes Peak Memory | No |
Includes Sending Unit | Yes |
Includes Warning Indicator | No |
Includes Wiring Harness | No |
Liquid-Filled | No |
Mounting Type | Dash Mount |
Needle Color | White |
Number Color | White |
Oil Pressure Gauge Range (PSI) | 0 To 100 Pounds Per Square Inch |
Size (IN) | 5 Inch |
Speedometer Range (MPH) | 0 To 120 Miles Per Hour |
Sweep | Full |
Type | Electrical And Mechanical |
Voltmeter Range (Volt) | 8 To 18 Volts |
Warning Indicator Type | Not Applicable |
Water Temperature Gauge Range (Deg F) | 100 To 250 Degree Fahrenheit |
