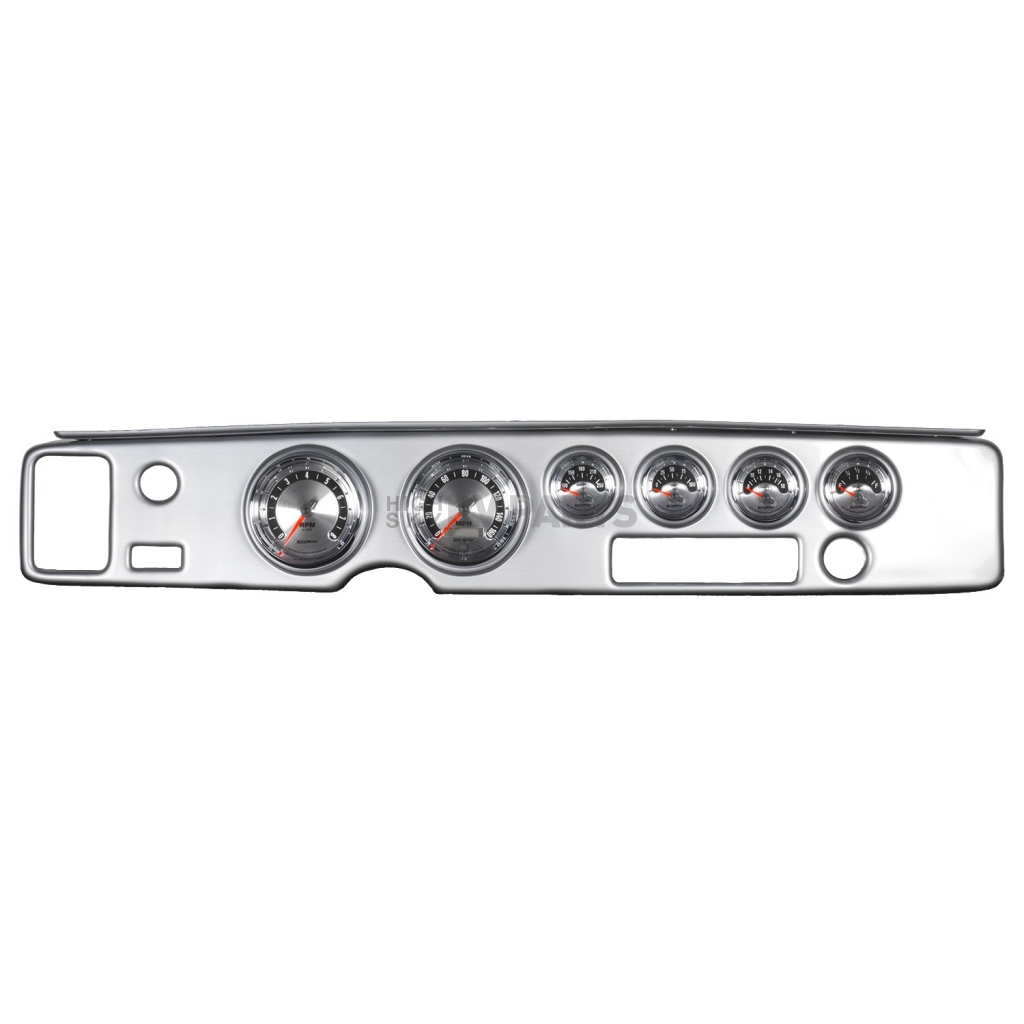

AutoMeter Direct Fit 6 Gauge Kit - 7028

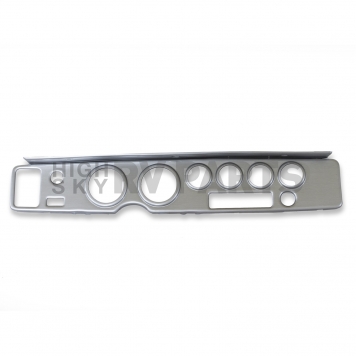

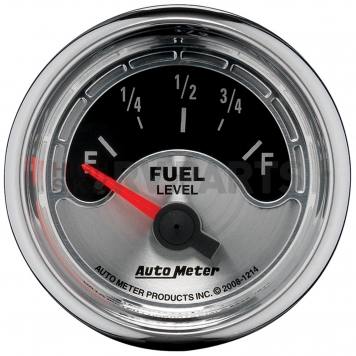

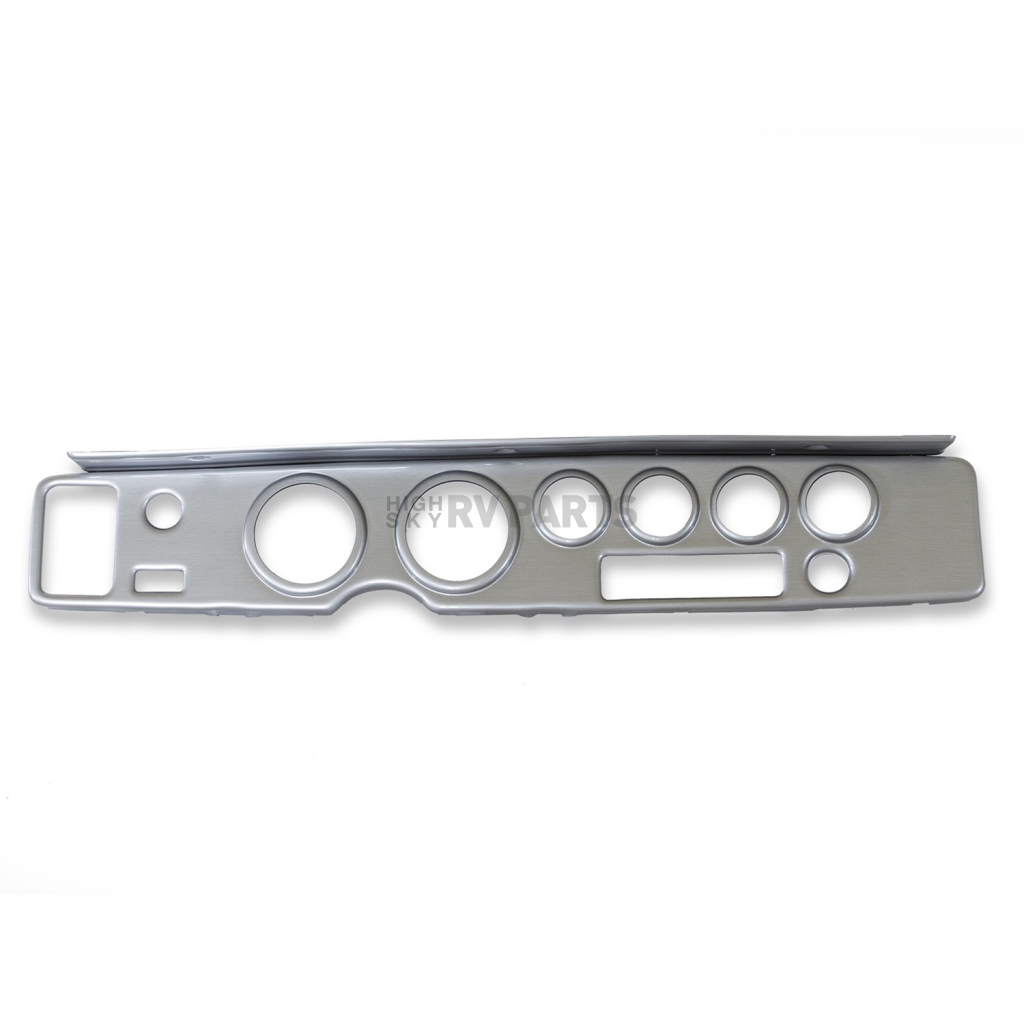

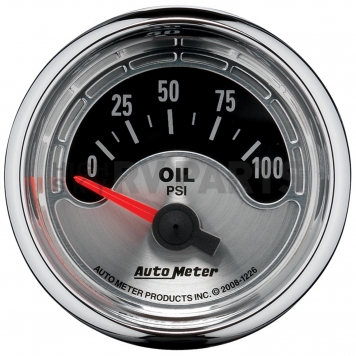

Gauge Fuel Level/ Oil Pressure/ Speedometer/ Tachometer/ Voltmeter/ Water Temp; American Muscle ™; Includes 2 Electric 3-3/8 Inch Analog Gauges: Fuel Level (240 Ohms Empty-33 Ohms Full) And Oil Pressure ( 0-100 PSI ) and Speedometer ( Full Sweep; 0-160 MPH) With Tachometer (0-8000 RPM) and Voltmeter ( 8-18 Volts) and Water Temperature (100-250 Degrees); Brushed Face/ Chrome Bezel/ Red Needle/ Brushed Silver Dash Panel; LED Through The Dial Lighting; Includes Sending Units/ Adapter Fittings/ Mounting Brackets; Compatible With 1 to 4 Pulse Ignition Signals (2-8 Cylinder Engines) With Points, Electronic and Most 12 Volt High-Performance Racing Ignitions
MPN: 7028
The fastest growing Series in the AutoMeter line, American Muscle dominates the dashboard with styling ripped straight from Detroit steel and powered by the best in modern internals and technology. When night falls, our cutting edge Hi-Def™ LED lighting proves that great form is defined by dedication to function. A spun metal dial and a bright chrome bezel set off a look that could make the perfection in your dash rival what's under the hood.Features
- Modern White LED Through-The-Dial Lighting Provides Clear Visibility During Night-Time Use
- Compatible With 1 To 4 Pulse Ignition Signals (2 To 8 Cylinder Engines) With Points, Electronic, And Most 12 Volt High-Performance Racing Ignitions
- 12 And 16 Volt Compatible, Well-Suited With Nearly Every Street Car Or Race Car Electrical System
- Race Proven Air-Core Electric Tachometers Provide Quick And Accurate Readings With A Needle So Responsive It Can Go From 0 To Full Scale In 333 Milliseconds
- Limited 12 Month Warranty
Specifications of AutoMeter Direct Fit 6 Gauge Kit - 7028 | |
Bezel Color | Silver |
Display | Analog |
Face Color | Silver |

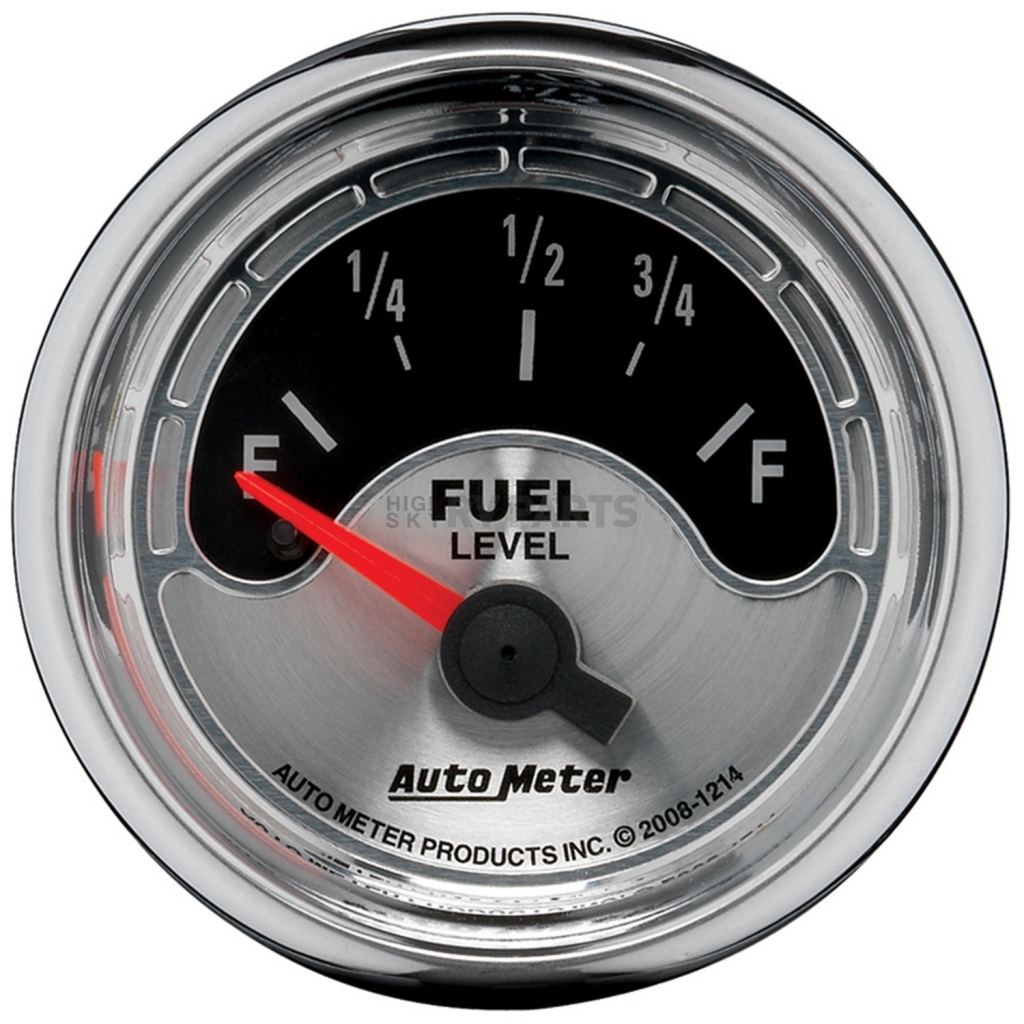

Fuel Level Gauge Range (OHM) | 240 Ohms Empty/ 33 Ohms Full |
Includes Fittings | Yes |
Includes Mounting Bracket | Yes |
Includes Peak Memory | No |
Includes Sending Unit | Yes |
Includes Warning Indicator | No |

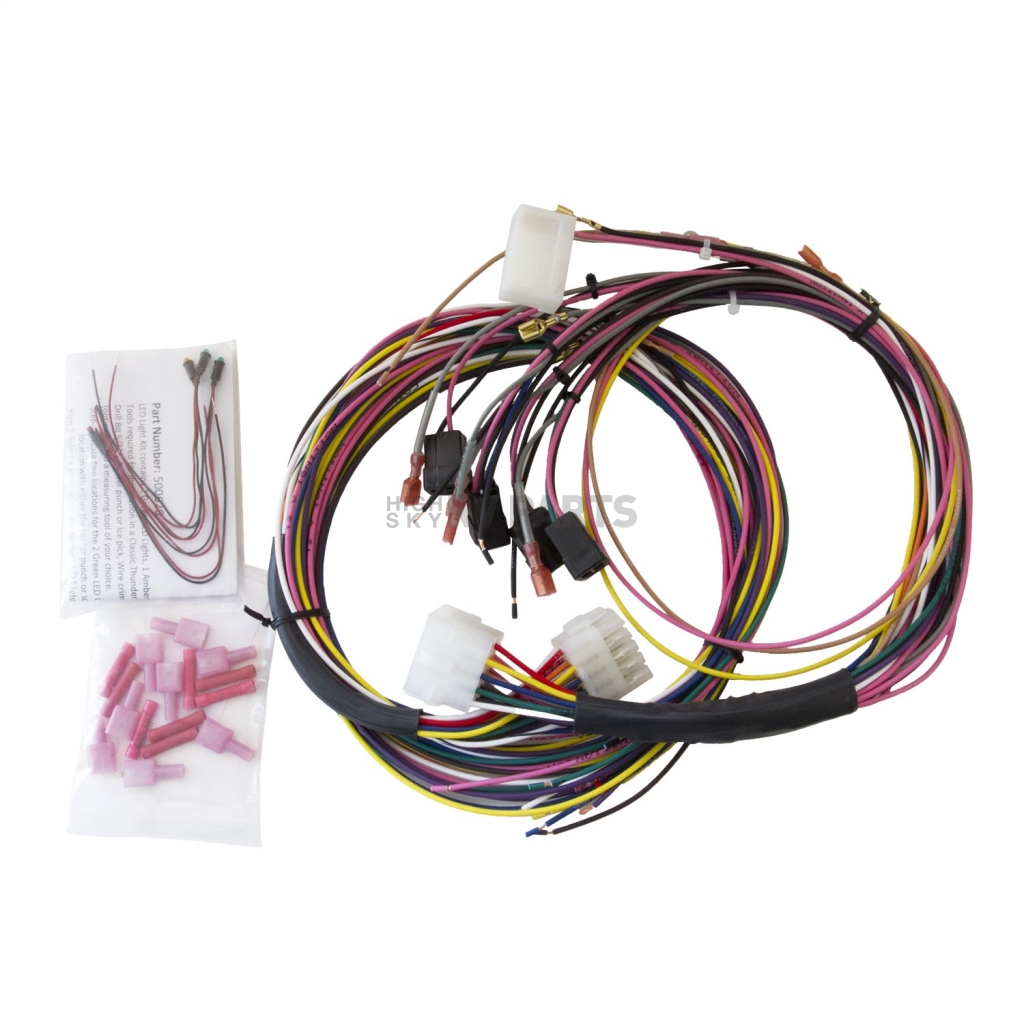

Includes Wiring Harness | Yes |
Lighting | LED |
Liquid-Filled | No |
Mounting Type | Brackets |
Needle Color | Red |
Number Color | White |

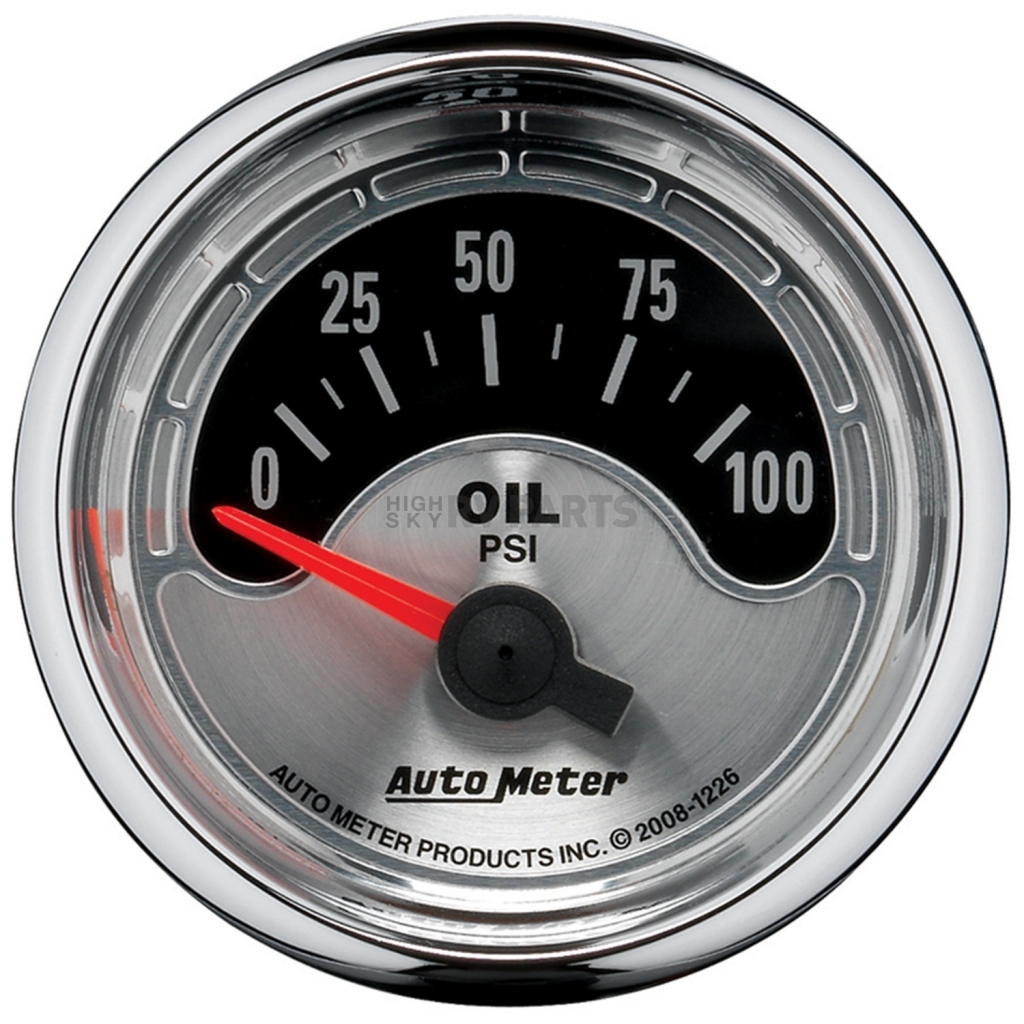

Oil Pressure Gauge Range (PSI) | 0 To 100 Pounds Per Square Inch |
Size (IN) | 3-3/8 Inch |

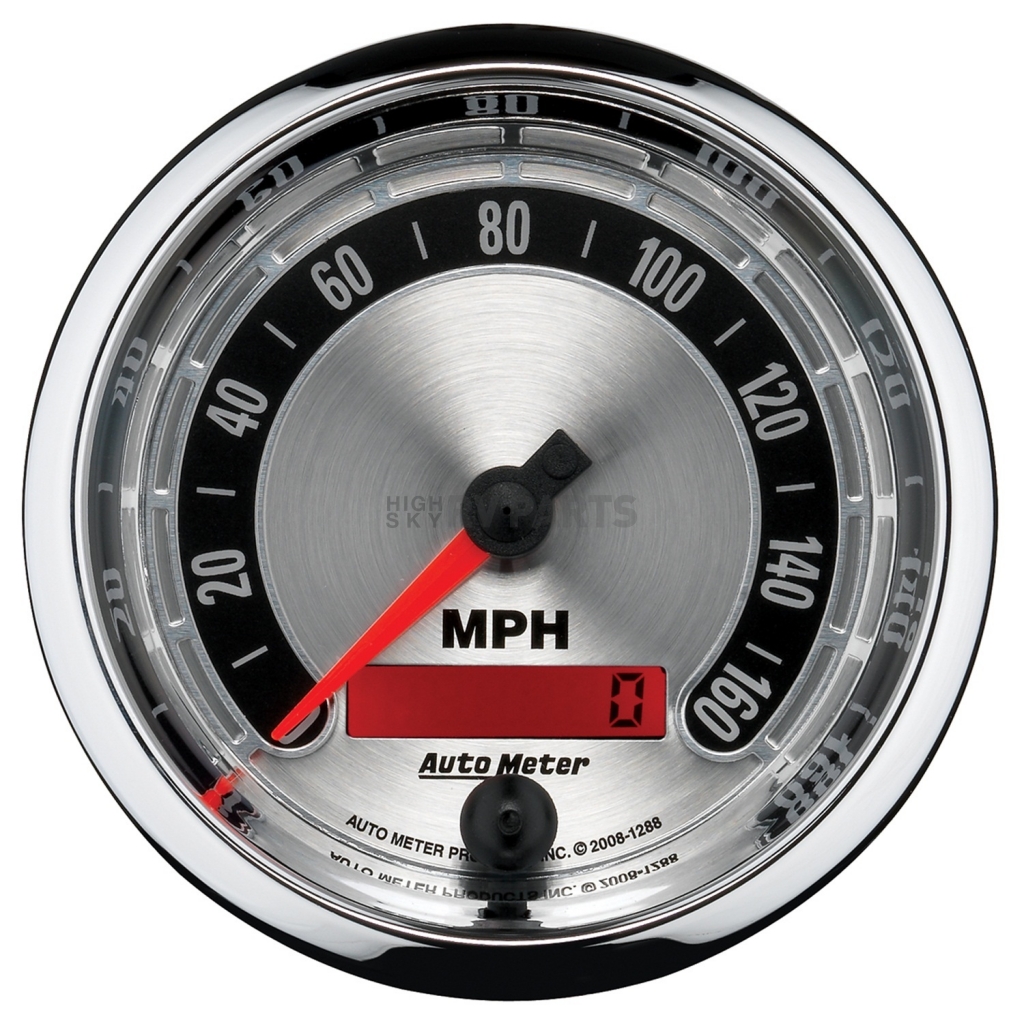

Speedometer Range (MPH) | 0 To 160 Miles Per Hour |
Sweep | Full Sweep |

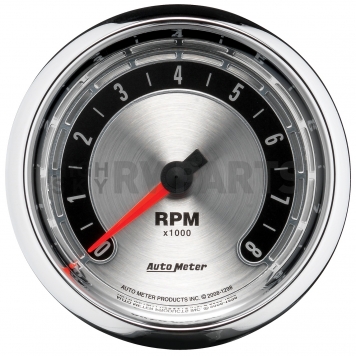

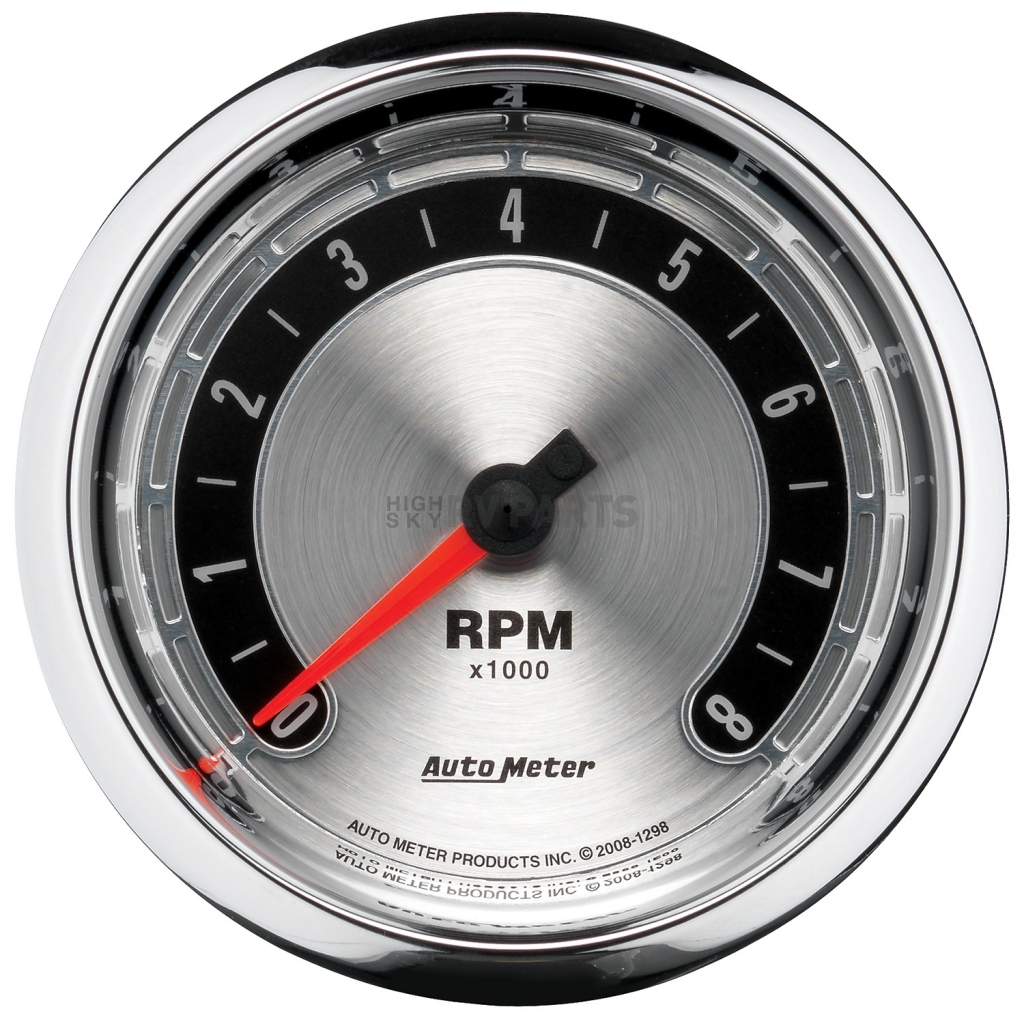

Tachometer Range (RPM) | 0 To 8000 RPM |
Type | Electric |

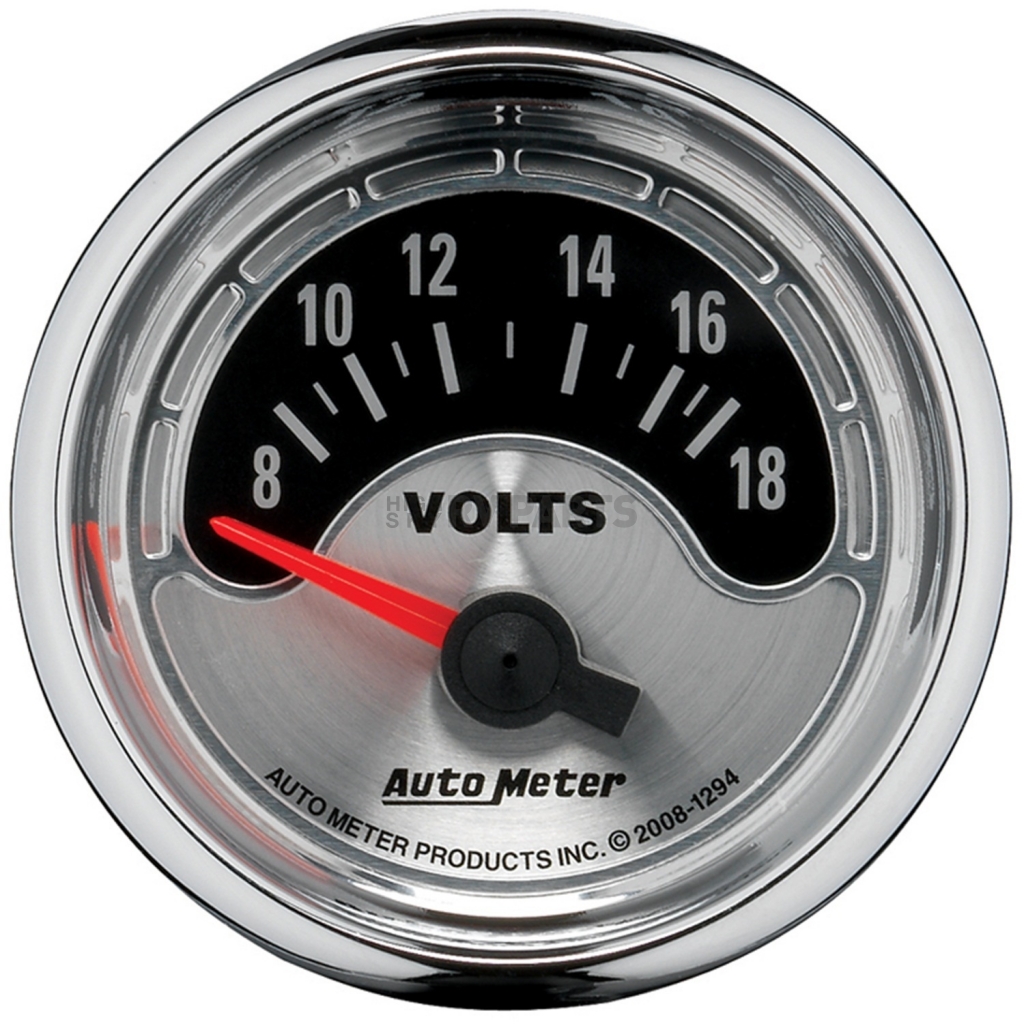

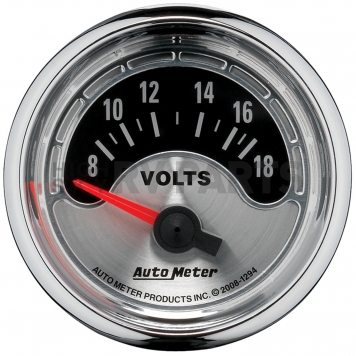

Voltmeter Range (Volt) | 8 To 18 Volts |
Warning Indicator Type | No Warning Indicator |

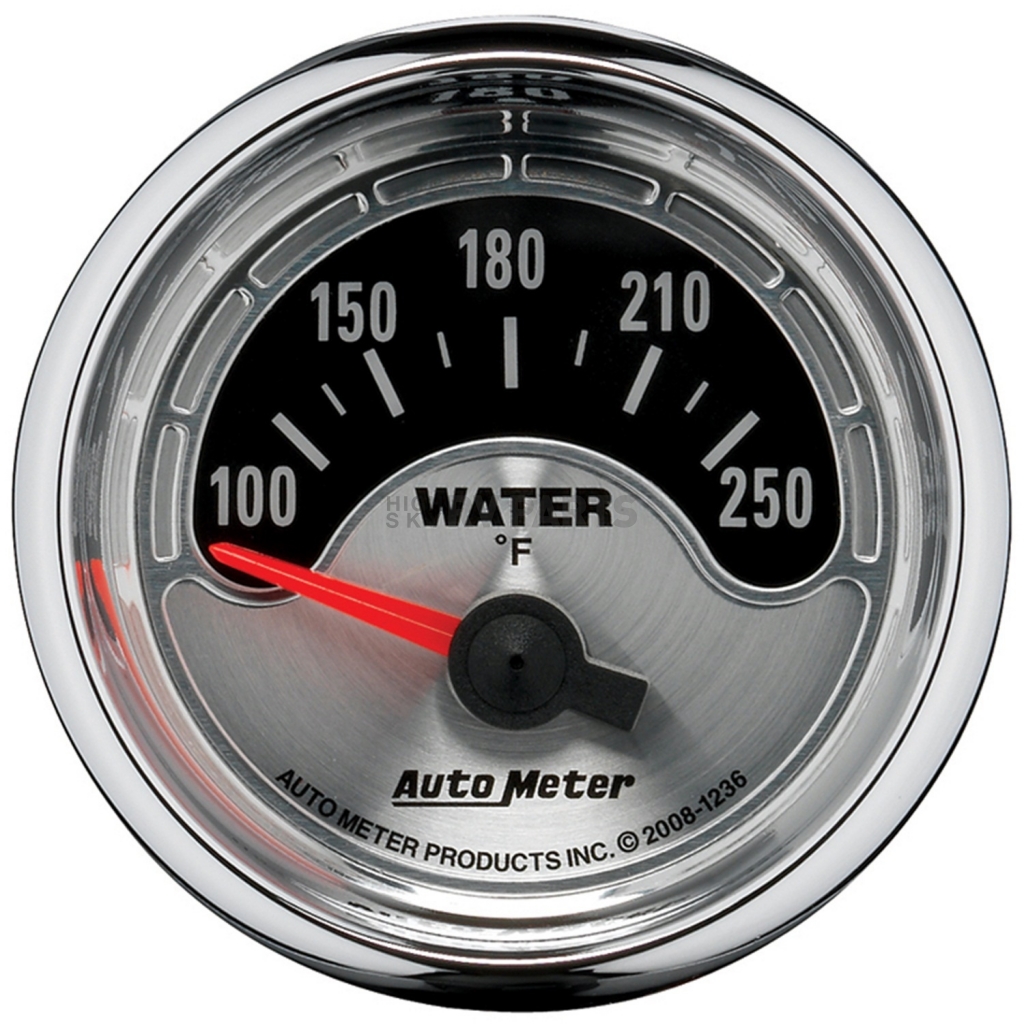

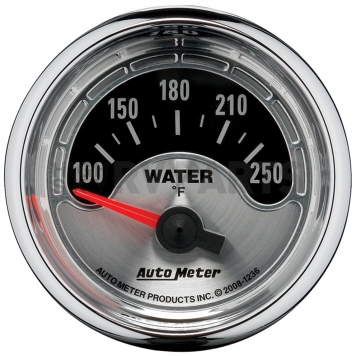

Water Temperature Gauge Range (Deg F) | 100 To 250 Degrees |
1971 Pontiac Firebird
1972 Pontiac Firebird
1973 Pontiac Firebird
1974 Pontiac Firebird
1975 Pontiac Firebird
1976 Pontiac Firebird
1977 Pontiac Firebird
1978 Pontiac Firebird
1979 Pontiac Firebird
1980 Pontiac Firebird
1981 Pontiac Firebird
