AutoMeter Direct Fit 6 Gauge Kit - 1340
Bezel Color
Silver
Display
Analog
Face Color
White
Fuel Level Gauge Range (OHM)
240 Ohms Empty/ 33 Ohms Full
Lighting
Incandescent
Mounting Type
In-Dash
Needle Color
Orange
Number Color
Black
Oil Pressure Gauge Range (PSI)
0 To 100 Pounds Per Square Inch
Size (IN)
2-1/16 Inch And 3-3/8 Inch
Speedometer Range (MPH)
0 To 120 Miles Per Hour
Share this page

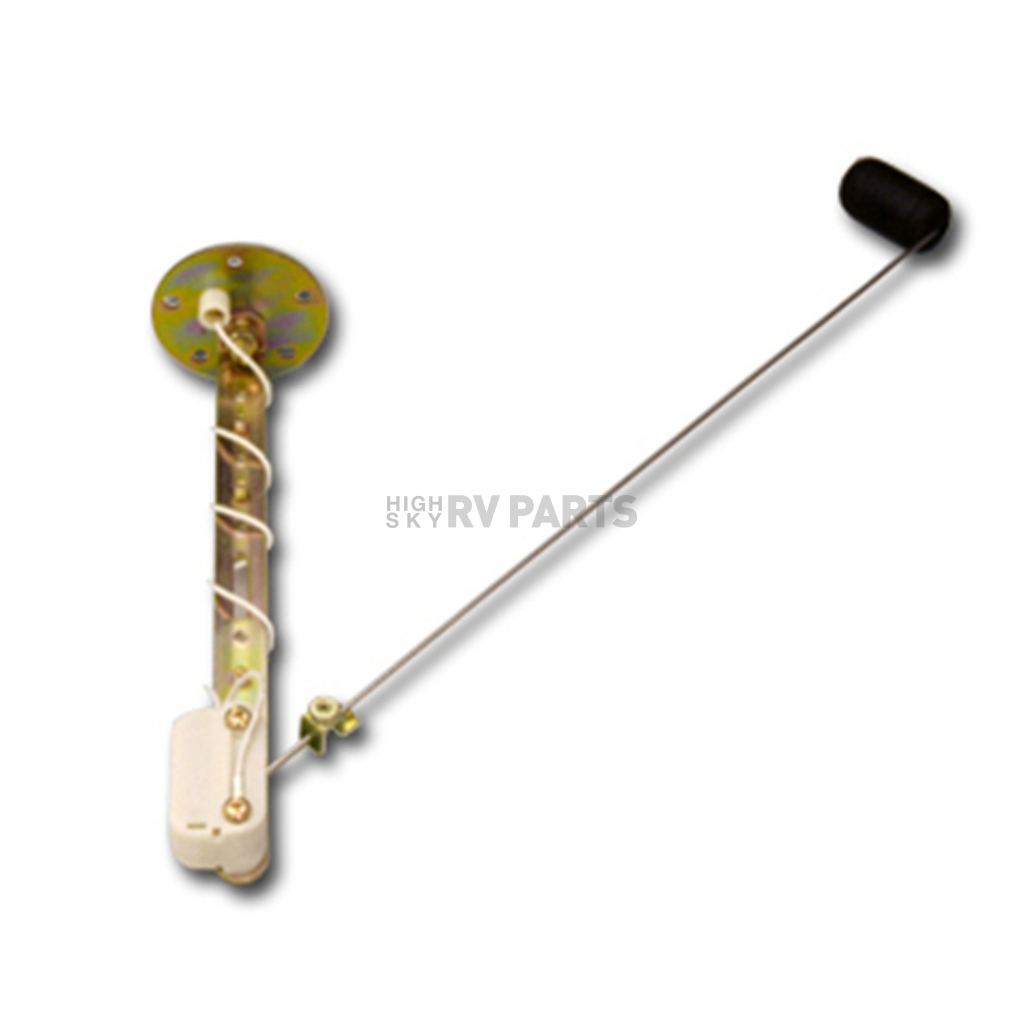

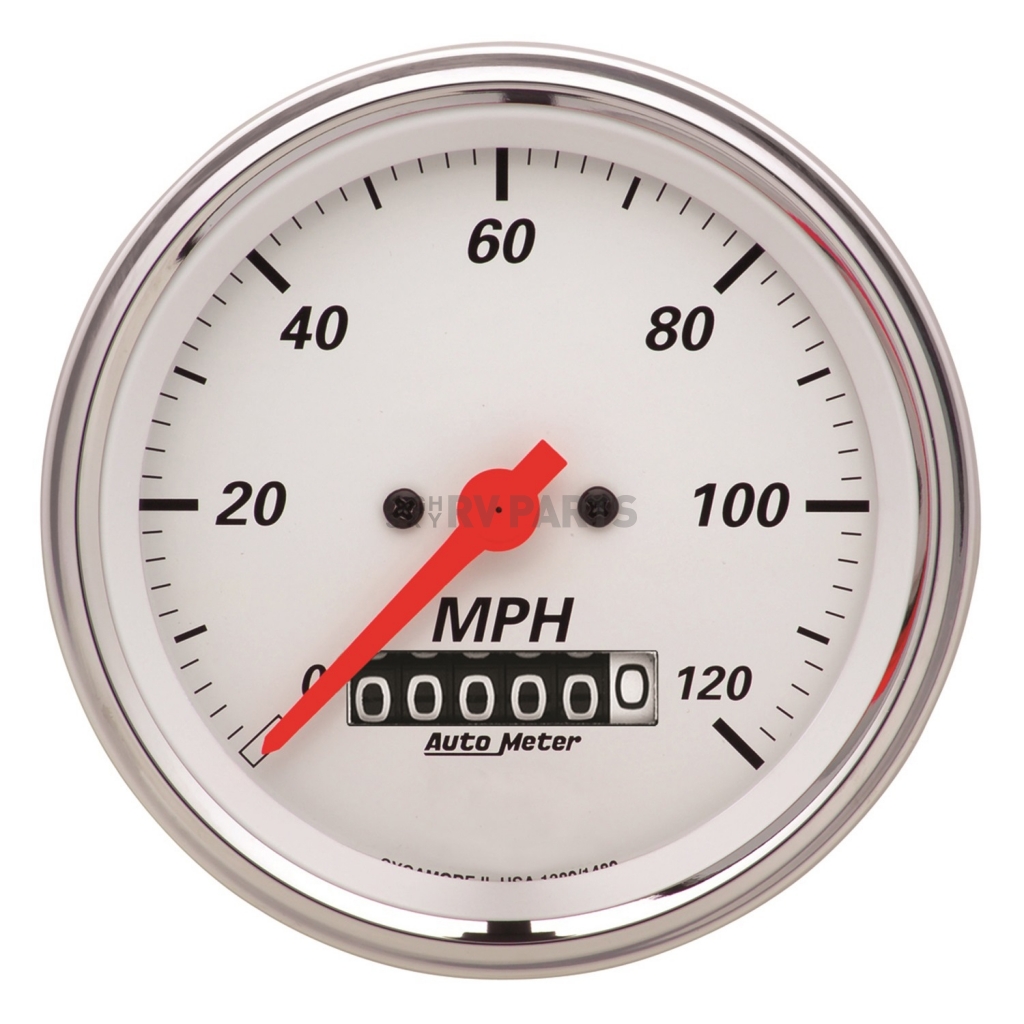

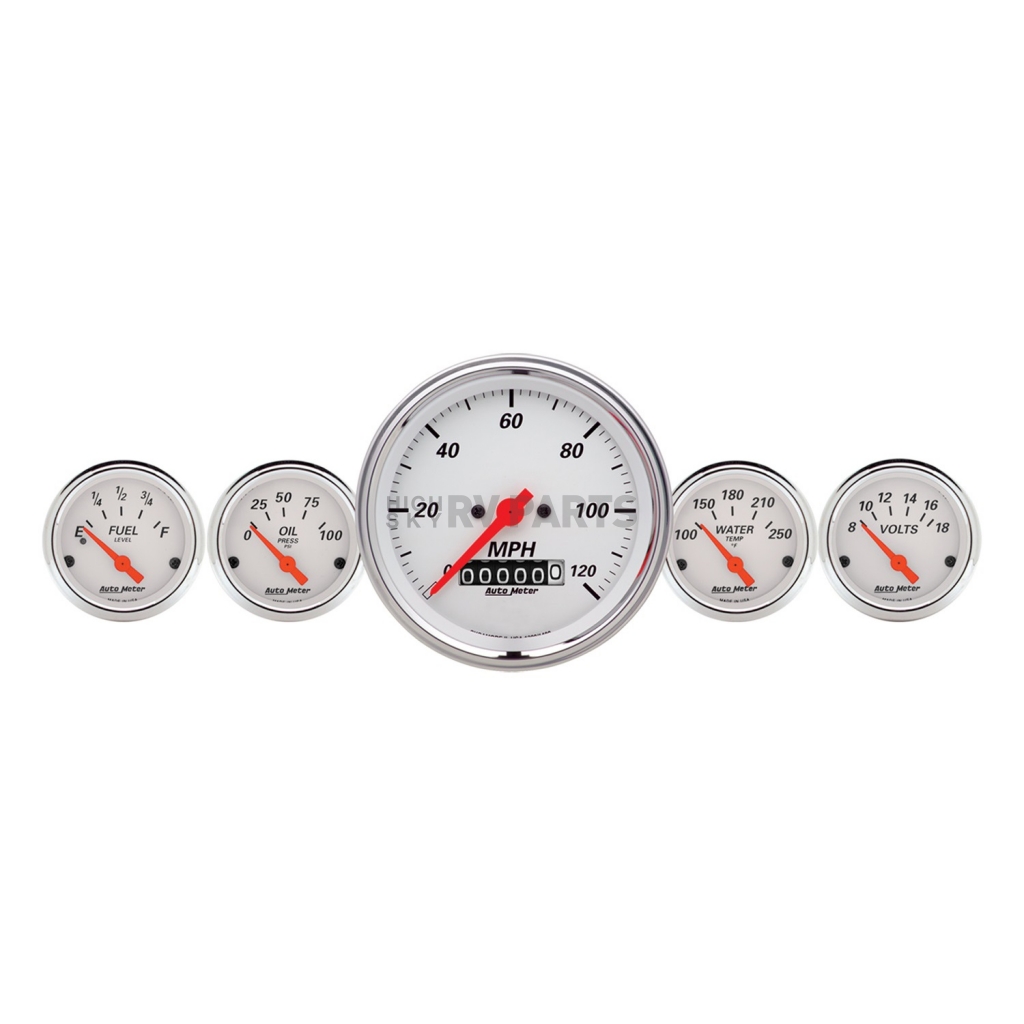

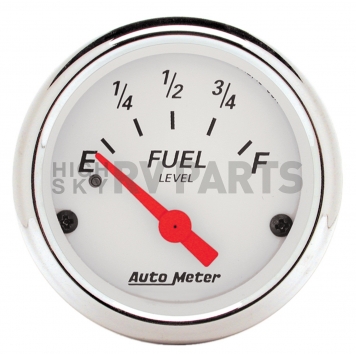

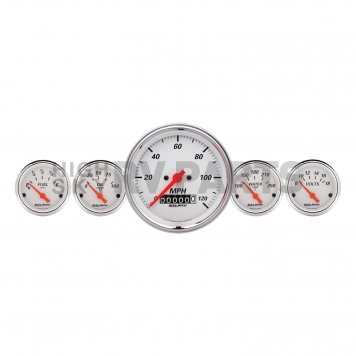

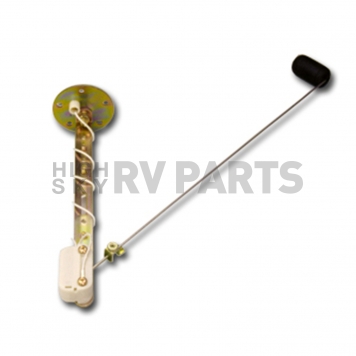

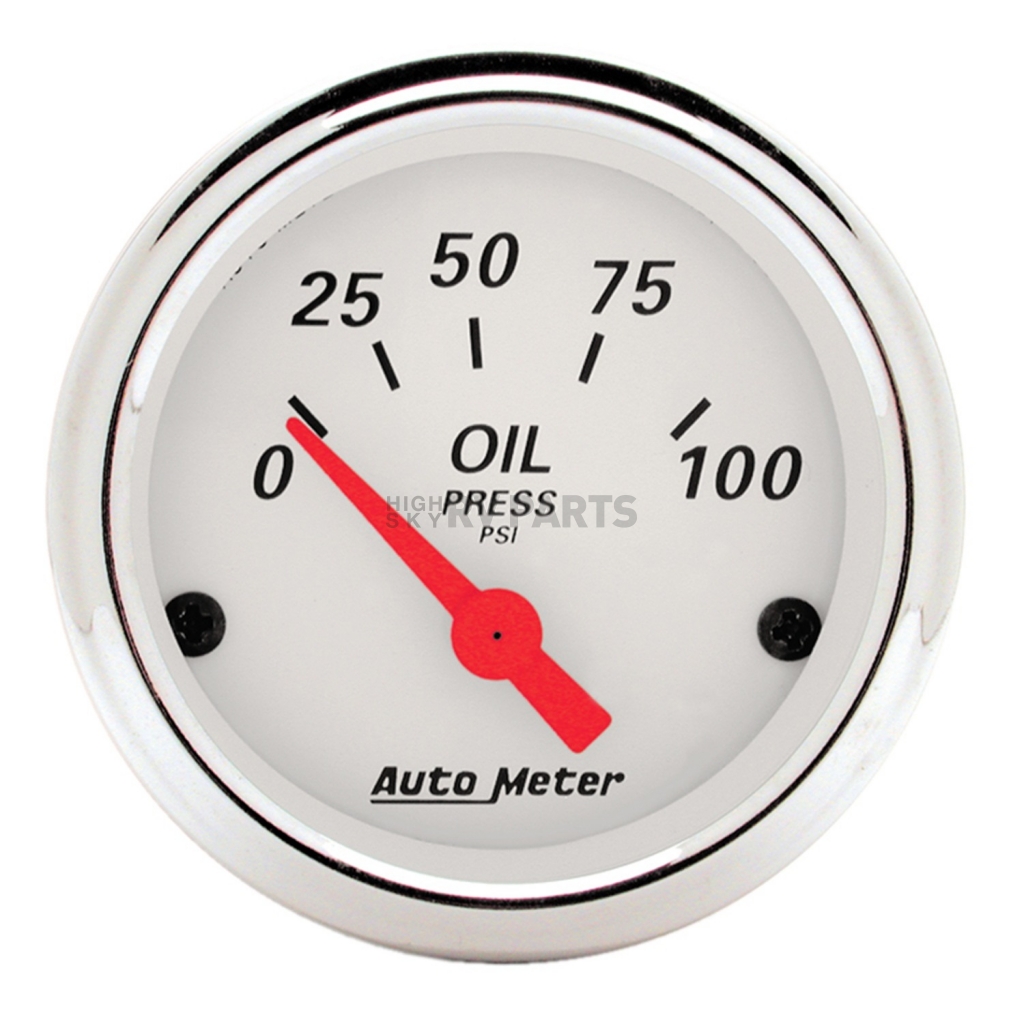

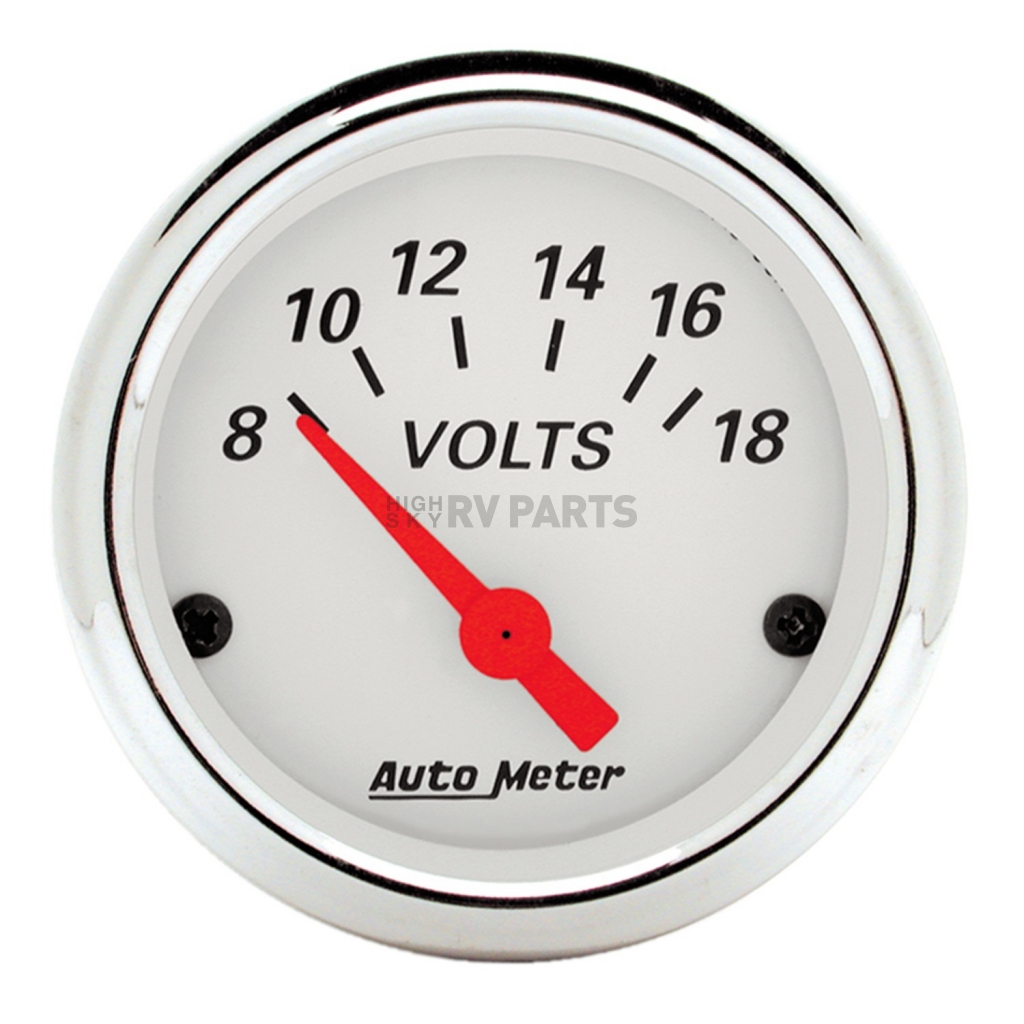

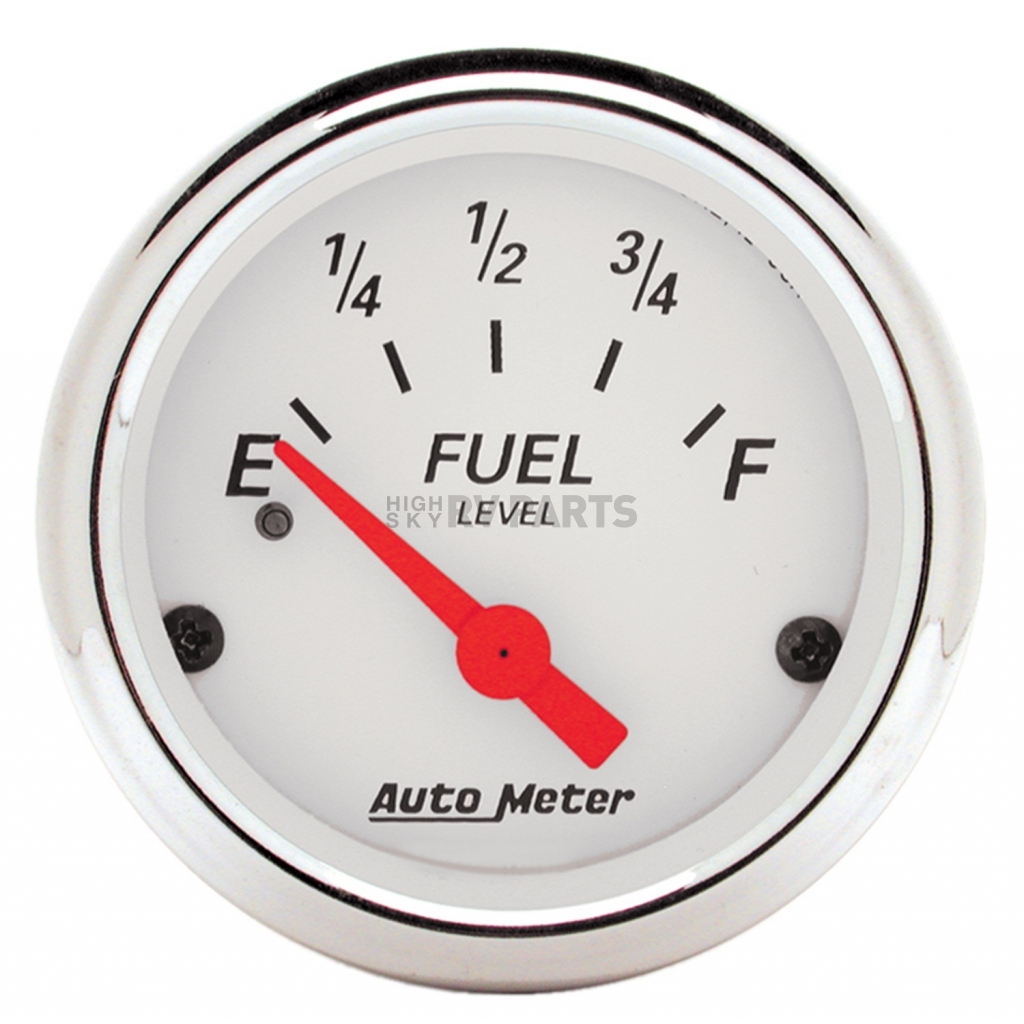

Gauge Fuel Level/ Oil Pressure/ Speedometer/ Tachometer/ Voltmeter/ Water Temp; Arctic White ™; Includes 5 Analog Gauges: Electric Fuel Level (2-1/16 Inch Short Sweep; 240 Ohms Empty-33 Ohms Full) And Electric Oil Pressure (2-1/16 Inch Short Sweep; 0-100 PSI ) and Electric Speedometer With Wheel Odometer (3-3/8 Inch Full Sweep; 0-120 MPH) and Electric Voltmeter (2-1/16 Inch Short Sweep; 8-18 Volts) and Electric Water Temperature (2-1/16 Inch Short Sweep 100-250 Degrees); White Face/ Chrome Bezel/ Orange Needle; Incandescent; Includes All Gauges Senders/ May Also Need Sender Part Number 5291 or 5292 for Speedometer
MPN: 1340
When you are ready to put the best instrumentation available in your vehicle, don’t settle for slow and inaccurate factory equipment. Our In-Dash tachometers and speedometers, feature our famous high performance movements and are designed with seamless dashboard mount in mind for the ultimate driver information center. Available in a variety of configurations and sizes to accommodate diverse applications.Size (IN): 2-1/16 Inch And 3-3/8 Inch
Type: Electrical
Fuel Level Gauge Range (OHM): 240 Ohms Empty/ 33 Ohms Full
Oil Pressure Gauge Range (PSI): 0 To 100 Pounds Per Square Inch
Speedometer Range (MPH): 0 To 120 Miles Per Hour
Voltmeter Range (Volt): 8 To 18 Volt
Water Temperature Gauge Range (Deg F): 100 To 250 Degree Fahrenheit
Display: Analog
Sweep: Short Sweep And Full Sweep
Face Color: White
Needle Color: Orange
Bezel Color: Silver
Number Color: Black
Mounting Type: In-Dash
Lighting: Incandescent
Features
- Traditional Incandescent Lighting Illuminates Around The Perimeter Of The Dial
- Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
- Speedometer Has A Simple Push Button, 2 Mile Drive Calibration
- No Dip Switches And Can Be Reprogramed At Any Time To Accommodate Changes In Gear Ratio Or Wheel And Tire Combination
- Speedometer Is Compatible With Most Two Wire Sine Wave And Three Wire Hall Effect Vehicle Speed Sensors
- Traditional Rolling Drum Odometer
- 12 And 16 Volt Compatible, Compatible With Nearly Every Street Car Or Race Car Electrical System
- Limited 12 Month Warranty
| Specifications of AutoMeter Direct Fit 6 Gauge Kit - 1340 | |
| Bezel Color | Silver |
| Display | Analog |
| Face Color | White |
| Fuel Level Gauge Range (OHM) | 240 Ohms Empty/ 33 Ohms Full |
| Lighting | Incandescent |
| Mounting Type | In-Dash |
| Needle Color | Orange |
| Number Color | Black |
| Oil Pressure Gauge Range (PSI) | 0 To 100 Pounds Per Square Inch |
| Size (IN) | 2-1/16 Inch And 3-3/8 Inch |
| Speedometer Range (MPH) | 0 To 120 Miles Per Hour |
| Sweep | Short Sweep And Full Sweep |
| Type | Electrical |
| Voltmeter Range (Volt) | 8 To 18 Volt |
| Water Temperature Gauge Range (Deg F) | 100 To 250 Degree Fahrenheit |
