AutoMeter Direct Fit 6 Gauge Kit - 1309

Authorized Dealer
Brand: AutoMeter AutoMeter
0 reviews
  • Have a product question? Ask us
  • Part Number: 1309
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $837.89
Price: $797.99
You Save: $39.90
Bezel Color
 Silver
Display
 Analog
Face Color
 White
Fuel Level Gauge Range (OHM)
 240 Ohms Empty/ 33 Ohms Full
Includes Fittings
 No
Includes Peak Memory
 No
Includes Sending Unit
 Yes
Includes Warning Indicator
 No
Includes Wiring Harness
 No
Lighting
 Incandescent
Liquid-Filled
 No
Share this page

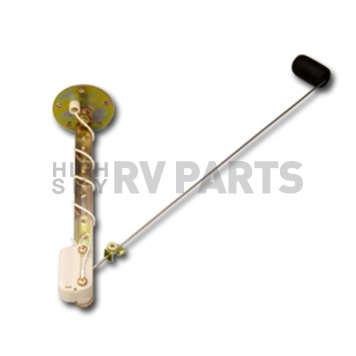

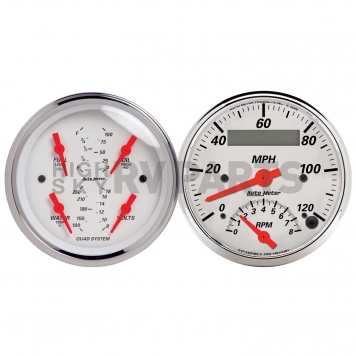

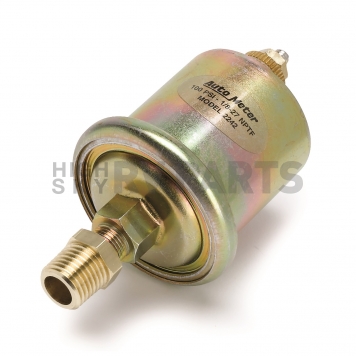

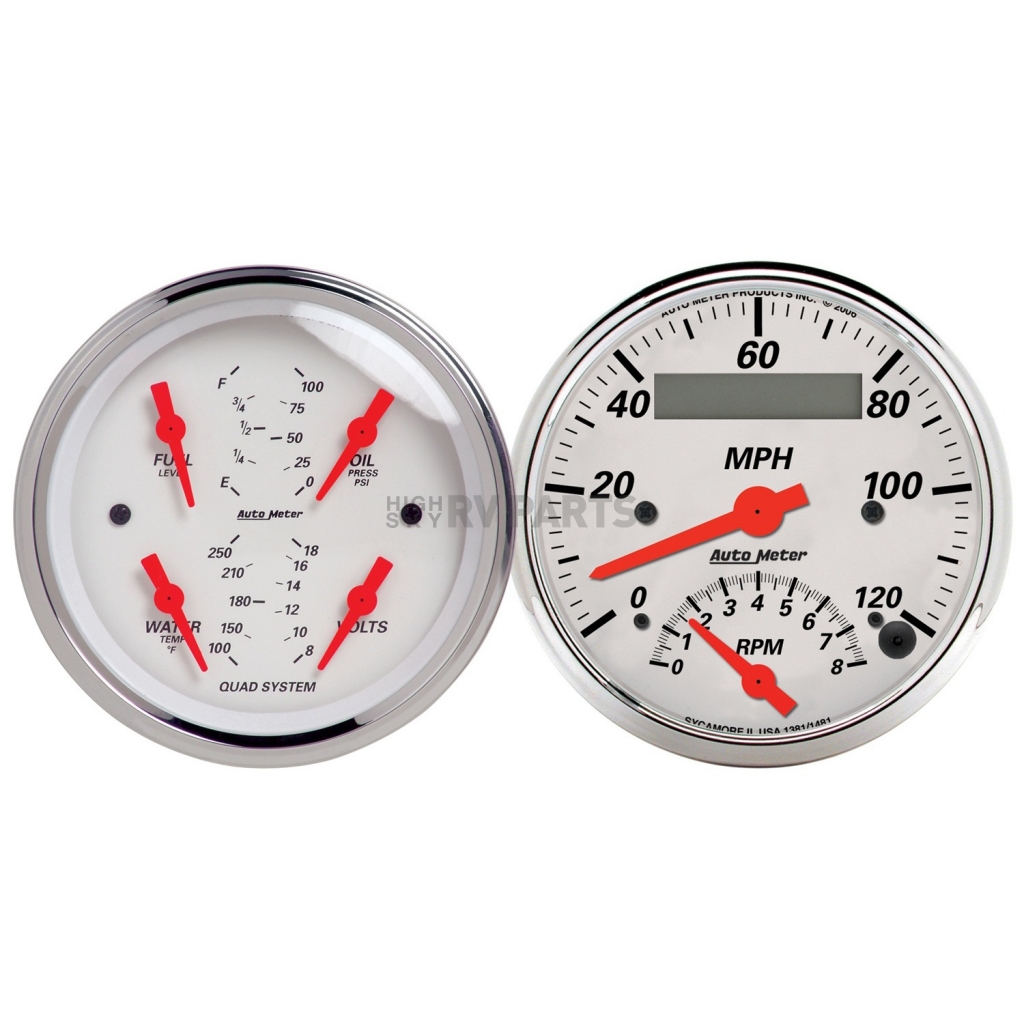

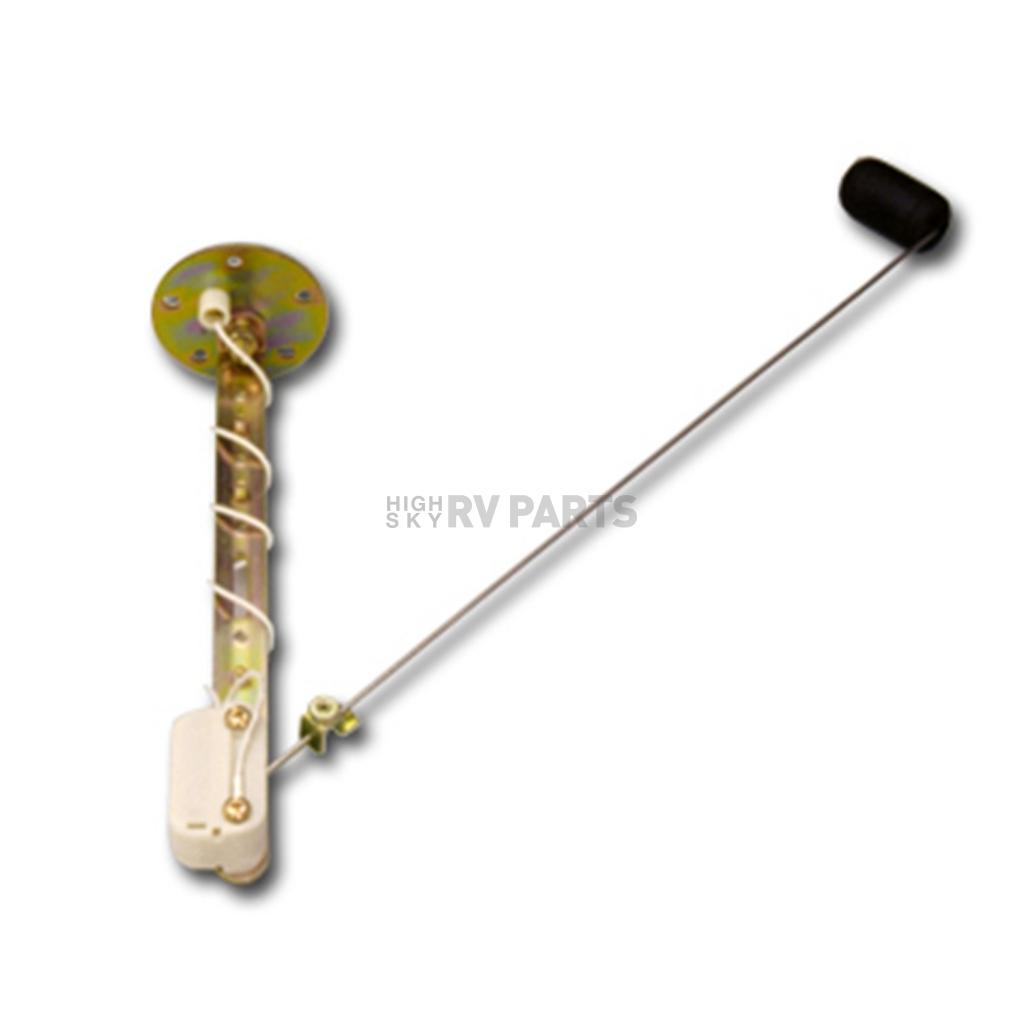

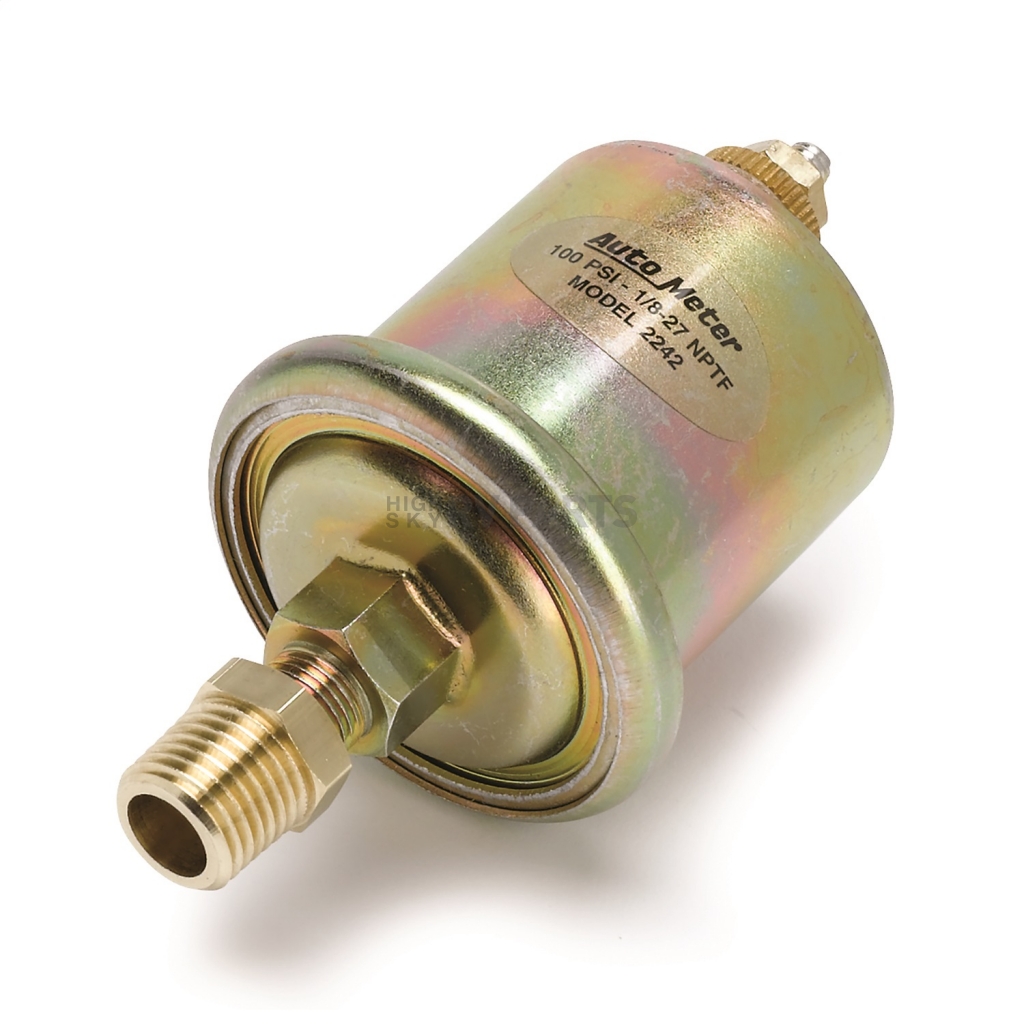

Gauge Fuel Level/ Oil Pressure/ Speedometer/ Tachometer/ Voltmeter/ Water Temp; Arctic White ™; Includes 2 Electric 3-3/8 Inch Analog Gauges: Fuel Level (240 Ohms Empty-33 Ohms Full) And Oil Pressure ( 0-100 PSI ) and Speedometer ( Full Sweep; 0-120 MPH) and Voltmeter ( 8-18 Volts) and Water Temperature (100-250 Degrees); White Face/ Chrome Bezel/ Orange Needle; Incandescent Around The Dial; Includes All Gauge Senders/ Speedometer May Also Need Sender Part Number 5291 or 5292/ Operates on 4/6/8 Cylinder engines and Most 12V High Performance Racing Ignitions

MPN: 1309

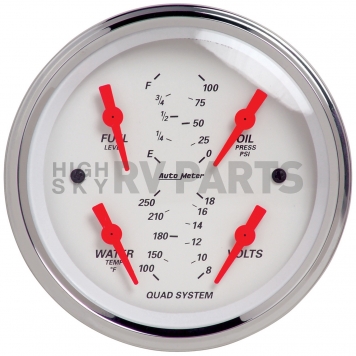

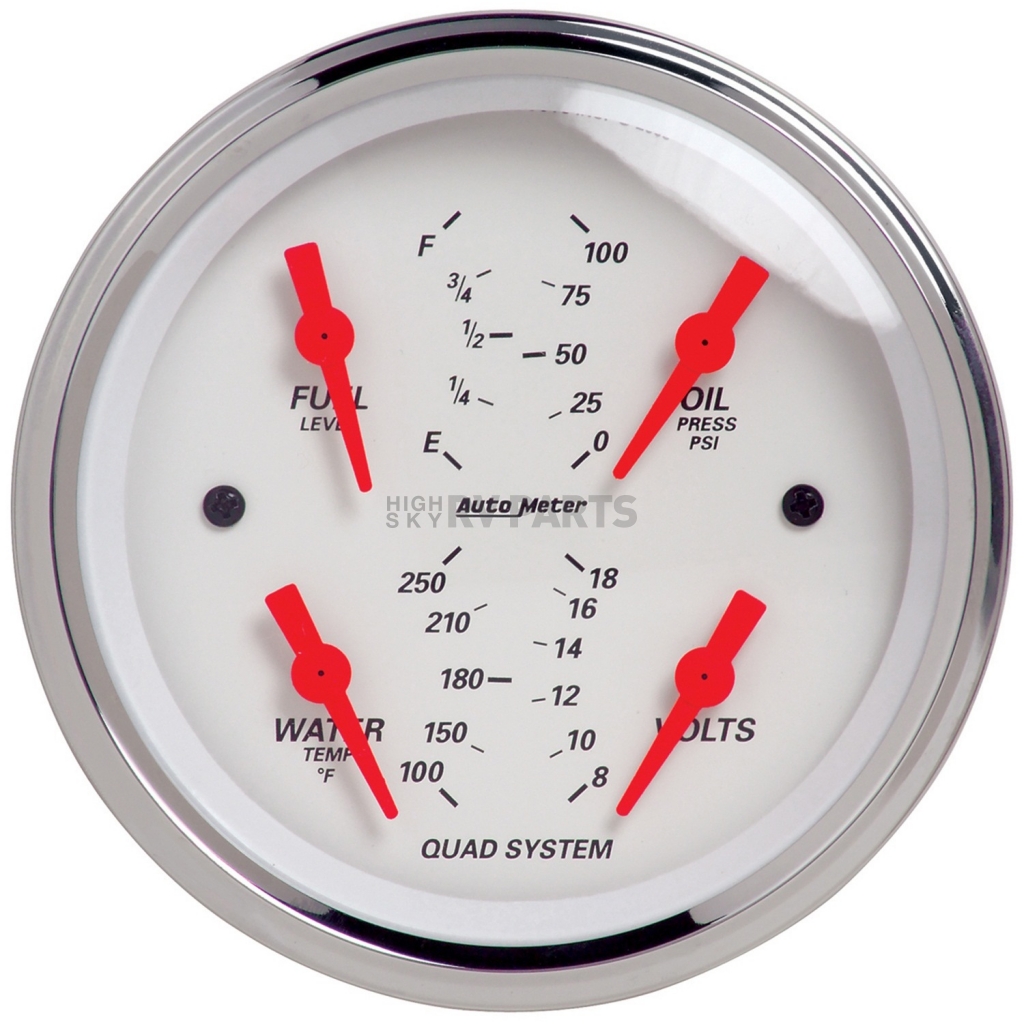

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full.

Size (IN): 3-3/8 Inch
Type: Electrical
Fuel Level Gauge Range (OHM): 240 Ohms Empty/ 33 Ohms Full
Oil Pressure Gauge Range (PSI): 0 To 100 Pounds Per Square Inch
Speedometer Range (MPH): 0 To 120 Miles Per Hour
Tachometer Range (RPM): 0 To 8000 RPM
Voltmeter Range (Volt): 8 To 18 Volt
Water Temperature Gauge Range (Deg F): 100 To 250 Degree Fahrenheit
Display: Analog
Sweep: Full Sweep
Face Color: White
Needle Color: Orange
Bezel Color: Silver
Number Color: Black
Mounting Type: In-Dash
Lighting: Incandescent
Includes Warning Indicator: No
Warning Indicator Type: Not Applicable
Includes Peak Memory: No
Liquid-Filled: No
Includes Sending Unit: Yes
Includes Wiring Harness: No
Includes Fittings: No

Features

  • Traditional Incandescent Lighting Illuminates Around The Perimeter Of The Dial
  • Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
  • Speedometer Has A Simple Push Button, 2 Mile Drive Calibration
  • No Dip Switches And Can Be Reprogramed At Any Time To Accommodate Changes In Gear Ratio Or Wheel And Tire Combination
  • Speedometer Is Compatible With Most Two Wire Sine Wave And Three Wire Hall Effect Vehicle Speed Sensors
  • Speedometer Features Lit LCD Odometer - Capable Of Registering One-Million Miles With Two Resettable Trip Odometers
  • 4 In 1 Gauge Design Saves Valuable Real Estate On Your Dash While Allowing You To Monitor Critical Parameters
  • Tachometer Is Compatible With 0.5 To 6 Pulse Ignition Signals (1 To 12 Cylinder Engines) With Points, Electronic, And Most 12 Volt High-Performance Racing Ignitions
  • 12 And 16 Volt Compatible, Compatible With Nearly Every Street Car Or Race Car Electrical System
  • Limited 12 Month Warranty
Specifications of AutoMeter Direct Fit 6 Gauge Kit - 1309
Bezel Color  Silver
Display  Analog
Face Color  White
Fuel Level Gauge Range (OHM)  240 Ohms Empty/ 33 Ohms Full
Includes Fittings  No
Includes Peak Memory  No
Includes Sending Unit  Yes
Includes Warning Indicator  No
Includes Wiring Harness  No
Lighting  Incandescent
Liquid-Filled  No
Mounting Type  In-Dash
Needle Color  Orange
Number Color  Black
Oil Pressure Gauge Range (PSI)  0 To 100 Pounds Per Square Inch
Size (IN)  3-3/8 Inch
Speedometer Range (MPH)  0 To 120 Miles Per Hour
Sweep  Full Sweep
Tachometer Range (RPM)  0 To 8000 RPM
Type  Electrical
Voltmeter Range (Volt)  8 To 18 Volt
Warning Indicator Type  Not Applicable
Water Temperature Gauge Range (Deg F)  100 To 250 Degree Fahrenheit
