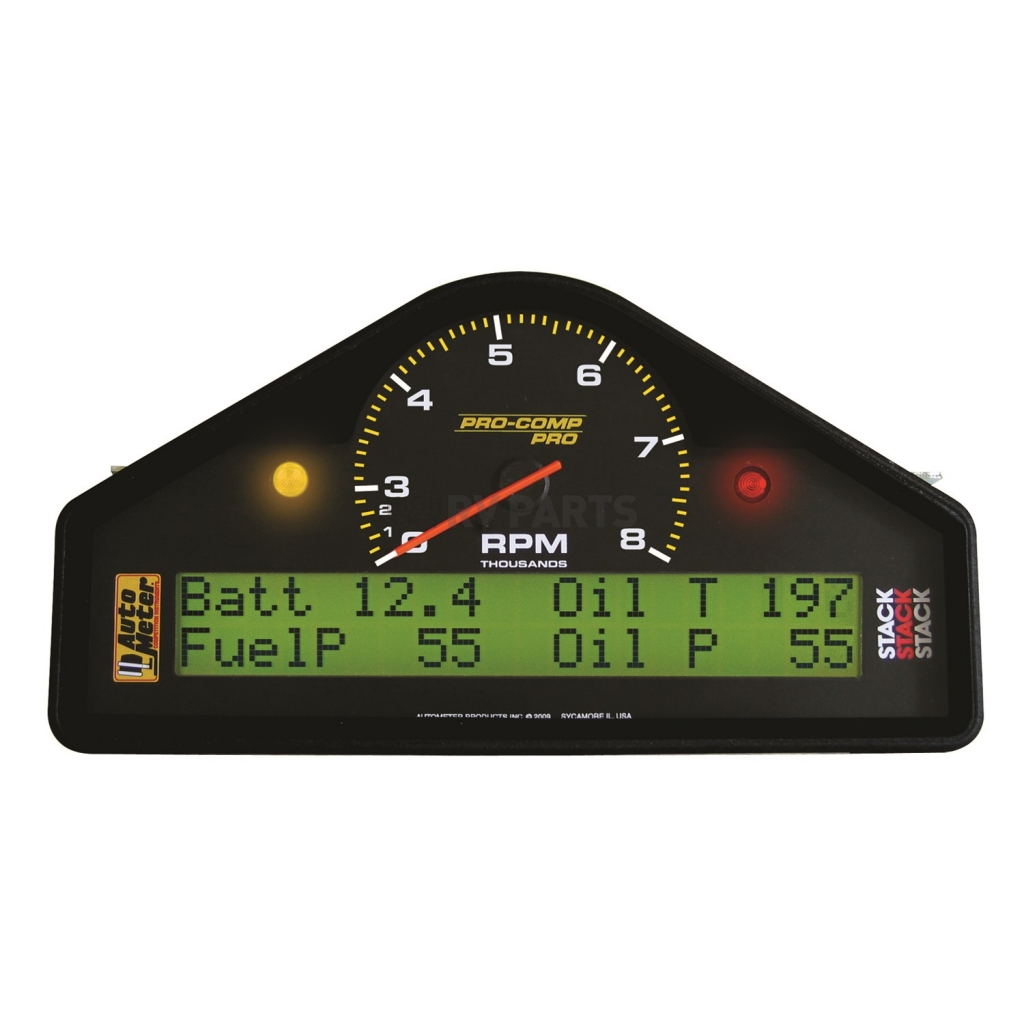

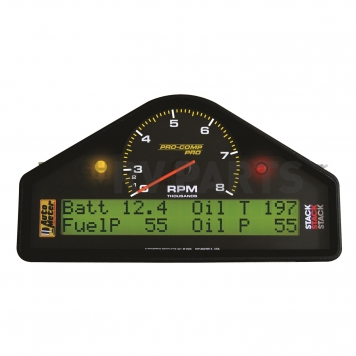

AutoMeter Race Dash Display - 6012

Authorized Dealer
Brand: AutoMeter AutoMeter
0 reviews
  • Have a product question? Ask us
  • Part Number: 6012
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $2,424.44
Price: $2,308.99
You Save: $115.45
Bezel Color
 Black
Dash Deep (IN)
 2-1/4 Inch
Dash Height (IN)
 4 Inch
Dash Width (IN)
 7-1/2 Inch
Display
 Analog/Digital
Engine Oil Pressure Gauge Range (PSI)
 0 To 150 Pounds Per Square Inch
Engine Oil Temperature Gauge Range (DEG F)
 0 To 300 Degree Fahrenheit
Face Color
 Black
Includes Fittings
 No
Includes Peak Memory
 No
Includes Sending Unit
 Yes
Share this page

Gauge Engine Oil Press/ Eng Oil Temp/ Fuel/ Speedo/ Tach/ Voltmeter/ Water Temp; Pro-Comp Pro Race; Includes 1 Analog/Digital Dash Gauge:7-1/2 Inch Width x 4 Inch Height x 2-1/4 Inch Deep/ Engine Oil Pressure ( 0-150 PSI ) and Engine Oil Temperature(0-300 Degrees) and Speedometer ( 0-200+ MPH) and Dual Range Analog Tachometer(0-3000-8000 RPM)and Voltmeter ( 8-18 Volts) and Water Temperature (0-300 Degrees); Black; White LED Backlight Display/LED Warning Light; Operates on most 1-16 cylinder engines with 12V electronic ignitions/ Includes 1/8 Inch NPT Sender and Wiring Harness/ Some applications May Also Need DIS Tach Adapter Part Number 9117/ If Mounting Temperature Sender in a Steel Fluid Pan Use Weld in Boss Part Number 2260

MPN: 6012

When you are ready to put the best instrumentation available in your vehicle, don’t settle for slow and inaccurate factory equipment. Our In-Dash tachometers and speedometers, feature our famous high performance movements and are designed with seamless dashboard mount in mind for the ultimate driver information center. Available in a variety of configurations and sizes to accommodate diverse applications.

Dash Width (IN): 7-1/2 Inch
Dash Height (IN): 4 Inch
Dash Deep (IN): 2-1/4 Inch
Type: In-Dash
Engine Oil Pressure Gauge Range (PSI): 0 To 150 Pounds Per Square Inch
Engine Oil Temperature Gauge Range (DEG F): 0 To 300 Degree Fahrenheit
Speedometer Range (MPH): 0 To 200+ Miles Per Hour
Tachometer Range (RPM): 0 To 3000 To 8000 RPM
Voltmeter Range (Volt): 8 To 18 Volt
Water Temperature Gauge Range (Deg F): 0 To 300 Degree Fahrenheit
Display: Analog/Digital
Sweep: Full Sweep
Face Color: Black
Needle Color: Orange
Bezel Color: Black
Number Color: White/Black
Mounting Type: In-Dash
Lighting: White LED Illuminated
Includes Warning Indicator: Yes
Warning Indicator Type: Programmable
Includes Peak Memory: No
Liquid-Filled: No
Includes Sending Unit: Yes
Includes Wiring Harness: Yes
Includes Fittings: No

Features

  • In-Dash Tachometers And Speedometers, Feature Famous High Performance Movements And Are Designed With Seamless Dashboard Mount In Mind For The Ultimate Driver Information Center
  • Full Sweep, Stepper Motor Meter Movement
  • User Programmable Warning Function Peak Recall
  • Powered By Advanced Circuit Designs For Improved Electrical Noise Resistance And Precision
  • Integrated Programmable Warning Light And LCD Message Display For Temperatures, Pressures And Battery Voltage
  • Multiple Pre-Programmed Display Layers Allow You To Track Different
  • Transflective LCD Backlit Display Provides Guaranteed Visibility In Bright Sunlight And Complete Darkness
  • Limited 1 Year Warranty
Specifications of AutoMeter Race Dash Display - 6012
Bezel Color  Black
Dash Deep (IN)  2-1/4 Inch
Dash Height (IN)  4 Inch
Dash Width (IN)  7-1/2 Inch
Display  Analog/Digital
Engine Oil Pressure Gauge Range (PSI)  0 To 150 Pounds Per Square Inch
Engine Oil Temperature Gauge Range (DEG F)  0 To 300 Degree Fahrenheit
Face Color  Black
Includes Fittings  No
Includes Peak Memory  No
Includes Sending Unit  Yes
Includes Warning Indicator  Yes
Includes Wiring Harness  Yes
Lighting  White LED Illuminated
Liquid-Filled  No
Mounting Type  In-Dash
Needle Color  Orange
Number Color  White/Black
Speedometer Range (MPH)  0 To 200+ Miles Per Hour
Sweep  Full Sweep
Tachometer Range (RPM)  0 To 3000 To 8000 RPM
Type  In-Dash
Voltmeter Range (Volt)  8 To 18 Volt
Warning Indicator Type  Programmable
Water Temperature Gauge Range (Deg F)  0 To 300 Degree Fahrenheit
