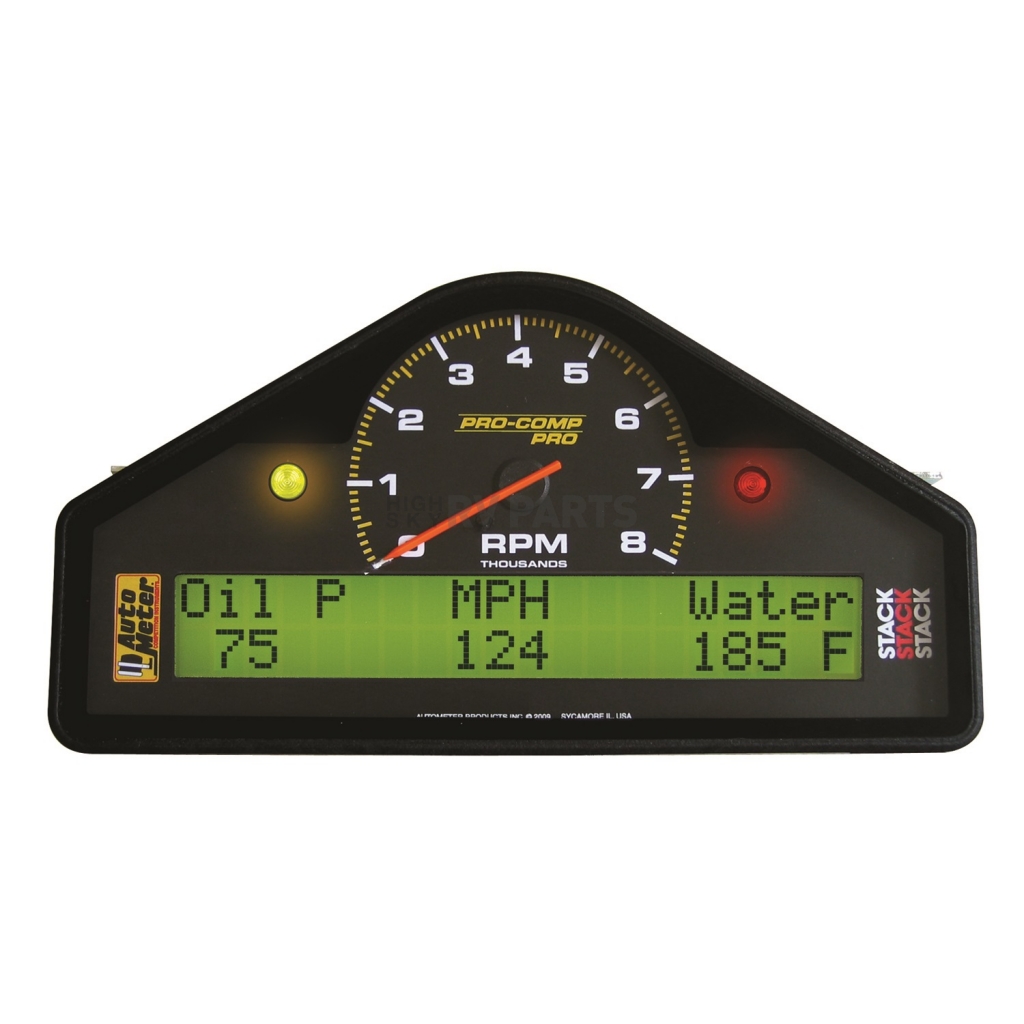

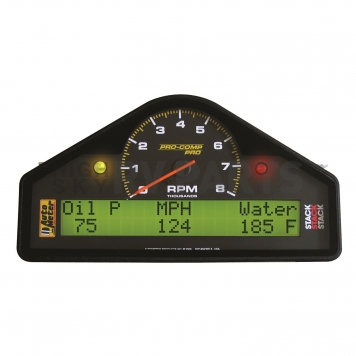

AutoMeter Race Dash Display - 6002
Gauge Engine Oil Press/ Eng Oil Temp/ Fuel/ Speedo/ Tach/ Voltmeter/ Water Temp; Pro-Comp Pro Dash; Includes 1 Analog/Digital Dash Gauge:7-1/2 Inch Width x 4 Inch Height x 2-1/4 Inch Deep/ Engine Oil Pressure ( 0-150 PSI ) and Engine Oil Temperature(0-300 Degrees) and Programmable Fuel Level and Speedometer ( 0-200+ MPH) and Dual Range Analog Tachometer(0-3000-8000 RPM)and Voltmeter ( 8-18 Volts) and Water Temperature (0-300 Degrees); Black; White LED Backlight Display/LED Warning Light; Operates on most 1-16 cylinder engines with 12V electronic ignitions/ Includes 1/8 Inch NPT Sender and Wiring Harness/ Some applications May Also Need DIS Tach Adapter Part Number 9117/ If Mounting Temperature Sender in a Steel Fluid Pan Use Weld in Boss Part Number 2260
MPN: 6002
When you are ready to put the best instrumentation available in your vehicle, don’t settle for slow and inaccurate factory equipment. Our In-Dash tachometers and speedometers, feature our famous high performance movements and are designed with seamless dashboard mount in mind for the ultimate driver information center. Available in a variety of configurations and sizes to accommodate diverse applications.Features
- In-Dash Tachometers And Speedometers, Feature Famous High Performance Movements And Are Designed With Seamless Dashboard Mount In Mind For The Ultimate Driver Information Center
- Full Sweep, Stepper Motor Meter Movement
- Resettable Trip Odometer
- User Programmable Warning Function Peak Recall
- Powered By Advanced Circuit Designs For Improved Electrical Noise Resistance And Precision
- Integrated Programmable Warning Light And LCD Message Display For Temperatures, Pressures And Battery Voltage
- Multiple Pre-Programmed Display Layers Allow You To Track Different
- Limited 1 Year Warranty
| Specifications of AutoMeter Race Dash Display - 6002 | |
| Bezel Color | Black |
| Dash Deep (IN) | 2-1/4 Inch |
| Dash Height (IN) | 4 Inch |
| Dash Width (IN) | 7-1/2 Inch |
| Display | Analog/Digital |
| Engine Oil Pressure Gauge Range (PSI) | 0 To 150 Pounds Per Square Inch |
| Engine Oil Temperature Gauge Range (DEG F) | 0 To 300 Degree Fahrenheit |
| Face Color | Black |
| Includes Fittings | No |
| Includes Peak Memory | No |
| Includes Sending Unit | Yes |
| Includes Warning Indicator | Yes |
| Includes Wiring Harness | Yes |
| Lighting | White LED Illuminated |
| Liquid-Filled | No |
| Mounting Type | In-Dash |
| Needle Color | Orange |
| Number Color | White/Black |
| Speedometer Range (MPH) | 0 To 200+ Miles Per Hour |
| Sweep | Full Sweep |
| Tachometer Range (RPM) | 0 To 3000 To 8000 RPM |
| Type | In-Dash |
| Voltmeter Range (Volt) | 8 To 18 Volt |
| Warning Indicator Type | Programmable |
| Water Temperature Gauge Range (Deg F) | 0 To 300 Degree Fahrenheit |
