ARP Auto Racing Cylinder Head Stud 2454307

Brand: ARP Auto Racing ARP Auto Racing
0 reviews
  • Have a product question? Ask us
  • Part Number: 245-4307
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 24
Retail: $532.34
Price: $506.99
You Save: $25.35
Engine Compatibility
Chrysler Big Block 383-400-413-426-440 Cubic Inch
Finish
Black Oxide
Head Type
B-1 Heads
Material
Chromoly Steel
Nut Type
12-Point
Share this page

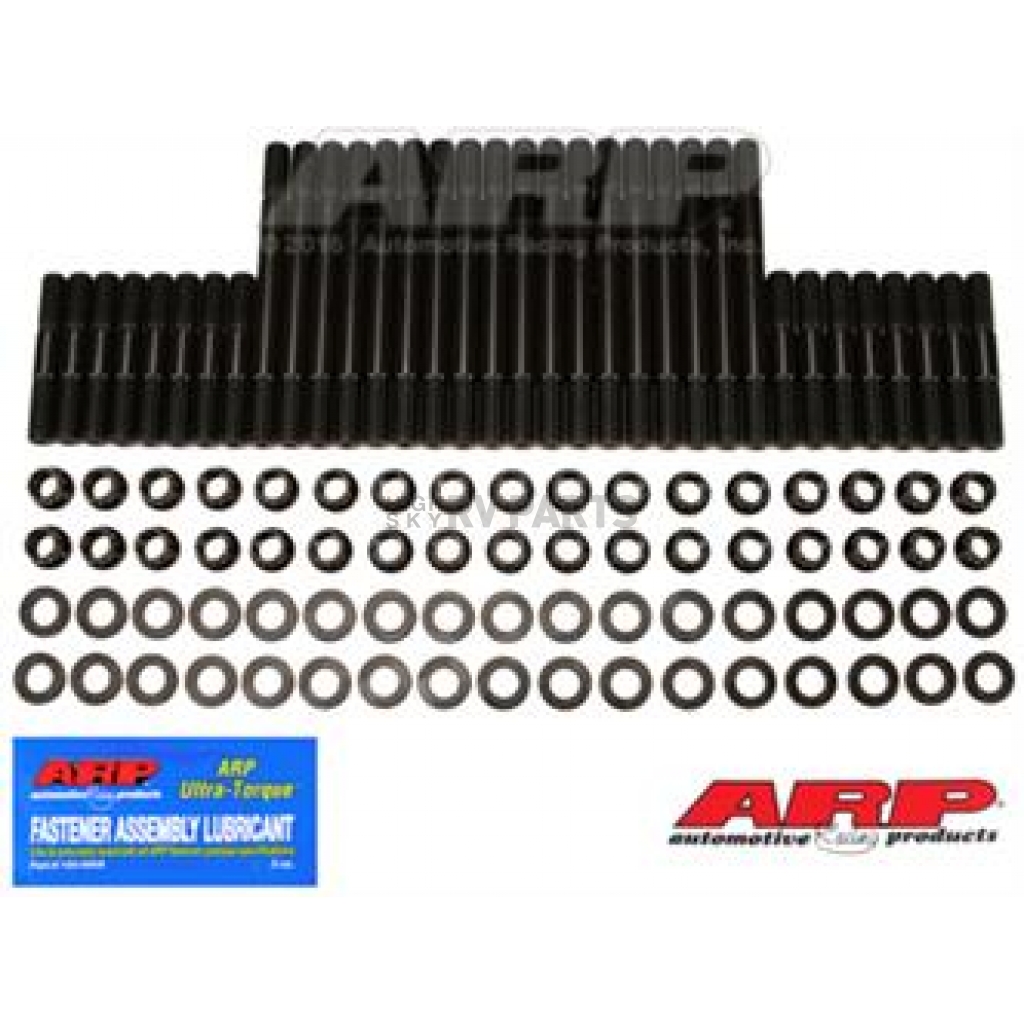

ARP Auto Racing Cylinder Head Stud

Cylinder Head Stud; For Use With Chrysler Big Block 383/ 400/ 413/ 426/ 440 Wedge; B-1 Heads; 12 Point Nuts; Black Oxide; Chrome Moly

MPN: 2454307

It is for good reason that virtually every top professional engine builder relies on ARP Pro Series head studs for their all out competition power plants. Simply stated, there’s not a better stud setup on the market today. For openers, ARP uses a premium grade 8740 alloy that is rated far superior to “aircraft” quality. Each stud is placed vertically in special racks and precisely heat treated to 200,000 PSI. Following heat treat, each stud is centerless ground to make it as close to perfectly concentric as possible. It’s important to note that lesser quality studs are not even centerless ground, the material is thread rolled in bar stock form. Because ARP studs are manufactured to such exacting tolerances, you will note that gaskets and cylinder heads literally glide into position and are perfectly aligned, something that won’t happen with inferior quality head studs. ARP studs are thread rolled after heat treat, which gives them about 1000 Percent (that’s ten times) better fatigue strength than those studs that are threaded prior to heat treat. It costs a lot more to do it this way, because it’s tough on tooling, but the results are well worth the extra effort. You will also note that ARP offers specially undercut studs for several engines. This procedure (done only to the shorter studs) more equalizes the “stretch” of both studs, which makes for a more consistent clamping force and one that compensates for head gasket compression when the cylinder heads are installed. This helps prevent blown head gaskets, and assures optimum engine sealing! Premium quality heat treated 8740 chrome moly steel head stud kits are available for most every domestic and import applications. You won’t find a better quality stud on the market from any other source. Look for ARP stamped on each stud as your assurance of quality. Clearly, they are the best on the market today, and the favorite of leading professional engine builders in all forms of racing.
Engine Compatibility: Chrysler Big Block 383-400-413-426-440 Cubic Inch
Head Type: B-1 Heads
Nut Type: 12-Point
Finish: Black Oxide
Material: Chromoly Steel

Features

  • Uses A Premium Grade 8740 Alloy That Is Rated Far Superior To Aircraft Quality
  • Stud Is Placed Vertically In Special Racks And Precisely Heat Treated To 200,000 PSI
  • Centerless Ground To Make It As Close To Perfectly Concentric As Possible
  • Thread Rolled After Heat Treat, Which Gives Them About Ten Times Better Fatigue Strength Than Those Studs That Are Threaded Prior To Heat Treat
  • Limited 90 Day Warranty
Specifications of ARP Auto Racing Cylinder Head Stud 2454307
Engine Compatibility Chrysler Big Block 383-400-413-426-440 Cubic Inch
Finish Black Oxide
Head Type B-1 Heads
Material Chromoly Steel
Nut Type 12-Point

1959 Chrysler 300
1960 Chrysler 300
1961 Chrysler 300
1962 Chrysler 300
1963 Chrysler 300
1964 Chrysler 300
1965 Chrysler 300
1966 Chrysler 300
1967 Chrysler 300
1968 Chrysler 300
1969 Chrysler 300
1970 Chrysler 300
1971 Chrysler 300

1900 Chrysler 361/383/400 B

1900 Chrysler 383/413/426W/440 RB

1975 Chrysler Cordoba
1976 Chrysler Cordoba
1977 Chrysler Cordoba
1978 Chrysler Cordoba

1959 Chrysler Imperial
1960 Chrysler Imperial
1961 Chrysler Imperial
1962 Chrysler Imperial
1963 Chrysler Imperial
1964 Chrysler Imperial
1965 Chrysler Imperial
1966 Chrysler Imperial
1967 Chrysler Imperial
1968 Chrysler Imperial
1969 Chrysler Imperial
1970 Chrysler Imperial
1971 Chrysler Imperial
1972 Chrysler Imperial
1973 Chrysler Imperial
1974 Chrysler Imperial
1975 Chrysler Imperial

1959 Chrysler New Yorker
1960 Chrysler New Yorker
1961 Chrysler New Yorker
1962 Chrysler New Yorker
1963 Chrysler New Yorker
1964 Chrysler New Yorker
1965 Chrysler New Yorker
1966 Chrysler New Yorker
1967 Chrysler New Yorker
1968 Chrysler New Yorker
1969 Chrysler New Yorker
1970 Chrysler New Yorker
1971 Chrysler New Yorker
1972 Chrysler New Yorker
1973 Chrysler New Yorker
1974 Chrysler New Yorker
1975 Chrysler New Yorker
1976 Chrysler New Yorker
1977 Chrysler New Yorker
1978 Chrysler New Yorker

1959 Chrysler Newport
1960 Chrysler Newport
1961 Chrysler Newport
1962 Chrysler Newport
1963 Chrysler Newport
1964 Chrysler Newport
1965 Chrysler Newport
1966 Chrysler Newport
1967 Chrysler Newport
1968 Chrysler Newport
1969 Chrysler Newport
1970 Chrysler Newport
1971 Chrysler Newport
1972 Chrysler Newport
1973 Chrysler Newport
1974 Chrysler Newport
1975 Chrysler Newport
1976 Chrysler Newport
1977 Chrysler Newport
1978 Chrysler Newport

1959 Chrysler Saratoga
1960 Chrysler Saratoga

1959 Chrysler Town & Country
1960 Chrysler Town & Country
1961 Chrysler Town & Country
1962 Chrysler Town & Country
1963 Chrysler Town & Country
1964 Chrysler Town & Country
1965 Chrysler Town & Country
1966 Chrysler Town & Country
1967 Chrysler Town & Country
1968 Chrysler Town & Country
1969 Chrysler Town & Country
1970 Chrysler Town & Country
1971 Chrysler Town & Country
1972 Chrysler Town & Country
1973 Chrysler Town & Country
1974 Chrysler Town & Country
1975 Chrysler Town & Country
1976 Chrysler Town & Country
1977 Chrysler Town & Country

1959 Chrysler Windsor
1960 Chrysler Windsor
1961 Chrysler Windsor
