ARP Auto Racing Cylinder Head Stud 1444204

Brand: ARP Auto Racing ARP Auto Racing
0 reviews
  • Have a product question? Ask us
  • Part Number: 144-4204
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 24
Retail: $397.94
Price: $378.99
You Save: $18.95
Engine Compatibility
Chrysler Small Block V8 316-340-360 Cubic Inch
Finish
Black Oxide
Head Type
B1-BS Heads
Material
Chromoly Steel
Nut Type
12-Point
Share this page

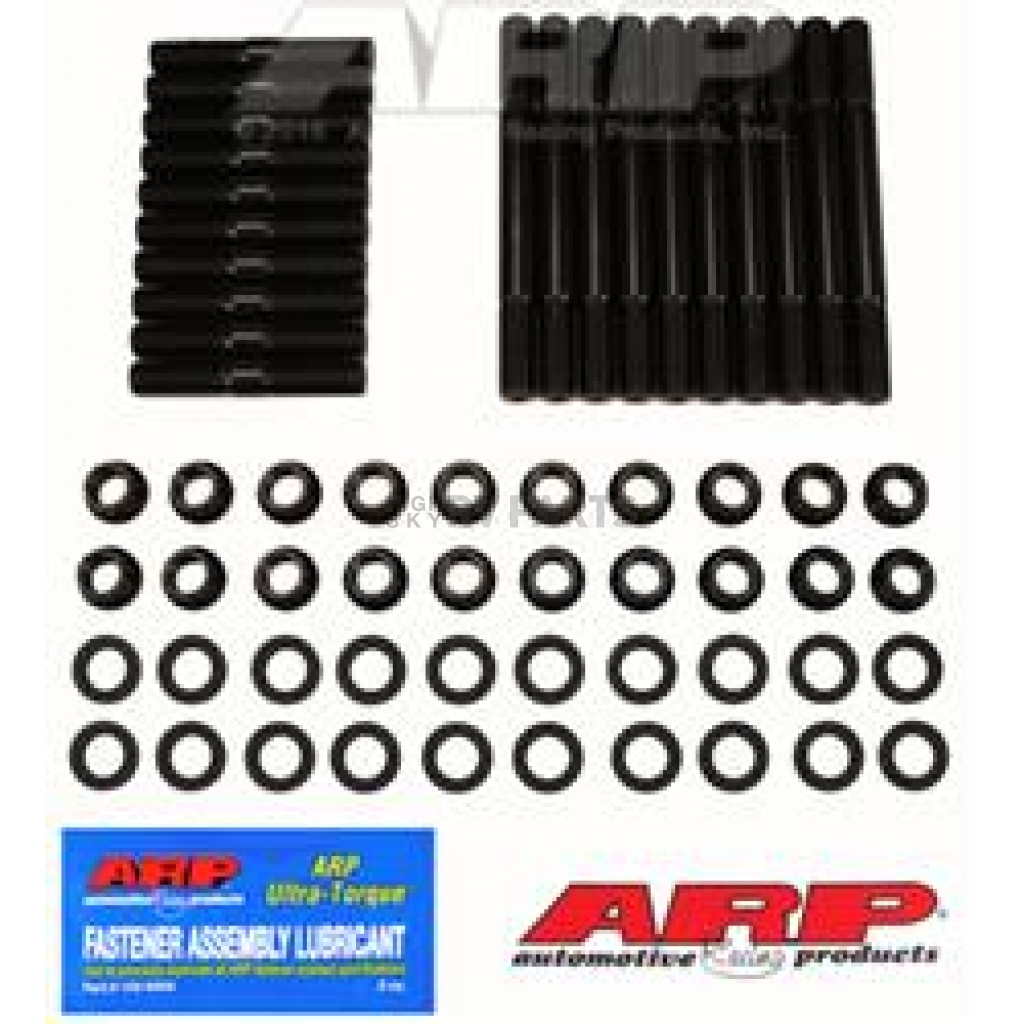

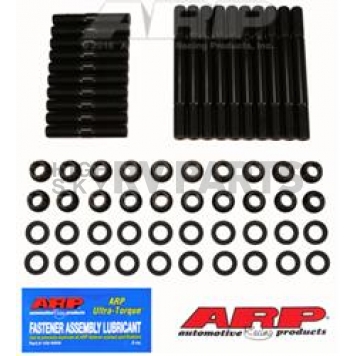

ARP Auto Racing Cylinder Head Stud

Cylinder Head Stud; For Use With Chrysler 318/ 340/ 360 Wedge; B1-BS Heads; 12 Point Nuts; Black Oxide; Chrome Moly

MPN: 1444204

It is for good reason that virtually every top professional engine builder relies on ARP Pro Series head studs for their all out competition power plants. Simply stated, there’s not a better stud setup on the market today. For openers, ARP uses a premium grade 8740 alloy that is rated far superior to “aircraft” quality. Each stud is placed vertically in special racks and precisely heat treated to 200,000 PSI. Following heat treat, each stud is centerless ground to make it as close to perfectly concentric as possible. It’s important to note that lesser quality studs are not even centerless ground, the material is thread rolled in bar stock form. Because ARP studs are manufactured to such exacting tolerances, you will note that gaskets and cylinder heads literally glide into position and are perfectly aligned, something that won’t happen with inferior quality head studs. ARP studs are thread rolled after heat treat, which gives them about 1000 Percent (that’s ten times) better fatigue strength than those studs that are threaded prior to heat treat. It costs a lot more to do it this way, because it’s tough on tooling, but the results are well worth the extra effort. You will also note that ARP offers specially undercut studs for several engines. This procedure (done only to the shorter studs) more equalizes the “stretch” of both studs, which makes for a more consistent clamping force and one that compensates for head gasket compression when the cylinder heads are installed. This helps prevent blown head gaskets, and assures optimum engine sealing! Premium quality heat treated 8740 chrome moly steel head stud kits are available for most every domestic and import applications. You won’t find a better quality stud on the market from any other source. Look for ARP stamped on each stud as your assurance of quality. Clearly, they are the best on the market today, and the favorite of leading professional engine builders in all forms of racing.
Engine Compatibility: Chrysler Small Block V8 316-340-360 Cubic Inch
Head Type: B1-BS Heads
Nut Type: 12-Point
Finish: Black Oxide
Material: Chromoly Steel

Features

  • Uses A Premium Grade 8740 Alloy That Is Rated Far Superior To Aircraft Quality
  • Stud Is Placed Vertically In Special Racks And Precisely Heat Treated To 200,000 PSI
  • Centerless Ground To Make It As Close To Perfectly Concentric As Possible
  • Thread Rolled After Heat Treat, Which Gives Them About Ten Times Better Fatigue Strength Than Those Studs That Are Threaded Prior To Heat Treat
  • Limited 90 Day Warranty
Specifications of ARP Auto Racing Cylinder Head Stud 1444204
Engine Compatibility Chrysler Small Block V8 316-340-360 Cubic Inch
Finish Black Oxide
Head Type B1-BS Heads
Material Chromoly Steel
Nut Type 12-Point

1900 Chrysler 273-360 LA

1900 Chrysler 361/383/400 B

1975 Chrysler Cordoba
1976 Chrysler Cordoba
1977 Chrysler Cordoba
1978 Chrysler Cordoba
1979 Chrysler Cordoba
1980 Chrysler Cordoba
1981 Chrysler Cordoba
1982 Chrysler Cordoba
1983 Chrysler Cordoba

1983 Chrysler Fifth Avenue
1984 Chrysler Fifth Avenue
1985 Chrysler Fifth Avenue
1986 Chrysler Fifth Avenue
1987 Chrysler Fifth Avenue
1988 Chrysler Fifth Avenue
1989 Chrysler Fifth Avenue

1981 Chrysler Imperial
1982 Chrysler Imperial
1983 Chrysler Imperial

1977 Chrysler LeBaron
1978 Chrysler LeBaron
1979 Chrysler LeBaron
1980 Chrysler LeBaron
1981 Chrysler LeBaron

1977 Chrysler New Yorker
1978 Chrysler New Yorker
1979 Chrysler New Yorker
1980 Chrysler New Yorker
1981 Chrysler New Yorker
1982 Chrysler New Yorker

1971 Chrysler Newport
1972 Chrysler Newport
1973 Chrysler Newport
1974 Chrysler Newport
1975 Chrysler Newport
1976 Chrysler Newport
1977 Chrysler Newport
1978 Chrysler Newport
1979 Chrysler Newport
1980 Chrysler Newport
1981 Chrysler Newport

1978 Chrysler Town & Country
1979 Chrysler Town & Country
1980 Chrysler Town & Country
1981 Chrysler Town & Country
