ARP Auto Racing Cylinder Head Stud 1244004

Brand: ARP Auto Racing ARP Auto Racing
0 reviews
  • Have a product question? Ask us
  • Part Number: 124-4004
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 24
Retail: $379.04
Price: $360.99
You Save: $18.05
Engine Compatibility
Buick V8 401-425 Cubic Inch
Finish
Black Oxide
Head Type
Nail Head
Material
Chromoly Steel
Nut Type
Hex
Share this page

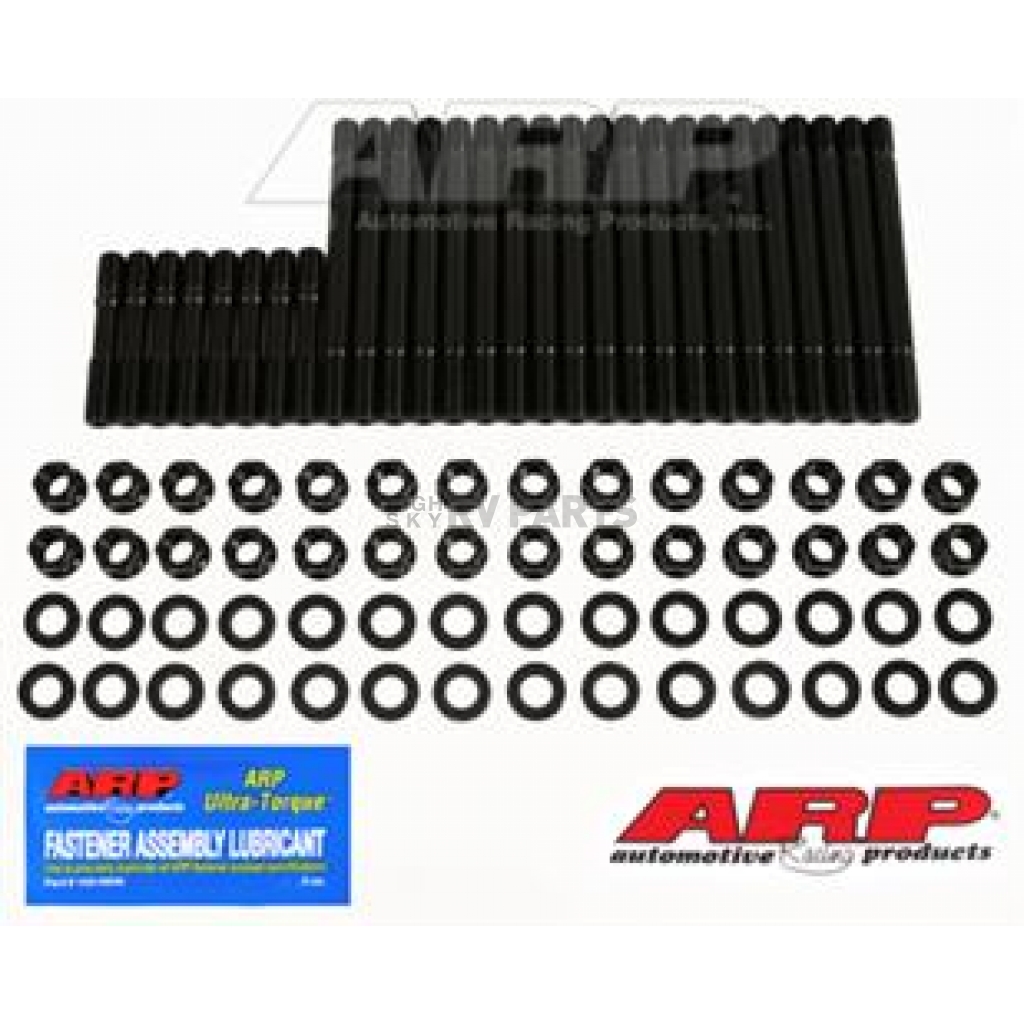

ARP Auto Racing Cylinder Head Stud

Cylinder Head Stud; For Use With Buick 401/ 425 cid; Hex Nuts; Black Oxide; Chrome Moly

MPN: 1244004

It is for good reason that virtually every top professional engine builder relies on ARP Pro Series head studs for their all out competition power plants. Simply stated, there’s not a better stud setup on the market today. For openers, ARP uses a premium grade 8740 alloy that is rated far superior to “aircraft” quality. Each stud is placed vertically in special racks and precisely heat treated to 200,000 PSI. Following heat treat, each stud is centerless ground to make it as close to perfectly concentric as possible. It’s important to note that lesser quality studs are not even centerless ground, the material is thread rolled in bar stock form. Because ARP studs are manufactured to such exacting tolerances, you will note that gaskets and cylinder heads literally glide into position and are perfectly aligned, something that won’t happen with inferior quality head studs. ARP studs are thread rolled after heat treat, which gives them about 1000 Percent (that’s ten times) better fatigue strength than those studs that are threaded prior to heat treat. It costs a lot more to do it this way, because it’s tough on tooling, but the results are well worth the extra effort. You will also note that ARP offers specially undercut studs for several engines. This procedure (done only to the shorter studs) more equalizes the “stretch” of both studs, which makes for a more consistent clamping force and one that compensates for head gasket compression when the cylinder heads are installed. This helps prevent blown head gaskets, and assures optimum engine sealing! Premium quality heat treated 8740 chrome moly steel head stud kits are available for most every domestic and import applications. You won’t find a better quality stud on the market from any other source. Look for ARP stamped on each stud as your assurance of quality. Clearly, they are the best on the market today, and the favorite of leading professional engine builders in all forms of racing.
Engine Compatibility: Buick V8 401-425 Cubic Inch
Head Type: Nail Head
Nut Type: Hex
Finish: Black Oxide
Material: Chromoly Steel

Features

  • Uses A Premium Grade 8740 Alloy That Is Rated Far Superior To Aircraft Quality
  • Stud Is Placed Vertically In Special Racks And Precisely Heat Treated To 200,000 PSI
  • Centerless Ground To Make It As Close To Perfectly Concentric As Possible
  • Thread Rolled After Heat Treat, Which Gives Them About Ten Times Better Fatigue Strength Than Those Studs That Are Threaded Prior To Heat Treat
  • Limited 90 Day Warranty
Specifications of ARP Auto Racing Cylinder Head Stud 1244004
Engine Compatibility Buick V8 401-425 Cubic Inch
Finish Black Oxide
Head Type Nail Head
Material Chromoly Steel
Nut Type Hex

1959 Buick Electra
1960 Buick Electra
1961 Buick Electra
1962 Buick Electra
1963 Buick Electra
1964 Buick Electra
1965 Buick Electra
1966 Buick Electra

1959 Buick Estate Wagon
1960 Buick Estate Wagon
1961 Buick Estate Wagon
1962 Buick Estate Wagon
1963 Buick Estate Wagon
1964 Buick Estate Wagon

1965 Buick Gran Sport
1966 Buick Gran Sport

1959 Buick Invicta
1960 Buick Invicta
1961 Buick Invicta
1962 Buick Invicta
1963 Buick Invicta

1959 Buick LeSabre
1960 Buick LeSabre
1961 Buick LeSabre
1962 Buick LeSabre
1963 Buick LeSabre
1964 Buick LeSabre

1963 Buick Riviera
1964 Buick Riviera
1965 Buick Riviera
1966 Buick Riviera

1965 Buick Skylark
1966 Buick Skylark

1962 Buick Wildcat
1963 Buick Wildcat
1964 Buick Wildcat
1965 Buick Wildcat
1966 Buick Wildcat

1900 Oldsmobile V8 260-455
