ARB Shock Absorber - N76
Adjustable
No
Body Color
Yellow
Body Material
Steel
Compressed Length (IN)
16.06 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
26.96 Inch
Includes Boot
Yes
Includes Dust Shield
No
Includes Hardware
No
Internal Design
Twin Tube
Lower Mounting Style
Eyelet
Share this page

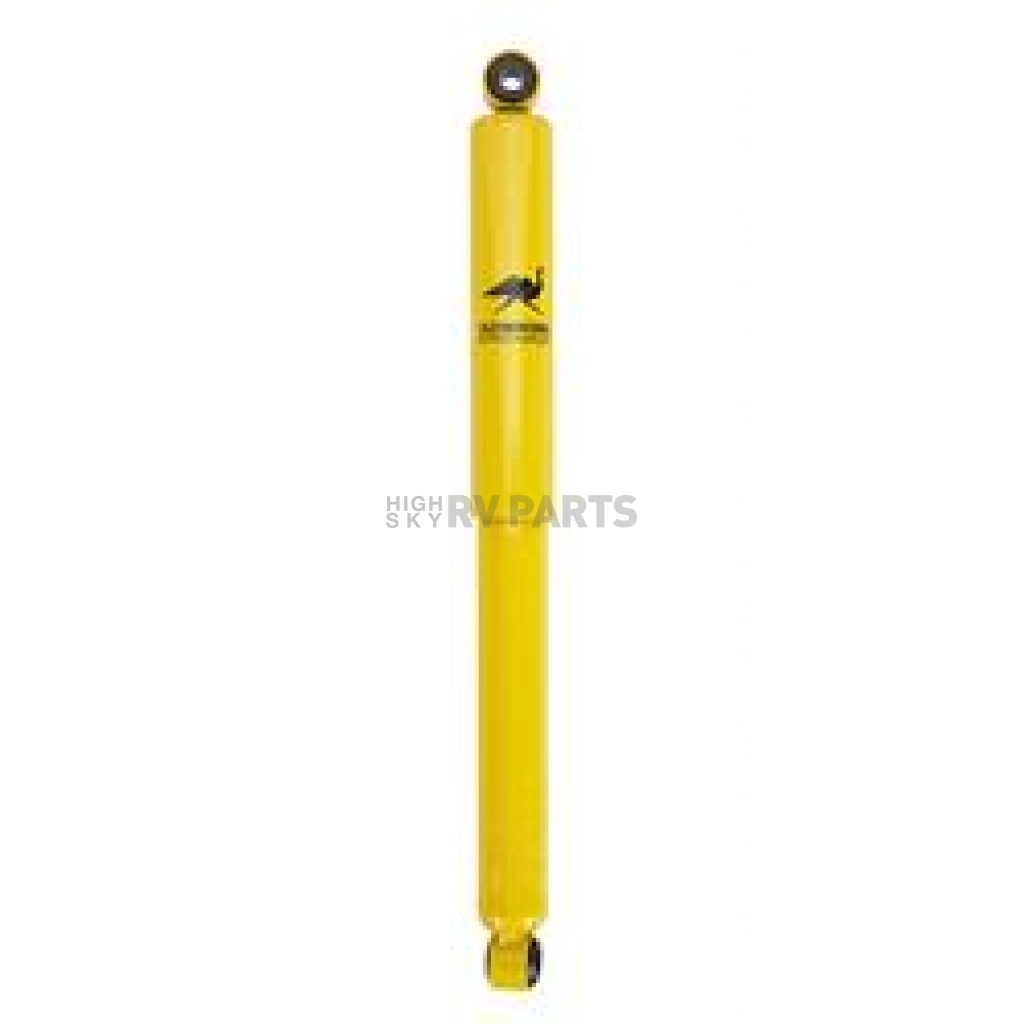

ARB Shock Absorber
Shock Absorber; Nitrocharger; Nitrogen Gas Charged; 3 Year 36,000 Mile Warranty; Non Adjustable; With Shock Absorber Boot; Single
MPN: N76
Nitrocharger 4 × 4 shock absorbers were specifically designed with Australia’s unique driving conditions in mind, where vehicles are often heavily loaded, fitted with accessories and driven on harsh, Outback roads for prolonged periods. Old Man Emu engineers specialize in nothing else but 4WD suspension systems, and it’s this experience in setting the most appropriate valving that really differentiates the Nitrocharger from its competitors. In many cases, several shock absorber applications will be listed for one vehicle to ensure the proper match regardless of spring selection, accessory fitment or load carrying requirements. And while OME Nitrochargers will improve overall performance when fitted with standard springs, more substantial benefits can be achieved with fitted in conjunction with Old Man Emu springs, for a complete, integrated 4WD suspension system.
Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Twin Tube
Adjustable: No
Extended Length (IN): 26.96 Inch
Compressed Length (IN): 16.06 Inch
Upper Mounting Style: Eyelet
Lower Mounting Style: Eyelet
Body Color: Yellow
Quantity: Single
Rod Diameter (IN): 0.7 Inch
Valving Type: Multi-Stage Valving
Rod Finish: Chrome Plated
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: Yes
Estimated Install Time (Hours): 0.5
Features
- Induction Hardened Then Hard Chromed To A Superfine Finish
- The Gas Pressure Keeps The Oil Cohesive Under All Situations. Protects Oil Seal And Piston Rod Against Stone And Dirt Damage
- 33 Percent Thicker Outer Tube Insures That Rocks Do Not Damage Internal Operating Components. This Design Also Allows For A Greater Volume Of Oil Which Keeps Shock Cooler
- Delivers All The Subtleties Of Compression Rates For The Best Ride And Handling
- Latest In Seal Technology, This Shaft Seal Significantly Improves Gas Retention Whilst Offering Excellent Longevity
- A Teflon Coated Rod Guide Bush - Significantly Reduces Heat Build Up In The Rod Guide Area
- A New Four Stage Coil Sprung Rebound Valve System To Control Vehicle Bounce
- Limited 3 Year Or Unlimited Kilometer Warranty
| Specifications of ARB Shock Absorber - N76 | |
| Adjustable | No |
| Body Color | Yellow |
| Body Material | Steel |
| Compressed Length (IN) | 16.06 Inch |
| Estimated Install Time (Hours) | 0.5 |
| Extended Length (IN) | 26.96 Inch |
| Includes Boot | Yes |
| Includes Dust Shield | No |
| Includes Hardware | No |
| Internal Design | Twin Tube |
| Lower Mounting Style | Eyelet |
| Quantity | Single |
| Rod Diameter (IN) | 0.7 Inch |
| Rod Finish | Chrome Plated |
| Rod Material | Steel |
| Type | Nitrogen Gas Charged |
| Upper Mounting Style | Eyelet |
| Valving Type | Multi-Stage Valving |
| With Coil Spring | No |
| With Reservoir | No |
1976 Toyota Land Cruiser
1977 Toyota Land Cruiser
1978 Toyota Land Cruiser
1979 Toyota Land Cruiser
1980 Toyota Land Cruiser
1981 Toyota Land Cruiser
1982 Toyota Land Cruiser
1983 Toyota Land Cruiser
1977 Toyota Land Cruiser
1978 Toyota Land Cruiser
1979 Toyota Land Cruiser
1980 Toyota Land Cruiser
1981 Toyota Land Cruiser
1982 Toyota Land Cruiser
1983 Toyota Land Cruiser
