ARB Shock Absorber - 90010

Authorized Dealer
Brand: ARB ARB
0 reviews
  • Have a product question? Ask us
  • Part Number: 90010
  • Part Location: U.S.
  • Availability: Out Of Stock
Retail: $224.70
Price: $214.00
You Save: $10.70
Adjustable Valving
 No
Body Color
 Yellow
Body Material
 Steel
Compressed Length (IN)
 16-1/4 Inch
Estimated Install Time (Hours)
 0.5
Extended Length (IN)
 21.37 Inch
Includes Boot
 Yes
Includes Dust Shield
 No
Includes Hardware
 No
Internal Design
 Twin Tube
Lower Mounting Style
 Eyelet
Share this page

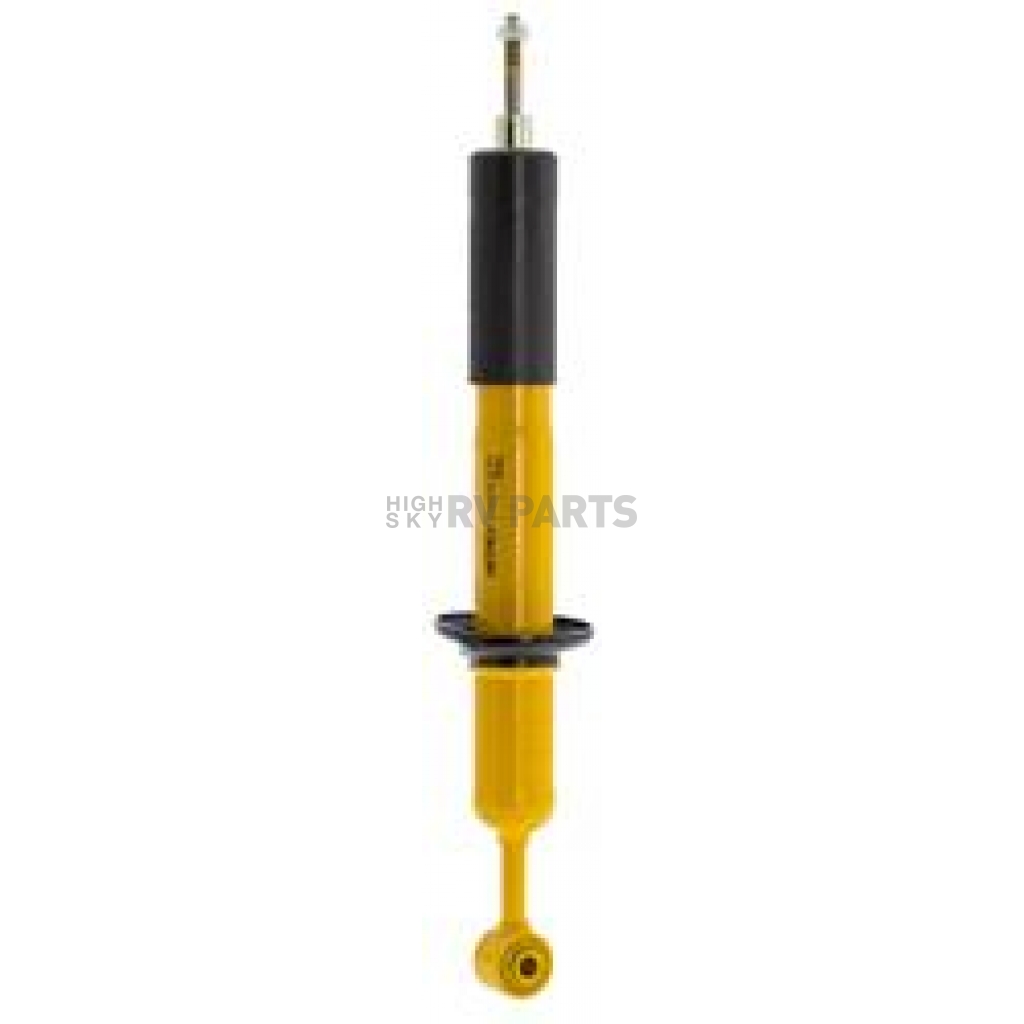

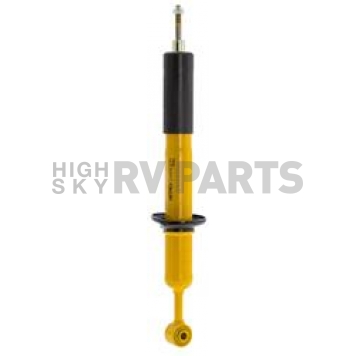

Shock Absorber; Nitrocharger Sport; Nitrogen Gas Charged; 3 Year 36,000 Mile Warranty; Non Adjustable; With Shock Absorber Boot; Single

MPN: 90010

The latest addition to Old Man Emu’s 4WD suspension range, Nitrocharger Sport is the most advanced and innovative 4×4 shock absorber on the market, and is now available for a range of vehicles. Designed by a dedicated team of OME ride control engineers through an exhaustive vehicle specific development program, Nitrocharger Sport 4×4 shock absorbers deliver the best control, durability and most comfortable ride over all terrain.

Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Twin Tube
Adjustable Valving: No
Extended Length (IN): 21.37 Inch
Compressed Length (IN): 16-1/4 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Eyelet
Body Color: Yellow
Quantity: Single
Rod Diameter (IN): 0.7 Inch
Valving Type: Multi Deflective Disc Valving
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: Yes
Estimated Install Time (Hours): 0.5

Features

  • Heavy Gauge (1.6 Millimeter) Steel Reserve Tube Is 23 Percent More Effective Than Common 1.3 Millimeter Wall Tubing To Protect Internal Components From Stone Damage
  • High-Quality, Vehicle Specific Bushing Manufactured From Polyurethane And Rubber Materials For Extended Life
  • Impact Resistant, Polyamide Dirt Shield Provides Additional Protection From Stone Chips And Off-Road Debris
  • Super Strong 18 Millimeter Induction Hardened Chrome Piston Rod Is Engineered To Handle Rigours Of Heavy Loads And Tough 4x4 Touring
  • Large, Durable Seal Incorporates A Gas Retention Check Valve Design To Virtually Eliminate Contaminant Damage While Providing Outstanding Gas And Oil Retention
  • Large, Low Friction Teflon Impregnated Bronze Bushing For Long Lasting Durability
  • Increases The Temperature Operating Range And Improves Oil Flow Through The Valving, Ensuring Optimum Performance
  • Free Flowing Design Reduces Aeration And High Oil Temperature, Extending Shock Absorber Performance Under Harsh Conditions
  • Durable Rebound And Compression Multi-Deflective Disc Stacking On Either Side Of The Free Flowing Piston Allows Infinite Tuning Options
  • Limited 3 Year Or Unlimited Mile Warranty
Specifications of ARB Shock Absorber - 90010
Adjustable Valving  No
Body Color  Yellow
Body Material  Steel
Compressed Length (IN)  16-1/4 Inch
Estimated Install Time (Hours)  0.5
Extended Length (IN)  21.37 Inch
Includes Boot  Yes
Includes Dust Shield  No
Includes Hardware  No
Internal Design  Twin Tube
Lower Mounting Style  Eyelet
Quantity  Single
Rod Diameter (IN)  0.7 Inch
Rod Material  Steel
Type  Nitrogen Gas Charged
Upper Mounting Style  Stud
Valving Type  Multi Deflective Disc Valving
With Coil Spring  No
With Reservoir  No

2010 Toyota 4Runner
2011 Toyota 4Runner
2012 Toyota 4Runner
2013 Toyota 4Runner
2014 Toyota 4Runner
2015 Toyota 4Runner
2016 Toyota 4Runner
2017 Toyota 4Runner
2018 Toyota 4Runner
2019 Toyota 4Runner

2010 Toyota FJ Cruiser
2011 Toyota FJ Cruiser
2012 Toyota FJ Cruiser
2013 Toyota FJ Cruiser
2014 Toyota FJ Cruiser
