APR Motorsports Fuel Pump Electric Inline - MS100071

Brand: APR Motorsports

Have a product question? Ask us
Part Number: MS100071
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 06

Retail: $1,110.89

Price: $1,057.99

You Save: $52.90

Estimated Install Time (Hours)

Free Flow Rate

225 Liter Per Hour

Mounting Style

Inline

With Mounting Hanger

Share this page

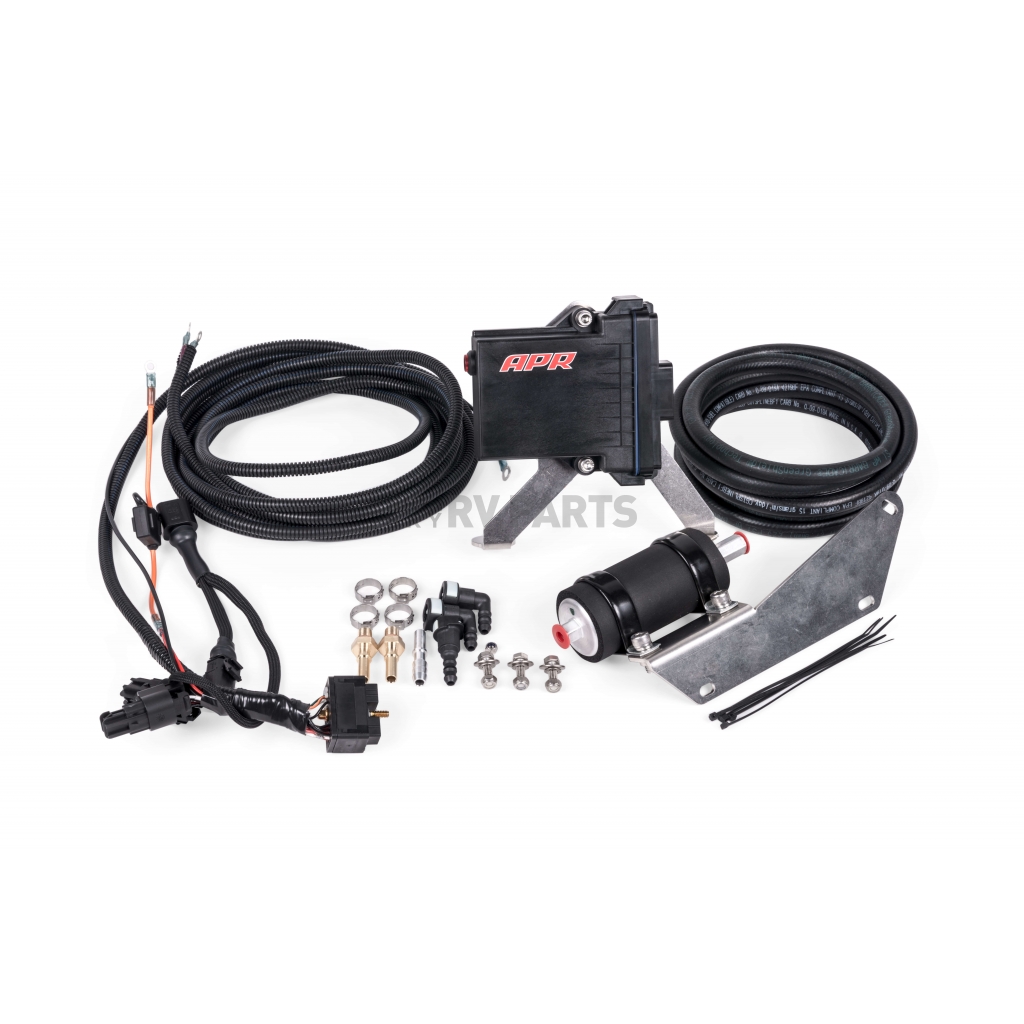

APR Motorsports Fuel Pump Electric

Fuel Pump Electric; 225 LPH Free Flow; Inline; With Fuel Lines/ Clamps/ Quick Connectors/ Bracket/ Harness

MPN: MS100071

The APR LPFP System features a 255 LPH high-pressure inline fuel pump that sits between the HPFP and the factory LPFP. The included APR Auxiliary ECU sits on the factory CAN bus and receives critical operating information from the factory ECU to accurately control the pump. As fueling demands increase and decrease, the APR Auxiliary ECU controls output of the pump to deliver the desired volume of fuel to the HPFP. By connecting to the factory CAN bus, the APR Auxiliary ECU eliminate the need for less sophisticated and often problematic methods of controlling the upgraded pump. Because the pump only runs when needed, less power is consumed, fuel temperature is lower and noise, especially at idle, is essentially non-existent. Finally, with the fuel line disconnected, with the click of a button the APR Auxiliary ECU allows the user to quickly and easily empty the vehicle's fuel tank to make way for switching to higher octane fuels or for dry storage and transportation.

Mounting Style: Inline

Free Flow Rate: 225 Liter Per Hour

With Mounting Hanger: Yes

Estimated Install Time (Hours): 1

Features

APR 255 Liters Per Hour High Pressure Inline Fuel Pump And Bracket
OEM Quality Fuel Lines, Crimp Clamps And Quick Connectors
Clean And Simple Solution To OEM Low Pressure Fueling System
Allows For Higher Output Calibrations With Select APR Stage 3/3+ Turbocharger Systems
Integrated Into Factory CAN Bus
Quiet And Cool Low Power Operation, Only On When Needed
Quick Fuel Tank Emptying Mode For Use With Switching Fuel Grades Or Dry Storage/ Transportation
No Unintended Side Effects Common With Other Parts
Limited 1 Year Or 12,500 Mile Warranty

Specifications of APR Motorsports Fuel Pump Electric Inline - MS100071
Estimated Install Time (Hours)	1
Free Flow Rate	225 Liter Per Hour
Mounting Style	Inline
With Mounting Hanger	Yes
