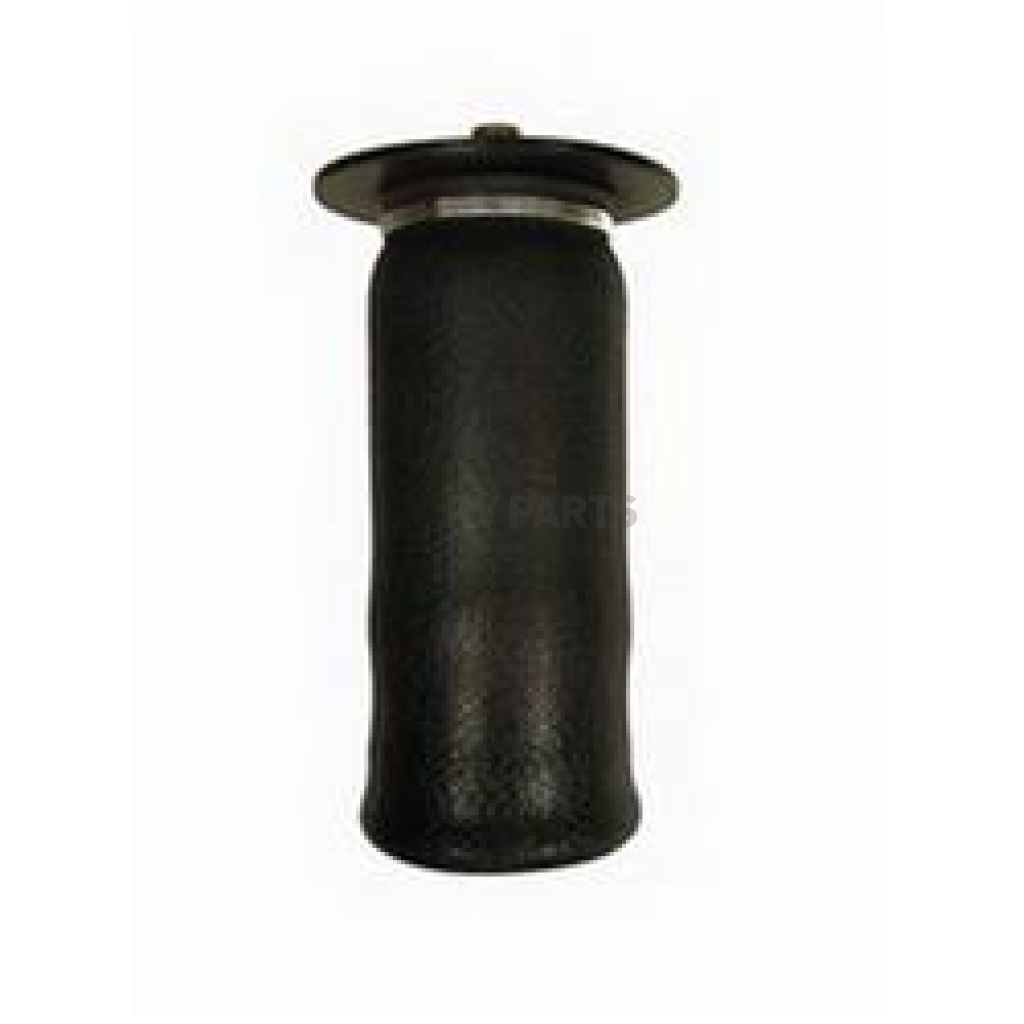

Air Lift Helper Spring Bellows - 780 Pounds Load Capacity - 50269
Color
Black
Compressed Height (IN)
3.1 Inch
Diameter (IN)
4.6 Inch
Extended Height (IN)
8-3/4 Inch
Includes Hardware
No
Inflation Port Size
1/8 Inch
Load Capacity (LB)
780 Pounds at 100 Pounds Per Square Inch
Mounting Type Side A
3/4 Inch-16
Mounting Type Side B
1/2 Inch-13
Type
Air Sleeve
Share this page
Air Lift Helper Spring Bellows
Helper Spring Bellows; 4 Inch Sleeve; 8-3/4 Inch Extended Height; 3.1 Inch Compressed Height; 4.6 Inch Diameter; 780 Pounds Load Capacity At 100 PSI; 1/8 Inch Port Size; Black; Single
MPN: 50269
Type: Air Sleeve
Extended Height (IN): 8-3/4 Inch
Compressed Height (IN): 3.1 Inch
Diameter (IN): 4.6 Inch
Load Capacity (LB): 780 Pounds at 100 Pounds Per Square Inch
Inflation Port Size: 1/8 Inch
Mounting Type Side A: 3/4 Inch-16
Mounting Type Side B: 1/2 Inch-13
Color: Black
Includes Hardware: No
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- Refer To The Document Tab For The New Authorized Installer Program
- Limited 2 Year Warranty
Specifications of Air Lift Helper Spring Bellows - 780 Pounds Load Capacity - 50269 | |
Color | Black |
Compressed Height (IN) | 3.1 Inch |
Diameter (IN) | 4.6 Inch |
Extended Height (IN) | 8-3/4 Inch |
Includes Hardware | No |
Inflation Port Size | 1/8 Inch |
Load Capacity (LB) | 780 Pounds at 100 Pounds Per Square Inch |
Mounting Type Side A | 3/4 Inch-16 |
Mounting Type Side B | 1/2 Inch-13 |
Type | Air Sleeve |
