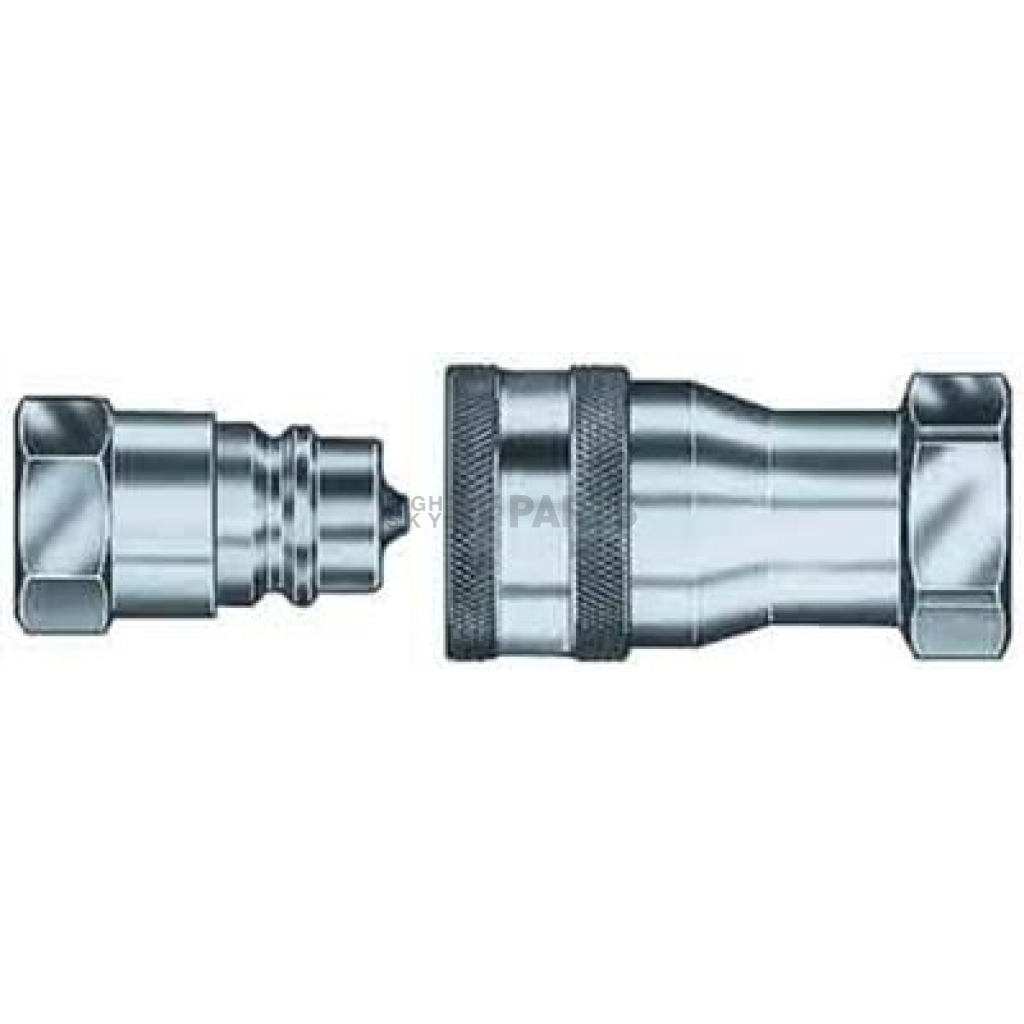

Aeroquip Hydraulic Hose Quick Disconnect Coupling FBM3012
Flow Rate
6 Gallons Per Minute
Includes Seal
Yes
Length (IN)
2.8 Inch
Maximum Air Inclusion (CC)
1.5 Cubic Centimeter
Maximum Fluid Loss (CC)
1.3 Cubic Centimeter
Maximum Pressure Rating (PSI)
4000 Pounds Per Square Inch
Thread Size
3/8 Inch-18
Vacuum Rating
28 Inch Of Mercury
Share this page
Aeroquip Hydraulic Hose Quick Disconnect Coupling
Hydraulic Hose Quick Disconnect Coupling; 3/8 Inch - 18 Thread; 2.8 Inch Coupled Length; 4000 Pounds Per Square Inch Maximum Pressure; 1.5 CC Maximum Air Inclusion; 1.3 CC Maximum Fluid Loss; 6 Gallons Per Minute Flow Rate; 28 Inch Of Mercury Vacuum Service Rating; Steel Coupling
MPN: FBM3012
PUSH-PULL™ Self-Sealing Couplings are ideal for most hydraulic and fluid applications requiring a quick connect/disconnect coupling. The coupling bodies are constructed of high quality plated steel. Coupling uses Buna-N seals.
Thread Size: 3/8 Inch-18
Length (IN): 2.8 Inch
Maximum Pressure Rating (PSI): 4000 Pounds Per Square Inch
Maximum Air Inclusion (CC): 1.5 Cubic Centimeter
Maximum Fluid Loss (CC): 1.3 Cubic Centimeter
Flow Rate: 6 Gallons Per Minute
Vacuum Rating: 28 Inch Of Mercury
Includes Seal: Yes
Features
- Ideal For Most Hydraulic And Fluid Applications Requiring A Quick Connect/Disconnect Coupling
- The Coupling Bodies Are Constructed Of High Quality Plated Steel
- Limited 5 Year Warranty
| Specifications of Aeroquip Hydraulic Hose Quick Disconnect Coupling FBM3012 | |
| Flow Rate | 6 Gallons Per Minute |
| Includes Seal | Yes |
| Length (IN) | 2.8 Inch |
| Maximum Air Inclusion (CC) | 1.5 Cubic Centimeter |
| Maximum Fluid Loss (CC) | 1.3 Cubic Centimeter |
| Maximum Pressure Rating (PSI) | 4000 Pounds Per Square Inch |
| Thread Size | 3/8 Inch-18 |
| Vacuum Rating | 28 Inch Of Mercury |
