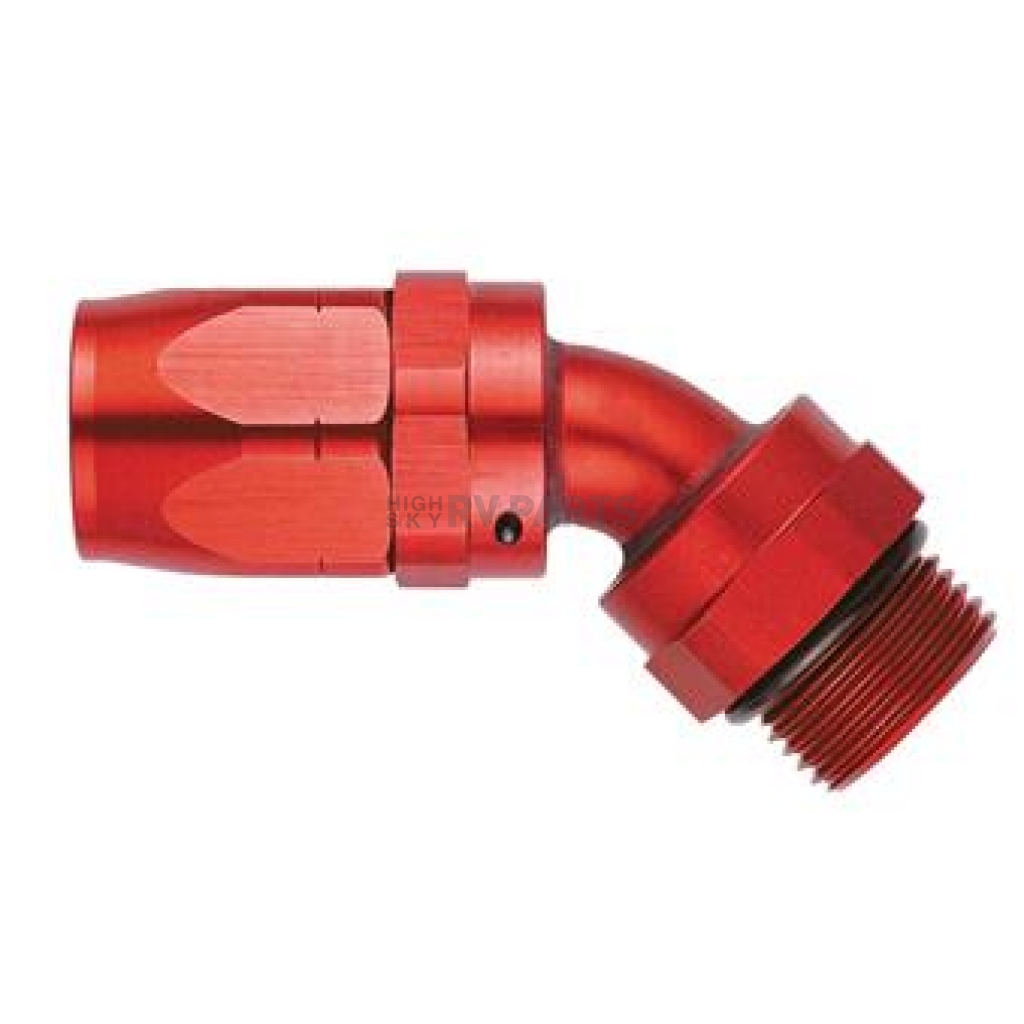

Aeroquip Hose End Fitting FBM1351
Color
Red
End Size1
5/8 Inch (-10 AN)
End Size2
7/8 Inch-14
End Type1
Female Swivel
End Type2
Male O-Ring Boss
Finish
Anodized
Fitting Angle
45 Degree
Fitting Style
Elbow
Includes O-Ring
Yes
Material
Aluminum
Quantity
Single
Share this page
Aeroquip Hose End Fitting
Hose End Fitting; Direct Port; -10 AN Hose; 7/8 Inch - 14; 45 Degree Swivel; Aluminum; Single
MPN: FBM1351
One piece design, allows for superior flow, eliminates 2 potential leak points, and significantly improves appearance. Electroless nickel plating, red/blue, and black anodized finish, swivel and non-swivel styles available, reusable design without fitting damage, easier installation than cutter style fittings, nipple pilot prevents damage to the inner tube, seal integrity between the nipple and tube, compression style designed for performance applications. Approved hose styles: Eaton's Aeroquip® stainless steel racing hose and Startlite® racing hose.
End Type1: Female Swivel
End Size1: 5/8 Inch (-10 AN)
End Type2: Male O-Ring Boss
End Size2: 7/8 Inch-14
Fitting Style: Elbow
Fitting Angle: 45 Degree
Finish: Anodized
Color: Red
Material: Aluminum
Includes O-Ring: Yes
Quantity: Single
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- One-Piece Design Allows For Improved Flow, Eliminates 2 Potential Leak Points (Brazed Joints) And Significantly Improved Appearance
- Electroless Nickel Plating, Red/Blue And Black Anodized Finish
- Swivel And Non-Swivel Styles Available
- Designed To Be Re-Used Without Damage To The Fitting
- Nipple Pilot Prevents Damage To The Inner Tube
- No Seal Is Broken Between Nipple And Tube When Swiveled Due To Nipple Design, Ensuring Integrity Of The Seal
- Easier To Install Than Cutter Style, More User Friendly
- Limited 1 Year Warranty
Specifications of Aeroquip Hose End Fitting FBM1351 | |
Color | Red |
End Size1 | 5/8 Inch (-10 AN) |
End Size2 | 7/8 Inch-14 |
End Type1 | Female Swivel |
End Type2 | Male O-Ring Boss |
Finish | Anodized |
Fitting Angle | 45 Degree |
Fitting Style | Elbow |
Includes O-Ring | Yes |
Material | Aluminum |
Quantity | Single |
