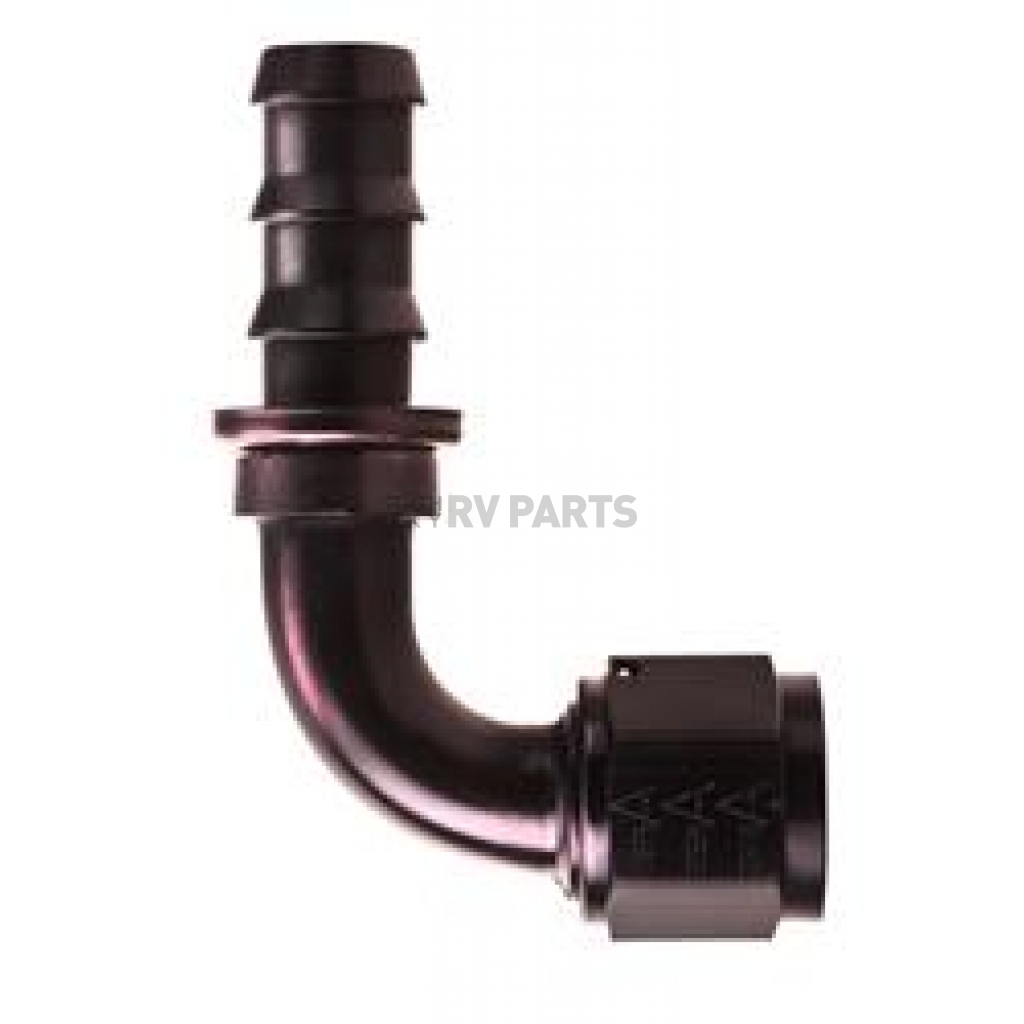

Aeroquip Hose End Fitting FBL1533

Brand: Aeroquip Aeroquip
0 reviews
  • Have a product question? Ask us
  • Part Number: FBL1533
  • Part Location: U.S.
  • Availability: Out Of Stock
Retail: $33.59
Price: $31.99
You Save: $1.60
Color
Black
End Size1
1/2 Inch (-8 AN)
End Size2
1/2 Inch (-8 AN)
End Type1
Hose Barb
End Type2
37 Degree JIC Female Threads
Finish
Anodized
Fitting Angle
90 Degree
Fitting Style
Socketless
Includes O-Ring
No
Material
Aluminum
Quantity
Single
Share this page

Aeroquip Hose End Fitting

Hose End Fitting; -8 AN Hose; 90 Degree Elbow; Anodized; Black; Aluminum

MPN: FBL1533

One piece design, allows for superior flow, eliminates 2 potential leak points, and significantly improves appearance. Electroless nickel plating, red/blue, and black anodized finish, swivel and non-swivel styles available, reusable design without fitting damage, easier installation than cutter style fittings, nipple pilot prevents damage to the inner tube, seal integrity between the nipple and tube, compression style designed for performance applications. Approved hose styles: Eaton's Aeroquip® stainless steel racing hose and Startlite® racing hose.
End Type1: Hose Barb
End Size1: 1/2 Inch (-8 AN)
End Type2: 37 Degree JIC Female Threads
End Size2: 1/2 Inch (-8 AN)
Fitting Style: Socketless
Fitting Angle: 90 Degree
Finish: Anodized
Color: Black
Material: Aluminum
Includes O-Ring: No
Quantity: Single

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • One-Piece Design Allows For Improved Flow, Eliminates 2 Leak Points (Brazed Joints) And Significantly Improved Appearance
  • Swivel And Non-Swivel Styles Available
  • Designed To Be Re-Used Without Damage To The Fitting
  • Nipple Pilot Prevents Damage To The Inner Tube
  • Compression Style Specially Designed For Performance Applications
  • No Seal Is Broken Between Nipple And Tube When Swiveled Due To Nipple Design, Ensuring Integrity Of The Seal
  • Easier To Install Than Cutter Style, More User Friendly
  • Limited 1 Year Warranty
Specifications of Aeroquip Hose End Fitting FBL1533
Color Black
End Size1 1/2 Inch (-8 AN)
End Size2 1/2 Inch (-8 AN)
End Type1 Hose Barb
End Type2 37 Degree JIC Female Threads
Finish Anodized
Fitting Angle 90 Degree
Fitting Style Socketless
Includes O-Ring No
Material Aluminum
Quantity Single
