Aeromotive Fuel System Fuel Pump Electric - 11202
Estimated Install Time (Hours)
1
Free Flow Rate
350 Gallon Per Hour
Fuel Type
Alcohol
Inlet Attachment
Female Threads
Inlet Quantity
1
Inlet Size
5/8 Inch (-10 AN)
Maximum Pressure (PSI)
30 Pounds Per Square Inch
Mounting Style
In-Line
Outlet Attachment
Female Threads
Outlet Quantity
1
Outlet Size
5/8 Inch (-10 AN)
Share this page

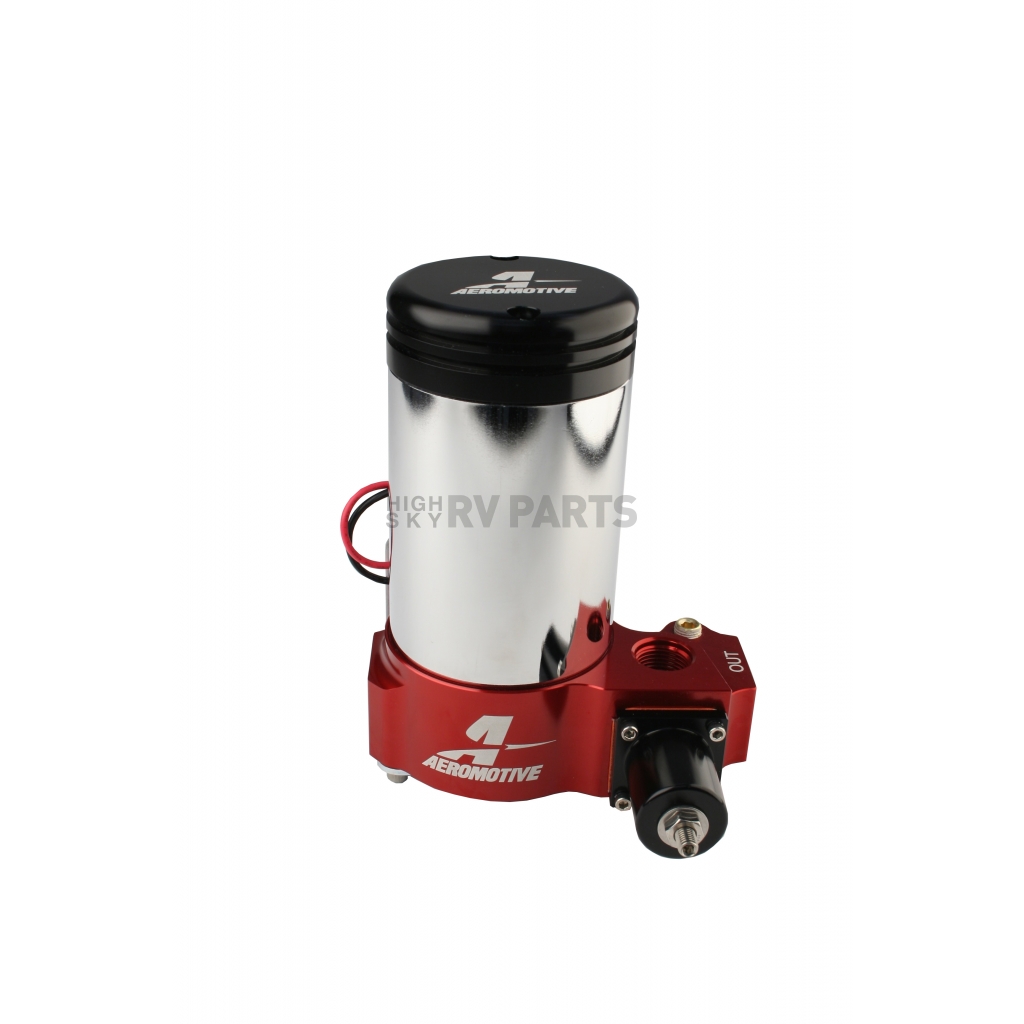

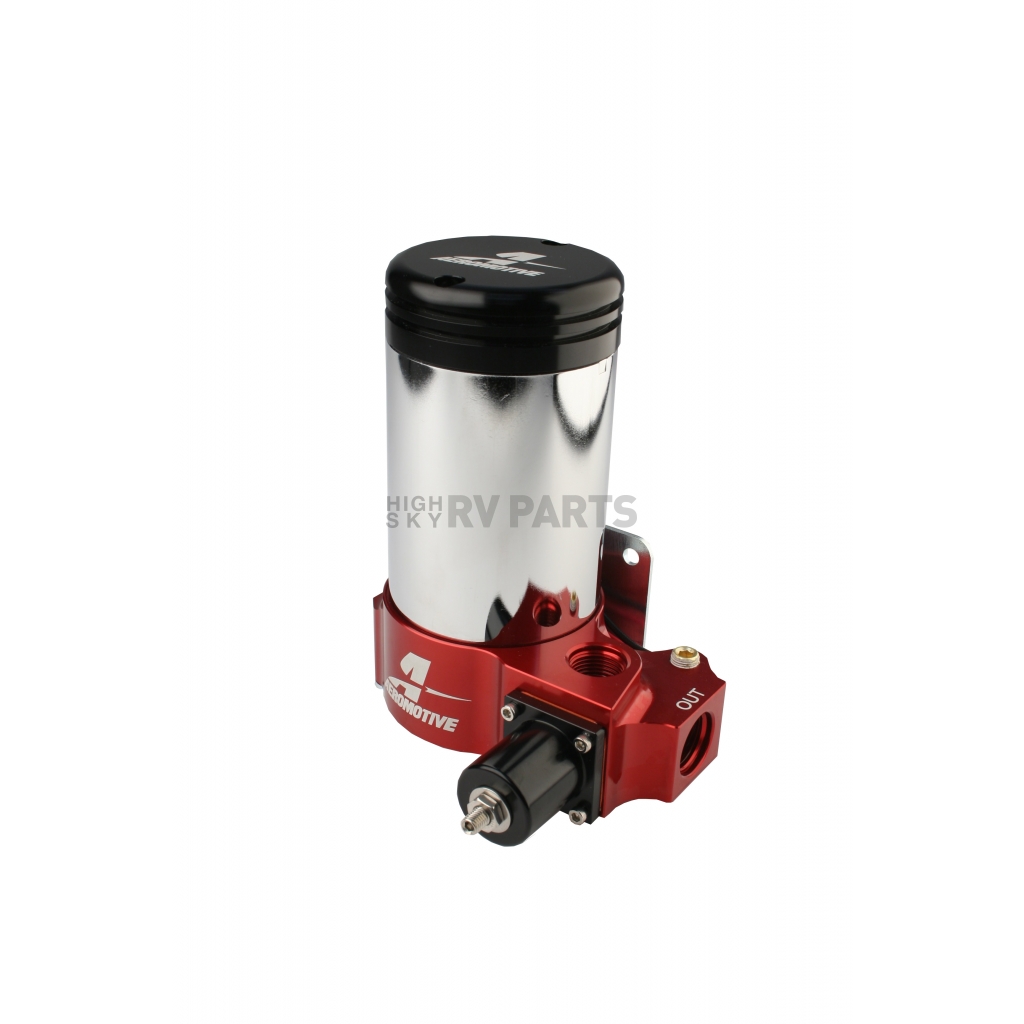

Aeromotive Fuel System Fuel Pump Electric
Fuel Pump Electric; A2000 Series; 12 Volt Chassis Mount; Alcohol or Gasoline; 30 PSI Maximum Pressure; 350 Gallons Per Hour; With By-pass Regulator; 10 AN Inlet/Outlet Port; 8 AN By-pass Port; 10-1/2 Amp Draw At 12 PSI; With Pump Only
MPN: 11202
From stock eliminator to pro-mod, the Aeromotive A2000 is a versatile force to reckoned with and stands alone as a "Big" carbureted fuel pump. The A2000 flows enough fuel to support the world’s quickest nitrous pro-mods on gasoline, and is the industry’s only fuel pump that uses a true diaphragm controlled, adjustable bypass valve, integral to the pump. This design dampens pressure spikes, delivering smoother, more controlled flow and pressure, ensuring more consistent elapsed times and win lights.
Mounting Style: In-Line
Fuel Type: Alcohol
Voltage Rating: 12 Volt
Free Flow Rate: 350 Gallon Per Hour
Maximum Pressure (PSI): 30 Pounds Per Square Inch
Inlet Quantity: 1
Inlet Size: 5/8 Inch (-10 AN)
Inlet Attachment: Female Threads
Outlet Quantity: 1
Outlet Size: 5/8 Inch (-10 AN)
Outlet Attachment: Female Threads
With Sending Unit: No
With Mounting Hanger: No
Estimated Install Time (Hours): 1
Features
- High Torque, Low RPM Motor Design Delivers More Than 350 Gallons Per Hour Free Flow, While Developing Less Current Draw Than Any Other Pump In Its Class
- Adjustable Diaphragm Bypass Valve Outperforms Ineffective Poppet Designs, Minimizing Flow Loss And Pressure Fluctuation To The Regulator And Carburetor
- Proprietary Seal Design Eliminates Leakage
- O-Ring Boss-10 Inlet And Outlet Ports With O-Ring Boss-8 Return And 1/8 Inch NPT Gauge Port
- Alcohol Compatible
- Multiple Bolt Patterns On The Bottom Of The Pump Body Fit Many Chassis Mounting Options
- Limited 1 Year Warranty
| Specifications of Aeromotive Fuel System Fuel Pump Electric - 11202 | |
| Estimated Install Time (Hours) | 1 |
| Free Flow Rate | 350 Gallon Per Hour |
| Fuel Type | Alcohol |
| Inlet Attachment | Female Threads |
| Inlet Quantity | 1 |
| Inlet Size | 5/8 Inch (-10 AN) |
| Maximum Pressure (PSI) | 30 Pounds Per Square Inch |
| Mounting Style | In-Line |
| Outlet Attachment | Female Threads |
| Outlet Quantity | 1 |
| Outlet Size | 5/8 Inch (-10 AN) |
| Voltage Rating | 12 Volt |
| With Mounting Hanger | No |
| With Sending Unit | No |
