Aeromotive Fuel System Fuel Pressure Regulator - 13254

Brand: Aeromotive Fuel Aeromotive Fuel
0 reviews
  • Have a product question? Ask us
  • Part Number: 13254
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $377.99
Price: $359.99
You Save: $18.00
Color
Silver
Finish
Nickel Plated
Fuel Type
Gasoline
Gauge Port
Yes
Includes Fittings
No
Includes Mounting Brackets
Yes
Inlet Attachment
O-Ring Boss
Inlet Quantity
Single
Inlet Size
5/8 Inch (-10 AN)
Outlet Attachment
O-Ring Boss
Outlet Quantity
Dual
Share this page

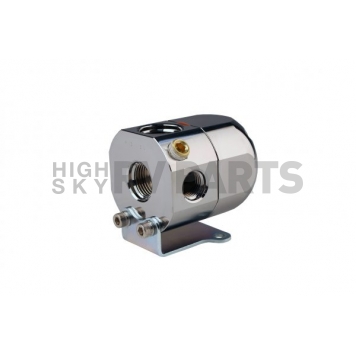

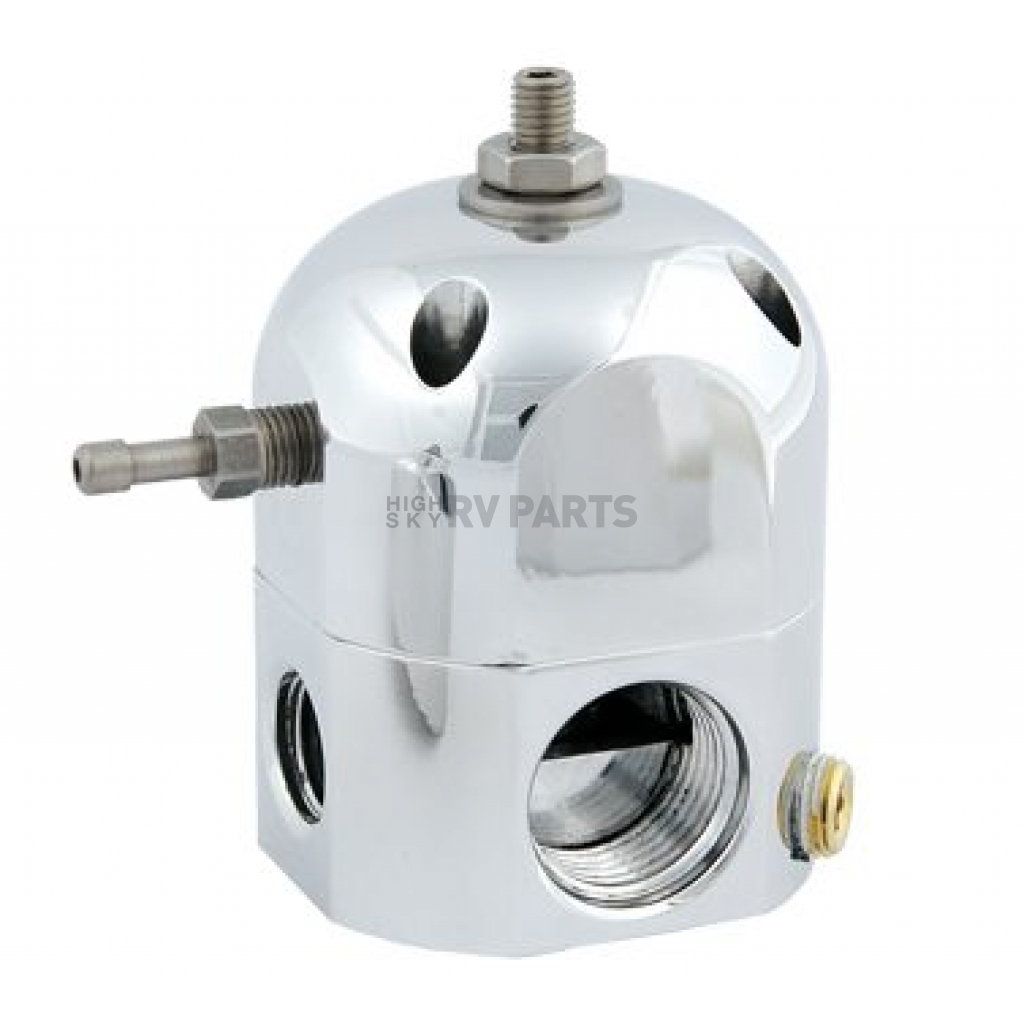

Aeromotive Fuel System Fuel Pressure Regulator

Fuel Pressure Regulator; 3 PSI To 15 PSI

MPN: 13254

The A1000 Bypass Regulator was designed for use with our A1000 fuel pump or similar style electronic fuel injection pumps in a carbureted application. This regulator is perfect for naturally aspirated or "Blow-Through" supercharged engines. Each Platinum Series product features a mirror like, show quality nickel finish that is virtually maintenance free and is identical in performance to its anodized brother.
Fuel Type: Gasoline
Pressure Range (PSI): 3 To 15 Pounds Per Square Inch
Regulator Location: Inline
Regulator Type: Bypass
Gauge Port: Yes
Inlet Attachment: O-Ring Boss
Inlet Quantity: Single
Inlet Size: 5/8 Inch (-10 AN)
Outlet Attachment: O-Ring Boss
Outlet Quantity: Dual
Outlet Size: 3/8 Inch (-6 AN)
Includes Fittings: No
Includes Mounting Brackets: Yes
Return Port Size: 1/2 Inch (-8 AN)
Finish: Nickel Plated
Color: Silver

Features

  • Features A Nickel Finish
  • Adjustable Base Pressure From 3 To 15 PSI
  • Bypass Design Provides The Ultimate, Dynamic Fuel Pressure Control. Fuel Pressure Rises On A 1:1 Ratio When Referencing Boost
  • O-Ring Boss-06 Outlet Ports And 1/8 Inch NPT Gauge Port
  • O-Ring Boss-10 Inlet Ports And O-Ring Boss-08 Return Port
  • Ideal For Converting From Fuel Injection To Carburetion Using The Stock, In-Tank Pump
  • Electronic Fuel Injection Conversions Will Require A Larger Than Stock Return Line For Proper Low Pressure Control
  • Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Pressure Regulator - 13254
Color Silver
Finish Nickel Plated
Fuel Type Gasoline
Gauge Port Yes
Includes Fittings No
Includes Mounting Brackets Yes
Inlet Attachment O-Ring Boss
Inlet Quantity Single
Inlet Size 5/8 Inch (-10 AN)
Outlet Attachment O-Ring Boss
Outlet Quantity Dual
Outlet Size 3/8 Inch (-6 AN)
Pressure Range (PSI) 3 To 15 Pounds Per Square Inch
Regulator Location Inline
Regulator Type Bypass
Return Port Size 1/2 Inch (-8 AN)
