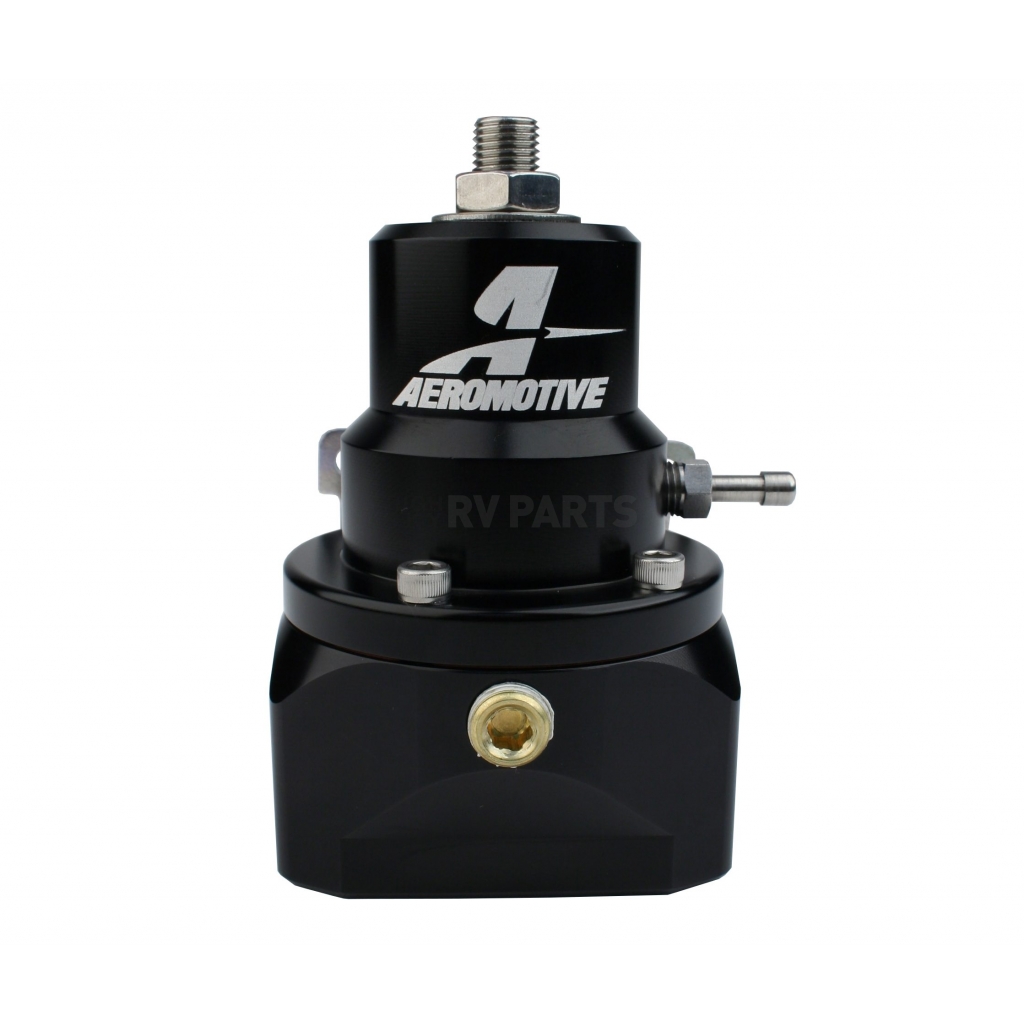

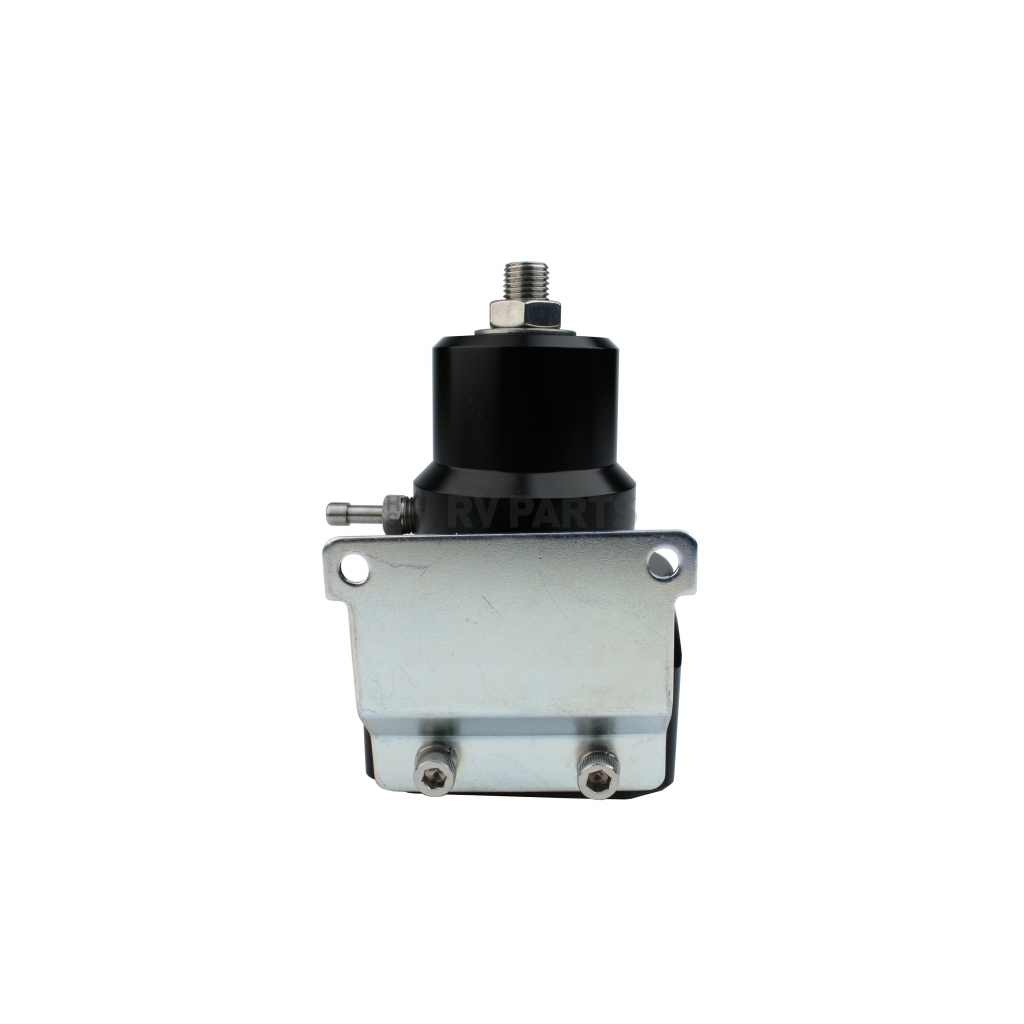

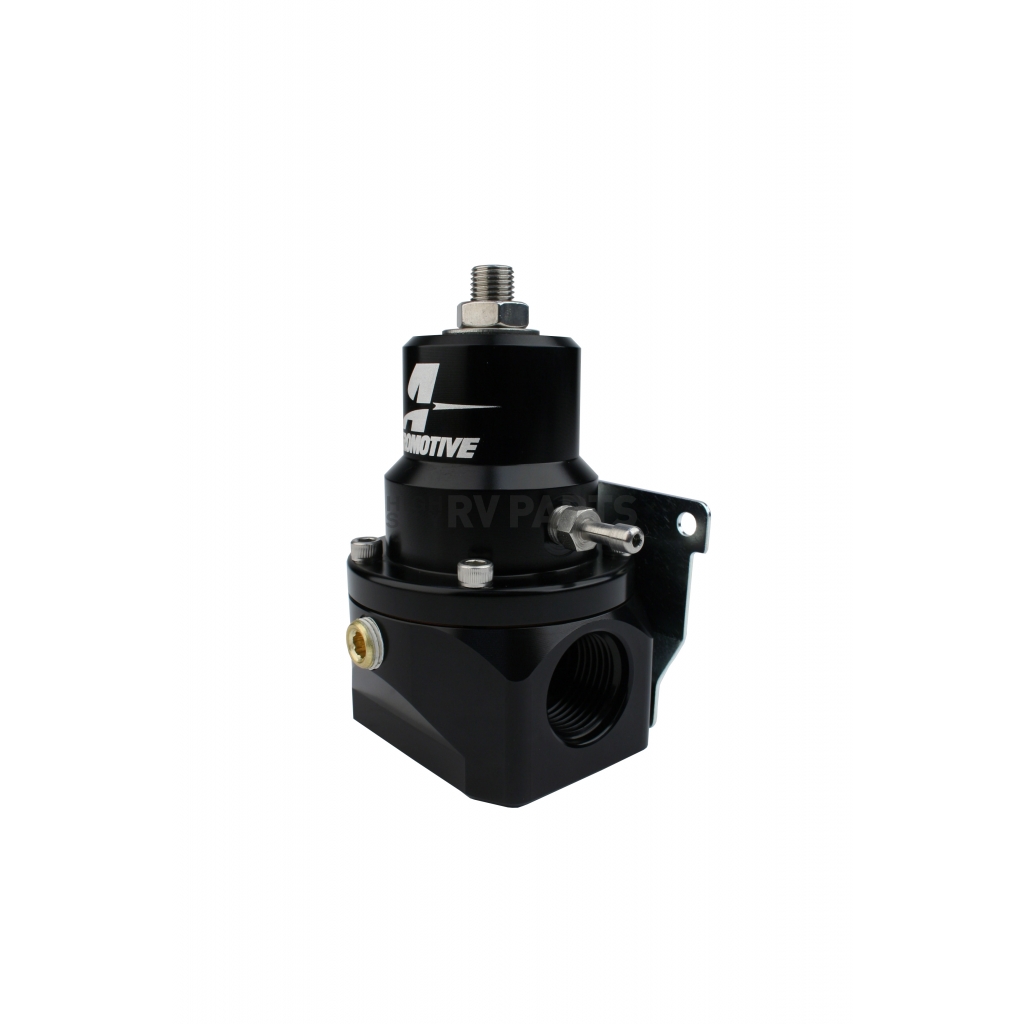

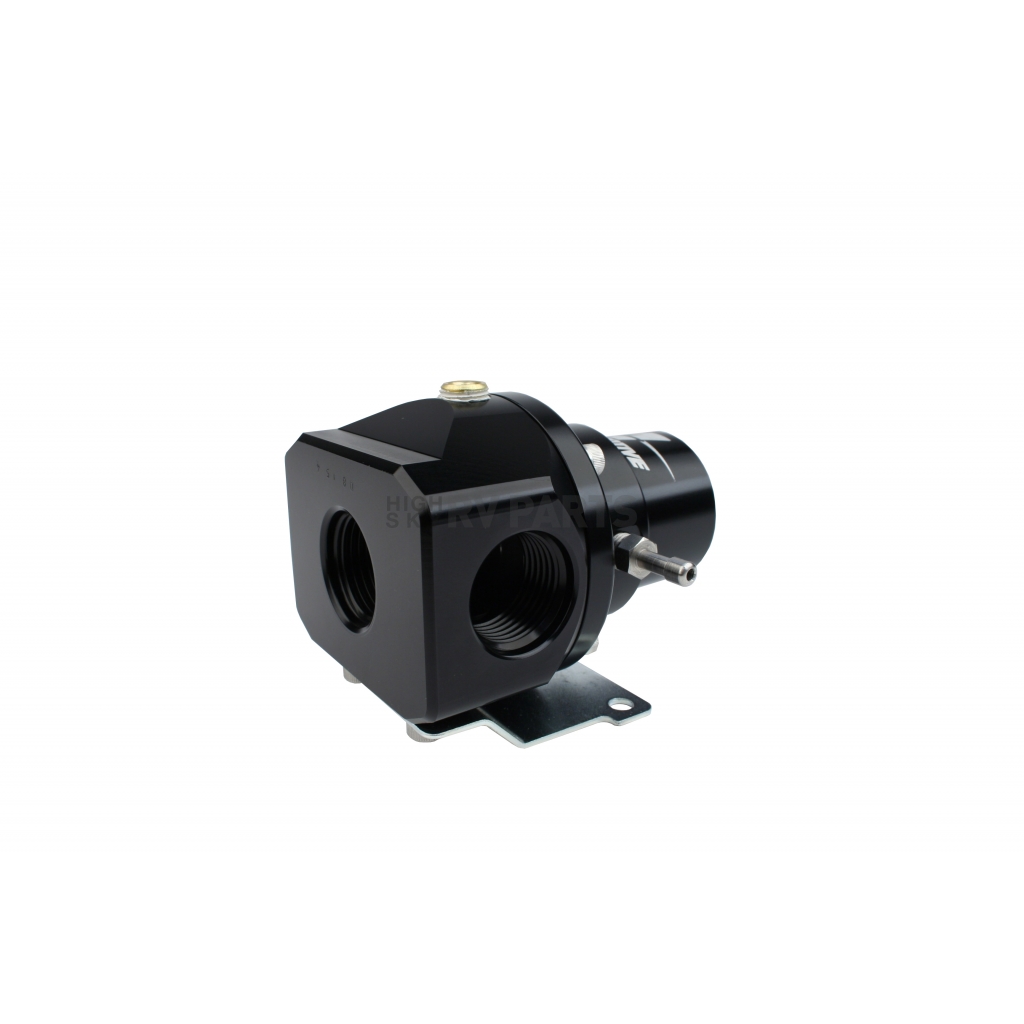

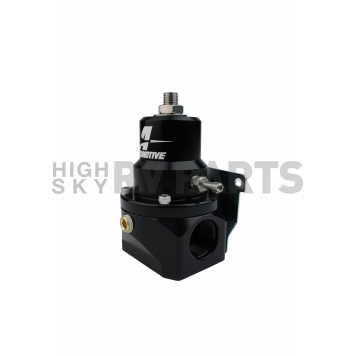

Aeromotive Fuel System Fuel Pressure Regulator - 13212

Brand: Aeromotive Fuel Aeromotive Fuel
0 reviews
  • Have a product question? Ask us
  • Part Number: 13212
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $363.29
Price: $345.99
You Save: $17.30
Color
Black
Finish
Anodized
Fuel Type
Gasoline/ Alcohol
Gauge Port
Yes
Includes Fittings
Yes
Includes Mounting Brackets
Yes
Inlet Attachment
Female O-Ring
Inlet Quantity
1
Inlet Size
5/8 Inch (-10 AN)
Material
Aluminum
Outlet Attachment
Female O-Ring
Share this page

Aeromotive Fuel System Fuel Pressure Regulator

Fuel Pressure Regulator; 2 PSI To 20 PSI

MPN: 13212

Dynamic flow and rock steady pressure make this regulator perfect for naturally aspirated or carbureted blow through applications. The A2000 bypass regulator provides unmatched boost reference and high flow capacity. Compatible with any high volume electric or mechanical fuel pump.
Fuel Type: Gasoline/ Alcohol
Pressure Range (PSI): 2 To 20 Pounds Per Square Inch
Regulator Location: Inline
Regulator Type: Return
Gauge Port: Yes
Inlet Attachment: Female O-Ring
Inlet Quantity: 1
Inlet Size: 5/8 Inch (-10 AN)
Outlet Attachment: Female O-Ring
Outlet Quantity: 1
Outlet Size: 5/8 Inch (-10 AN)
Includes Fittings: Yes
Includes Mounting Brackets: Yes
Return Port Size: 5/8 Inch (-10 AN)
Finish: Anodized
Color: Black
Material: Aluminum

Features

  • Adjustable Base Pressure From 2 To 20 PSI
  • Bypass Design Provides The Ultimate, Dynamic Fuel Pressure Control
  • Fuel Pressure Rises On A 1:1 Ratio When Referencing Boost
  • O-Ring Boss-10 Inlet And Return Ports
  • O-Ring Boss-10 Outlet Port
  • Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Pressure Regulator - 13212
Color Black
Finish Anodized
Fuel Type Gasoline/ Alcohol
Gauge Port Yes
Includes Fittings Yes
Includes Mounting Brackets Yes
Inlet Attachment Female O-Ring
Inlet Quantity 1
Inlet Size 5/8 Inch (-10 AN)
Material Aluminum
Outlet Attachment Female O-Ring
Outlet Quantity 1
Outlet Size 5/8 Inch (-10 AN)
Pressure Range (PSI) 2 To 20 Pounds Per Square Inch
Regulator Location Inline
Regulator Type Return
Return Port Size 5/8 Inch (-10 AN)
