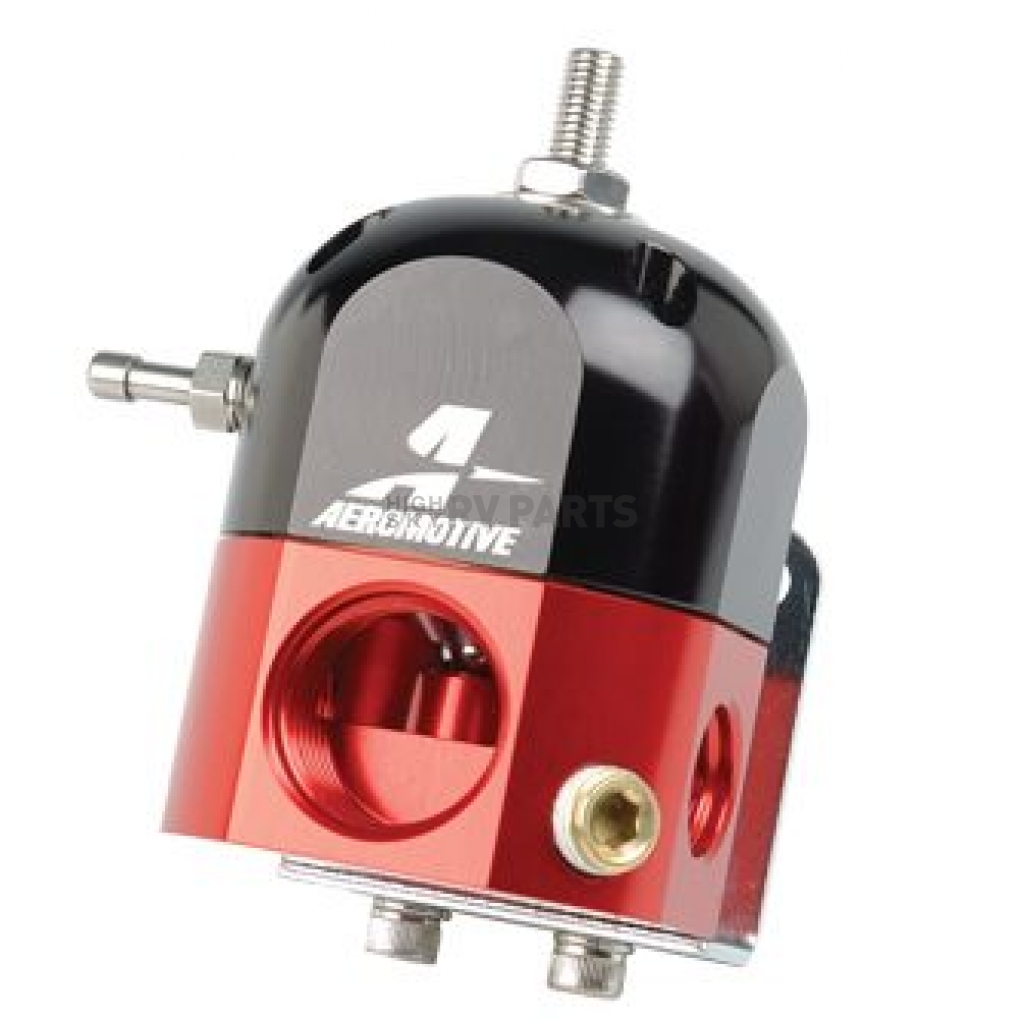

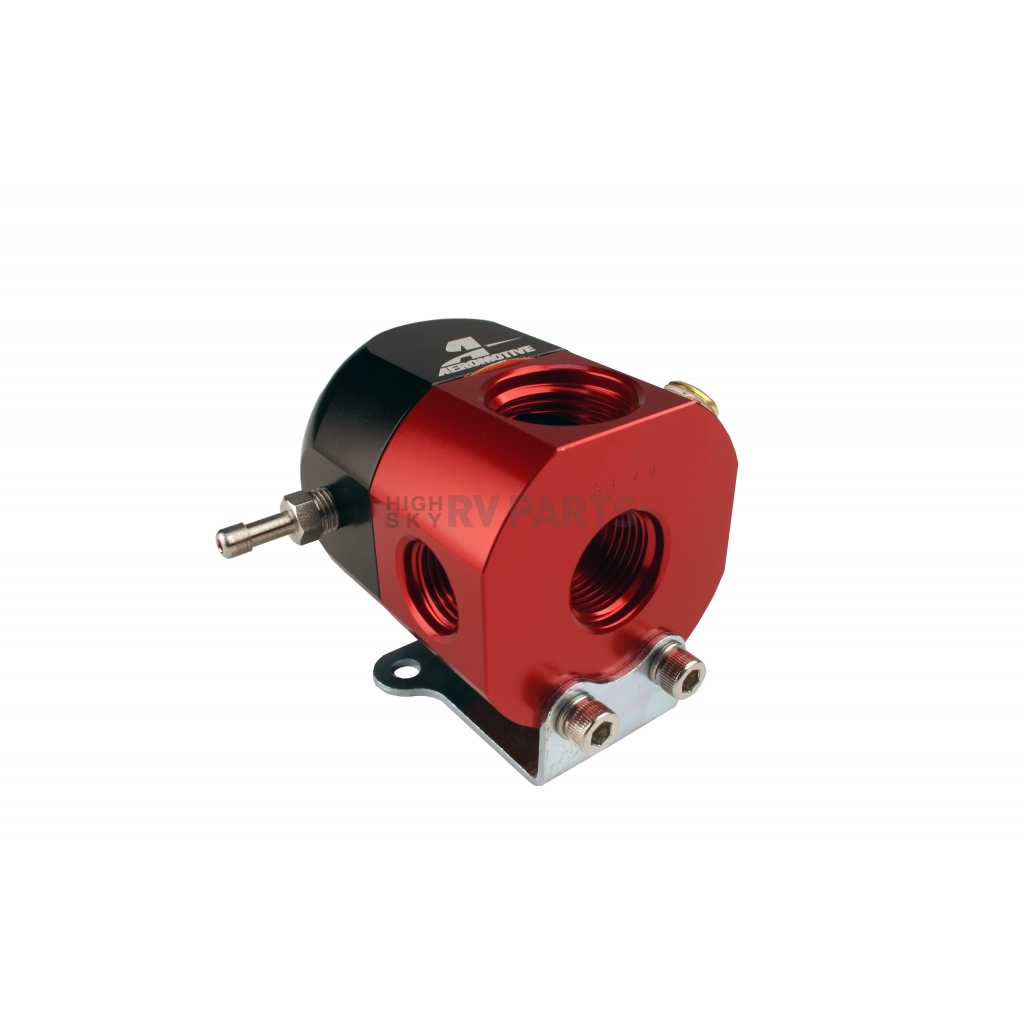

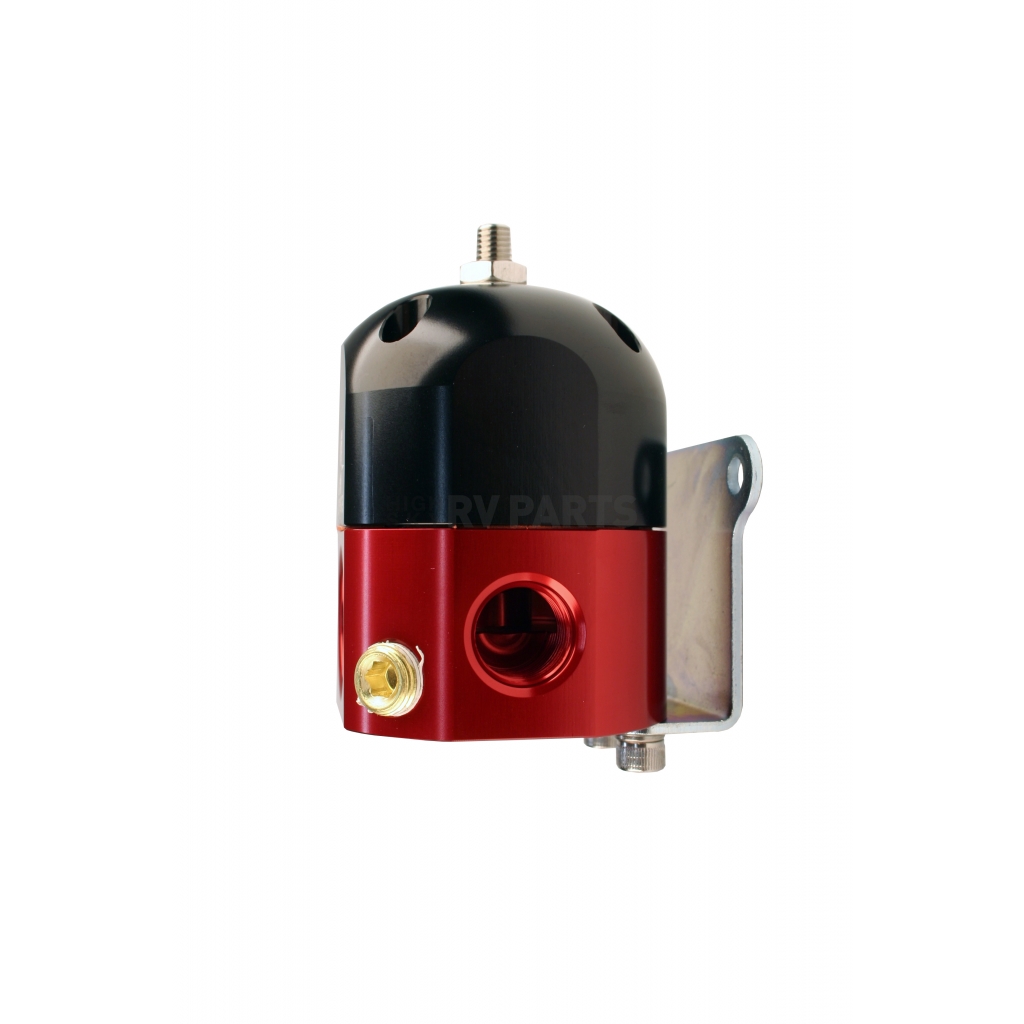

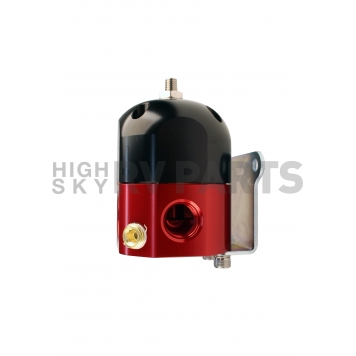

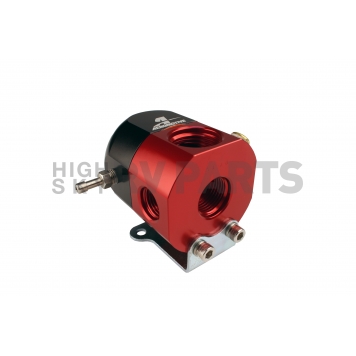

Aeromotive Fuel System Fuel Pressure Regulator - 13204

Brand: Aeromotive Fuel Aeromotive Fuel
0 reviews
  • Have a product question? Ask us
  • Part Number: 13204
  • Part Location: U.S.
  • Availability: 2 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 09
Retail: $244.64
Price: $232.99
You Save: $11.65
Color
Black Top And Red Base
Finish
Anodized
Fuel Type
Gasoline/ Alcohol
Gauge Port
Yes
Includes Fittings
Yes
Includes Mounting Brackets
Yes
Inlet Attachment
O-Ring Boss
Inlet Quantity
2
Inlet Size
5/8 Inch (-10 AN)
Material
Aluminum
Outlet Attachment
O-Ring Boss
Share this page

Aeromotive Fuel System Fuel Pressure Regulator

Fuel Pressure Regulator; 3 PSI To 15 PSI

MPN: 13204

The A1000 Bypass Regulators were designed for use with our A1000 and Eliminator Fuel Pumps or similar style EFI pumps in a carbureted application. These regulators are perfect for naturally aspirated or "Blow-Through" supercharged engines.
Fuel Type: Gasoline/ Alcohol
Pressure Range (PSI): 3 To 15 Pounds Per Square Inch
Regulator Location: Inline
Regulator Type: Return
Gauge Port: Yes
Inlet Attachment: O-Ring Boss
Inlet Quantity: 2
Inlet Size: 5/8 Inch (-10 AN)
Outlet Attachment: O-Ring Boss
Outlet Quantity: 2
Outlet Size: 3/8 Inch (-6 AN)
Shape: Oval
Includes Fittings: Yes
Includes Mounting Brackets: Yes
Return Port Size: 1/2 Inch (-8 AN)
Finish: Anodized
Color: Black Top And Red Base
Material: Aluminum

Features

  • Adjustable Base Pressure From 3 To 15 PSI
  • Bypass Design Provides The Ultimate, Dynamic Fuel Pressure Control
  • Fuel Pressure Rises On A 1:1 Ratio When Referencing Boost
  • O-Ring Boss-06 Outlet Ports And 1/8 Inch NPT Gauge Port
  • O-Ring Boss-10 Inlet Ports And O-Ring Boss-08 Return Port
  • Ideal For Converting From Fuel Injection To Carburetion Using The Stock, In-Tank Pump
  • Electronic Fuel Injection Conversions Will Require A Larger Than Stock Return Line For Proper Low Pressure Control
  • Limited Lifetime Structural Warranty; Limited 1 Year Finish Warranty And Limited 1 Year Parts Warranty
Specifications of Aeromotive Fuel System Fuel Pressure Regulator - 13204
Color Black Top And Red Base
Finish Anodized
Fuel Type Gasoline/ Alcohol
Gauge Port Yes
Includes Fittings Yes
Includes Mounting Brackets Yes
Inlet Attachment O-Ring Boss
Inlet Quantity 2
Inlet Size 5/8 Inch (-10 AN)
Material Aluminum
Outlet Attachment O-Ring Boss
Outlet Quantity 2
Outlet Size 3/8 Inch (-6 AN)
Pressure Range (PSI) 3 To 15 Pounds Per Square Inch
Regulator Location Inline
Regulator Type Return
Return Port Size 1/2 Inch (-8 AN)
Shape Oval
