Aeromotive Fuel System Fuel Pressure Regulator - 13203

Brand: Aeromotive Fuel Aeromotive Fuel
0 reviews
  • Have a product question? Ask us
  • Part Number: 13203
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $428.39
Price: $407.99
You Save: $20.40
Color
Black Top And Red Base
Finish
Anodized
Fuel Type
Gasoline/ Alcohol
Gauge Port
Yes
Includes Fittings
Yes
Includes Mounting Brackets
Yes
Inlet Attachment
Female Threads
Inlet Quantity
Dual
Inlet Size
5/8 Inch (-10 AN)
Material
Aluminum
Outlet Attachment
Female Threads
Share this page

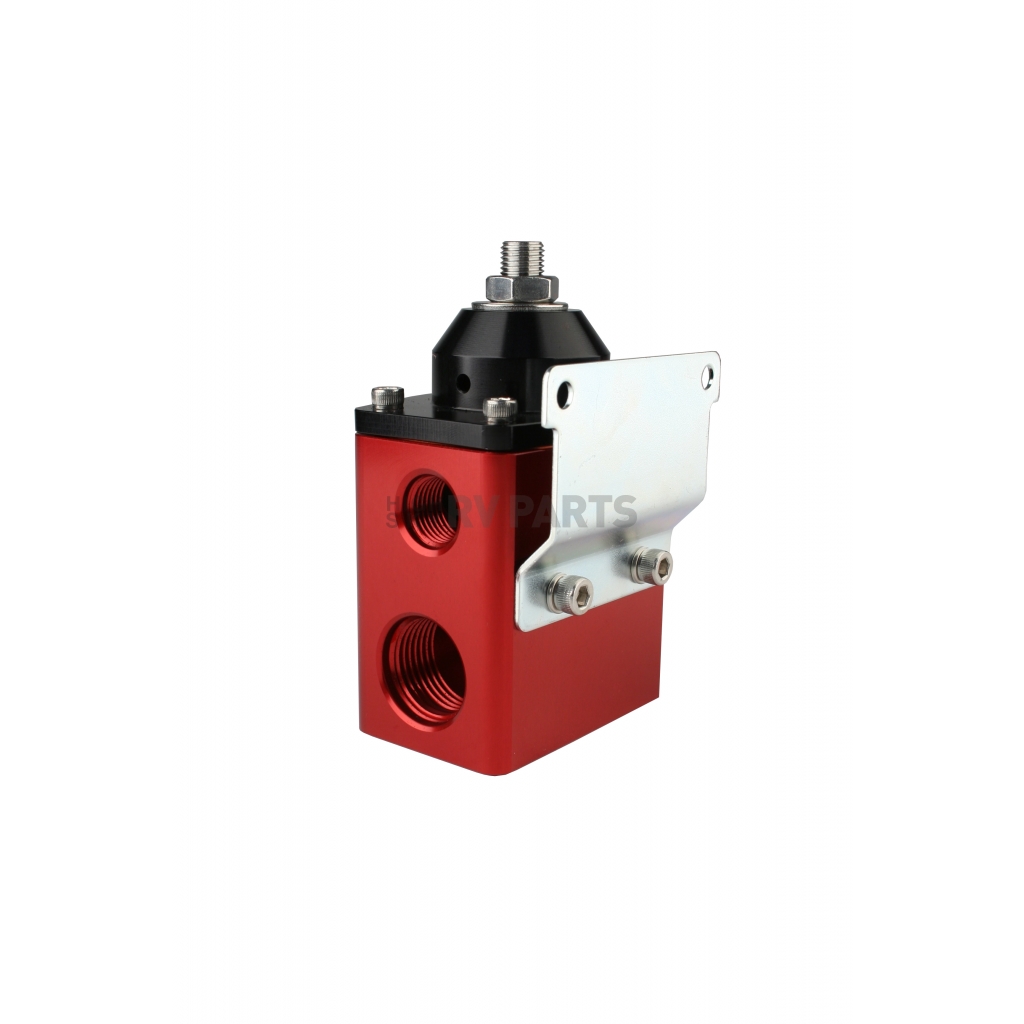

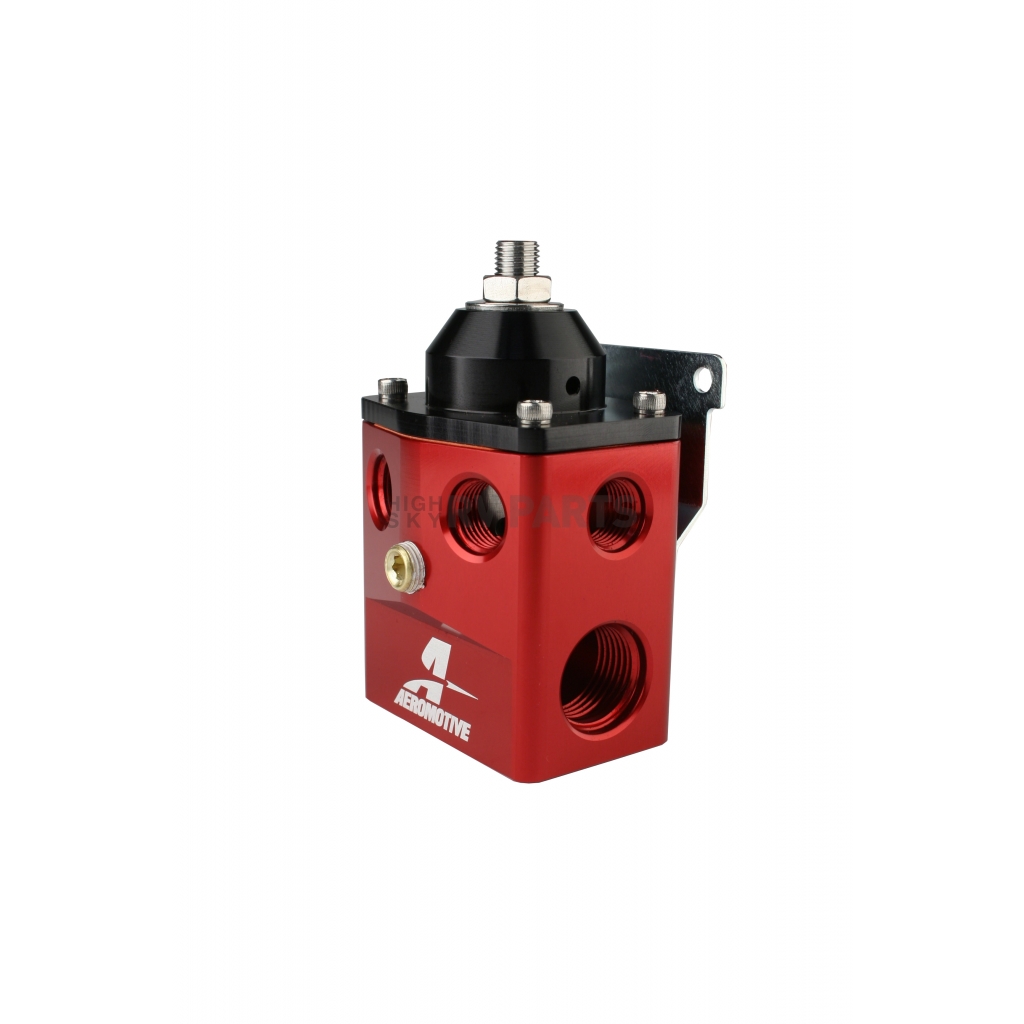

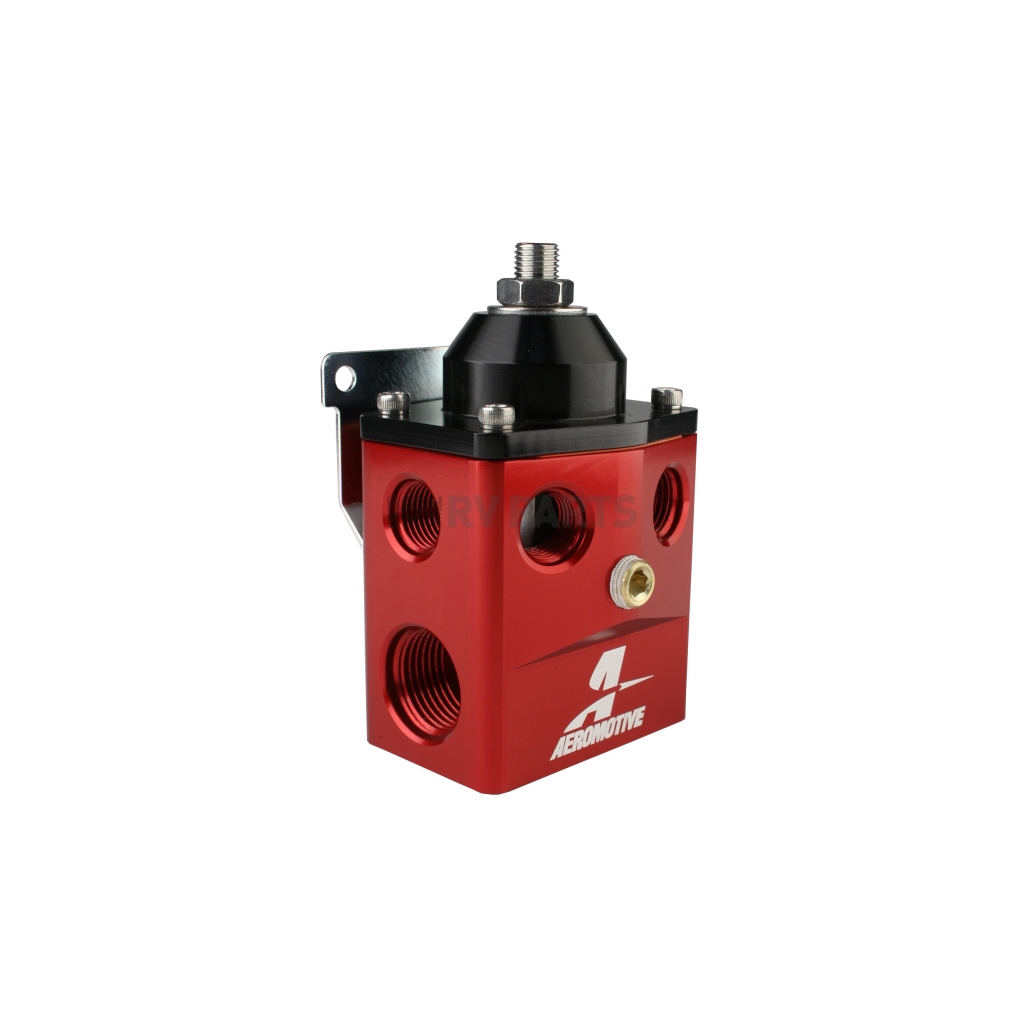

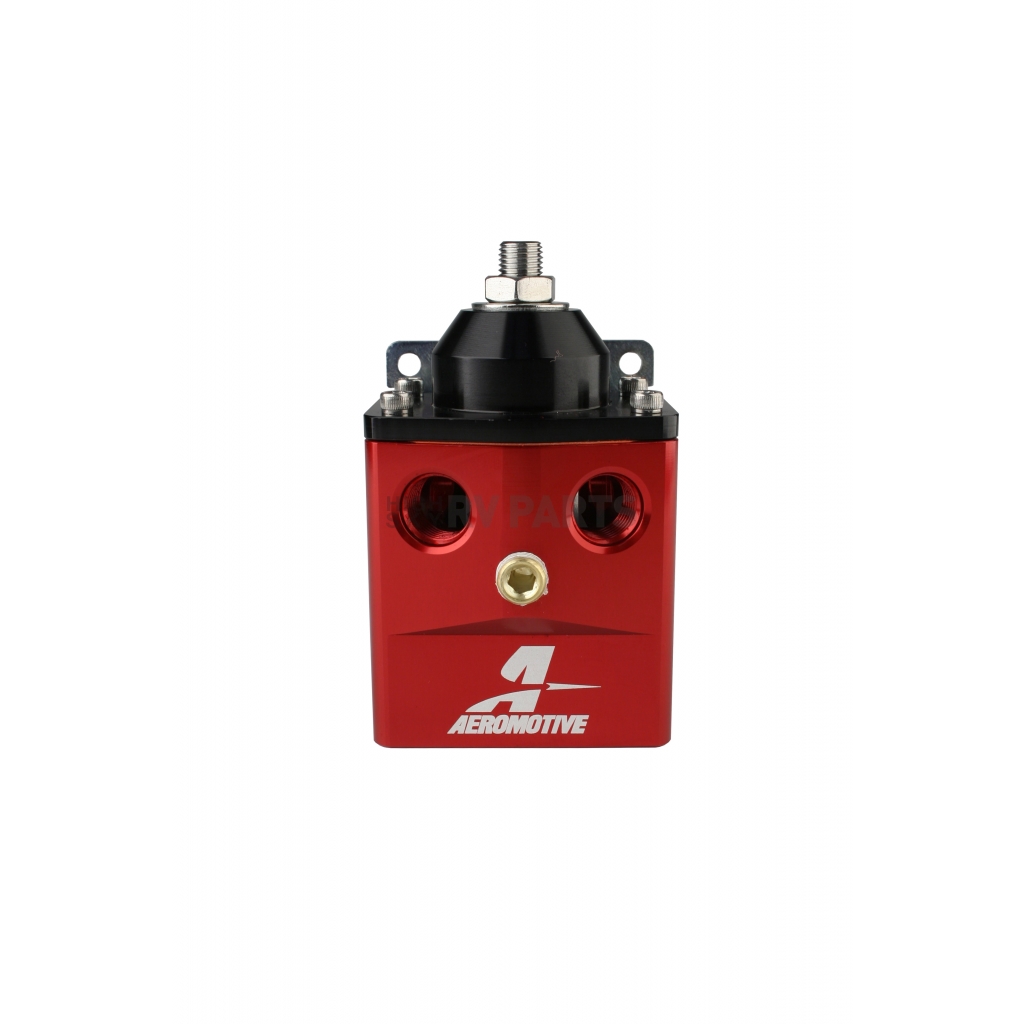

Aeromotive Fuel System Fuel Pressure Regulator

Fuel Pressure Regulator; 5 PSI To 15 PSI

MPN: 13203

The only four port regulator on the market that uses a "Soft-Seat" design, eliminating pressure creep at idle and, if used, on a throttle stop. Used by many of the best "Super" class racers in the world. This exclusive design ensures the precise pressure control needed for more consistent elapsed times.
Fuel Type: Gasoline/ Alcohol
Pressure Range (PSI): 5 To 15 Pounds Per Square Inch
Regulator Location: Inline
Regulator Type: Non-Return
Gauge Port: Yes
Inlet Attachment: Female Threads
Inlet Quantity: Dual
Inlet Size: 5/8 Inch (-10 AN)
Outlet Attachment: Female Threads
Outlet Quantity: Quad
Outlet Size: 3/8 Inch (-6 AN)
Includes Fittings: Yes
Includes Mounting Brackets: Yes
Return Port Size: No Return Port
Finish: Anodized
Color: Black Top And Red Base
Material: Aluminum

Features

  • Adjustable Base Pressure From 5 To 15 PSI
  • Gasoline And Alcohol Compatible
  • Standard Static Flow Design, No Return Line Required
  • O-Ring Boss-06 Outlet Ports And 1/8 Inch NPT Gauge Port
  • O-Ring Boss-10 Inlet Ports For Plumbing Flexibility
  • Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Pressure Regulator - 13203
Color Black Top And Red Base
Finish Anodized
Fuel Type Gasoline/ Alcohol
Gauge Port Yes
Includes Fittings Yes
Includes Mounting Brackets Yes
Inlet Attachment Female Threads
Inlet Quantity Dual
Inlet Size 5/8 Inch (-10 AN)
Material Aluminum
Outlet Attachment Female Threads
Outlet Quantity Quad
Outlet Size 3/8 Inch (-6 AN)
Pressure Range (PSI) 5 To 15 Pounds Per Square Inch
Regulator Location Inline
Regulator Type Non-Return
Return Port Size No Return Port
