Aeromotive Fuel System Fuel Pressure Regulator - 13137
Color
Black
Gauge Port
No
Includes Mounting Brackets
Yes
Inlet Attachment
Female Threads
Inlet Quantity
Dual
Inlet Size
3/4 Inch (-12 AN)
Material
Aluminum
Outlet Attachment
Female Threads
Outlet Quantity
Dual
Outlet Size
3/4 Inch (-12 AN)
Pressure Range (PSI)
30 To 120 Pounds Per Square Inch
Share this page

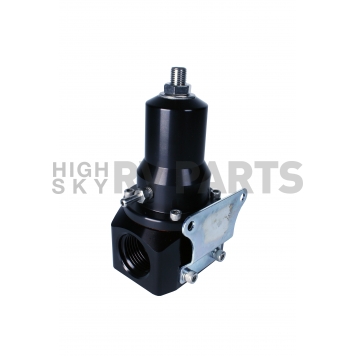

Aeromotive Fuel System Fuel Pressure Regulator
Fuel Pressure Regulator; 30-120 PSI; Dual AN-12 Inlet/ Outlet Ports/ AN-12 Return Port; Black; Aluminum
MPN: 13137
Pressure Range (PSI): 30 To 120 Pounds Per Square Inch
Regulator Type: EFI
Gauge Port: No
Inlet Attachment: Female Threads
Inlet Quantity: Dual
Inlet Size: 3/4 Inch (-12 AN)
Outlet Attachment: Female Threads
Outlet Quantity: Dual
Outlet Size: 3/4 Inch (-12 AN)
Shape: Rectangular
Includes Mounting Brackets: Yes
Return Port Size: 3/4 Inch (-12 AN)
Color: Black
Material: Aluminum
Features
- Designed For Use With Belt Or Hex Drive Fuel Pumps
- Compact, 2-Port Body
- 0.500 High-Flow Valve/Seat, Able To Handle 7 To 26 Gallons Per Minute

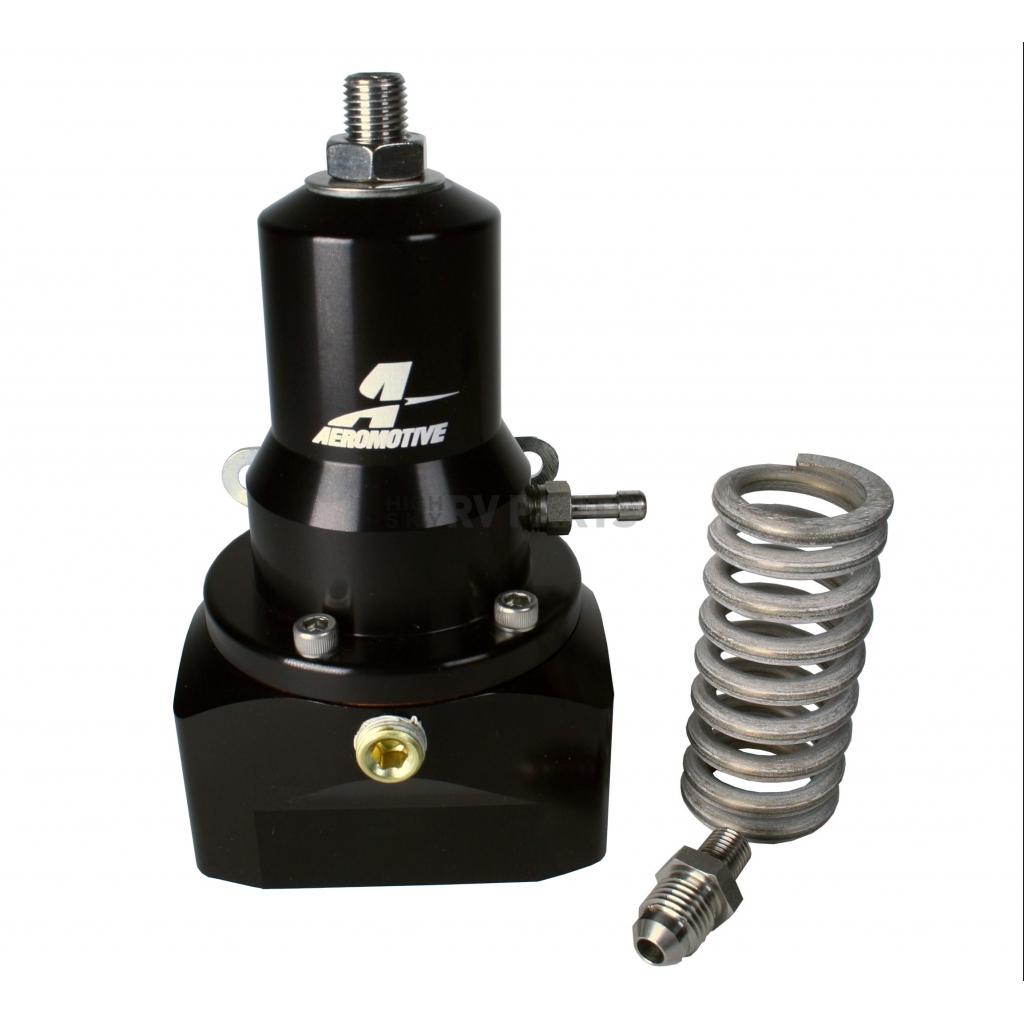

- Dual Springs Expand Operating Pressure Range While Maintaining A Low Profile And Reduced Weight
- Standard Spring Supports 30 To 75 PSI Base Fuel Pressure
- Supports Vacuum And Boost Reference On A 1:1 Ratio With PSI
- Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Pressure Regulator - 13137 | |
Color | Black |
Gauge Port | No |
Includes Mounting Brackets | Yes |
Inlet Attachment | Female Threads |
Inlet Quantity | Dual |
Inlet Size | 3/4 Inch (-12 AN) |
Material | Aluminum |
Outlet Attachment | Female Threads |
Outlet Quantity | Dual |
Outlet Size | 3/4 Inch (-12 AN) |
Pressure Range (PSI) | 30 To 120 Pounds Per Square Inch |
Regulator Type | EFI |
Return Port Size | 3/4 Inch (-12 AN) |
Shape | Rectangular |
